The front-front suspension mount sits between the front of the gearbox and the front shock tower, and it's what holds your front suspension geometry where it should be. The stock composite version survives most things, but a hard front-on impact will crack or flex it — and once it does, camber and toe wander under load.

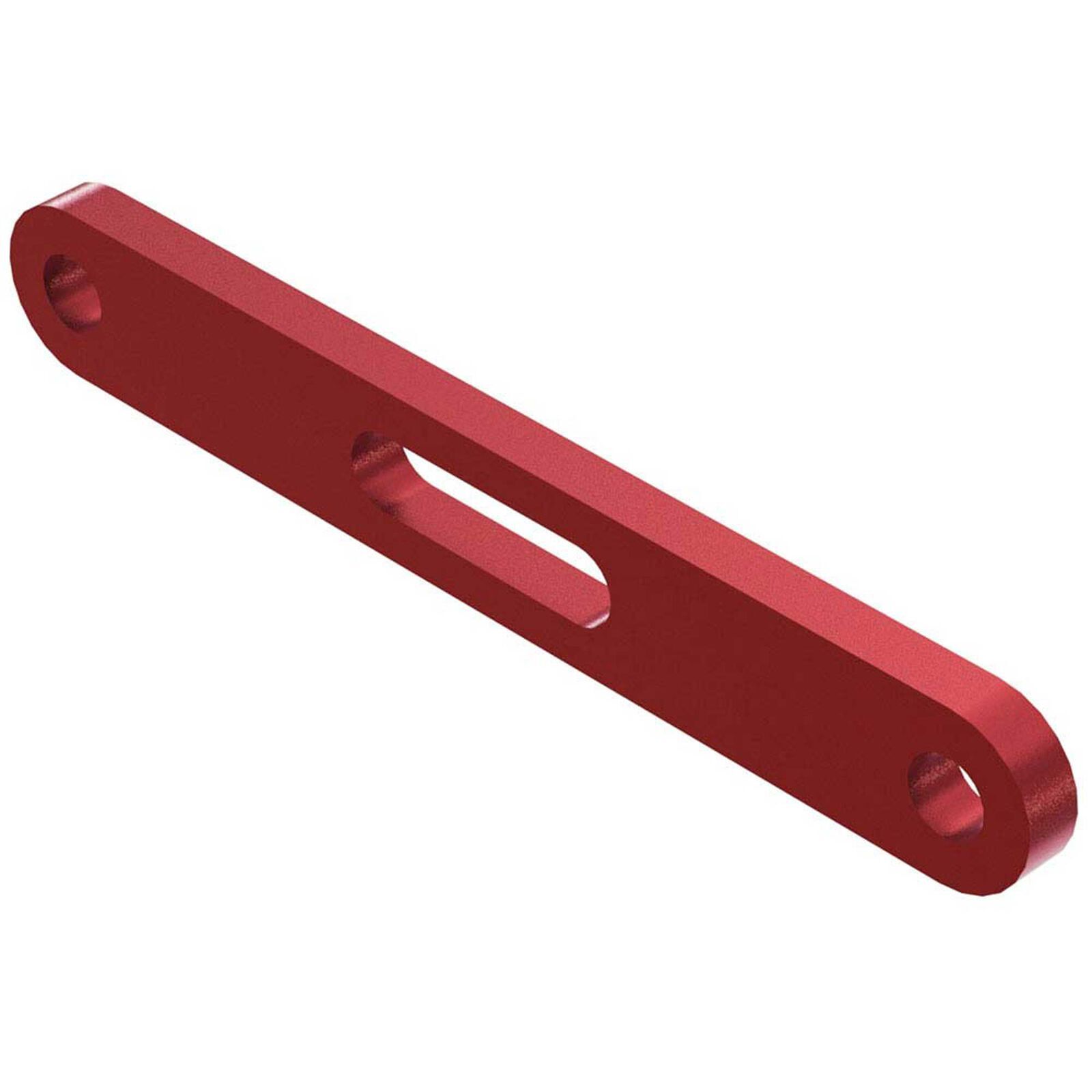

This is Arrma's red anodised aluminium version: stiffer than composite, and a straight bolt-in replacement.

Machined aluminium, not composite

Precision-machined aluminium for reduced weight and a consistent, repeatable fit. Where a flexed composite mount lets the suspension move under cornering and landing loads, the alloy version holds its geometry. Per Arrma.

Red anodised finish

Anodised in Arrma red — for looks, but the anodising also adds surface hardness and corrosion resistance. Per Arrma.

Direct replacement

Precision-manufactured mounting holes, no modification or shimming needed. Bolts straight into the kit-fitted position.

Key Features

• Genuine Arrma aluminium (aluminum) front-front suspension mount
• Red anodised finish
• Stiffer alternative to the composite kit part
• Precision-manufactured for consistent fit
• Direct replacement — no modification required
• Fits both brushed and brushless 4X4 vehicles

What's in the Box

1 × Aluminium FF suspension mount, red

Needed to Complete

Mount only. Screws and hardware are not included — reuse the ones from your existing mount. You'll need hex drivers to swap it over. If you're replacing this mount because of a front-end impact, check the hinge pins and front arms at the same time.

Fits the Arrma 4X4 platform (per Arrma)

Fits both brushed and brushless 4X4 vehicles — no need to match your motor type. Note the Typhon models are 1/8 scale while the rest are 1/10; all share the same 4X4 chassis platform.

Specifications

Brand: Arrma
Part Number: AR330444
Alternative Part Numbers: ARA330444, ARAC9067 (Horizon orderable)
Part Type: Front-front (FF) suspension mount
Position: Front, between front gearbox and front shock mount
Material: Anodised aluminium
Colour: Red
Quantity: 1
Barcode: 5052127027519

Check the part number before ordering

Arrma sells several similarly named suspension mounts. AR330444 is the 4X4 platform version listed above. ARA320589 and ARAC9046 carry near-identical names but are different parts for different vehicles. Order by part number, not by description.
