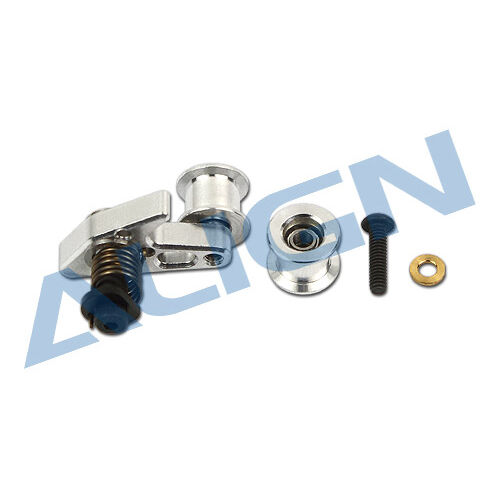

Instruction

  • Compatible with TB40.
  • Fully CNC-machined from 6061-T6 aluminum alloy.
  • Belt tension can be adjusted through the adjustment hole on the pressure roller arm, making belt adjustment easier and more convenient.

Specifications

  • TB40 pulleys × 2
  • 681ZZ-D2 bearings x 4 (Φ2 x Φ4.5 x 2mm)
  • Washers x 2 (Φ2 x Φ3.6 x 0.5mm)
  • TB40 tail link head copper bushing 1.5 x 1 (Φ.1 x Φ3 x 1.5mm)
  • TB40 belt pressure pulley arm × 1
  • TB40 belt pressure pulley column × 1 (Φ2 x Φ27.8 x 5mm)
  • TB40 belt guide copper bushing × 1 (Φ2 x Φ4 x 0.5mm)
  • TB40 belt guide spring × 1 (Φ4.5 x Φ5.5 x 10mm)
  • FMR52ZZ bearings × 2 (Φ2 x Φ5 x 2.3mm)
  • Hexagon socket head cap screw × 1 (M2 x 14mm)
SKU HB40B022XXW
Barcode # 4713413735419
Brand Align
Shipping Weight 0.0200kg
Shipping Width 0.080m
Shipping Height 0.030m
Shipping Length 0.120m
Shipping Cubic 0.000288000m3
