The Tamiya 70100 Track and Wheel Set is designed to be used in conjunction with multiple Tamiya products. You can use a Tamiya Universal Plate Set for mounting the wheel and sprocket shafts and a Tamiya gearbox to drive the sprockets. The varying track length, sprocket, and wheel sizes allow for flexibility when designing your own robot.

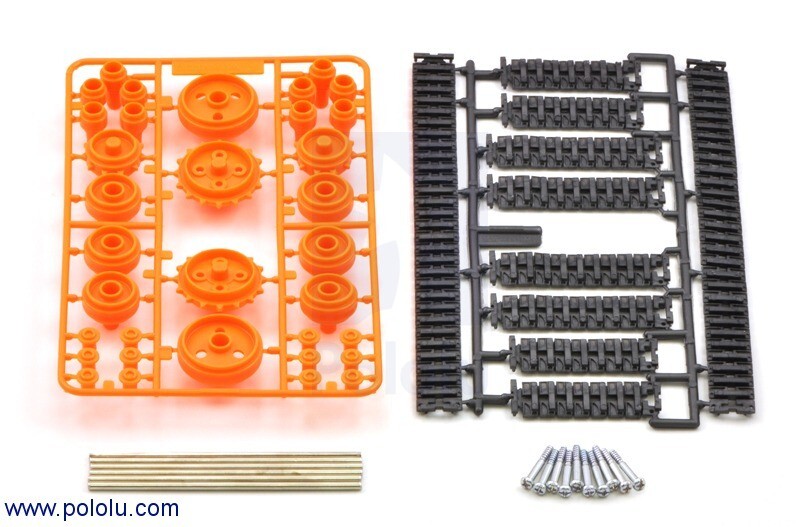

INCLUDED PARTS

• Two 30-link tracks
• Four ten-link tracks
• Four eight-link tracks
• Two large drive sprockets
• Two small drive sprockets
• Two idler wheels
• Six large road wheels
• Ten small road wheels
• Twelve wheel caps
• Five 3 x 100 mm round shafts
• One 3 x 100 mm hexagonal shaft
• Ten 3 x 21 mm tapping screws

EXAMPLE SET UP

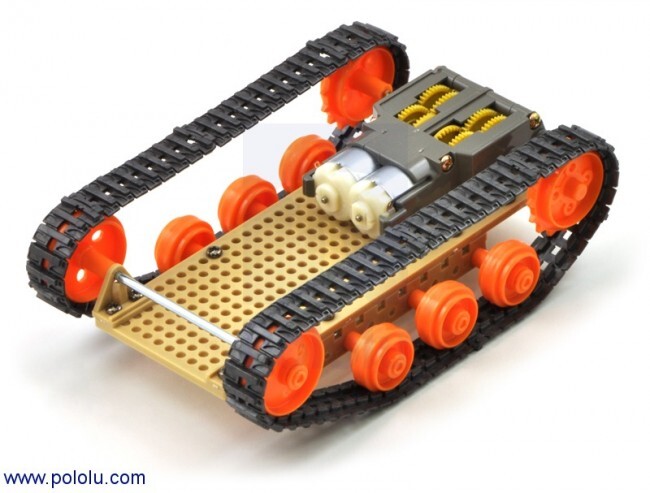

Use the Track and Wheel Set in combination with the Tamiya Universal Plate Set and the Twin-Motor Gearbox Kit to make a tank-style robot chassis.
