The Biggest BEC on the Block!

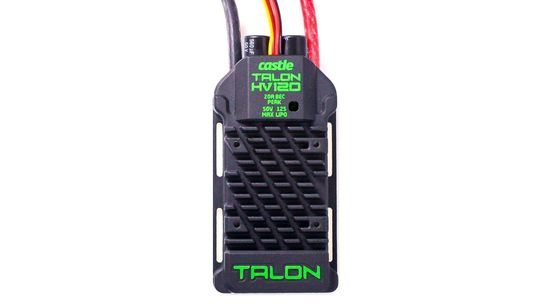

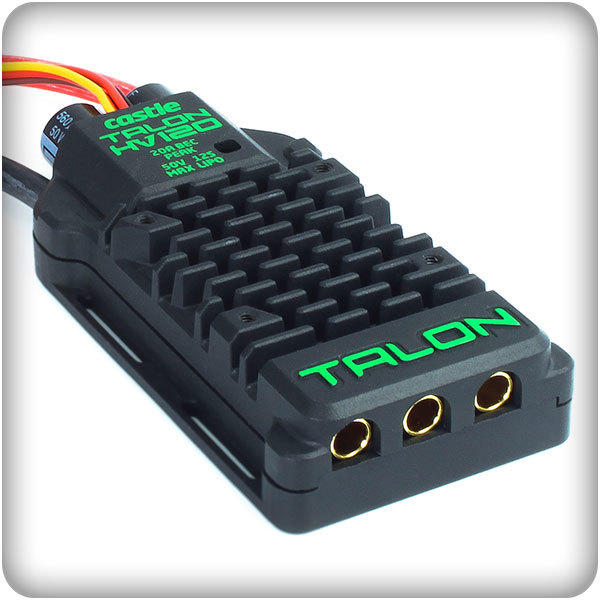

Talon HV 120 is the first high voltage controller to come out of the Castle factory with a built-in BEC. This powerhouse features a 20A peak BEC with selectable 6v or 8v output voltage. With a voltage input range from 3S to 12S LiPo, and a 120A continuous amperage capability, it’s capable of up to 6000W of continuous power for a wide variety of heli and fixed wing applications. The sleek aluminum case keeps the ESC cool during high power demand situations. For set-ups with limited airflow, such as under canopies or in a fuselage, there is an optional 40mm fan (sold separately; operates at 4.8 - 7.4 volts). Talon HV 120 has access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included)*.

  • Telemetry Capable : Yes
  • ESC Current Rating : 120
  • Data Logging : No
  • Auxiliary Wire : No
  • Internal BEC : Yes
  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 12S

Specifcations

Input Voltage Range: MIN: 3S LiPo
MAX: 12S LiPo
Max Continuous Amperage at full throttle: 120 amps*
Max Voltage: 50.4V
BEC Voltage: User selectable choice of 6 or 8 volts output
BEC Output: 20 amp peak**
10 amp continuous
(always check servo draw prior to first flight)
Size: Width: 2.01" (51.1mm)
Length: 4.15" (105.4mm)
Depth: 0.80" (20.4mm)
Weight (w/wires): 6.56 oz. (186g)
Connectors: Built-in 5.5mm female bullets, matching 5.5mm male bullets included, battery connector sold separately.
Items Needed for Operation:
  • Battery connectors (sold separately)
Product Use Statements: N/A
Application Guidelines: N/A
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: Yes, except Battery Current
Tech Notes: N/A



Product Features

Power System Alerts:

The Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.

Telemetry Capable:

Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio.

Warranty:

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

Programmability:

Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. ( A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Firmware Upgrade:

Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit




Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller.Castle Link includes all code for all Castle Link compatible hobby products in one convenient download. Note: Castle Link software requires a Castle Link USB Adapter and a computer that is running Windows. Castle Link is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10.Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8, or Windows10 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations

Additional Castle Link benefits include:
  • Access expanded programming and parameters for Castle controllers (see overview below)
  • Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
  • Intuitive Demo Mode capability
  • Ability to default ESC to factory settings
  • Ability to save setup profiles for later use
  • Ability to download and view data logs (on applicable controllers)
Talon/Talon HV Castle Link Settings Overview
Throttle Vehicle Type: Airplane Helicopter Control Line External Governor
Throttle type: Auto-Calibrating Throttle Fixed-Endpoints Governor Mode: Fixed-Endpoints
Fixed-Endpoints Governor Mode:
  • Simple
  • Gov Low/High
  • Set RPM
  • Simple
  • Gov Low/High
  • Set RPM

Brake:
  • Brake Strength
  • Brake Ramp
  • Brake Delay
N/A
  • Brake Strength
  • Brake Ramp
  • Brake Delay
N/A
Cutoffs:
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Auto-LiPo Volts/Cells
  • Cutoff Voltage
  • Voltage Cutoff Type
  • Auto-LiPo Volts/Cells
Motor:
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
  • Start Power
  • Timing
  • Direction
  • PWM Rate
Other:
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage
  • Power-On Beep
  • Link Live Enable
  • BEC Voltage




SKU CSE010013100
Barcode # 0819326010705
Brand Castle Creations
Shipping Weight 0.3000kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.080m
Shipping Cubic 0.000320000m3
