KEY FEATURES

  • Battery checker with built in cell balancing
  • Advanced Servo testing feature helps with model setup
  • Spektrum Smart battery technology allows users to take advantage of Smart Battery features
  • Easy to read full color display
  • Qualcomm 3.0 compatible USB power port with Quick Charge for compatible Android and IOS devices (up to 12v and 2 amps)
  • Update port for easy access to updates and new features

OVERVIEW

The Spektrum XBC100 Smart Battery Checker is a must have tool for any pilot or drivers pit box. More than a battery checker, it features a built-in cell balancer, integrated servo tester and driver, and Spektrum Smart battery connectivity.

When used with a Spektrum Smart battery, you will be able to see and adjust many of the settings only available with a Spektrum Smart charger. This includes one connection for balance and battery level checking, and providing records like number of cycles, internal battery temperature and exception reports. You can even adjust Smart battery settings right from the XBC100.

The XBC100 also features a Qualcomm 3.0 USB charge port, giving you an easy way to keep your mobile device and Spektrum Smart Transmitters charged when USB power ports are scarce. Better yet, the XBC100 gives you the ability to better setup and test your models with the built in servo tester! Center and test your servo endpoints easily with the integrated PWM output port.

Finally, all of this is displayed on a full color IPS LCD screen that is designed to be easy to read in direct sunlight and is accessed via a user friendly touch interface.

VIDEO

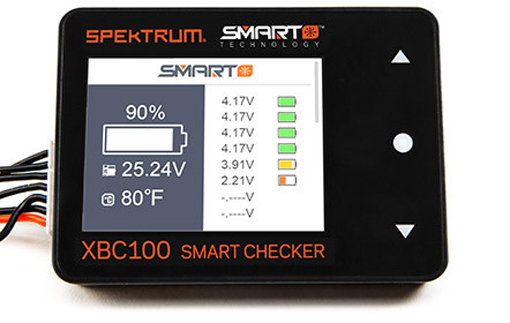

More than a Balance Checker

Pilots and Drivers can stay better informed about their Lipo, LiHv, LiFe and LiIon Batteries with the Spektrum XBC100 Smart Battery Checker. With the Easy to read full color IPS LCD display, quickly see the battery percentage, cell balance, and be notified of abnormal conditions. And if your battery cells are out of balance, the XBC100 can conveniently balance each of your Battery cells to within ±0.005V accuracy.

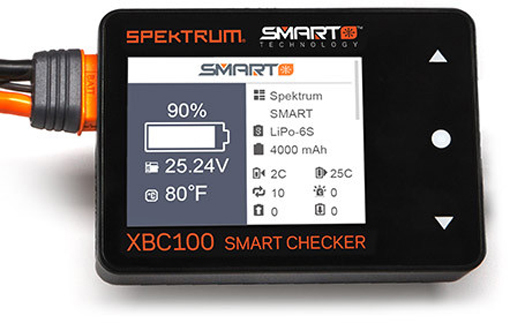

Smart Battery Connectivity

The XBC100 gives Smart Battery users a simple to use battery checker that gives all the benefits of a balance checker with just one connection of the iC3 connector. And when connected to a Smart Battery, users can check all the integrated parameters such as number of cycles, events such as over discharge and overheating, as well as adjust smart battery settings like auto storage timer and preset charge current.

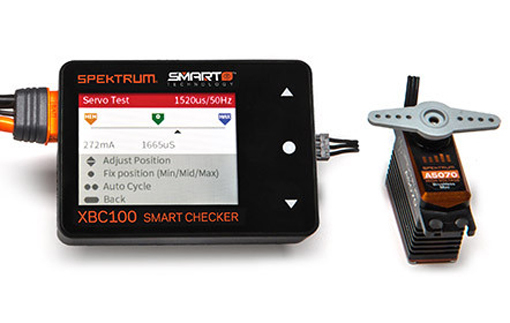

Integrated Servo Tester

Built in to the XBC100 Smart Battery Checker is a helpful pwm out port that is facilitated to be used as a Servo tester. Easily check your control ranges on any modern servo or esc. Users can Test for binding and current draw right from the checker, no special in line meter required.

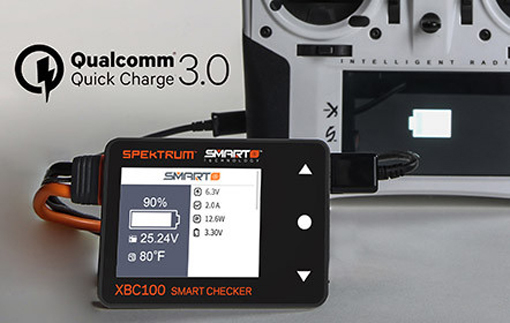

Qualcomm ® 3.0 USB Charge Port

Keep your device charged and ready with the convenient USB power port. Just plug in a charged battery and hit start USB Charging and the XBC100 becomes a fast charging power bank ready to keep your Spektrum Smart Transmitter and mobile devices charged. Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.



OVERVIEW

SPECIFICATIONS

Working voltage: 5.0V-36V
Input voltage 1s : 0.8V-15V
Input voltage 2-8S : 0.8V-4.8V
Battery cells : 1-8S
Voltage measurement accuracy : ±0.005V @ 4.2V
Balancing cells accuracy : < 0.005V
Support USB charging : QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Support smart battery : Charging and discharging setting, read battery info and usage history.
Supported Batt. Type : LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
Display : 2.4〃320×240 260,000 color IPS LCD
Dimension : 80 X 55 X 19 mm
Weight : 59g
Operating Temperature: 0-40℃
Working Humidity: 10%-90%RH (noncondensing)
Storage Temperature: -20-60℃
Storage Humidity: 5%-90%RH (noncondensing)
Servo PWM Output Hz: 1520uS = 50Hz / 760uS = 333Hz




SKU SPMXBC100
Barcode # 0605482296721
Brand Spektrum
Shipping Weight 0.6000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3

Essential for any Gen2 Spektrum Lipo battery user

19 November 2021
Portable. Quality screen and easy to use. Very satisfying. Use after every flight to get an accurate reading. Shows percentage of battery life left which is good for a someone like me who doesn't yet understand the meaning of voltages.
