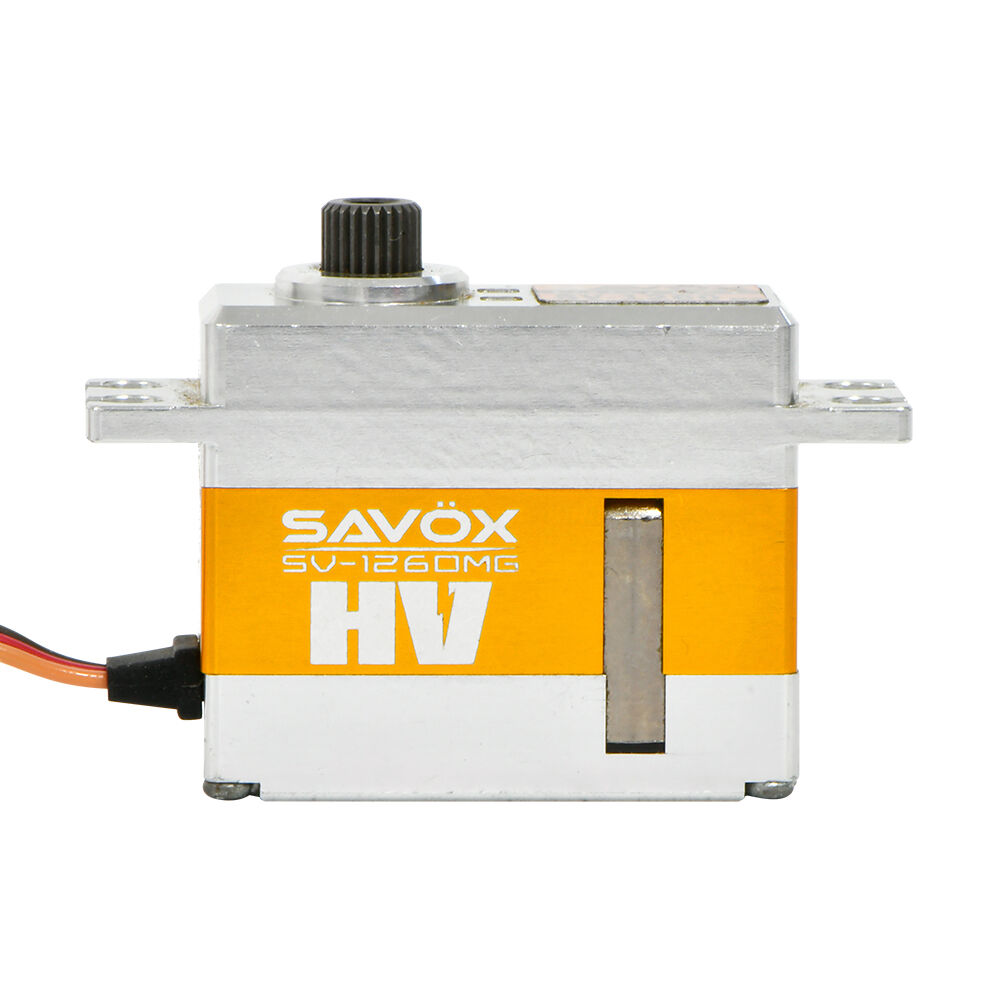

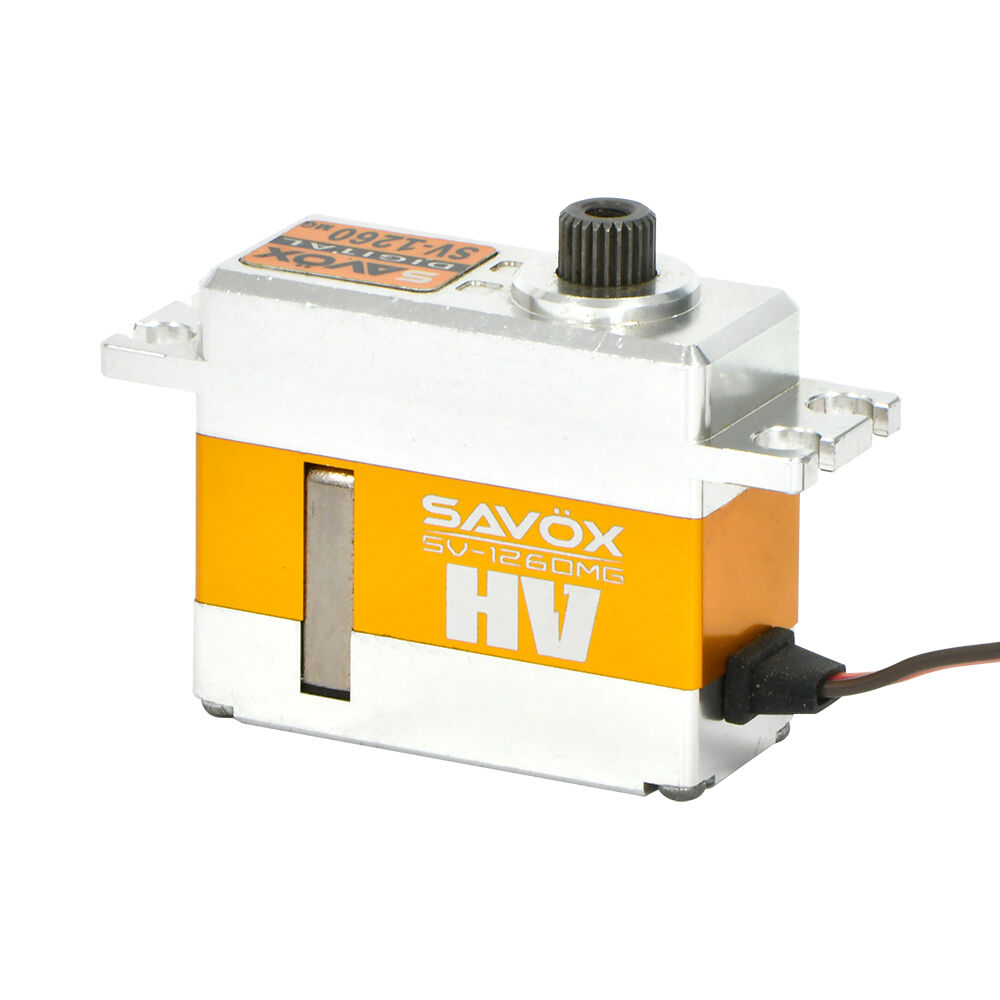

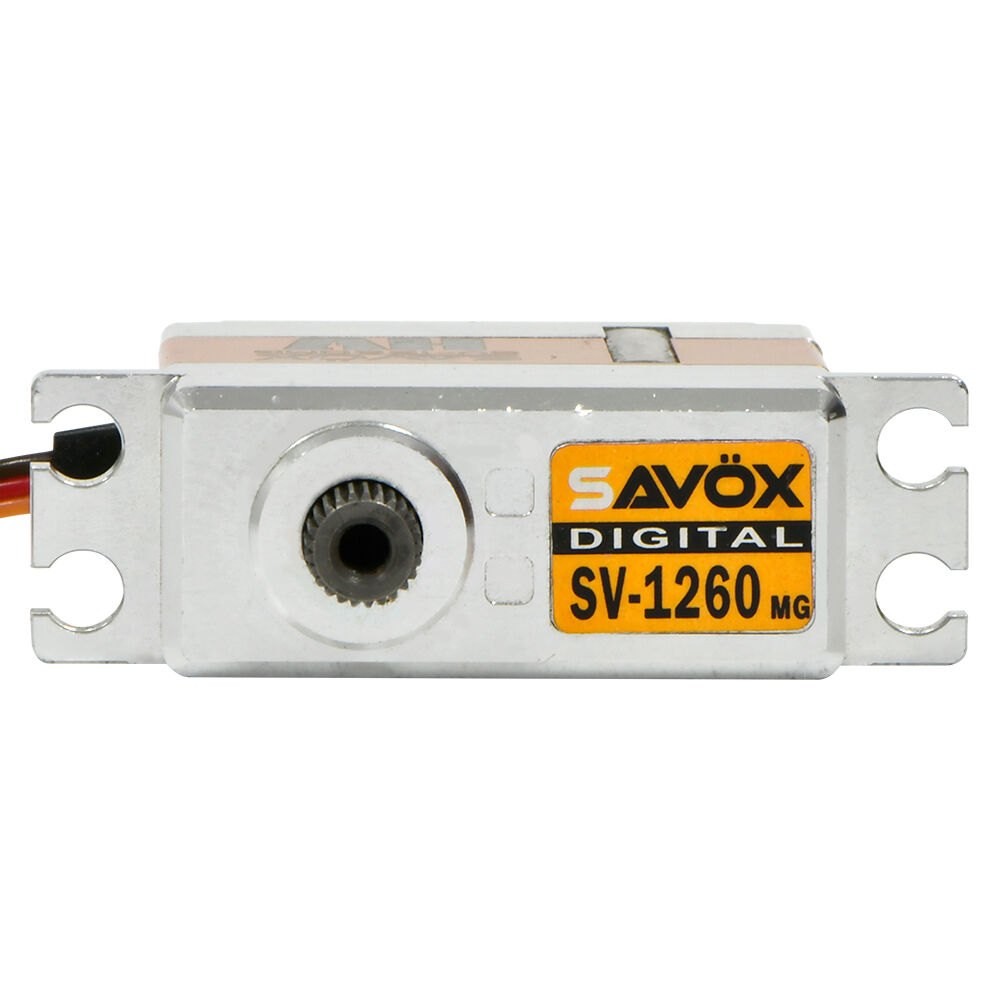

The Savox SV-1260MG is a mini digital high voltage servo designed for RC applications that need strong torque, very fast response and a compact fitment. Producing up to 15.0kg-cm of torque at 8.4V with an ultra-fast 0.048 sec/60° transit speed, it is a powerful option for cars, helicopters, aircraft and other compact high-performance RC models.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a full aluminium case, the SV-1260MG delivers strong holding power, smooth response and excellent durability in a compact 40g package. Its high voltage capability allows stronger and faster performance from compatible 6.0V–8.4V receiver power systems, while the aluminium case helps with strength and heat dissipation.

The SV-1260MG also features a 25T output spline, 12-bit PCB board, dust-resistant protection and a standard JR connector. It is a premium mini HV servo for customers needing a compact servo with serious torque and super-fast response.

Features

• Mini digital high voltage servo
• Up to 15.0kg-cm torque at 8.4V
• Ultra-fast 0.048 sec/60° speed at 8.4V
• Coreless motor for smooth, responsive performance
• Heavy-duty metal gears for strength and durability
• Full aluminium case for strength and cooling
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Dust-resistant protection
• Suitable for RC cars, helicopters, aircraft and compact high-performance applications

Specifications

Model: SV-1260MG
Servo Type: Mini digital high voltage servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 6.0V: 8.0kg-cm
Torque @ 7.4V: 12.0kg-cm
Torque @ 8.4V: 15.0kg-cm
Speed @ 6.0V: 0.065 sec/60°
Speed @ 7.4V: 0.055 sec/60°
Speed @ 8.4V: 0.048 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Aluminium

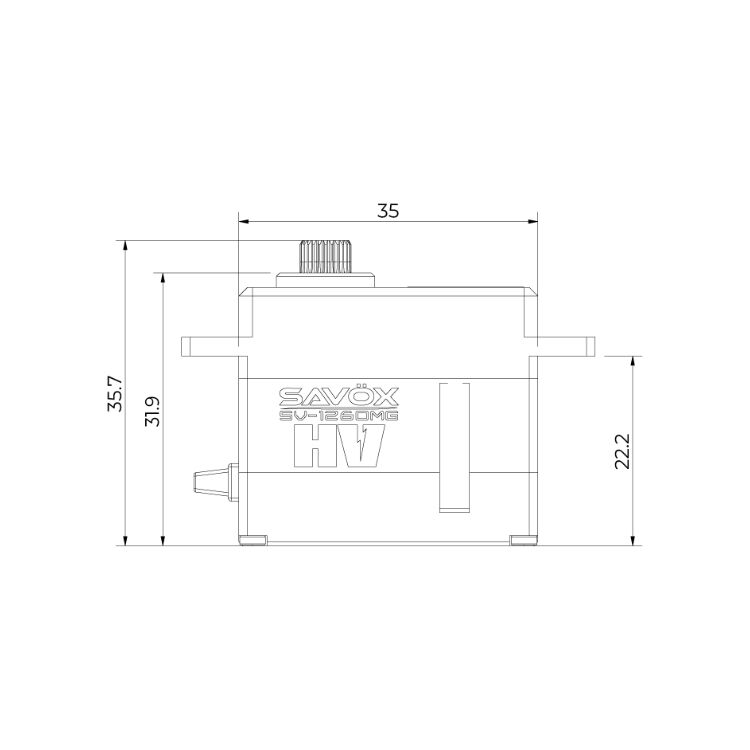

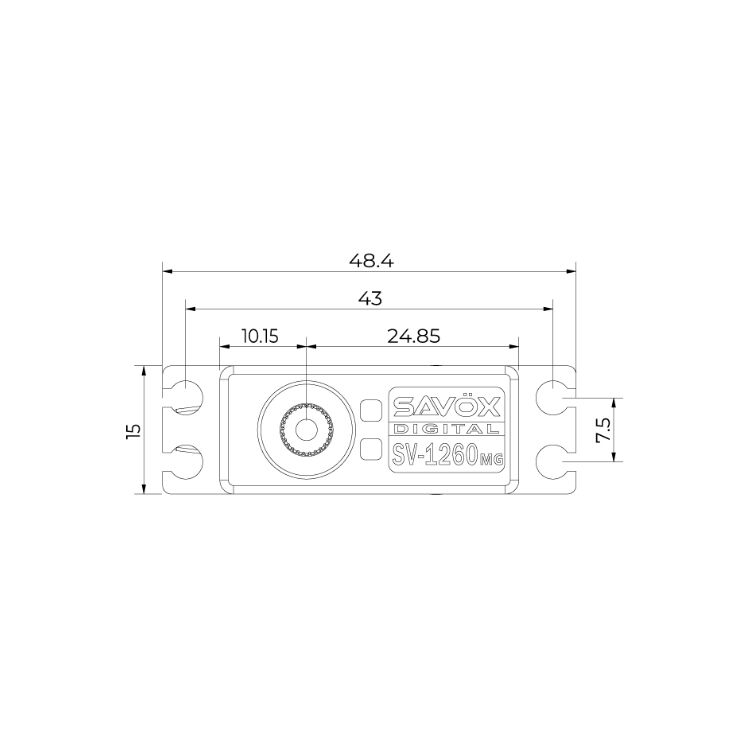

Dimensions: 35 x 15 x 31.9mm
Weight: 40g
Operating Voltage: 6.0V–8.4V
Protection: Dust Resistant
Compatibility: Normal
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
