The Savox SV-1257MG Plus is a mini digital high voltage servo designed for compact RC models that need extremely fast response, precise control and durable metal gears. Producing up to 6.0kg-cm of torque at 8.4V with an ultra-fast 0.045 sec/60° transit speed, it is a strong choice for helicopters, aircraft, cars and other compact high-performance RC applications where speed and accuracy are important.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SV-1257MG Plus delivers smooth, responsive performance in a lightweight 29.5g package. Its high voltage capability allows increased speed and torque from compatible 6.0V–8.4V receiver power systems, while the metal gear train provides improved durability over plastic or composite gear servos.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-1257MG Plus is a premium mini HV servo for customers needing maximum speed in a compact size.

Features

• Mini digital high voltage servo
• Up to 6.0kg-cm torque at 8.4V
• Ultra-fast 0.045 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth and responsive performance

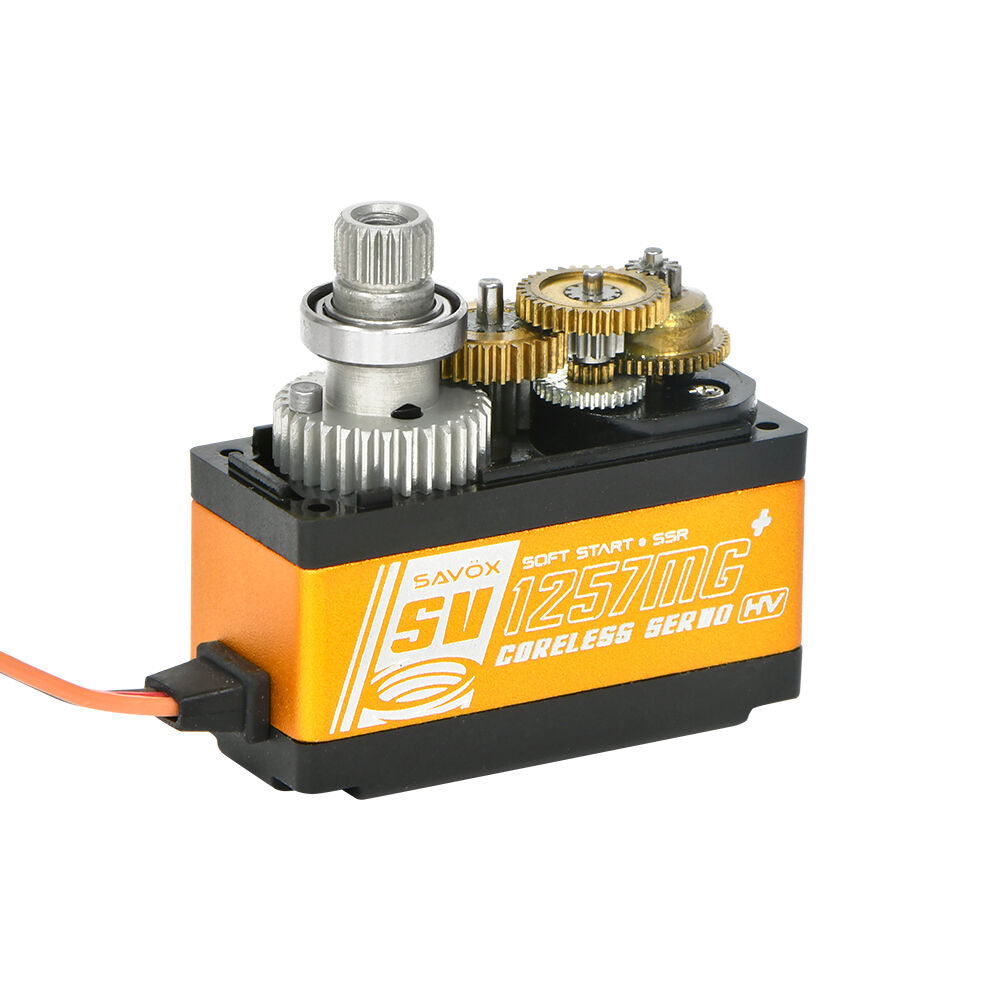

• Heavy-duty metal gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for helicopters, aircraft, cars and compact high-performance RC models

Specifications

Model: SV-1257MG Plus
Servo Type: Mini digital high voltage super speed servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 6.0V: 2.5kg-cm
Torque @ 7.4V: 4.0kg-cm
Torque @ 8.4V: 6.0kg-cm
Speed @ 6.0V: 0.07 sec/60°
Speed @ 7.4V: 0.055 sec/60°
Speed @ 8.4V: 0.045 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

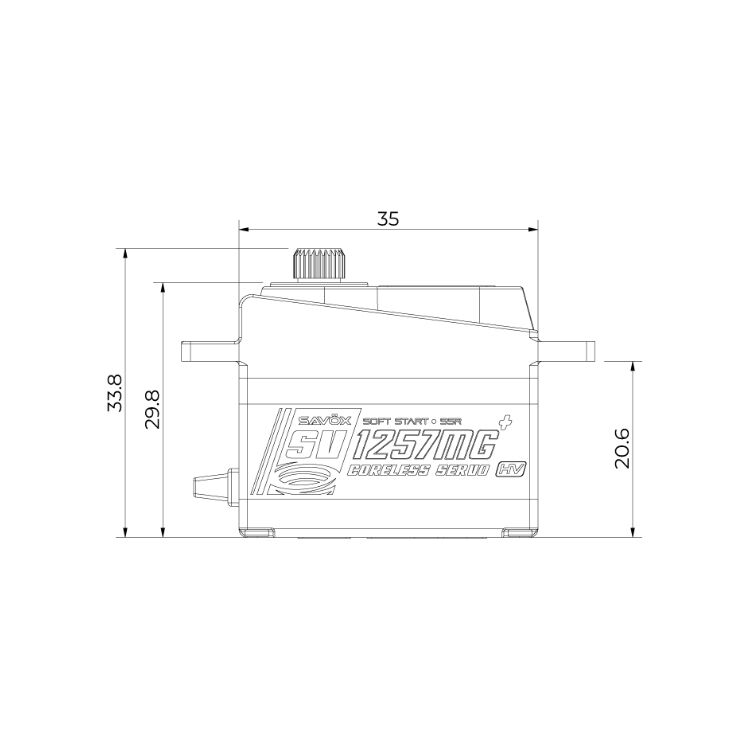

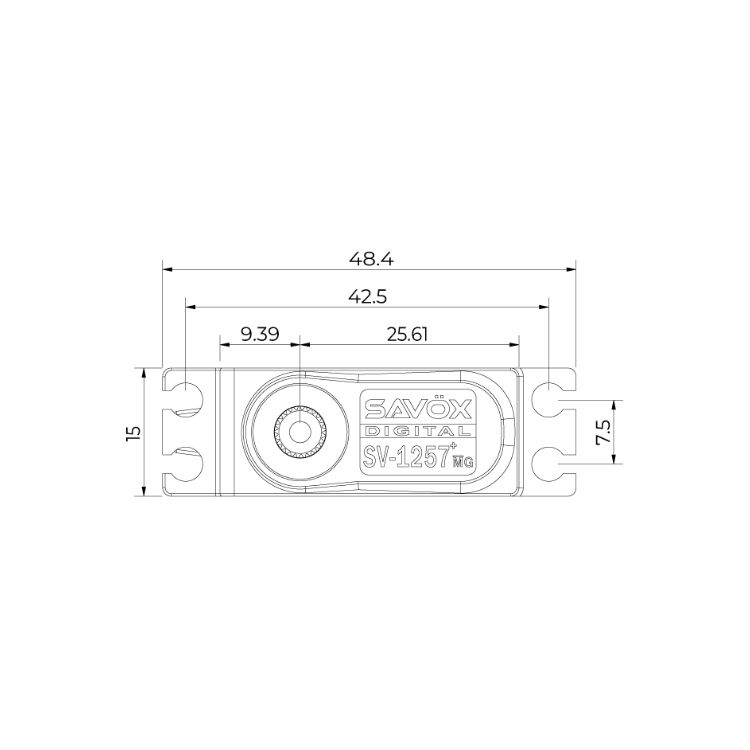

Dimensions: 35 x 15 x 29.8mm
Weight: 29.5g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
