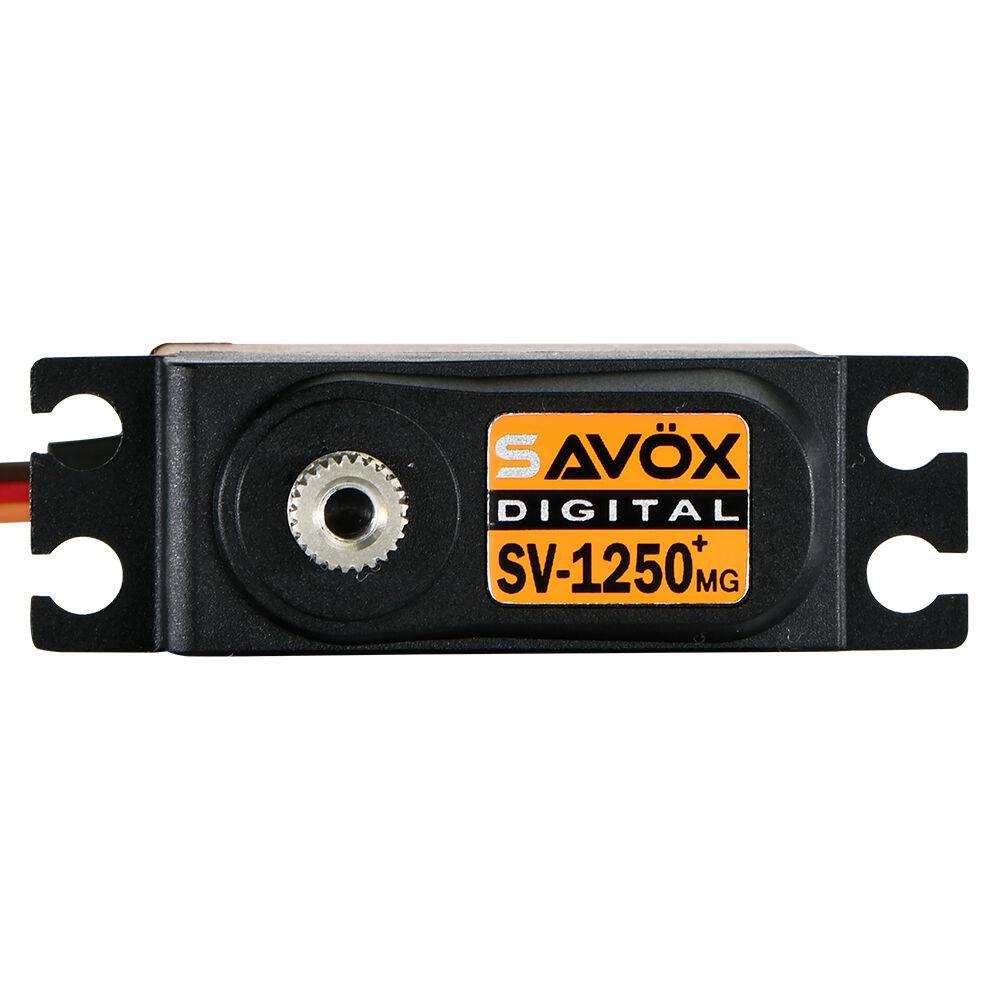

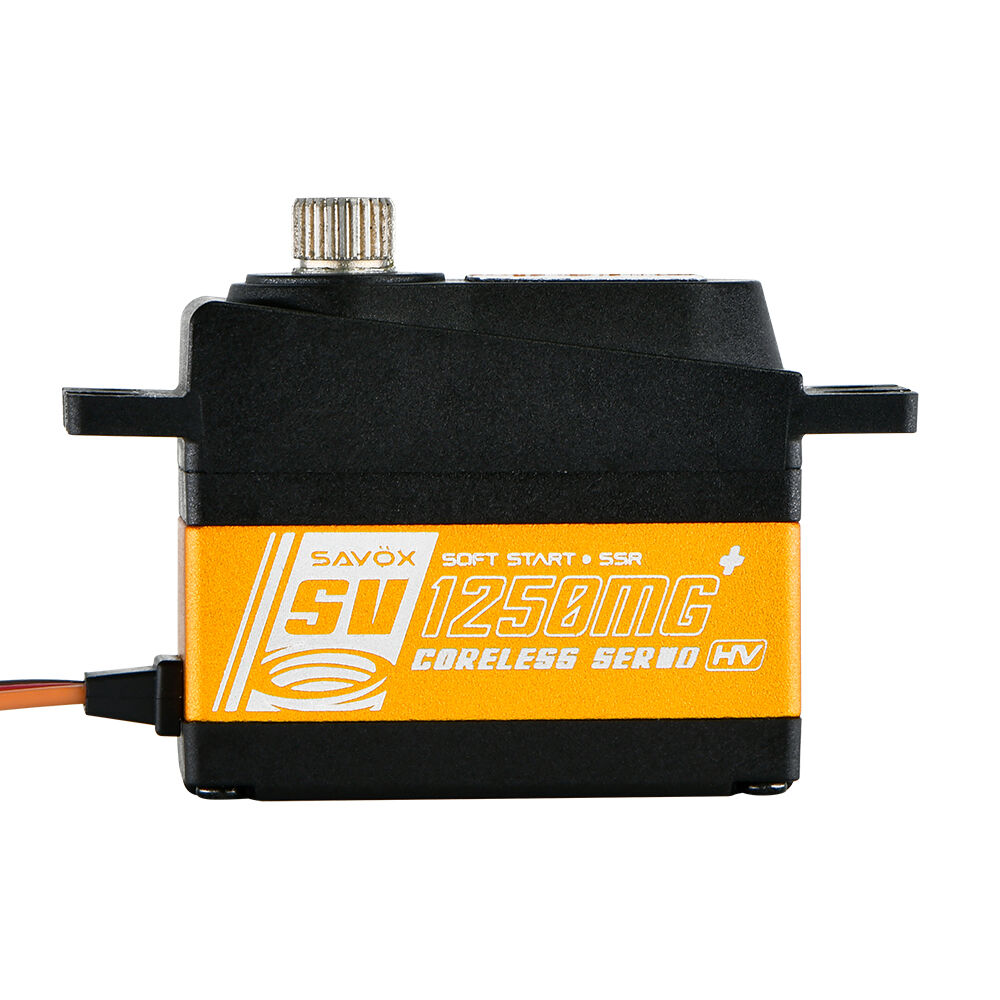

The Savox SV-1250MG Plus is a mini digital high voltage servo designed for compact RC models that need strong torque, fast response and durable metal gears. Producing up to 10.0kg-cm of torque at 8.4V with a quick 0.085 sec/60° transit speed, it is a great choice for helicopters, aircraft, cars and other compact RC applications where a standard-size servo is too large.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SV-1250MG Plus delivers strong performance in a lightweight 29.6g package. Its high voltage capability allows increased torque and speed from compatible 6.0V–8.4V receiver power systems, while the metal gear train provides the durability needed for demanding mini servo applications.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-1250MG Plus is a dependable choice for customers needing a powerful mini HV servo with excellent speed and control.

Features

• Mini digital high voltage servo
• Up to 10.0kg-cm torque at 8.4V
• Fast 0.085 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth, responsive performance
• Heavy-duty metal gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for helicopters, aircraft, cars and compact high-performance RC models

Specifications

Model: SV-1250MG Plus
Servo Type: Mini digital high voltage servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 6.0V: 4.6kg-cm
Torque @ 7.4V: 8.0kg-cm
Torque @ 8.4V: 10.0kg-cm
Speed @ 6.0V: 0.11 sec/60°
Speed @ 7.4V: 0.095 sec/60°
Speed @ 8.4V: 0.085 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

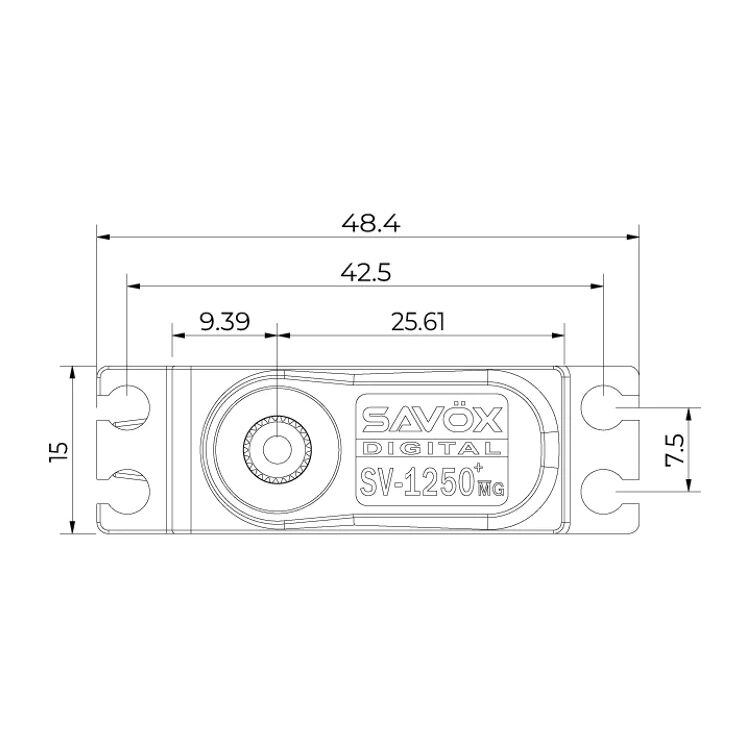

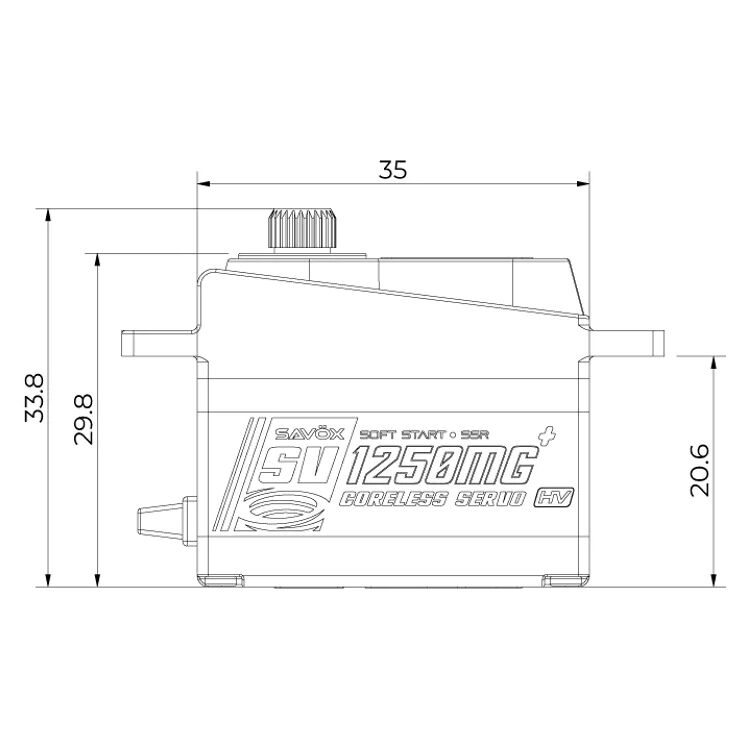

Dimensions: 35 x 15 x 29.8mm
Weight: 29.6g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
