This plane is a well designed for 61-75 Glow Plug or Electric Proppeler This 60 size trainer is designed for for beginner pilots. It has sturdy all balsa/ply wood construction and is very stable in flight. Bigger wing and bigger wing area helps give a more stable flight. 3 degree wing dihedral gives a good balance flight stability and agility. Hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to seperately purchase the nitro engine or electric motor and radio system, and can fly this plane after 1-2 hours of installation.



Check out the nitro version video

Spec

- Wingspan: 1730mm (68.1 in)
- Length: 1371mm (53.9 in)
- Flying weight: 3500-4200 gr
- Wing area: 50.5 dm2
- Wing loading: 73g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .61-.75 / 2-stroke (not included)
- Motor: brushless out runner
- Gravity CG: 85 mm (3.3 in) Back from  the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 8mm up/down, 10% expo; High: 10mm up/down, 10% expo
- Control throw Elevators: Low: 8mm up/down, 12% expo; High: 10mm up/down, 12% expo
- Control throw Rudder: Low: 25mm right/left, 15% expo; High: 40mm right/left, 15% expo
- Experience level: Beginer
- Plane type: Trainer
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: E-Flite Power 60 (not included)
- Propeller: 15x6- 15x8 E APC (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)

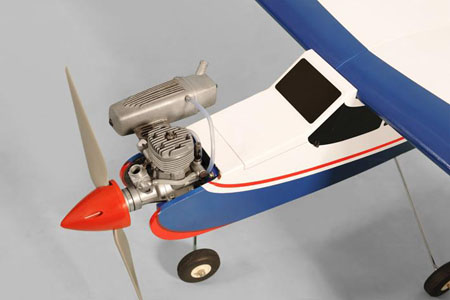

Nitro Engine

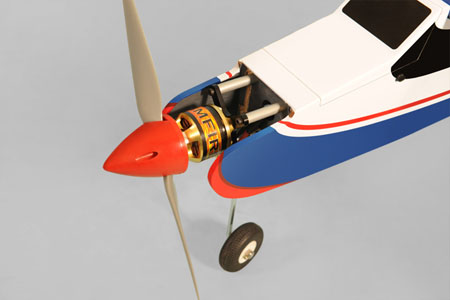

Electric Propeller - Motor installed

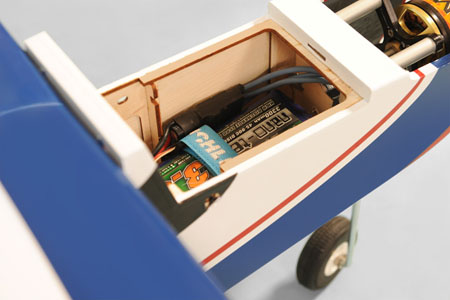

Removable hatch for easy access to change the battery



SKU PHN-PH109
Barcode # 9313890011218
Brand Phoenix Models
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.230m
Shipping Length 1.350m
Shipping Cubic 0.124200000m3
