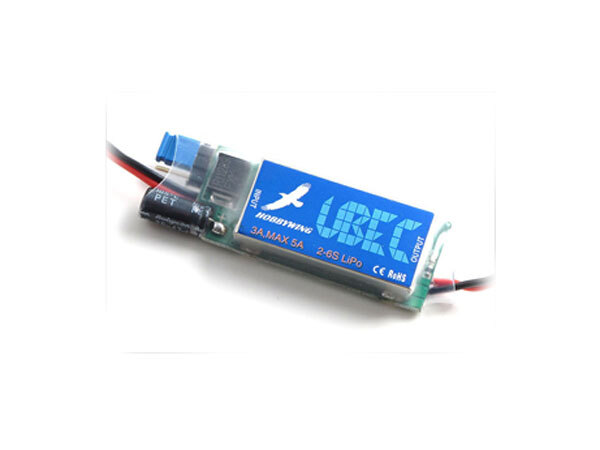

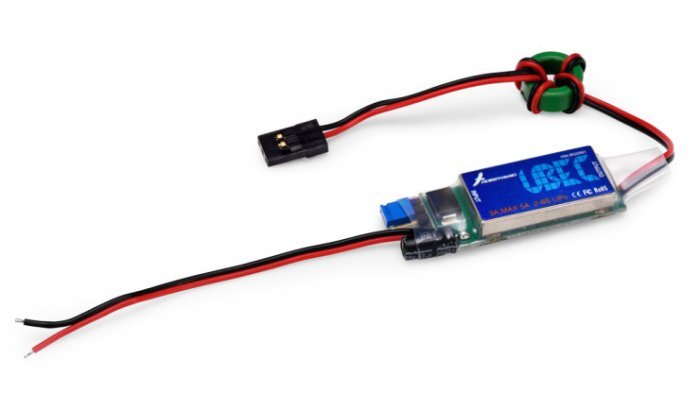

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of 3Amp. It’s compatible with different brands of ESCs.

Spec Check:

  • Output Voltage/Current: 5V@3A / 6V@3A (adjust via jumper cap)
  • Input Voltage: 5.5-26V (2-6S LiPo/5-18 Cells NiMH/NiCa)
  • Size: 43x17x7mm (LxWxH)
  • Weight: 11g
  • Ripple: less than 50mVp-p (@2A/12V input)
SKU HW86010010
Barcode # 6938994400107
Brand HobbyWing
Shipping Weight 0.0300kg
Shipping Width 0.120m
Shipping Height 0.030m
Shipping Length 0.190m
Shipping Cubic 0.000684000m3
