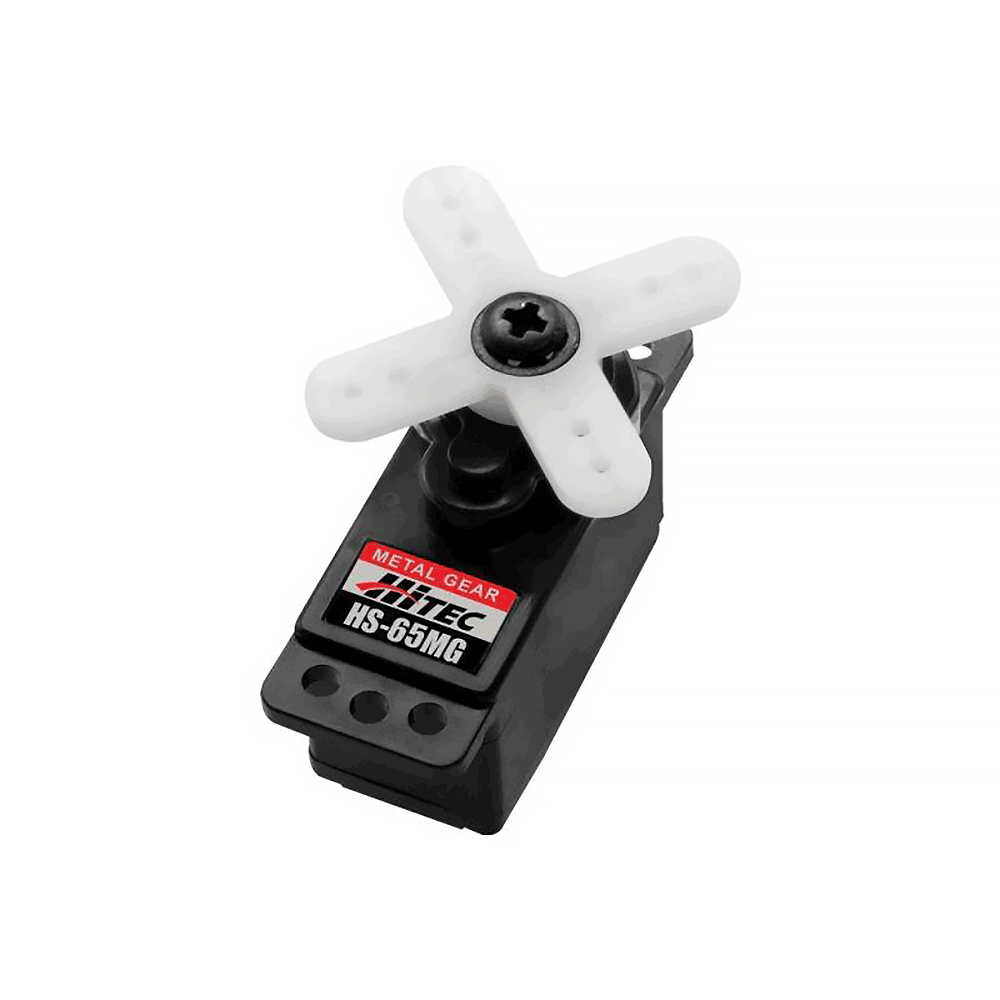

Considered one of the most powerful servos in the micro class, the HS-65MG is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

• Top Selling Metal Gear Feather Servo
• High Performance Three-Pole Motor
• Rugged Metal Gear for Added Durability
• Ball Bearing-Supported Output Shaft

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.11
Maximum Torque Range oz. / in.: 25 ~ 31
Maximum Torque Range kg. / cm.: 1.8 ~ 2.2
Current Draw at Idle: 8 mAh
No Load Operating Current Draw: 220 mAh
Stall Current Draw: 1200 mAh
Dead Band Width: 5 µs

Physical Specifications

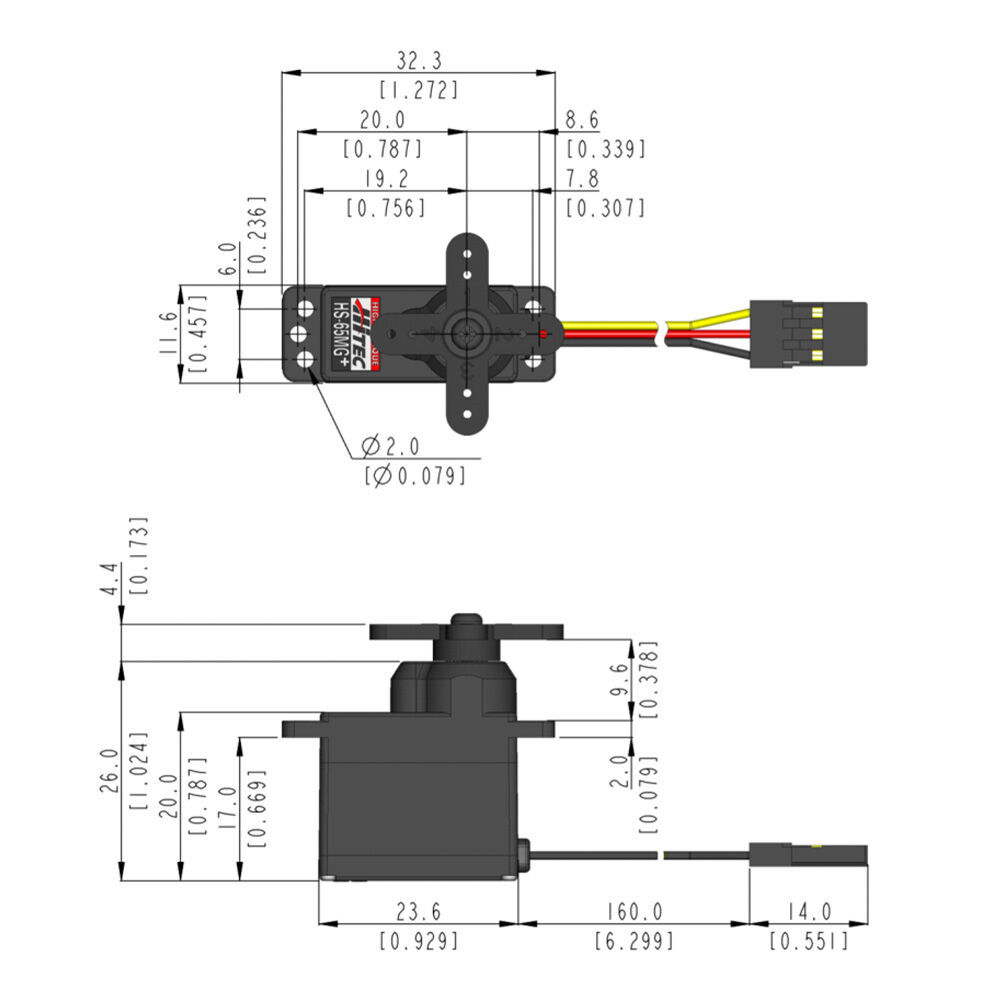

Dimensions (Inches): 0.92 x 0.45 x 0.94
Dimensions (Metric): 23.6 x 11.6 x 24.0
Weight (Ounces): 0.42
Weight (Gram): 11.9
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Neodymium
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Micro 25
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
