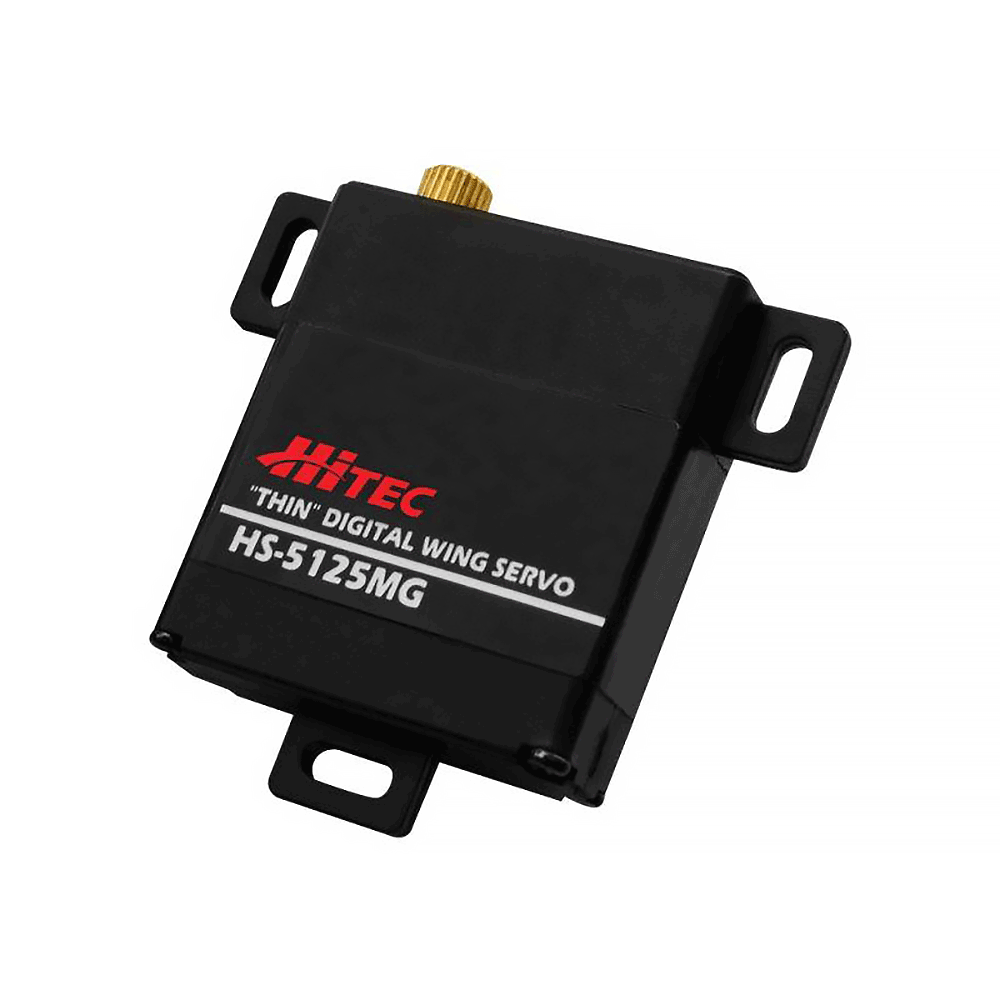

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability.

Features

• Super Thin Programmable Digital Wing Servo
• Strong Metal Gears
• Dual Ball Bearings
• Standard Programmable Digital Circuit for Greater Holding Power
• 10mm Design Fits Perfectly in Slim Aircraft and Glider Wings

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.17 ~ 0.13
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 230 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 1 µs

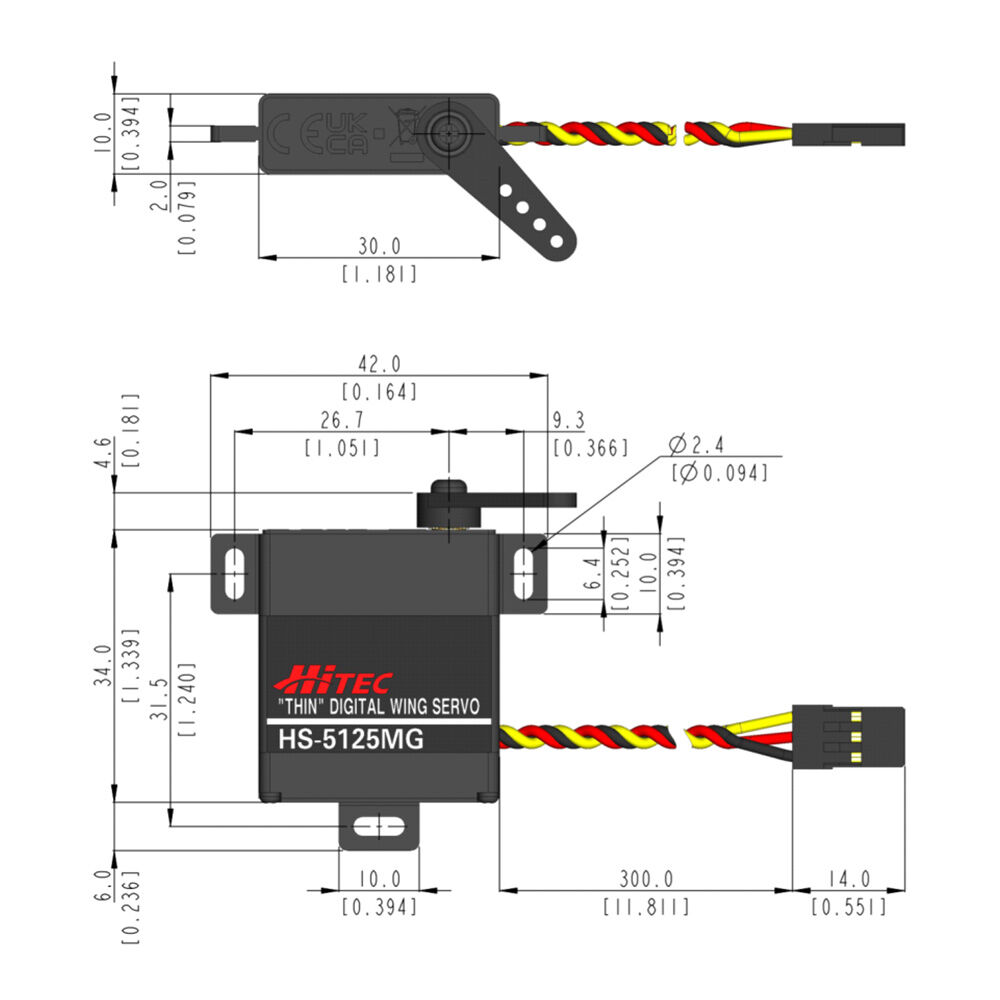

Physical Specifications
Dimensions (Inches): 1.18 x 0.39 x 1.33
Dimensions (Metric): 30.0 x 10.0 x 34.0
Weight (Ounces): 0.84
Weight (Gram): 24.0
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Micro 25
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
