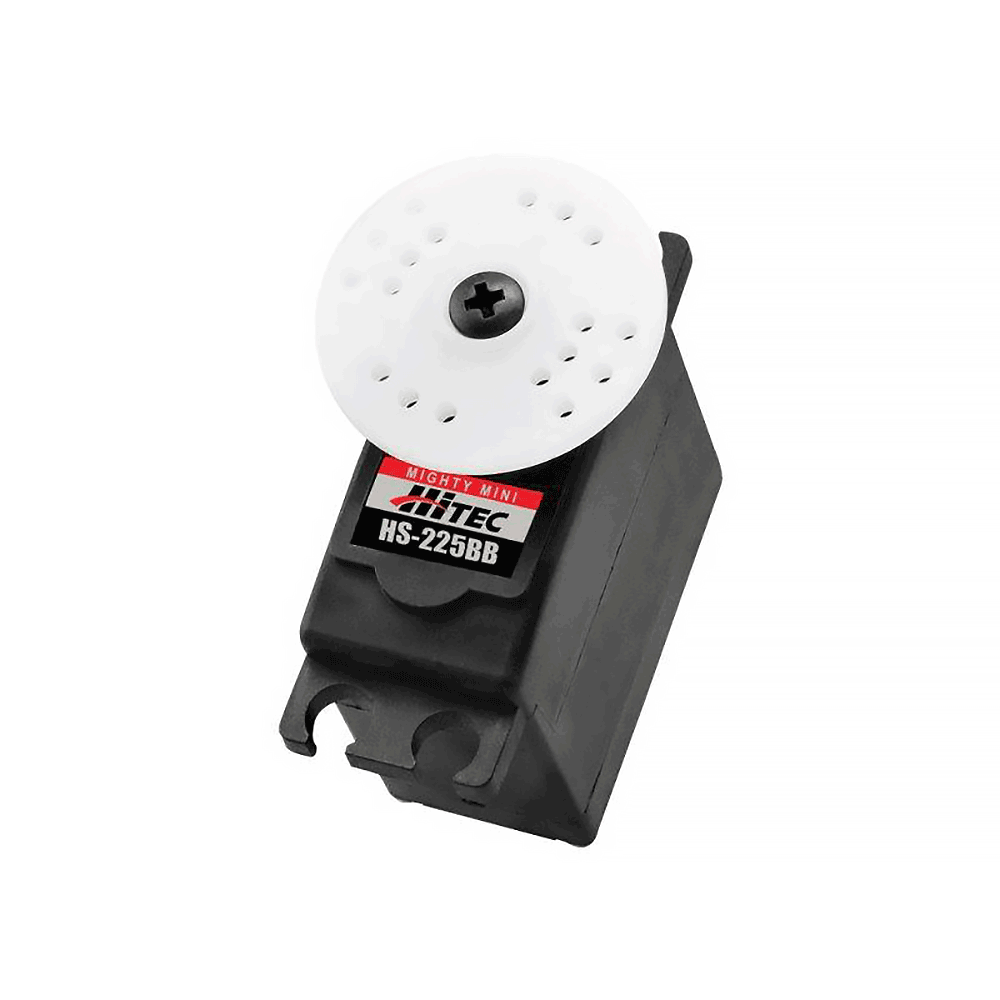

The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features

• Full Size Performance in a Mini Package
• Durable Nylon Gears
• Top Ball Bearings
• Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.11
Maximum Torque Range oz. / in.: 54 ~ 67
Maximum Torque Range kg. / cm.: 3.9 ~ 4.8
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 8 µs

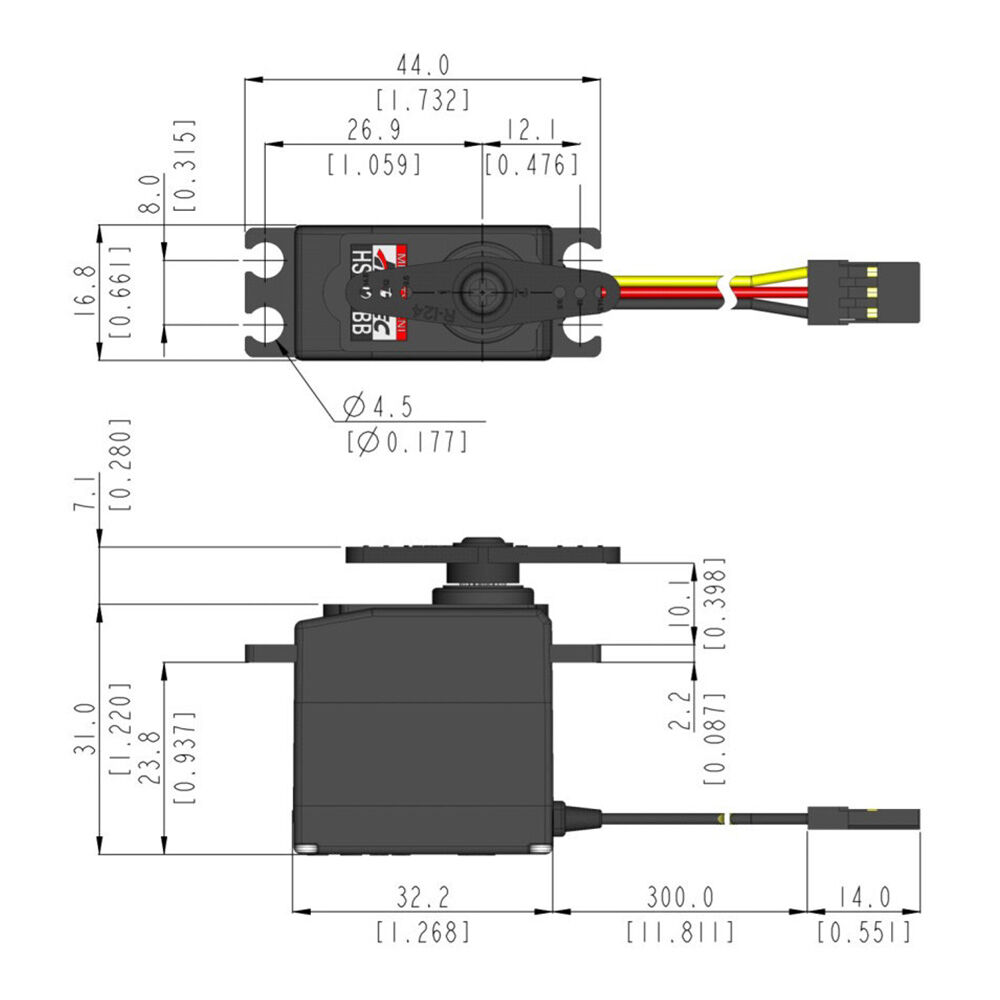

Physical Specifications
Dimensions (Inches): 1.27 x 0.66 x 1.22
Dimensions (Metric): 32.4 x 16.8 x 31.0
Weight (Ounces): 0.95
Weight (Gram): 27.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
