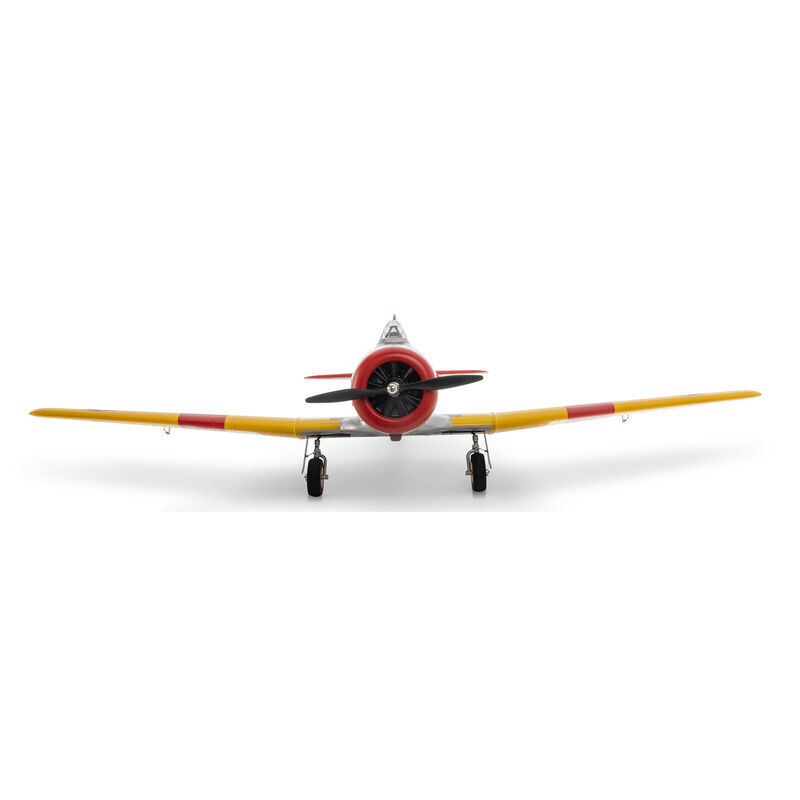

Product DetailsSNJ-5/AT-6 Texan 1.5m BNF Basic

In The Box

  • E-flite SNJ-5/AT-6 Texan 1.5m with:
  • Spektrum Brushless Outrunner Motor (installed)1
  • Spektrum Avian 70A Brushless Smart Lite ESC (installed)1
  • Spektrum A382 Sub-Micro Metal-Geared (installed)3
  • Spektrum A381 Sub-Micro (installed)2
  • Spektrum AR631+ 6-Channel Receiver with AS3X+ and SAFE Select (installed)1
  • Product Manual

Needed to Complete

  • 6–7+ channel Spektrum™ DSMX®/DSM2® compatible transmitter1
  • 3S 11.1V or 4S 14.8V 2200–4000mAh LiPo battery with EC3 or IC3 Connector1
  • Compatible LiPo charger1

Instruction Manual E-Flite SNJ-5/AT-6 Texan 1.5m BNF - Download

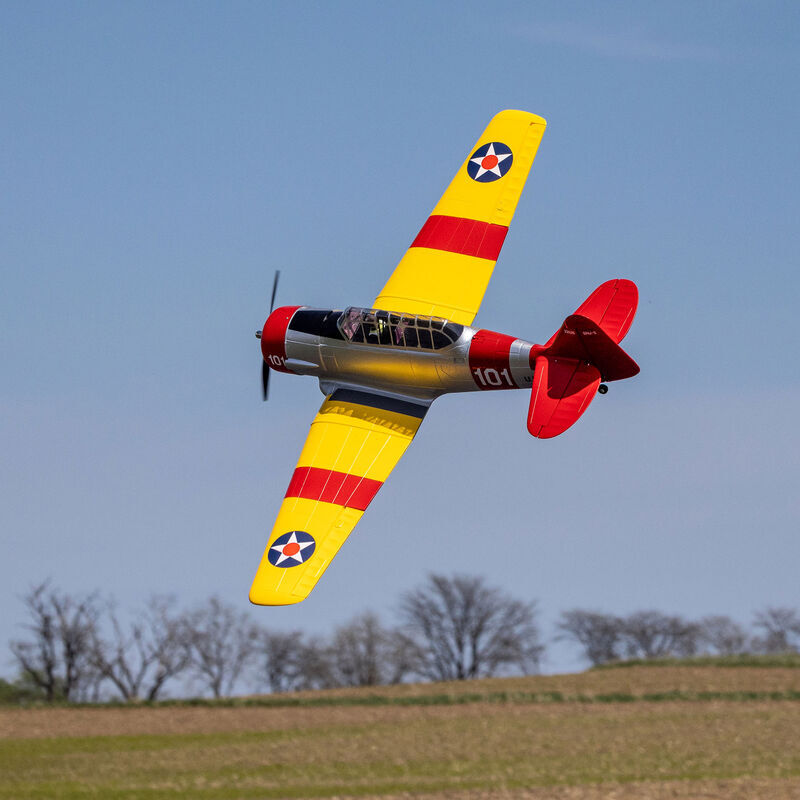

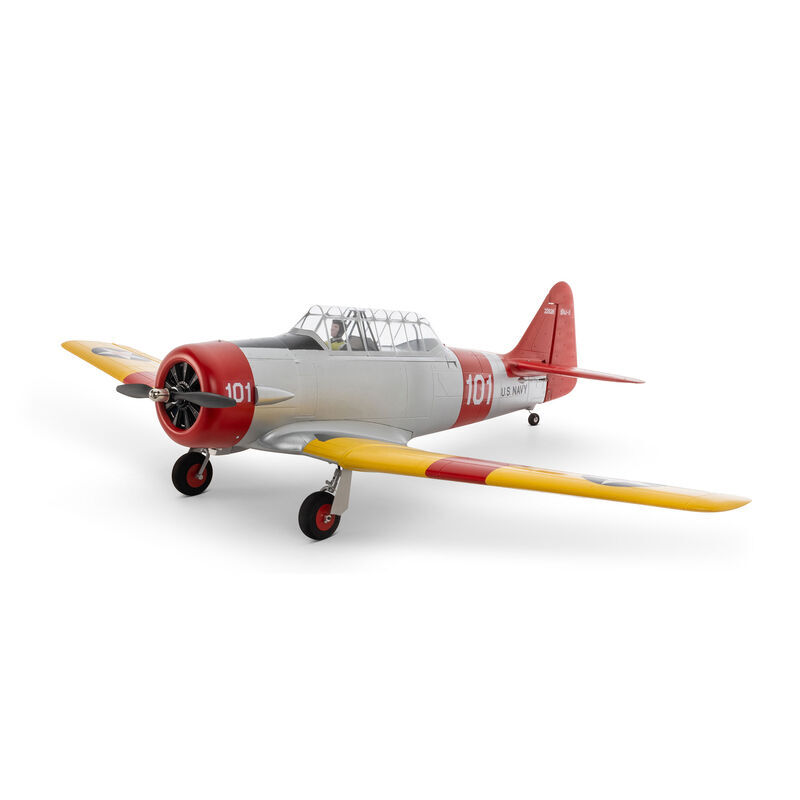

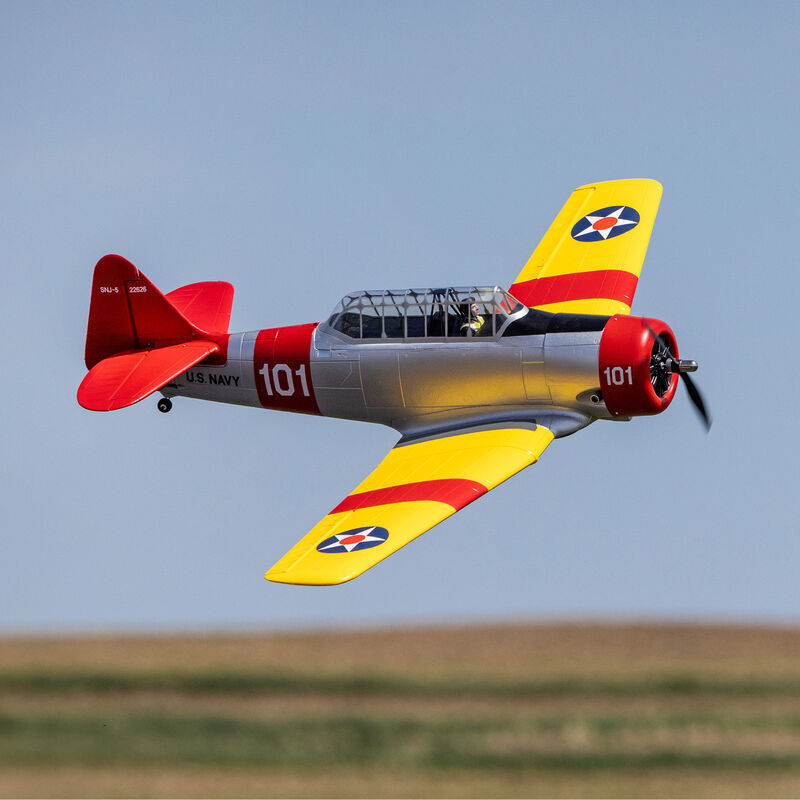

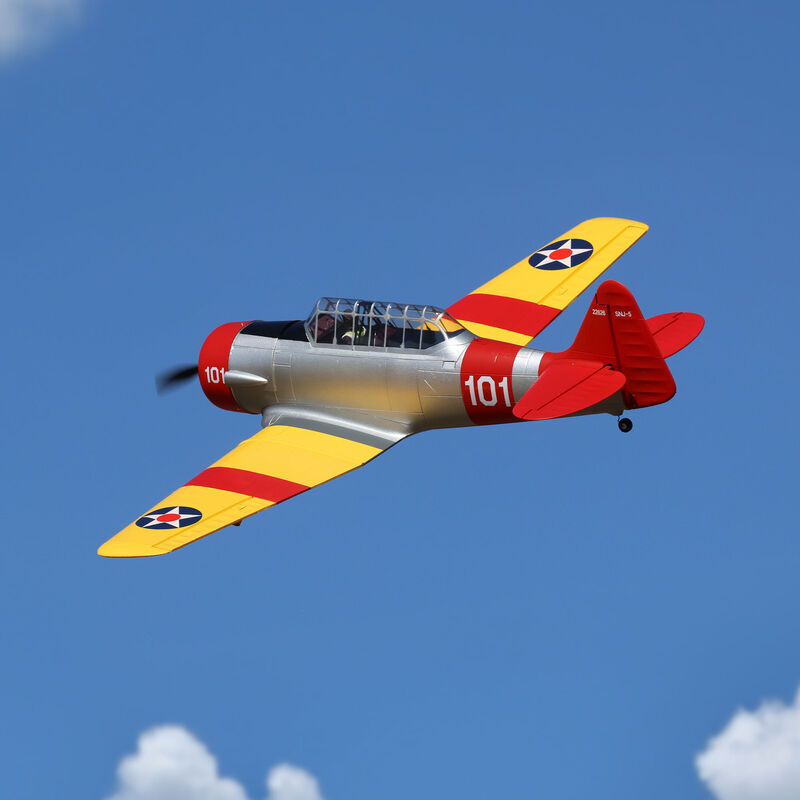

SNJ-5/AT-6 Texan 1.5m BNF Basic with AS3X+ and SAFE Select Overview

Before student pilots during World War II became hot-shot Allied fighter jocks, they first needed to gain experience using an advanced trainer. The tough AT-6 Texan gave them the ability to handle all the bad habits of a fighter and become well-disciplined with a high level of respect for their aircraft. U.S. Navy pilots flew the airplane extensively under the SNJ designation, and today, hundreds of AT-6s continue to fly, serving well beyond their trainer role. The E-flite SNJ-5/AT-6 Texan 1.5m is a rare tribute to the unsung warbird, equipped with an upgraded 3S and 4S compatible power system, including a Spektrum Avian 70A Smart Lite ESC. The BNF Basic version also includes a telemetry-capable AR631+ receiver with enhanced AS3X+® technology – plus optional-use SAFE® Select technology to make it even easier for a wide range of pilots to fly and enjoy!

E-flite has updated and upgraded the SNJ-5/AT-6 1.5m to make it the most capable and easiest to fly scale replica of the Texan yet! The airframe is factory-finished in an iconic scheme based on the SNJ-5 “101,” which is still being flown by High Sky Wing – a unit of the Commemorative Air Force based in Midland, Texas. It features a variety of scale details, including molded-in panel lines, a simulated radial engine, a detailed cockpit with a pilot figure, and more. Plus, its functional flaps and retractable landing gear add to the scale flying experience. The upgraded 3S and 4S 2200–4000mAh compatible power system features a 70A Spektrum Avian Smart Lite ESC. The BNF Basic version is equipped with an AR631+ receiver, delivering real-time telemetry data along with enhanced AS3X+ and optional-use SAFE Select technologies. You don't need any glue for assembly, so you can get flying faster, typically in less time than it takes to charge a battery. The one-piece wing is easy to remove/install for even easier transport and storage thanks to hands-free servo connections. It all adds up to deliver features, handling, and performance that make it an excellent choice for intermediate to advanced warbird pilots!

E-Flite SNJ-5/AT-6 Texan 1.5m BNF RC Plane Video



SNJ-5/AT-6 Texan 1.5m BNF Basic with AS3X+ and SAFE Select Features

  • Specially tuned motor compatible with 3S and 4S batteries without the need for modifications or upgrades
  • Receiver loaded with a Smart Transmitter Model File that allows you to import all settings for NX and iX series transmitters during the binding process
  • The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
  • Functional split flaps for shorter takeoffs/landings and improved slow-speed performance
  • One-piece wing with hands-free servo connections for easier storage and transport
  • Operational electric retracts with simple and durable wire struts plus scale-like strut covers

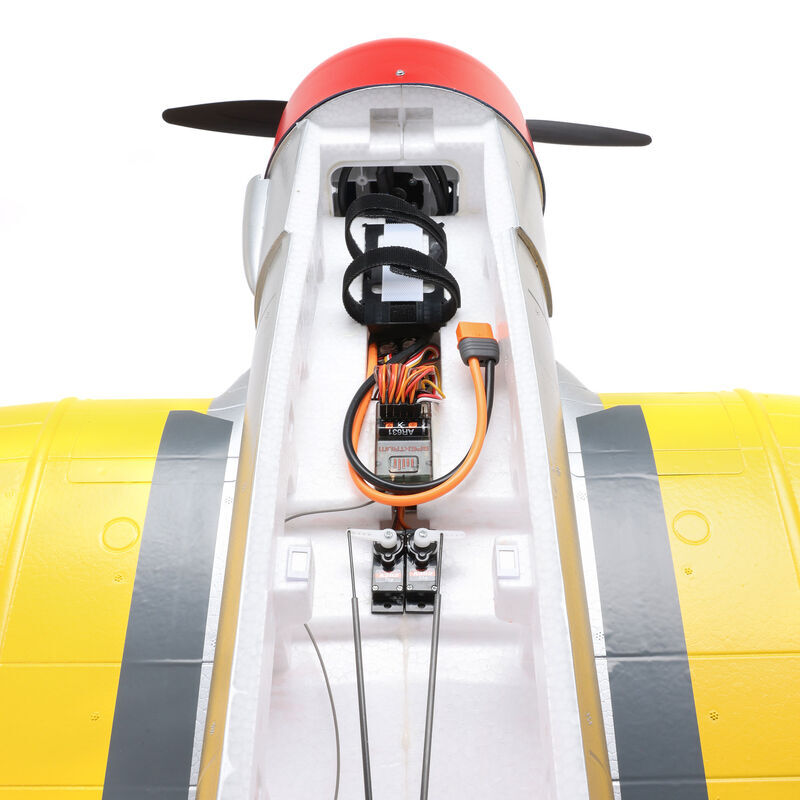

  • Large and convenient top-mounted hatch provides easy access to the battery
  • Full 6-channel control with five factory-installed servos and linkages
  • Lightweight yet durable composite reinforced EPO construction
  • Fully painted and factory-applied SNJ-5 “101” trim scheme
  • Fast and easy assembly – no glue required

Skill Level 2 – Some Experience Required

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite P-51D Mustang 1.0m, T-28 Trojan 1.1m, Valiant 1.3m, Commander mPd 1.4m, Turbo Timber Evolution 1.5m, or other similar class models before attempting to fly the SNJ-5/AT-6 Texan 1.5m BNF Basic version.

Bind-N-Fly® Completion Level

Bind-N-Fly Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Smart Technology

Smart Technology

The SNJ-5/AT-6 Texan is equipped with an exclusive Spektrum Avian 70A Smart Lite Brushless ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more – with Smart and non-Smart batteries – via compatible receivers (including the AR631+) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, the receiver is loaded with a Smart Transmitter Model File that allows you to import all settings for NX and iX series transmitters during the binding process.

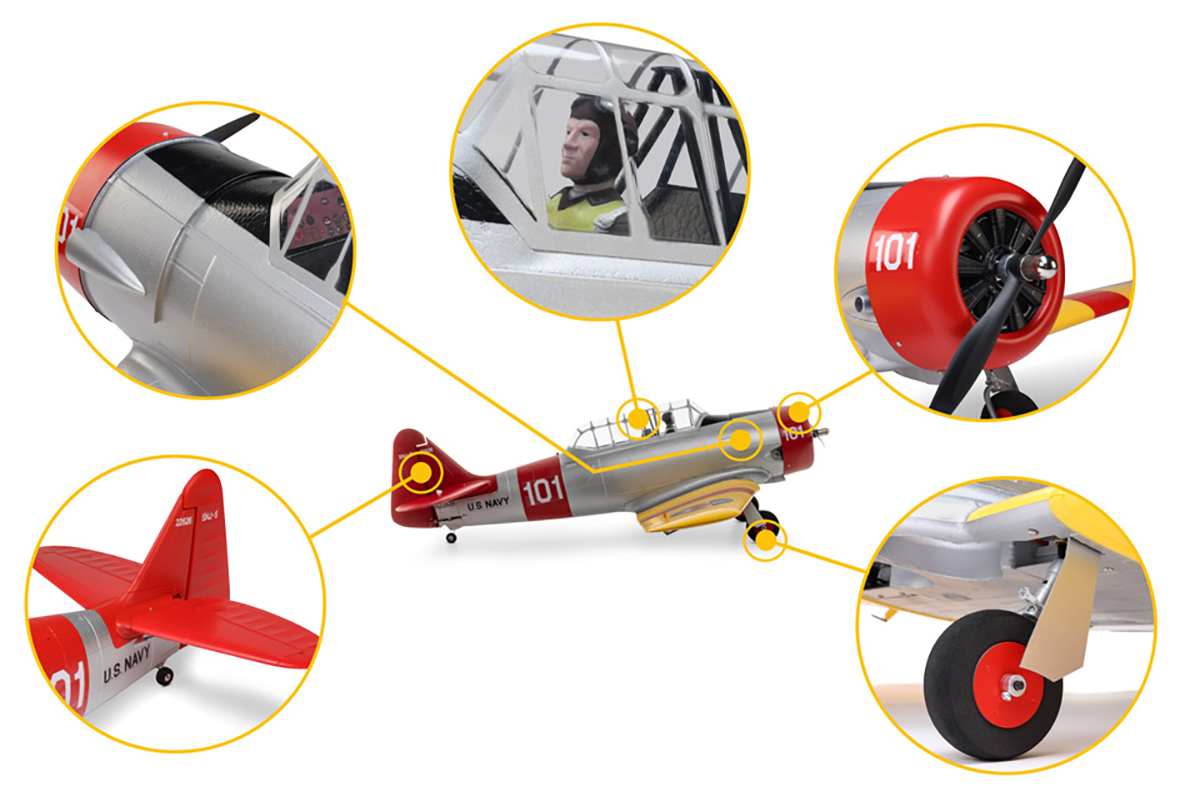

Abundant Scale Details

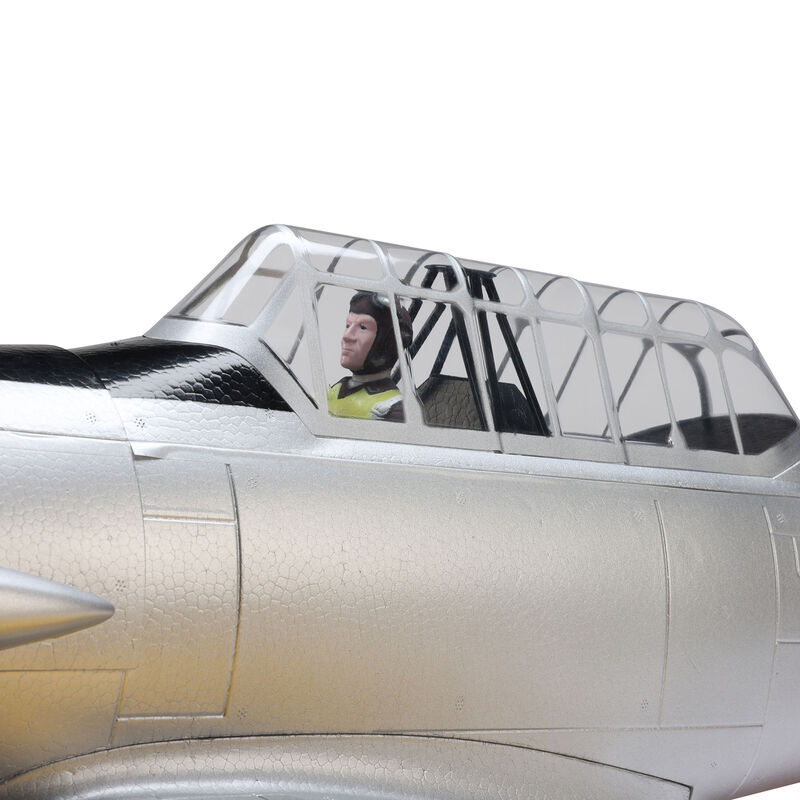

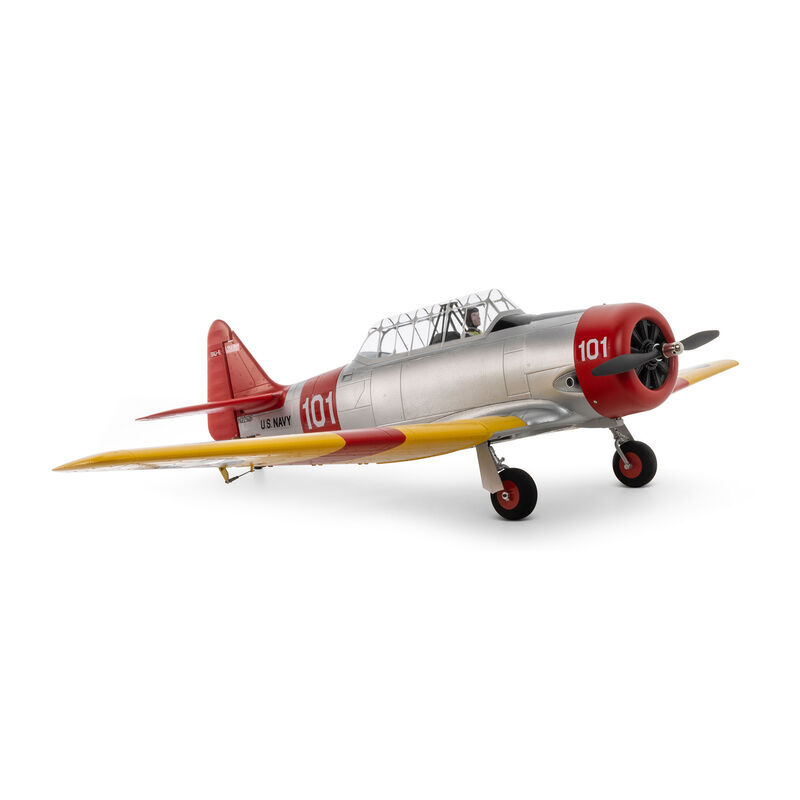

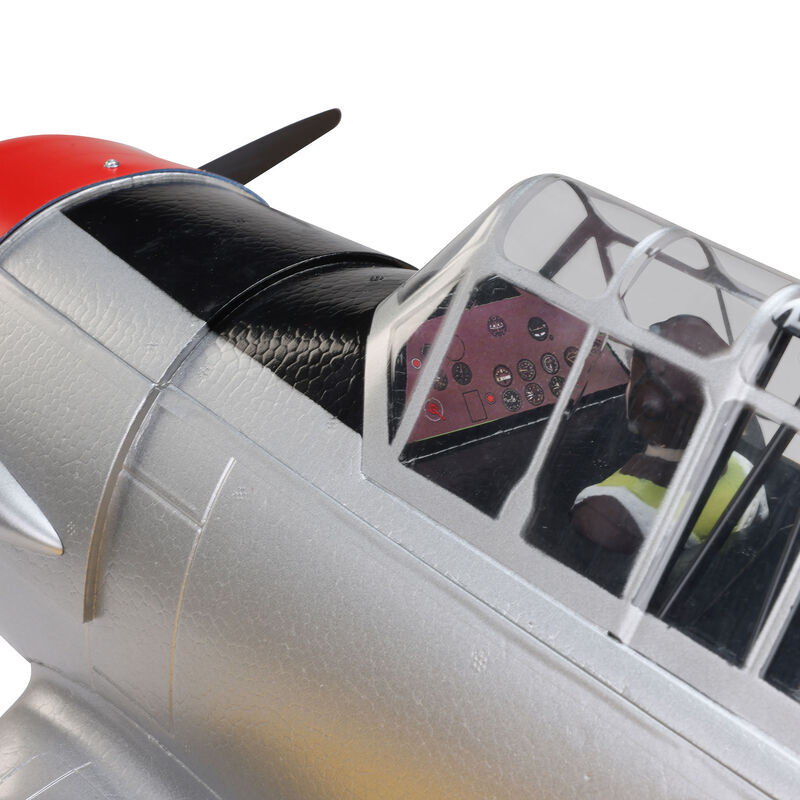

The lightweight yet durable, composite-reinforced and fully molded EPO airframe is equipped with an abundance of scale detail including panel lines, simulated radial engine, a pilot figure and more.

Functional Scale Features

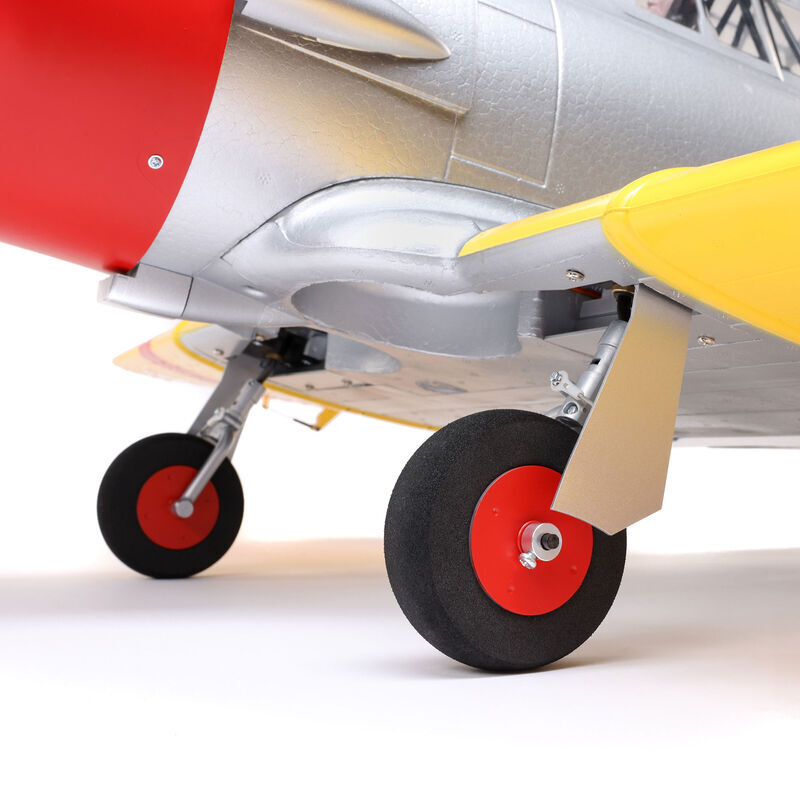

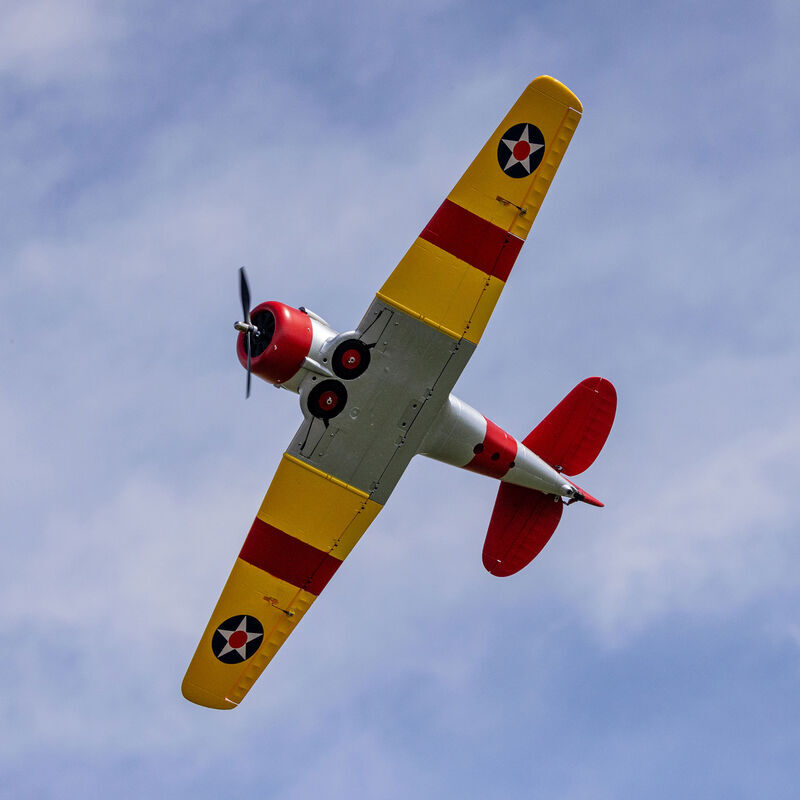

Factory-installed retracts with strut covers, plus operational split flaps, are functional scale features that take your experience to another level.

Versatile Power

Versatile Power

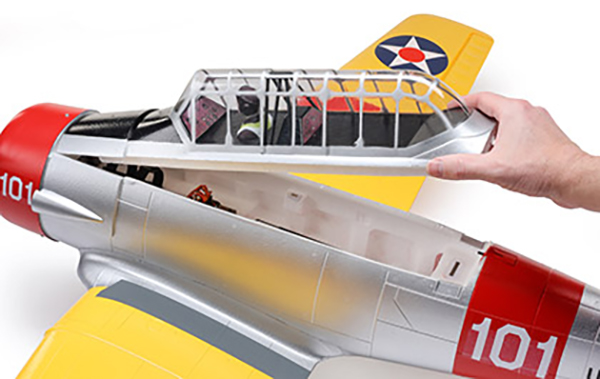

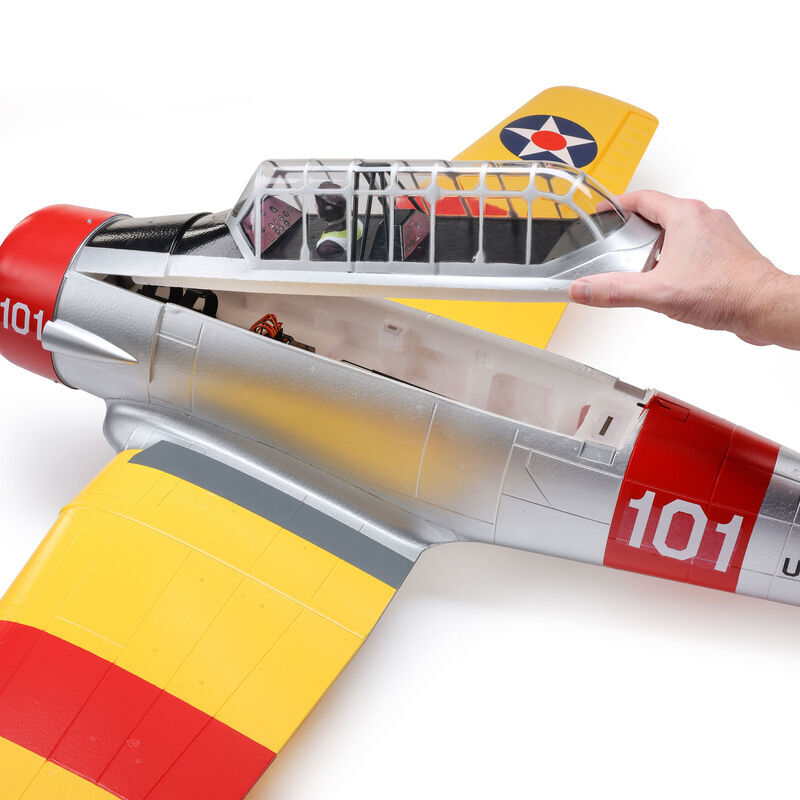

The factory-installed Spektrum brushless outrunner motor is 3S and 4S compatible to offer a wide range of “mild to wild” performance – from scale flying and performing basic aerobatics with 3S batteries to unlimited vertical plus unexpected aggressive aerobatic performance with 4S batteries! The convenient top-mounted and magnetically secured hatch makes it easy to install and remove common and popular 2200–4000mAh batteries.

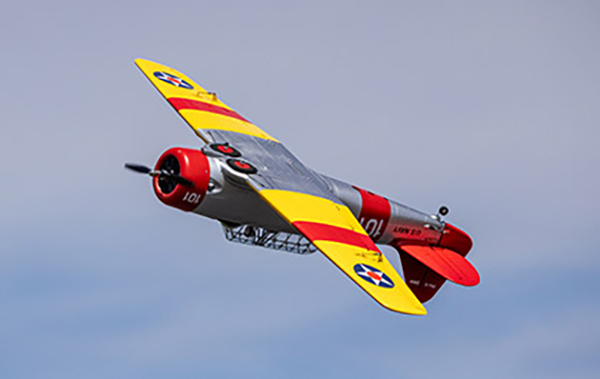

Durable Precision

Durable Precision

The lightweight yet durable EPO airframe is composite reinforced for added strength. And the factory-installed servos deliver reliable and precise control at every speed to perform slow and scale-like to aggressive aerobatic flying with confidence.

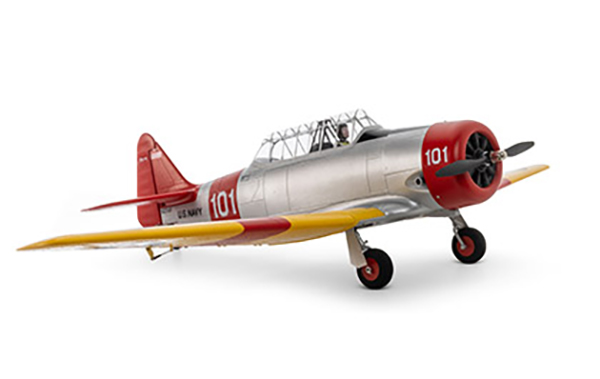

Easy Assembly

Easy Assembly

No glue or specials tools are required for final assembly so you can have the SNJ-5/AT-6 Texan 1.5m ready to fly in less time than it takes to charge a battery! And although it's conveniently sized to fit fully assembled in many vehicles, you can remove the one-piece wing with hands-free connections for easier storage and transport.

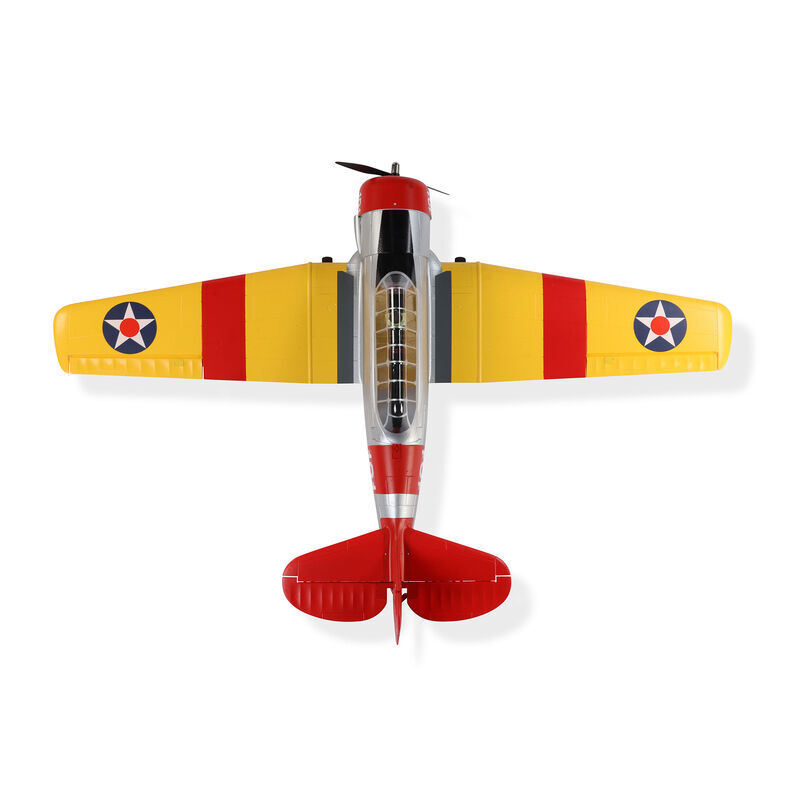

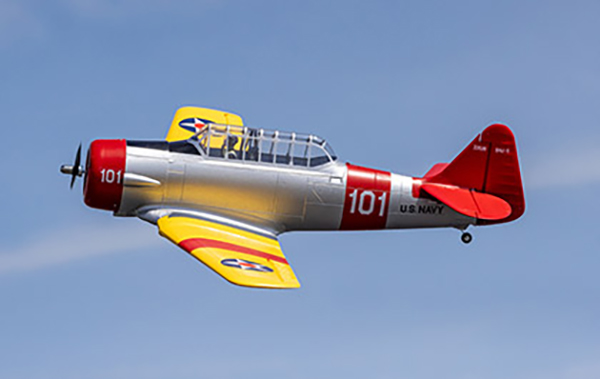

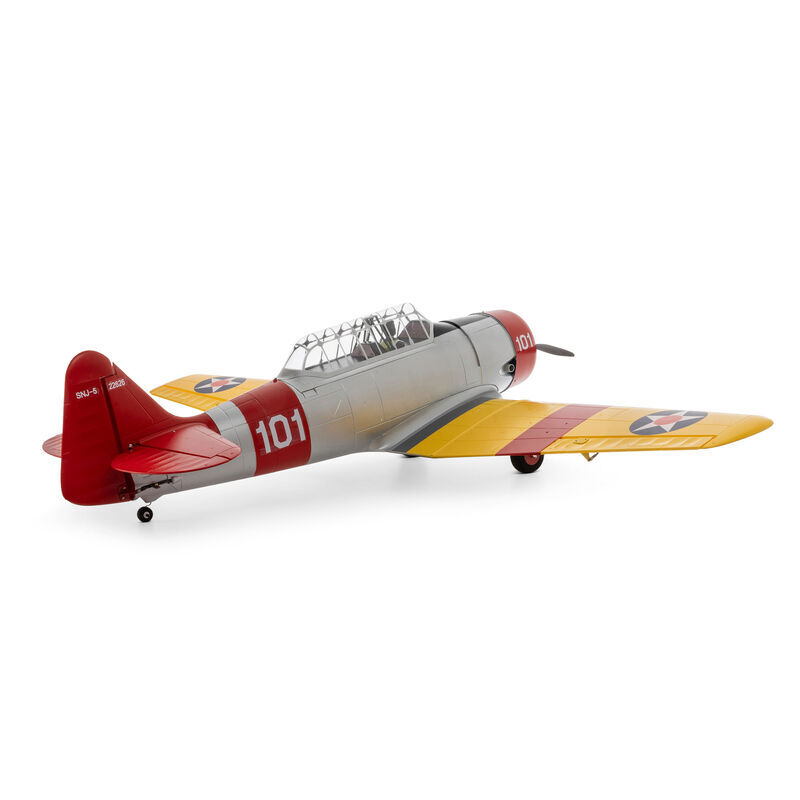

Iconic Trim Scheme

Iconic Trim Scheme

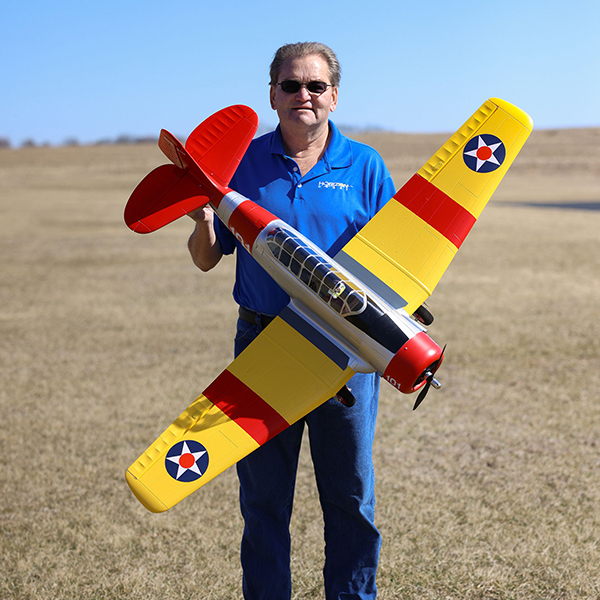

The airframe is factory-finished in an iconic scheme based on the SNJ-5 101 that's still being flown by High Sky Wing – a unit of the Commemorative Air Force based in Midland, Texas.



SNJ-5/AT-6 Texan 1.5m BNF Basic with AS3X+ and SAFE Select Product Specs

Approximate Assembly Time Less than 1 Hour
BatterySold Separately
CG (Center of Gravity) 85mm (75-90mm range)
ChargerSold Separately
Completion Level Bind-N-Fly Basic
Connector Type IC3
Flaps Yes
LiPo Compatibility 3S, 4S
Material EPO
Minimum Required Radio 6+ channel full-range
Minimum Speed Control 70-Amp Smart Lite Brushless ESC
Motor Size 3741-770Kv
Motor Type Brushless
Power Type Electric
Product Length 39.5" (1003 mm)
Product Weight Without Battery: 60oz (1700g) / With Recommended 4S 3200mAh Flight Battery: 73.6oz (2085g)
Radio Sold Separately
Receiver Included
Recommended Motor Battery 3S 11.1V or 4S 14.8V 2200–4000mAh LiPo battery with EC3 or IC3 Connector
Retracts Included
Servos Included
Skill Level Level 2
Speed Control Included
Technology Smart, AS3X+, SAFE Select
Trim Scheme Colors SNJ-5 “101”
Wingspan 57.08" (1450 mm)
SKU EFL08750
Barcode # 0660132647964
Brand E-Flite
Shipping Weight 4.0000kg
Shipping Width 0.420m
Shipping Height 0.280m
Shipping Length 1.520m
Shipping Cubic 0.178752000m3

E-Flite SNJ-5/AT-6 Texan

By: Coen on 9 December 2025
I purchased this model from Mick a few days ago, it had its maiden flight this morning. This is one impressive model and well worth adding to your stable. Colour scheme is fantastic which really sells this model. The model comes with fin / rudder, prop and receiver already installed. You just need to insert the stabilizer and secure with 2 screws and add the one-piece wing. The wing slots into place and into usb plugs in the wing, no plugging in servo, flap or undercarriage leads. other manufacturers please take note. 4 bolts secure the wing in place. Total assembly is 6 screws and about 10 minutes, what could be easier. I bound the model to my receiver and rudder, elevator & ailerons all centered precisely. You can bind to the transmitter with or without SAFE or AS3X activated, I bound without SAFE & AS3X. CoG balanced at 90mm (range is 75-90mm) back with a 4s 3300 mah Lipo. Time to maiden. Model was lined up, power added, be ready to correct any swing with rudder (just like the full size). Model took off effortlessly, wheels retracted and into the circuit. Model was very stable and reacted positively to all controls. Typical Texan aerobatics look fantastic, landing with full flap is excellent, model can slow down without fear of tip stalling. Again, be ready with rudder on touchdown as per the full-size. Overall, a very impressive model. Go see Mick about getting one.
(5)
