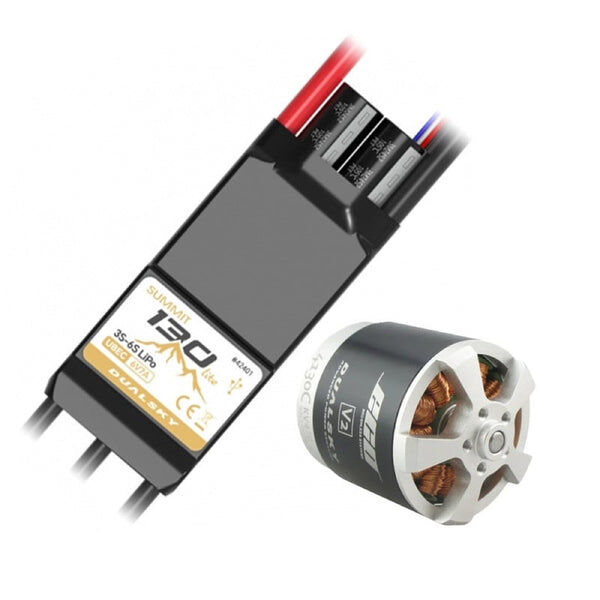

Give your 90-size model serious electric muscle with the Dualsky 90E Tuning Combo. This matched power system pairs the ECO 4130C V2 375KV brushless outrunner with Dualsky's new-generation Summit Lite 130A ESC — the ideal electric equivalent for .80–1.10 4-stroke glow models, running 6S LiPo packs.

The Summit Lite 130A features an integrated high-current UBEC with excellent peak performance to drive your receiver and servos, selectable rotation direction, and a full suite of protections: low voltage, over-heat, throttle, current and low-RPM. Fine-tune your setup via the Dualsky USB Link Multi Purpose (DSB22382, sold separately).

Features

  • Matched motor + ESC combo for 90E class aircraft
  • ECO 4130C V2 375KV brushless outrunner motor
  • New-generation Summit Lite 130A ESC
  • Integrated high-current UBEC with excellent peak performance
  • 6S LiPo compatible
  • Low voltage, over-heat, throttle, current and low-RPM protection
  • Selectable rotation direction
  • Programmable via Dualsky USB Link Multi Purpose (DSB22382, sold separately)

Specifications

  • Motor: Dualsky ECO 4130C V2, 375KV
  • ESC: Dualsky Summit Lite 130A
  • Battery: 6S LiPo
  • Suits: .80–1.10 4-stroke electric conversions / 90E class models

Package Contents

  • 1x ECO 4130C V2 375KV brushless motor
  • 1x Summit Lite 130A ESC
  • Mounting accessories

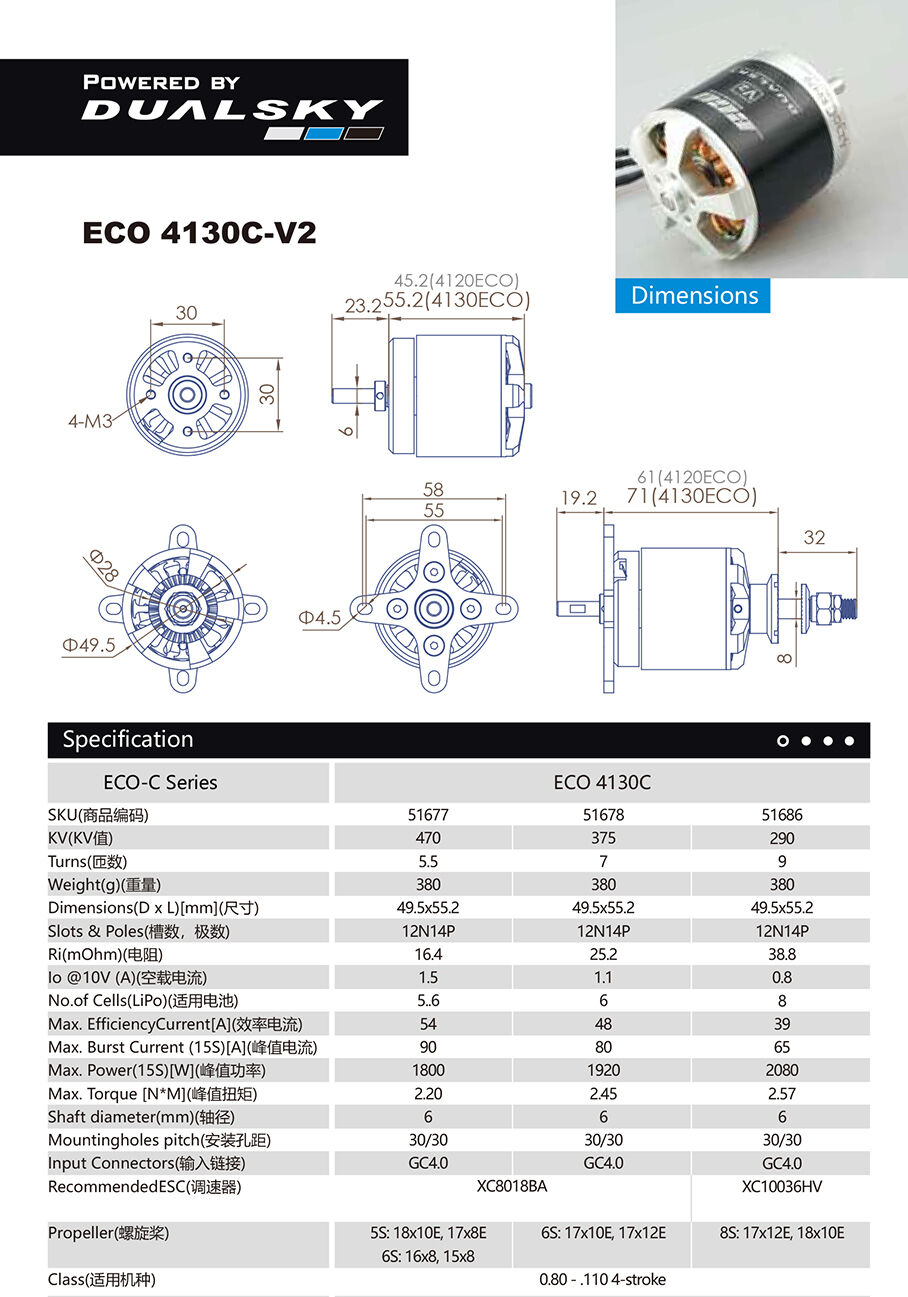

Motor Specs

KV 375
Turns 7
Weight (g) 380g
Dimensions(D x L) [mm] 49.5 x 55.2
Slots & Poles 12N14P
Ri (mOhm) 25.2
lo @10V (A) 1.1
No. of Cells (LiPo) 6
Max. Efficiency Current [A] 48 A
Max. Burst Current (15S) [A]   80 A
Max. Power(15S) [W] 1920 W
Max. Torque [N*M] 2.45Nm
Shaft diameter(mm) 6 mm
Mounting holes pitch 30/30
Input Connectors GC4.0
Propeller 17x10E, 17x12E
Class 0.80 - .110 4-stroke

ESC Specs

Dimensions (LxWxH) 84 x 36 x 14.2mm (w/o wire)
Weight (w/ wire) 105.5g
Number of Cells 3S-6S LiPo, 11.1V-22.2V
Continuous Current 130A
Burst Current 160A
Resistance (Ri) (mOhm) ~1.2 milliohms
Battery eliminate circuit BEC 6.0V, Switching mode, 7A const./10A peaks
Signal & Frequency Default = PWM(upto 333Hz), THR calibration Enabled
Timing System Programmable (Default=18°)
Motor Direction Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming USBLINK MP (BLHeli32_Suite)
Start Power 50% (Programmable)
Work Frequency LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery YES (Default-Disable, freewheel)
Brake On Stop Default=OFF (Adjustable)
Maximum Speeds PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection Programmable (Default=3.00V/cell)
Acceleration Default =125ms (Programmable)
Overheat Protection YES(Default=140 C)
Water & Dust Proof IP43
Beacon Beeps YES, 20 Mins
Input Wires 10AWG, 200mm
Wires to Motor 12AWG, 100mm w/ DB4F
Signal Wires JR, 350mm + 1pin telemetry
SKU DSB59315
Barcode # 6941047193154
Brand Dualsky
Shipping Weight 0.6400kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.180m
Shipping Cubic 0.001800000m3
