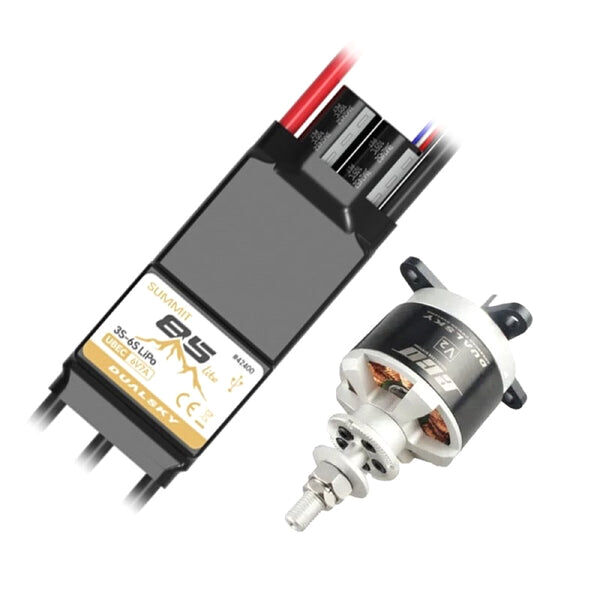

Convert your 50-size model to clean, powerful electric flight with the Dualsky 50E Tuning Combo. This matched power system pairs the proven ECO 4120C V2 560KV brushless outrunner with Dualsky's new-generation Summit Lite 85A ESC — an ideal electric equivalent for .65–.70 4-stroke glow models, running 5S–6S LiPo packs.

The Summit Lite 85A features an integrated high-current UBEC with excellent peak performance to power your receiver and servos, selectable rotation direction, and a full suite of protections: low voltage, over-heat, throttle, current and low-RPM. Fine-tune your setup via the Dualsky USB Link Multi Purpose (DSB22382, sold separately).

Features

  • Matched motor + ESC combo for 50E class aircraft
  • ECO 4120C V2 560KV brushless outrunner motor
  • New-generation Summit Lite 85A ESC
  • Integrated high-current UBEC with excellent peak performance
  • 5S–6S LiPo compatible
  • Low voltage, over-heat, throttle, current and low-RPM protection
  • Selectable rotation direction
  • Programmable via Dualsky USB Link Multi Purpose (DSB22382, sold separately)

Specifications

  • Motor: Dualsky ECO 4120C V2, 560KV
  • ESC: Dualsky Summit Lite 85A
  • Battery: 5S–6S LiPo
  • Suits: .65–.70 4-stroke electric conversions / 50E class models

Package Contents

  • 1x ECO 4120C V2 560KV brushless motor
  • 1x Summit Lite 85A ESC
  • Mounting accessories

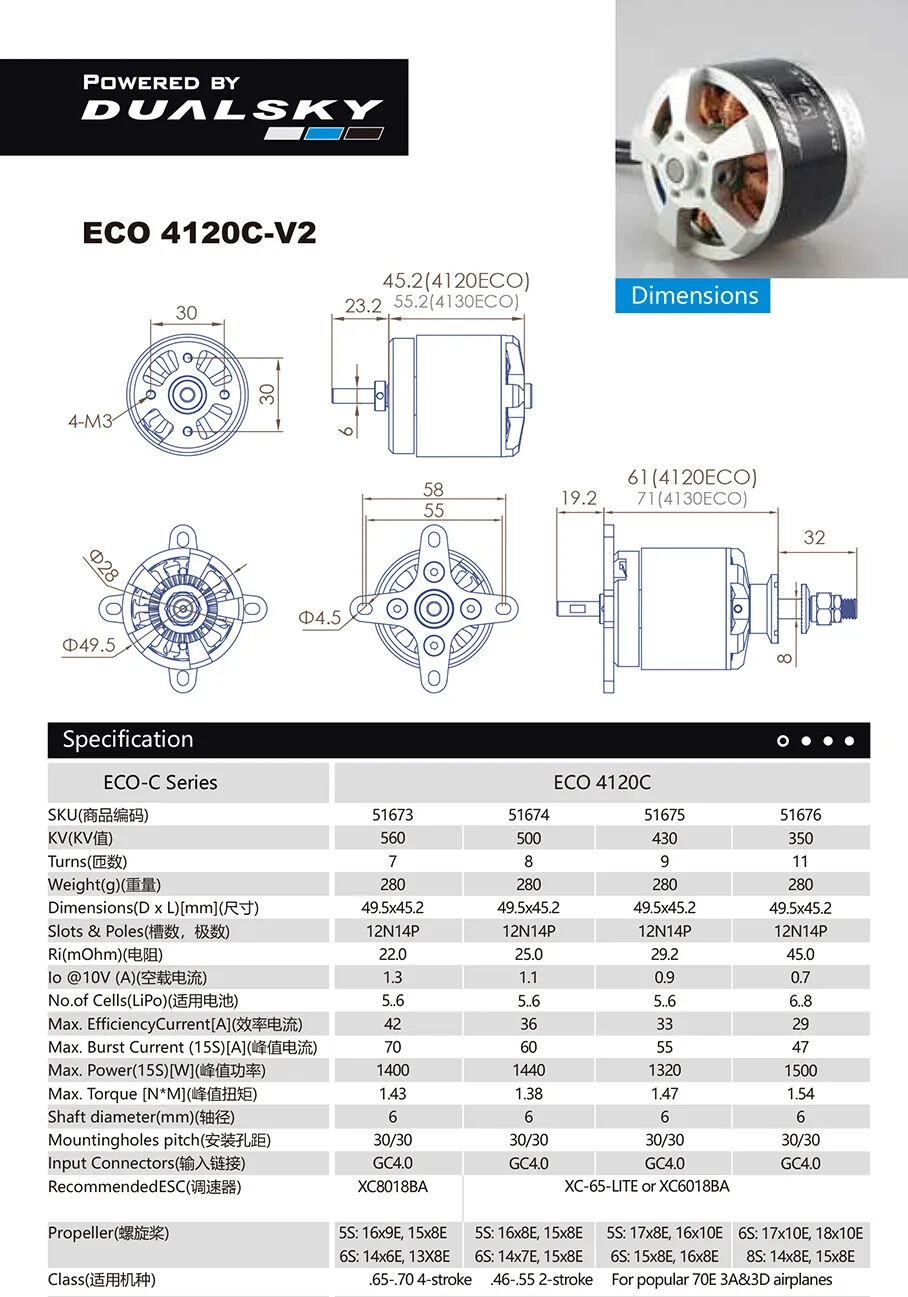

Motor Specs

KV 560
Turns 7
Weight (g) 280
Dimensions(D x L) [mm] 49.5 x 45.2 mm
Slots & Poles 12N14P
Ri (mOhm) 22
lo @10V (A) 1.3 A
No. of Cells (LiPo) 5 or 6
Max. Efficiency Current [A] 42 A
Max. Burst Current (15S) [A]   70 A
Max. Power(15S) [W] 1400 W
Max. Torque [N*M] 1.43
Shaft diameter(mm) 6 mm
Mounting holes pitch 30/30
Input Connectors GC4.0
Propeller 5S: 16x9E, 15x8E
6S: 14x6E, 13x8E
Class .65-.70 4-Stroke

ESC Specs

Dimensions (LxWxH) 84 x 36 x 9.5mm (w/o wire)
Weight (w/ wire) 84g
Number of Cells 3S-6S LiPo, 11.1V-22.2V
Continuous Current 85A
Burst Current 110A
Resistance (Ri) (mOhm) ~2.4 milliohm
Battery eliminate circuit BEC 6.0V, Switching mode, 7A const./10A peaks
Signal & Frequency Default = PWM(upto 333Hz), THR calibration Enabled
Timing System Programmable (Default=18°)
Motor Direction Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming USBLINK MP (BLHeli32_Suite)
Start Power 50% (Programmable)
Work Frequency LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery YES (Default-Disable, freewheel)
Brake On Stop Default=OFF (Adjustable)
Maximum Speeds PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection Programmable (Default=3.00V/cell)
Acceleration Default =125ms (Programmable)
Overheat Protection YES(Default=140 C)
Water & Dust Proof IP43
Beacon Beeps YES, 20 Mins
Input Wires 12AWG, 200mm
Wires to Motor 12AWG, 100mm w/ DB4F
Signal Wires JR, 350mm + 1pin telemetry
SKU DSB59313
Brand Dualsky
Shipping Weight 0.5200kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.180m
Shipping Cubic 0.001800000m3
