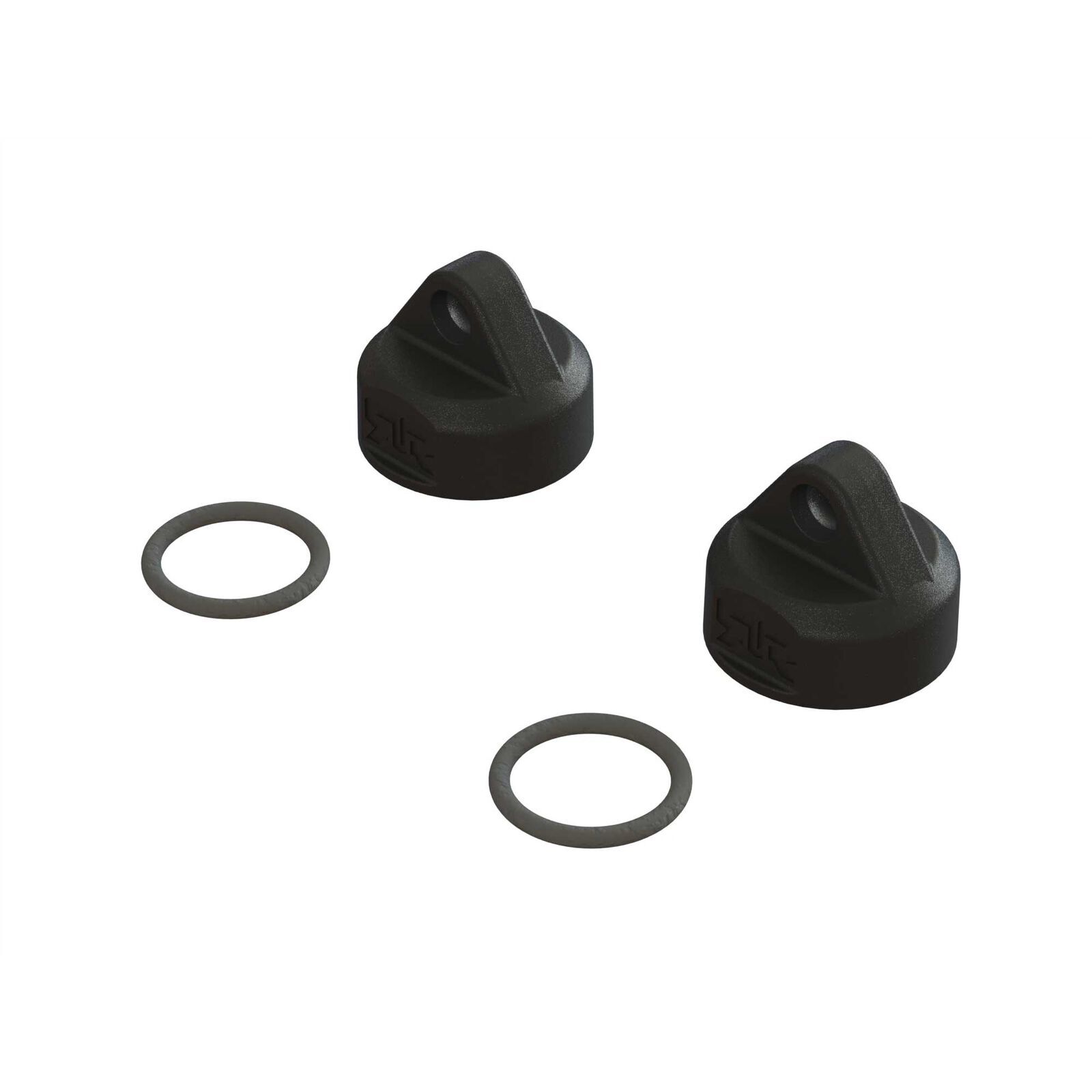

Shock caps take a beating on 4S trucks. Cross-thread one during a rebuild, crack a hex on a hard landing, or wear the sealing face until it weeps oil, and you've got a shock that won't hold pressure. ARA330671 is Arrma's genuine composite replacement pair, supplied with fresh O-rings so you get a proper seal rather than reusing a flattened one.

Worth keeping a set on the shelf if you rebuild shocks regularly — the O-rings are the part that actually fails, and they're rarely worth reusing once they've been compressed.

Key Features

• Genuine Arrma replacement shock caps
• Tough composite material for crash resistance and long-lasting performance
• Precision manufactured for consistent fit to your shock bodies
• O-rings included for a leak-free seal between cap and shock body
• Spare part for shock sets ARA330679 and ARA330680

What's in the Box

2 × Shock Cap
2 × O-ring (15 × 2mm)

Needed to Complete

Caps and O-rings only. Shock bodies, shafts, pistons, springs and shock oil are not included. If you're servicing shocks, you'll want shock oil on hand — see the ARA330674 aluminium (aluminum) shock body if the body itself is damaged.

Fits (per Arrma)

• Arrma 1/10 Kraton 4S 4X4 Brushless Speed Truck — ARA4408V2
• Arrma 1/10 Kraton 4S 4X4 Brushless Speed Truck, Red — ARA102690
• Arrma 1/10 Outcast 4S 4X4 Brushless Stunt Truck — ARA4410V2
• Arrma 1/10 Outcast 4S 4X4 Brushless Stunt Truck, Bronze — ARA102692
• Arrma 1/8 Mojave 4S 4X4 Brushless Desert Truck — ARA4404

Note the Mojave 4S is 1/8 scale while the Kraton and Outcast 4S are 1/10 — all three share the same 4S shock platform, so this cap fits all of them.

Specifications

Brand: Arrma
Part Number: ARA330671
Alternative SKU: ARM330671
Part Type: Shock cap set
Material: Composite
O-ring size: 15 × 2mm
Quantity: 2 caps, 2 O-rings
Parent shock sets: ARA330679, ARA330680

Related 4S shock spares: ARA330674 Aluminium Shock Body 15 × 59mm, ARA330675 Shock Shaft 4 × 61mm, ARA330676 Shock Shaft.
