Align's 121-tooth helical (slant thread) main drive gear for the T-REX 450 series, sold as a pack of three. The Mod 0.6 helical tooth handles more power than a fine-pitch gear, and the helical cut keeps gear noise down. It's a good upgrade for modern high-power 450 setups.

The gear is moulded from a high-strength polymer that is both rigid and slightly flexible. Align's patented built-in fan draws air through the frame to help cool the motor and electronics. It must be paired with the Align H45157 12T helical motor pinion, which gives a 1:10.08 gear ratio.

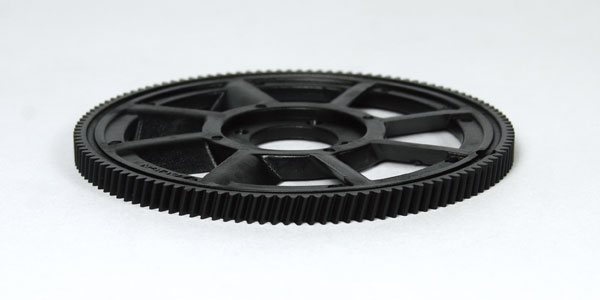

Align H45156QA 121T slant thread main drive gear for T-REX 450

Specifications

  • Part number: H45156QA
  • Teeth: 121T
  • Gear type: Helical (slant thread), Mod 0.6
  • Material: High-strength polymer, black
  • Gear ratio: 1:10.08 with the H45157 12T pinion
  • Weight: 35.3g
  • Includes: 121T slant thread main drive gear (3 pcs)

Fitment

  • Align T-REX 450 series helicopters, including the 450 Pro, 450 Sport and 450SE V2

Needed to Complete

  • Align H45157 Motor Pinion Helical Gear 12T (3.5mm motor shaft) – required, as this gear won't mesh with a straight-cut pinion

Align H45156QA 121T main drive gear pack

Genuine Align spare part, stocked in Australia.

SKU H45156QA
Barcode # 4713413975457
Brand Align
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
