Name: ALIGN TREX 500XT Top Combo Dominator RH50E23X
Brand: Align
Price: 999.00 AUD
Availability: OutOfStock

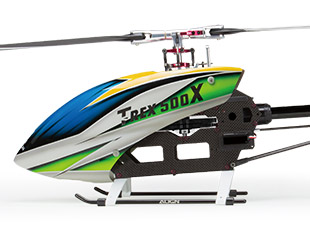

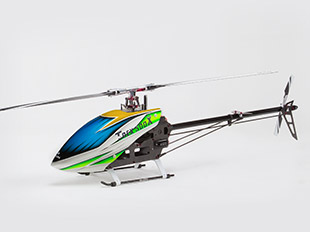

Experienced in numerous of innovations, the brand new T-REX 500XT is now ready to go. More attractive and creative design ideas are all in here, it absolutely would be your favorite T-REX 500XT model ever. The New Torque Drive System; The Better Performance Advantage. Refresh and refine, T-REX 500XT adapt with brand new FL rotor head system, utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 500XT main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. The 500XT utilizes a new torque drive assembly, highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. T-REX 500XT landing skid is tilted 5 degrees forward to improve crashworthiness. T-REX 500XT utilizes 470mm main blades and 520MX(1600KV/3527) motor with 20% power upgrades than the original 1600KV/3225 motor. The latest new RCE-BL80X Brushless ESC support dual BEC output from 6 ~ 8.4V providing efficient and superior power. The NEW DS530M/DS535M digital servos are with extreme torque and speed response allow to support faster, more precise and accurate flight performance. Equipped with all the top end electronic devices, T-REX 500XT is as stable and powerful like the large scale helicopters. It is about to re-define the 500-class helicopters in your mind.

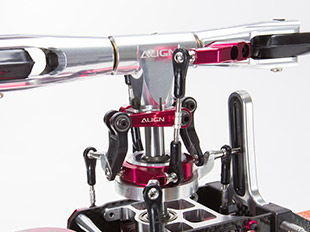

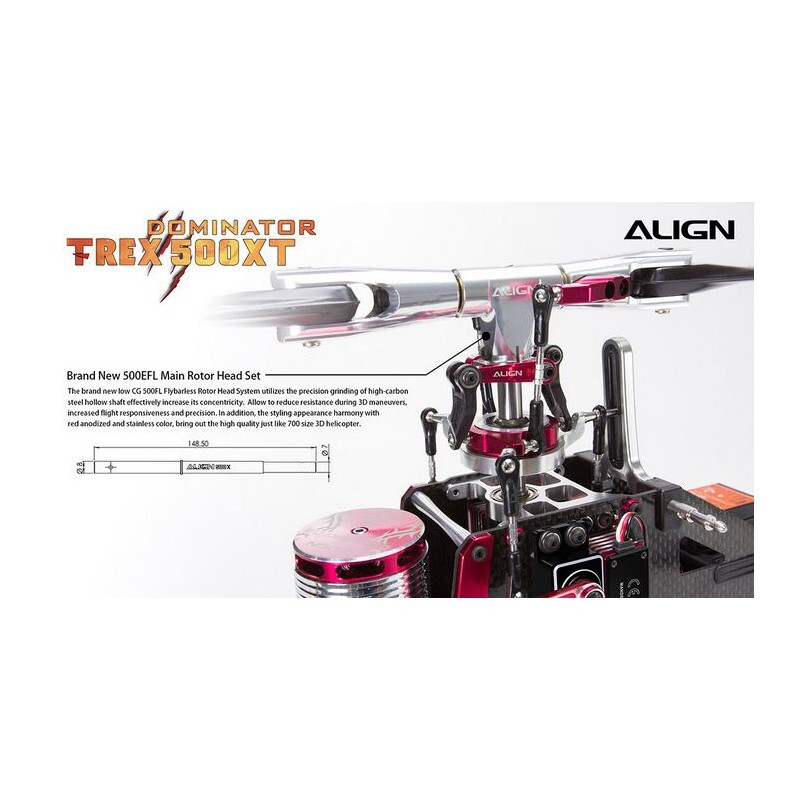

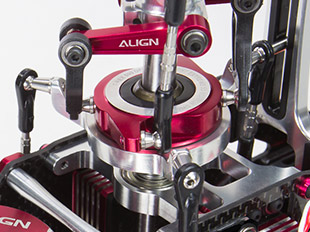

New extended 470mm main blades for T-REX 500X effectively improve the flying stability and power performance. Enhance the power for better control allow to enjoy T-REX 500X flights same like other large size helicopters. New 78 size tail blades are longer in length and offer superior and precise tail holding performance, even during demanding 3D flight.	The brand new low CG 500FL Flybarless Rotor Head System utilizes the precision grinding of high-carbon steel hollow shaft effectively increase its concentricity. Allow to reduce resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality just like 700 size 3D helicopter.	New Swashplate design with precise bearings features in zero slop delivering a precise and accurate controlled flight.

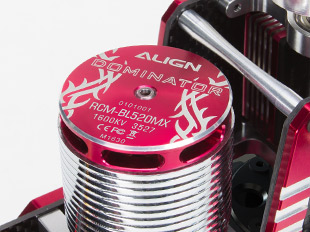

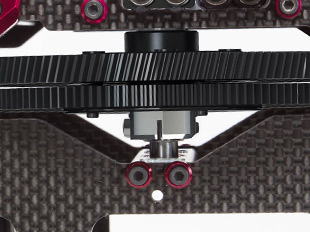

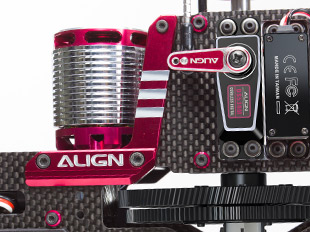

New 520MX(1600KV/3527) motor features high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. Allow to provide maintaining consistent torque and head speed through continuous 3D maneuvers.	Brand new CNC metal reinforcement plate and brace compare with frame mounting bolt effectively increase the torsional strength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from its structure. In addition, the styling appearance harmony with red anodized and stainless color bring out the high tactile appeal. Carbon fiber side frame plates are manufactured using a proprietary composite material integration technology which integrates the battery mounting rails into the frame. This unique use of open spaces within the frame creates a rigid frame and is aesthetically pleasing.	An additional 3rd main shaft bearing block increases the strength of the main frame while improving 3D flight.

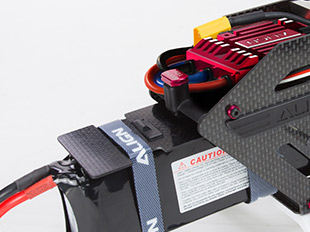

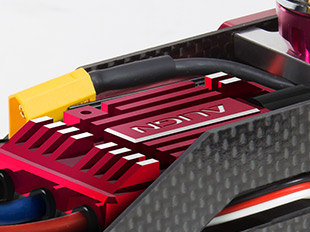

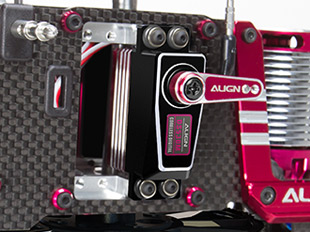

Brand new ESC controller is built-in with BEC voltage setting, allow for continuous current 10A and more, also support surge current support up to 25A, much powerful and precision. Moreover, it utilize with high quality 32 bit M4 ARM processor and superior governor performance, support the best flight performance for all pilots in every level.	Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.	DS530M HV Cyclic and DS535M HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.

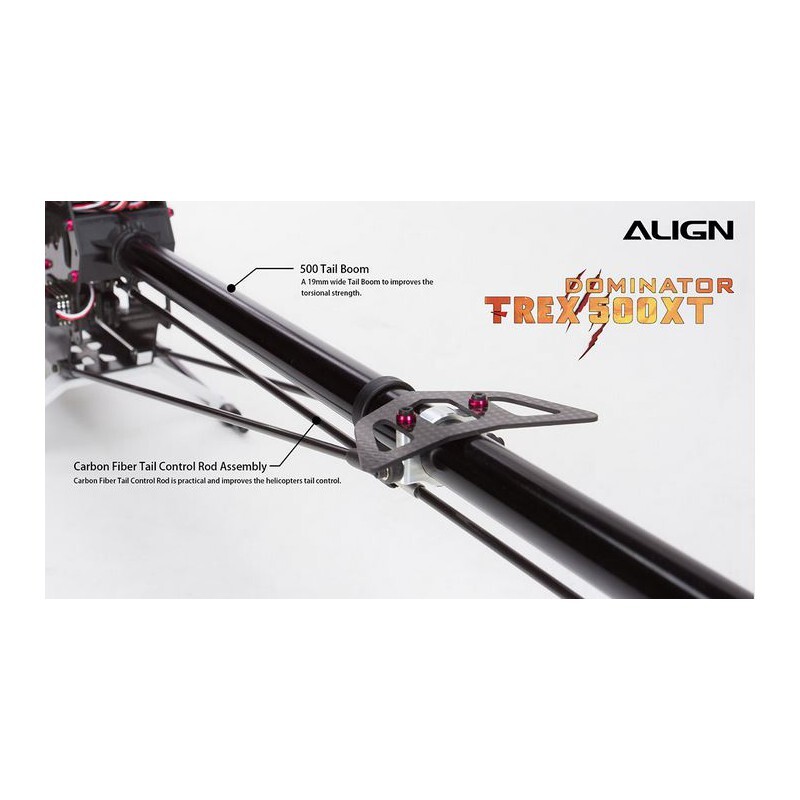

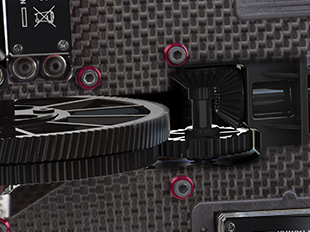

Ultilize of strengthen main gear case features in using larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the fficiency, speed, and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficient design to deliver the ultimate performance.	Landing skid is tilted 5 degrees forward to improve crashworthiness.	A 19mm wide Tail Boom to improves the torsional strength. Carbon Fiber Tail Control Rod is practical and improves the helicopters tail control.

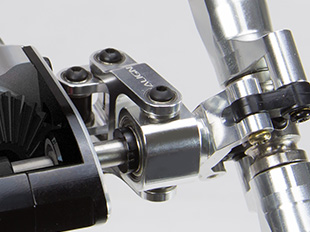

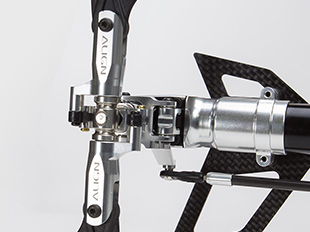

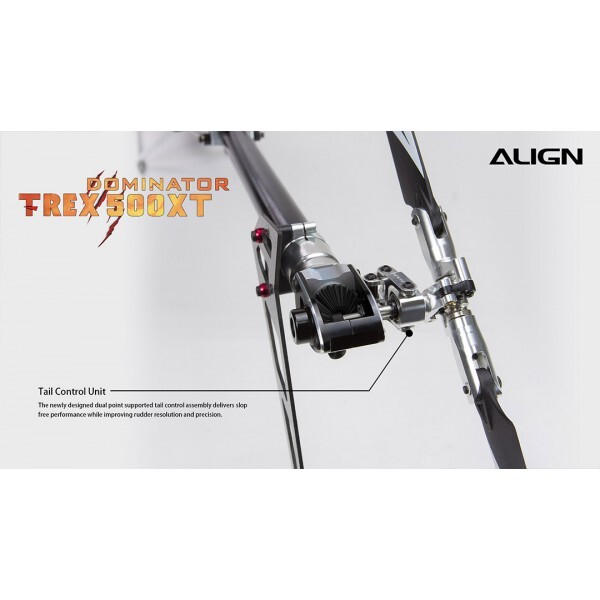

The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.	The new tail rotor holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of the tail performance when using 78 size Tail Blades.

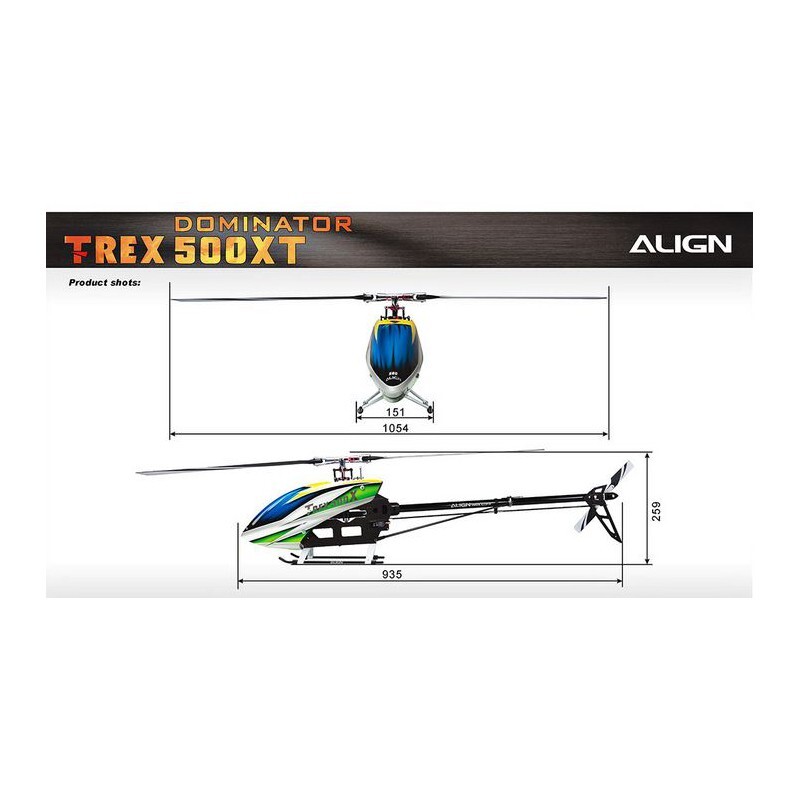

Specification ●Length: 935mm ●Height: 259mm ●Width: 151mm ●Main Blade Length: 470mm ●Main Rotor Diameter: 1054mm ●Tail Rotor Diameter: 219mm ●Motor Pinion Gear: 12T ●Main Drive Gear: 134T ●Main Drive Pulley: 80T ●Tail Drive Gear: 21T ●Drive Gear Ratio: 11.17:1:3.81 ●Weight(w/o battery): approx. 1450g	Accessories ●T-REX 500X KIT Set x 1 ●Microbeast PLUS Flybarless System x 1 set ●470 Carbon Fiber Blades x 1 ●78 Tail Rotor Blade x 1 ●520MX Brushless Motor(1600KV/3527) x 1 ●DS530M Digital servo x 3 ●DS535M Digital servo x 1 ●RCE-BL80X Brushless ESC x 1	Radio transmitter and electronic equipment required for assembly ●Transmitter(6-channel or more, helicopter system) ●Receiver(6-channel or more) ●6S Li-Po 2600 ~ 3300mAh (3300mAh suggestion) ●Digital Pitch Gauge

SKU	RH50E23X
Barcode #	4713413708307
Brand	Align
Shipping Weight	2.0000kg
Shipping Width	0.220m
Shipping Height	0.100m
Shipping Length	0.450m
Shipping Cubic	0.009900000m3
