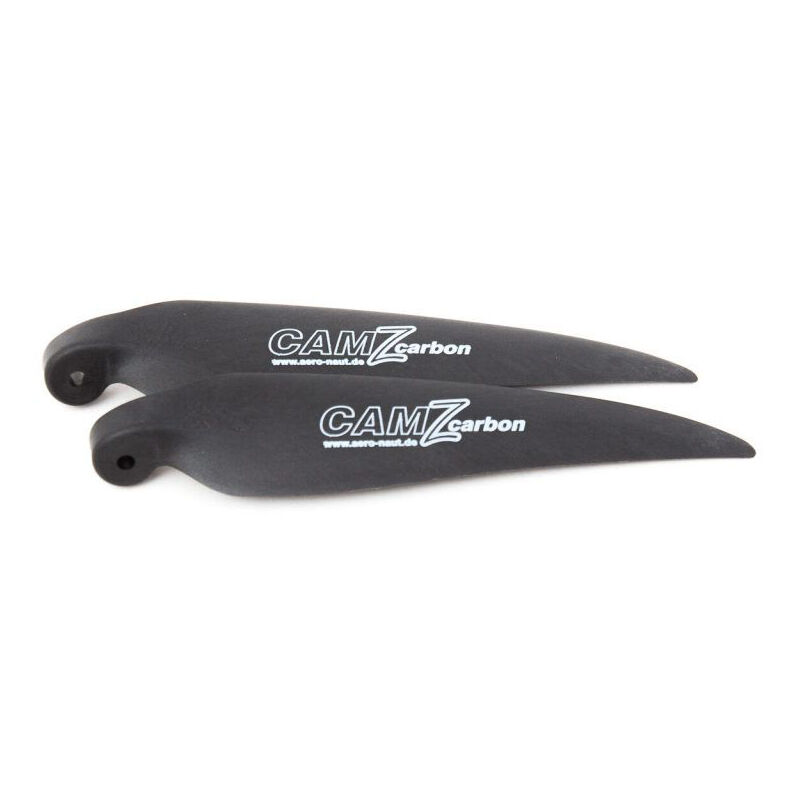

CAMcarbon Z folding propellers

CAMcarbon folding propellers have been the standard in electric flight for many years. Reason enough to further develop this series. The new Z-propellers have been specially optimized for even tighter folding to narrow glider fuselages. Even with box-shaped wooden fuselages such as our Triple, Helios, or Soleo models, the new shape of the CAMcarbon Z allows the blades to fit significantly closer to the fuselage.

The blades fit all existing folding propeller systems designed for 8mm blade roots. This means the propellers can be easily used with our entire range of CN spinners and precision spinners.

However, the optimal result is achieved in combination with the Z-spinners (CN). Depending on the fuselage, this allows for folding without a gap, which not only improves the appearance but also improves aerodynamic performance.

The tread pattern has been optimized in the root area. The material used is a carbon fiber-reinforced plastic.

The specified size of the folding propeller refers to the use of a 42mm centerpiece. When using smaller or larger centerpieces, the diameter and pitch will change accordingly.

Caution: Folding propellers are only permitted to be operated up to the specified maximum speed and in conjunction with a soft start of the motor. The maximum permissible speed can be found on the folding propeller packaging.

Specifications

Copter rotation direction: ccw
Aircraft rotation direction: right
Diameter: 15
Max. speed: 9,000
Gradient: 8
Use: Electric drive
