Product Details

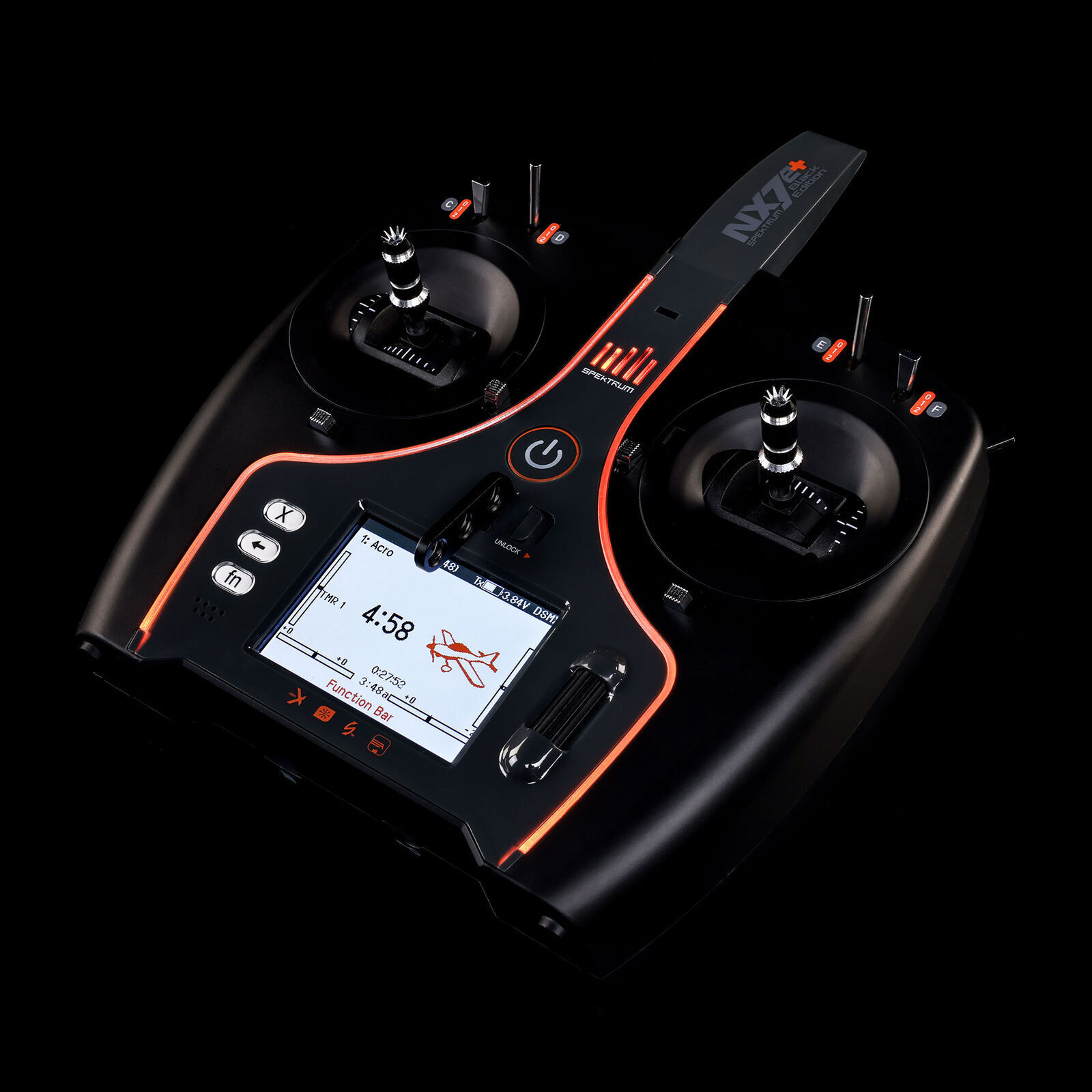

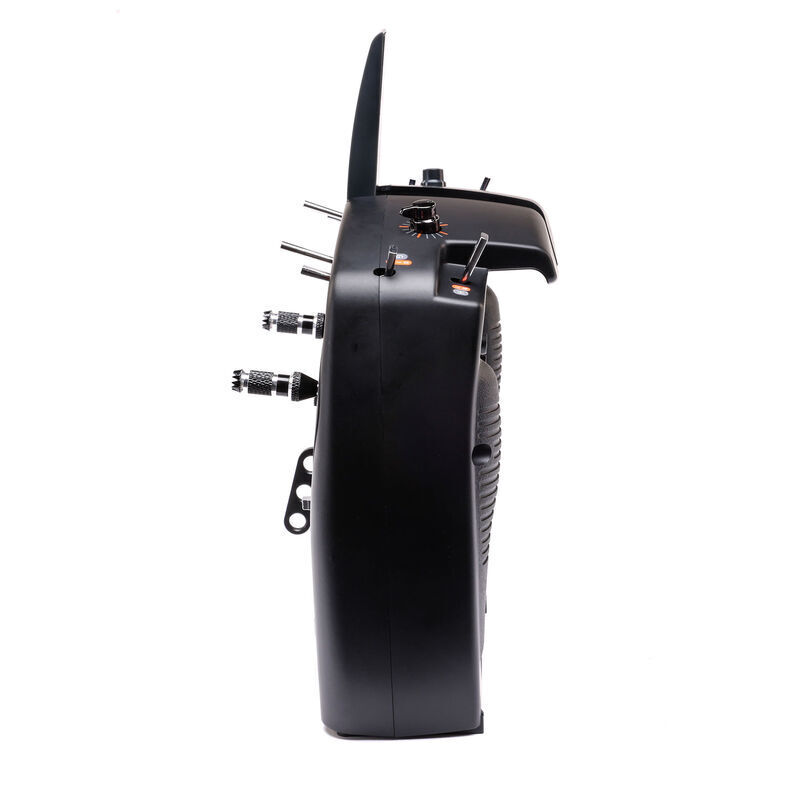

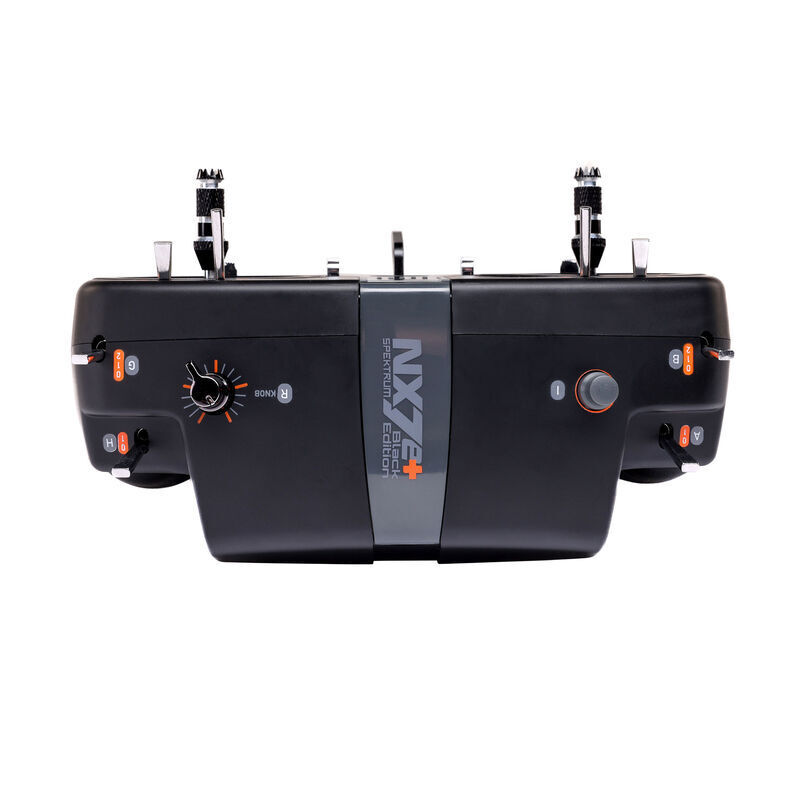

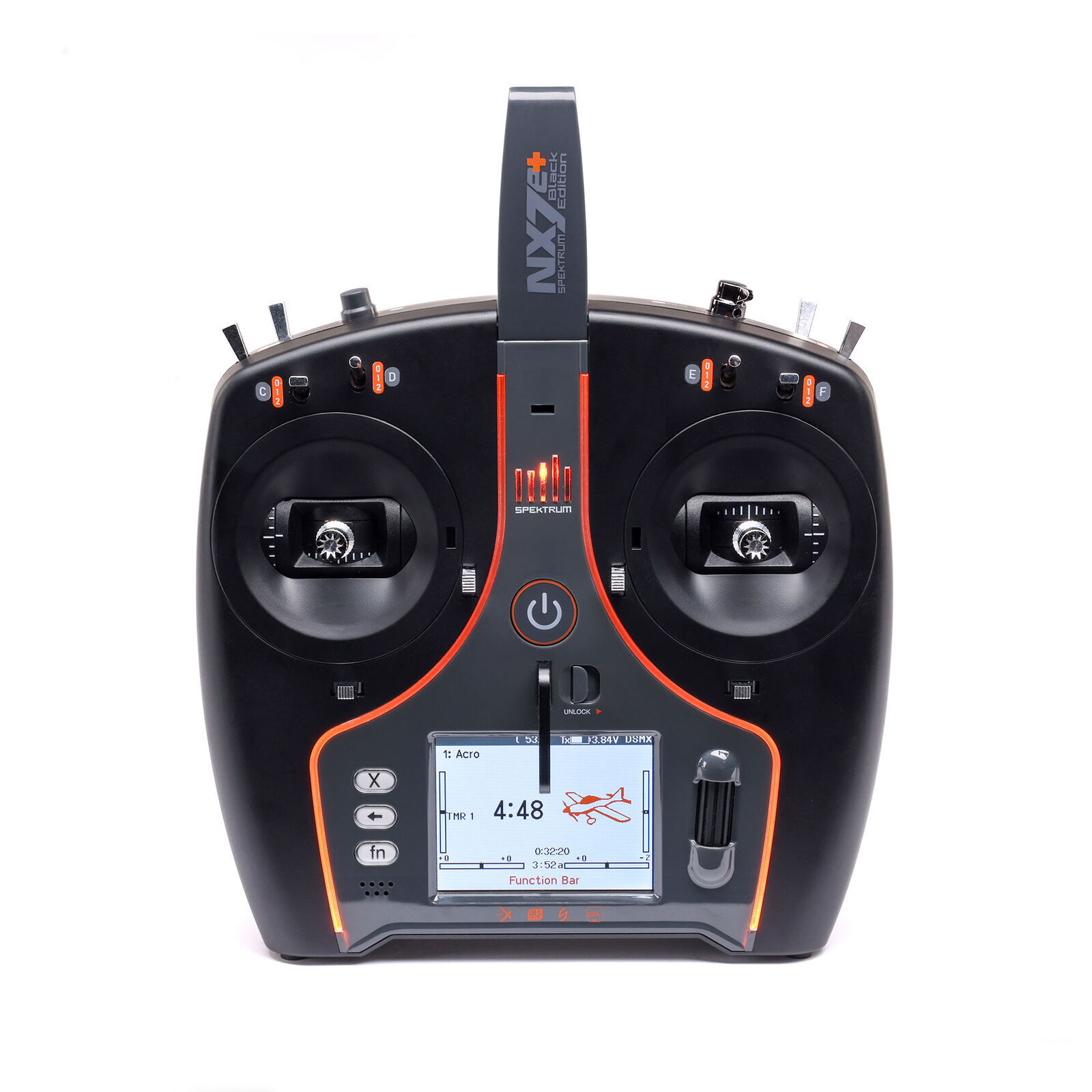

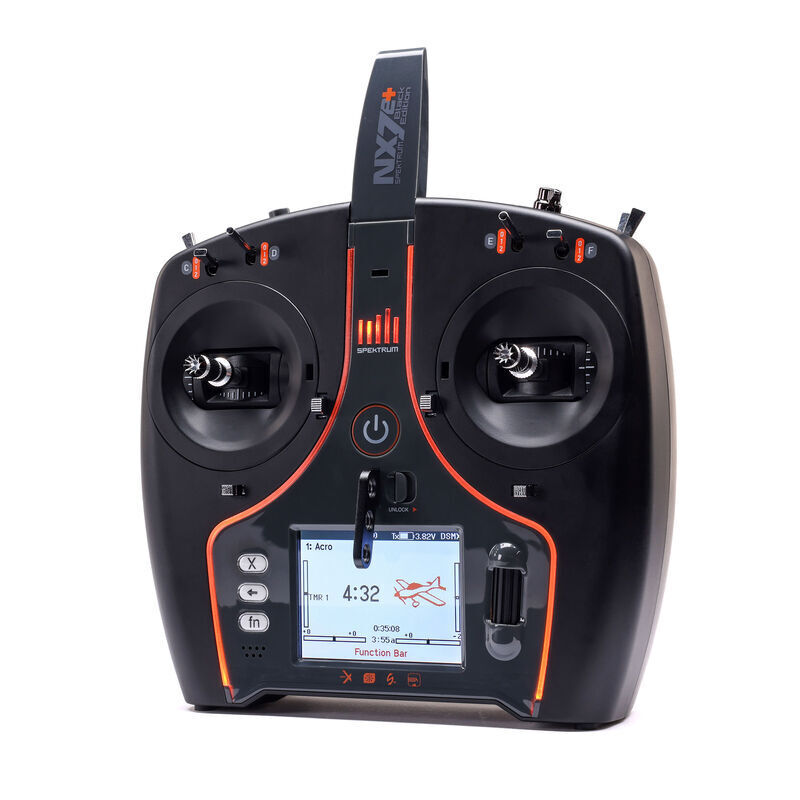

For the beginner to intermediate, BNF-type, and budget-conscious RC pilot, the Spektrum™ NX7e+ Black Edition gives you the unbeatable response of DSMX® technology, the simplicity of Spektrum AirWare™ programming software, and many other features you can’t find on other similarly priced radios. To all this, it adds a stunning, black finish that further sets it apart from everything else in its class.

In The Box

• (1) Spektrum™ NX7e+ 14-Channel 2.4GHz DSMX® Transmitter
• (1) 2200mAh Li-Ion Transmitter Battery
• (1) USB-C Cable
• (1) NX7e+ Product Manual

Needed to Complete

• (1) Compatible Spektrum™ Receiver

Download user manual NX7e+

Spektrum NX7e+ Black Edition 14-Channel Transmitter Video

SPEKTRUM™ AIRWARE™ SOFTWARE

Exclusive Spektrum™ AirWare™ programming software includes all of the functions that a beginner or intermediate pilot could want, but you don't have to be an expert to use them. It also offers benefits not available on other systems, such as Enhanced Wing Type programming that automatically configures the necessary mixes; Active Gyro and Governor Trim to fine-tune rotor speed and gyro gain while in flight; and Electronic E-Ring to limit servo travel automatically if the sum of the cyclic and pitch values exceeds servo limits.

EASY PROGRAMMING

The NX7e+ offers programmable mixes and a variety of different flight modes. You can easily navigate program menus with the transmitter's roller-wheel scrolling interface with Clear, Back, and Function buttons. Function bar options include Telemetry Ticker Tape for following real-time telemetry data and "My List" to give you quick access to the menu items you select, organized however you wish. You'll have quick, uncluttered access to the features you use the most.

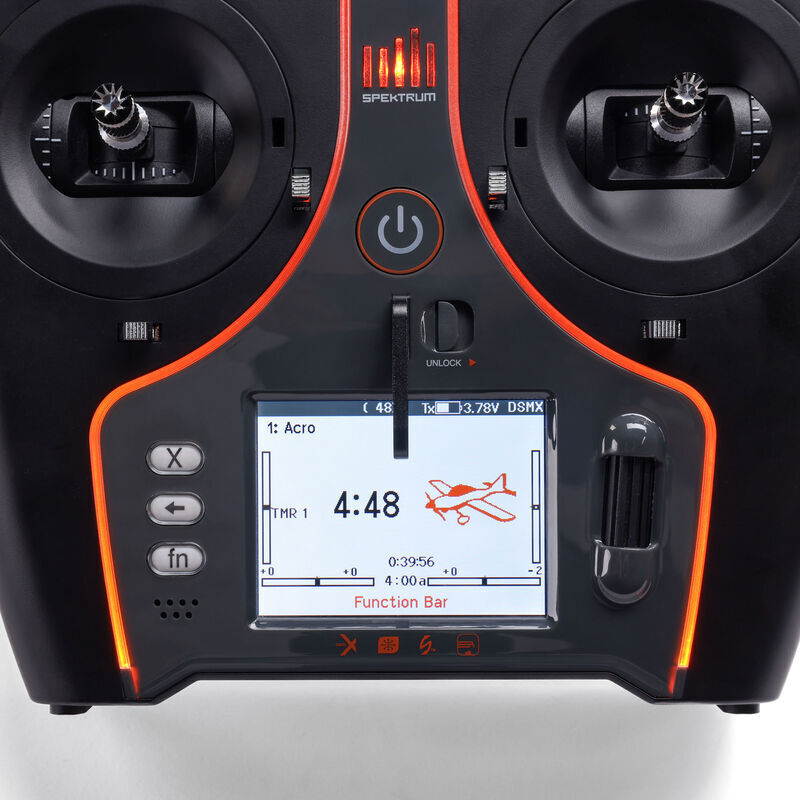

2.8" COLOR DISPLAY

Navigating menus and viewing telemetry data is made easy by the NX7e+ transmitter's 2.8” backlit color display that delivers information in crisp, 320x240 resolution detail. The display screen also allows you to choose from multiple colors or create your own.

MODEL TEMPLATES

Model programming templates for BNF® aircraft that include desired switch assignments, rates, curves and other details are already saved into the NX7e+ transmitter. You can also simplify the process of creating set-ups for new models by selecting Template and starting from a generic model template of the appropriate model type.

USB-C CONNECTIVITY

The NX7e+ transmitter features a USB-C port that allows you to charge the internal Li-Ion battery with the included USB-C cable. It can also be used to recognize accessory devices and provide a convenient link to your PC or laptop. Connect the transmitter to your computer, and you can control most simulators, including the RealFlight® RC Flight Simulator.

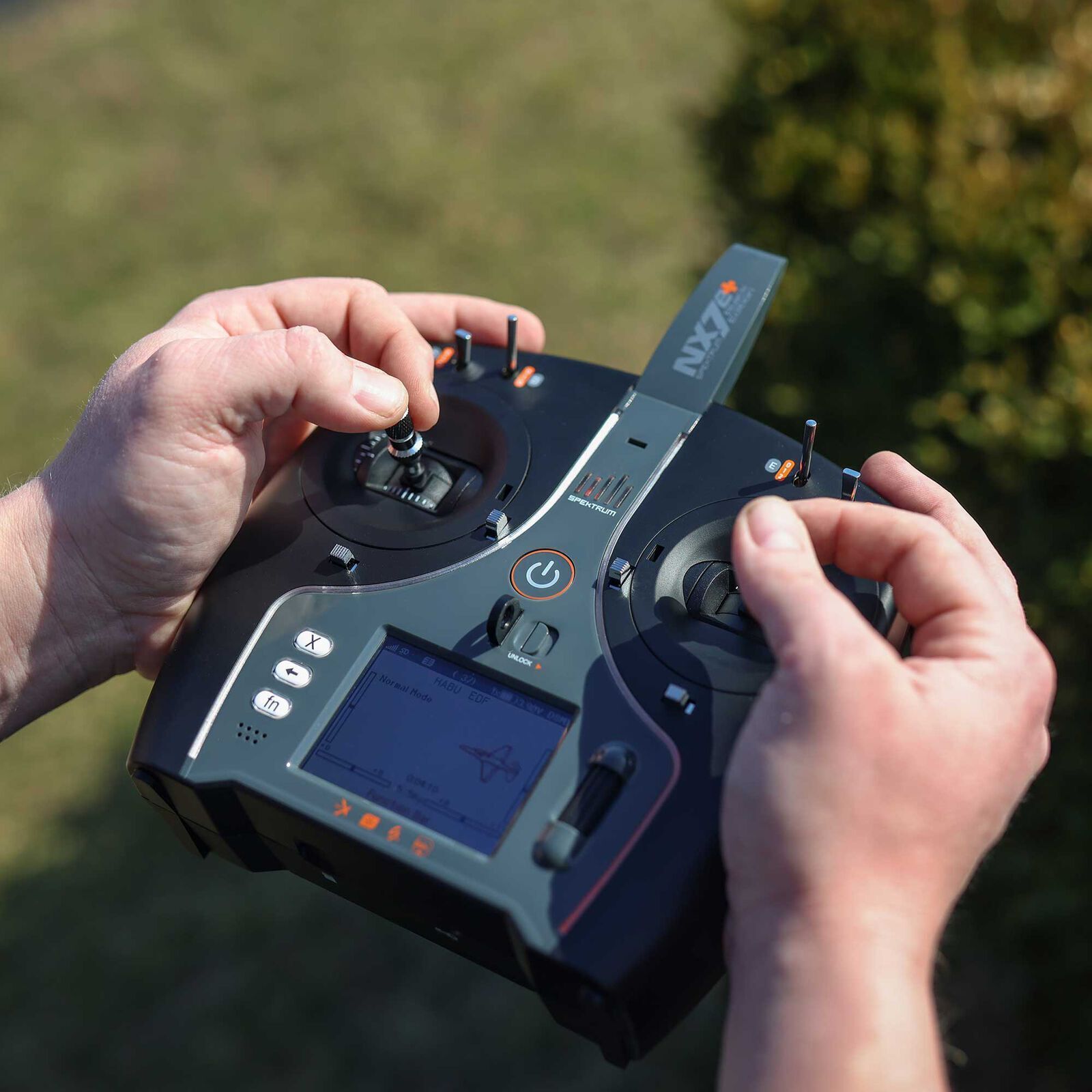

ERGONOMIC DESIGN

The NX7e+ transmitters gimbals offer long-lasting precision that's conveniently adjustable from the front of the transmitter. Weight distribution and switch placement have been optimized for comfort and precise, fatigue-free control. Its antenna folds conveniently for compact storage and transport.

DSMX® TECHNOLOGY

The NX7e+ transmitter is built around proven Spektrum™ DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX® transmitters provide on-channel interference protection that's second to none.

HIGH-CAPACITY Li-ION TRANSMITTER BATTERY

The NX7e+ transmitter includes a long-lasting 2200mAh Lithium-Ion battery and a USB-C Cable for convenient charging.
