Product Details

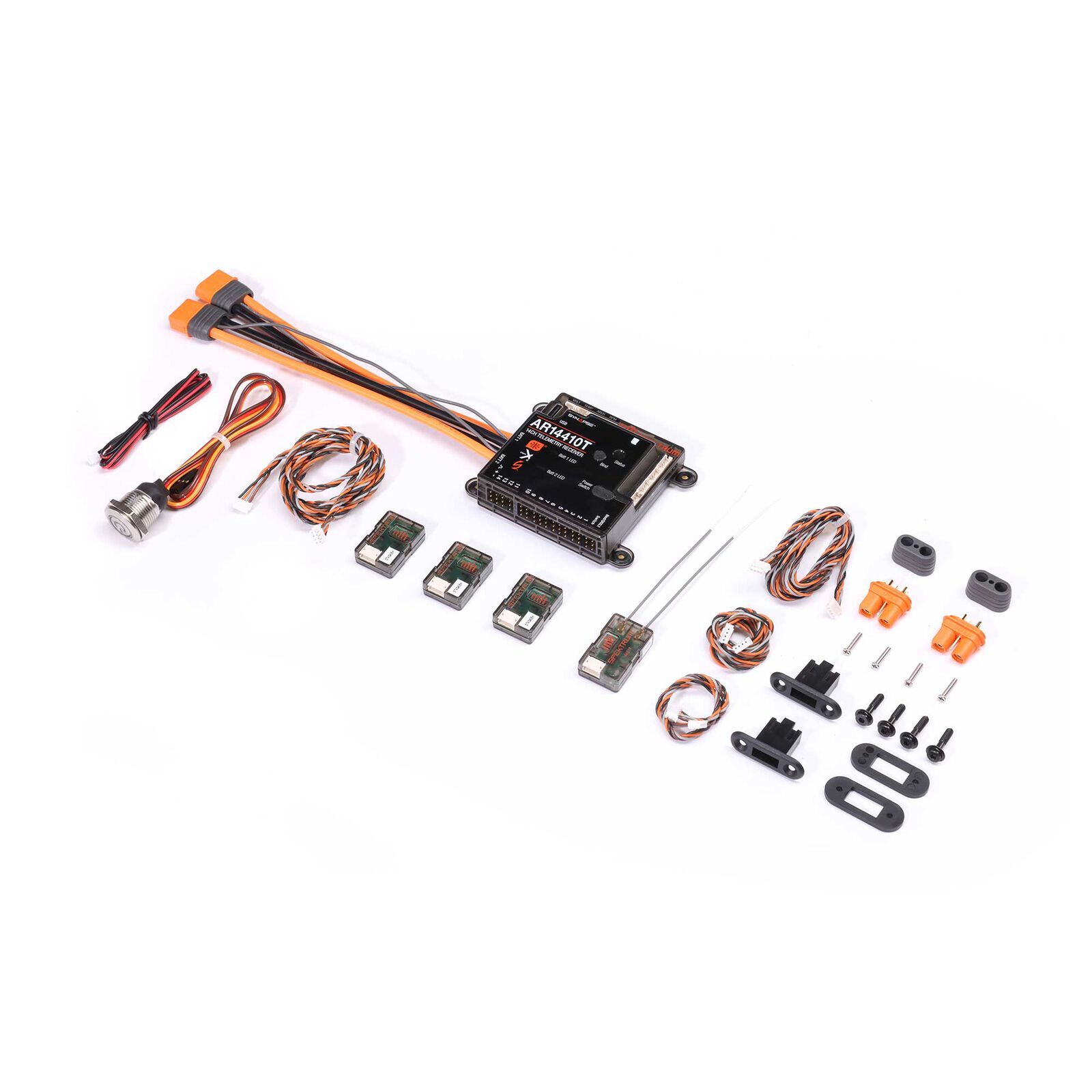

In The Box

AR14410T 14 Channel PowerSafe Receiver x 1
SPM4651T SRXL2 Remote Serial Telemetry Receiver x 1
SPM9747 SRXL2 DSMS Remote Receivers x 3
9" SRXL2 Remote Receiver Extension x 1
12" SRXL2 Remote Receiver Extension x 1
24" SRXL2 Remote Receiver Extension x 1
36" SRXL2 Remote Receiver Extension x 1
Battery IC3 Connectors x 2
Charge Receptacles x 2
Aircraft Telemetry Volt Sensor x 1
Soft Switch x 1
Instruction Manual x 1

Spektrum AR14410T 14-Channel user Manual Download

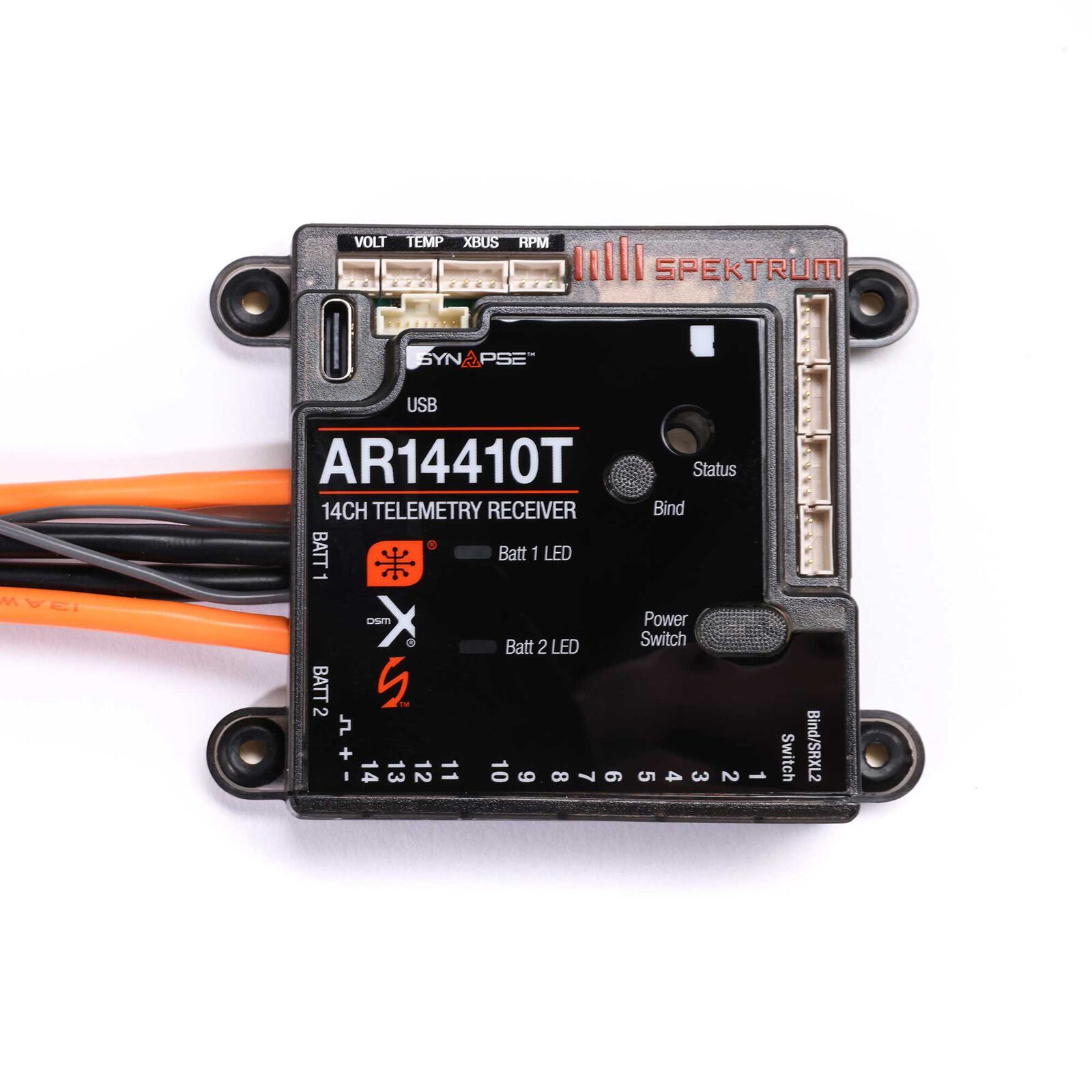

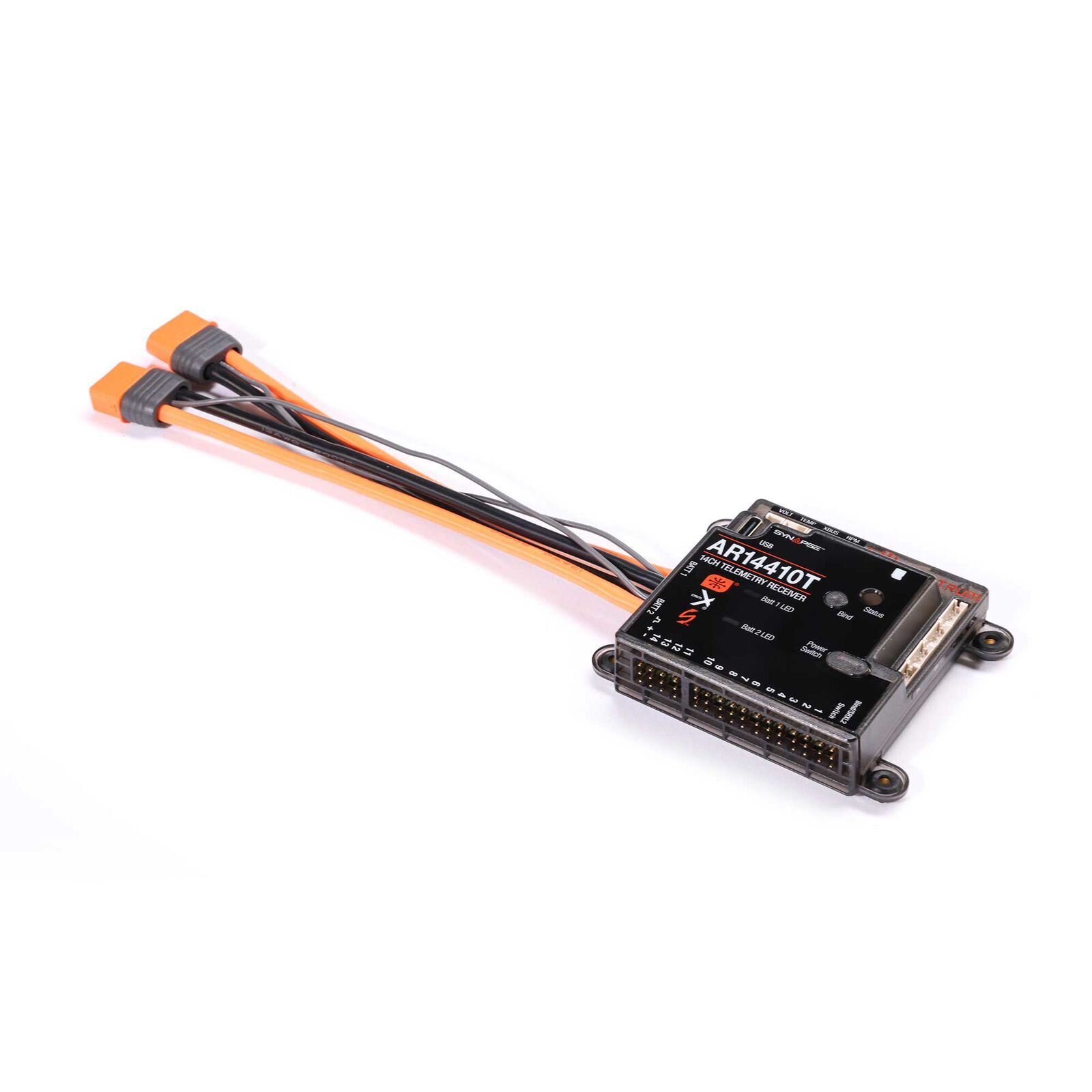

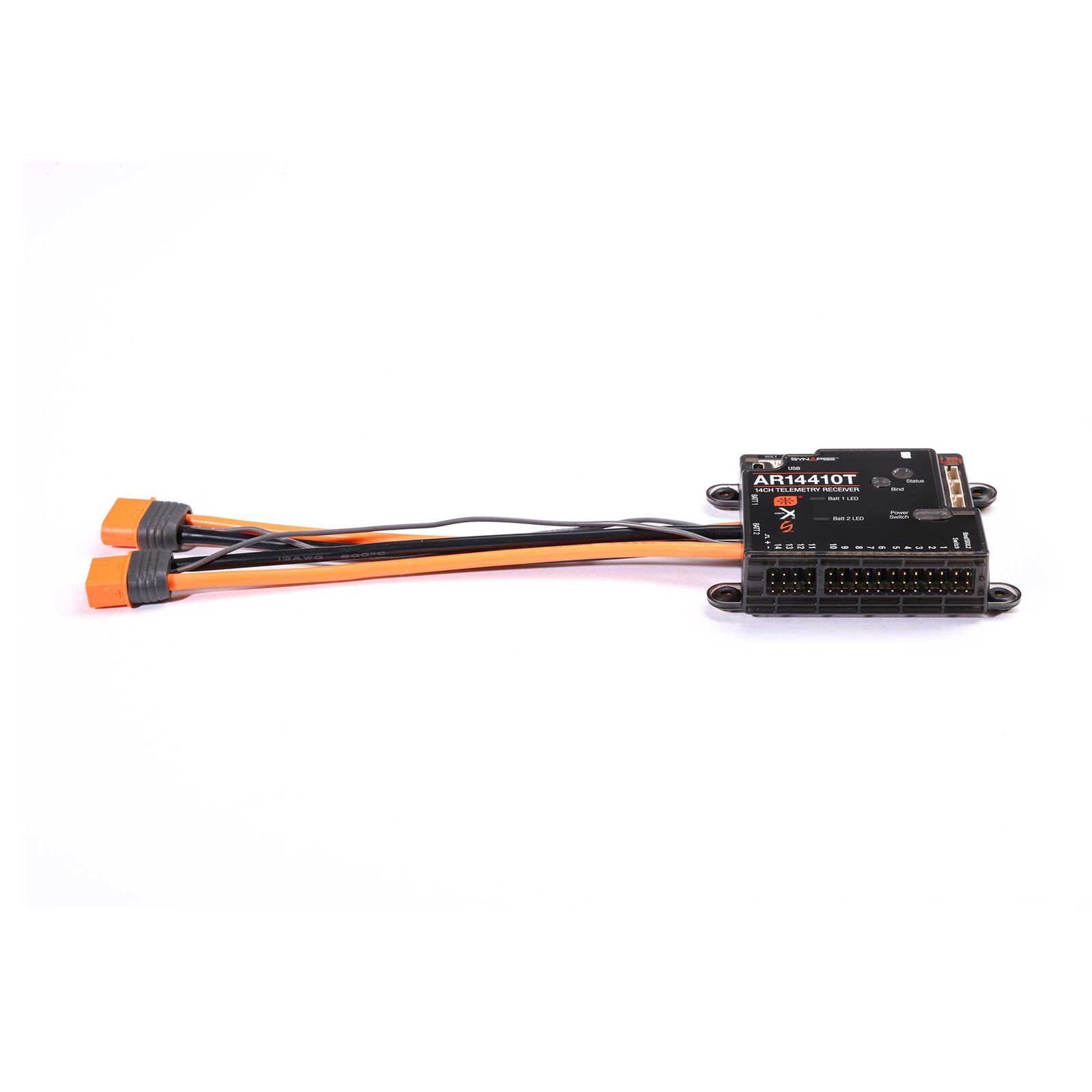

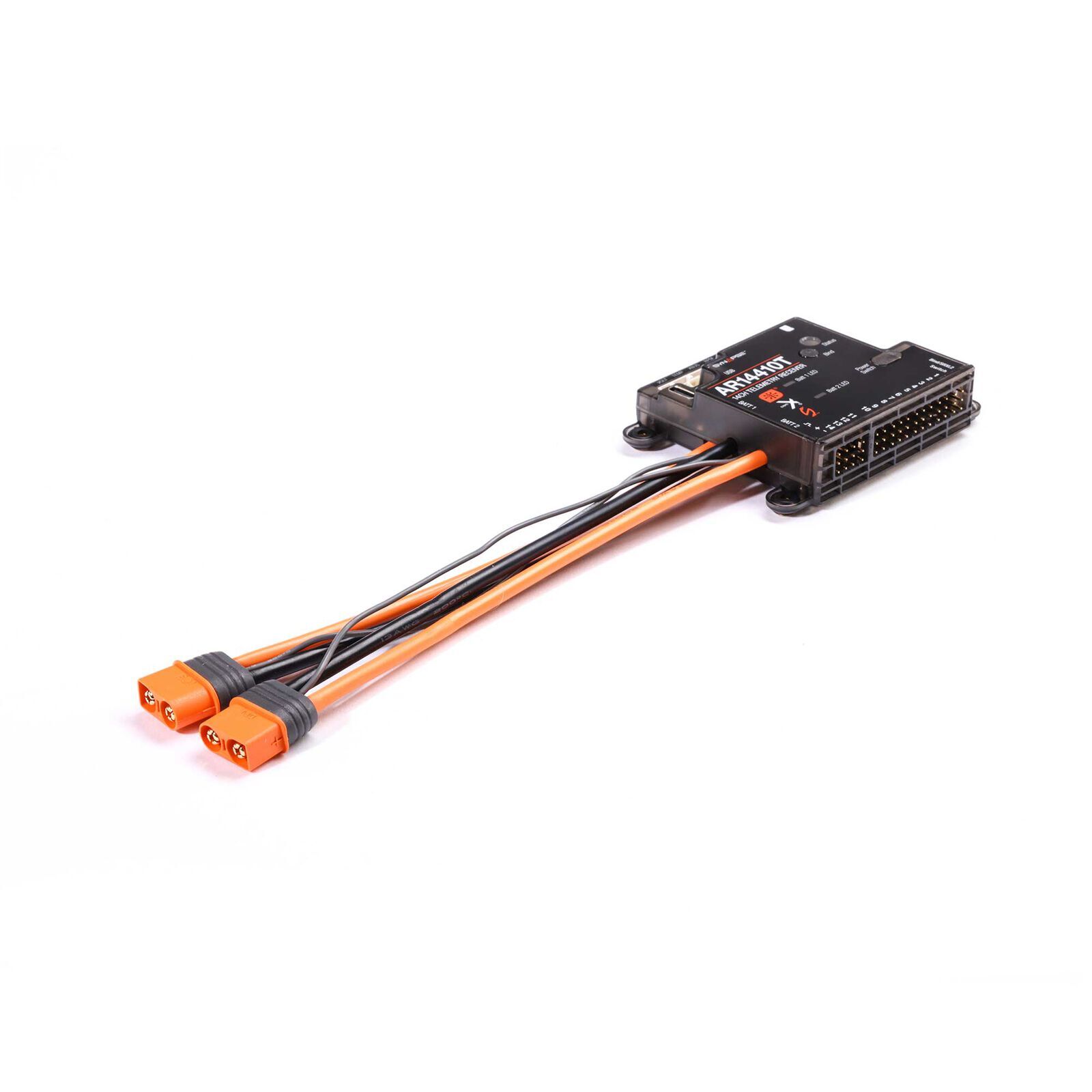

Spektrum AR14410T 14-Channel PowerSafe Telemetry Receiver Overview

The AR14410T is a 14-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or 13AWG battery leads with IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.

Using an optional micro-SD card, the AR14410T can store flight data for later review as a CSV file. It also has a new, push-button PowerSafe LED soft switch or can be powered on and off through the on-board button. Additionally, the system can be put in sleep mode from a compatible Spektrum transmitter and woken up between flights and can be powered off from your compatible Spektrum transmitter as well. Bind can be initiated through the button or a bind plug. The AR14410T can be updated easily through the USB-C connection.

Spektrum AR14410T 14-Channel PowerSafe Telemetry Receiver Features

Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)
Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
Regenerative servo support for any number of servos
USB-C port for easy product registration and firmware updates
12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
Integrated status LED provides helpful information during start up, warnings and mode indicators

Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
Capable of high-speed 11ms frame rates
Binding is easier than ever with four options to initiate the bind process
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Stop Lock and Release Rate parameters
Heading Hold improvements
Improved gryo filtering
Canard and Thrust Vectoring Support

NEXT GENERATION IN FLIGHT STABILIZATION

The AR14410T is compatible with the Synapse AS3X+/SAFE Stabilization Module (not included), providing enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.

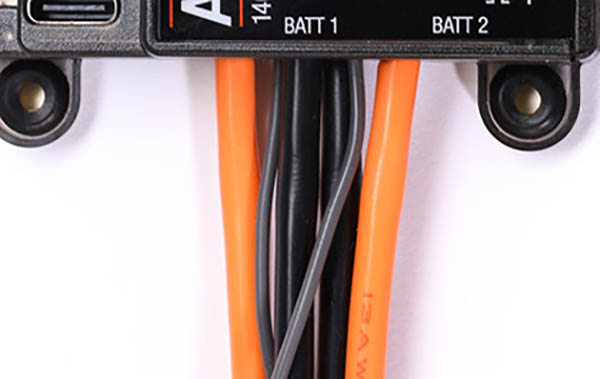

POWERSAFE

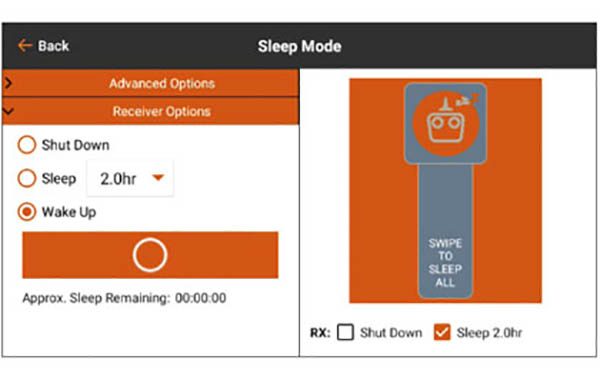

SLEEP MODE

The AR14410T receiver features an advanced power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter. This exciting new feature allows you to power up your model's electronic system at the press of a button. No hatch removal or physical switches are needed, and it is extremely convenient for a day at the flying field.

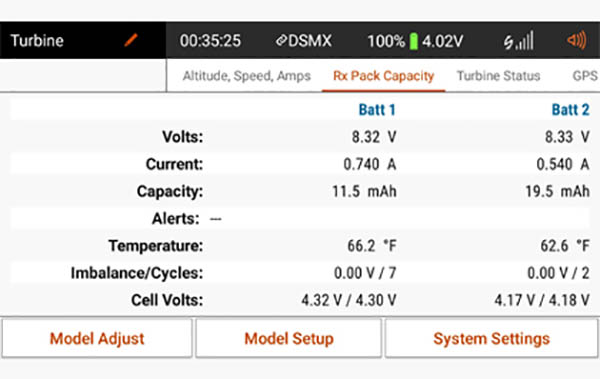

BATTERY CAPACITY MONITOR

INNOVATIVE BATTERY CAPACITY MONITOR

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

SLEEP MODE

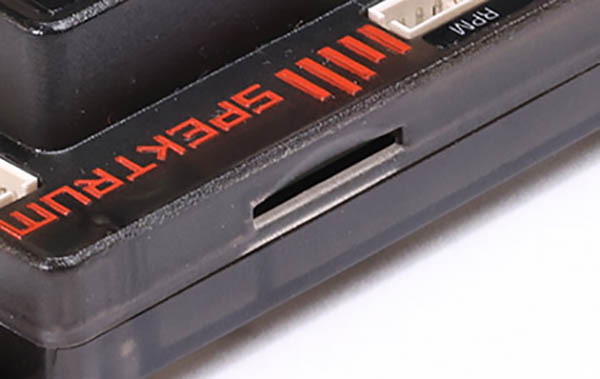

INTEGRATED "BLACK BOX" TELEMETRY LOGGING

When a Micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

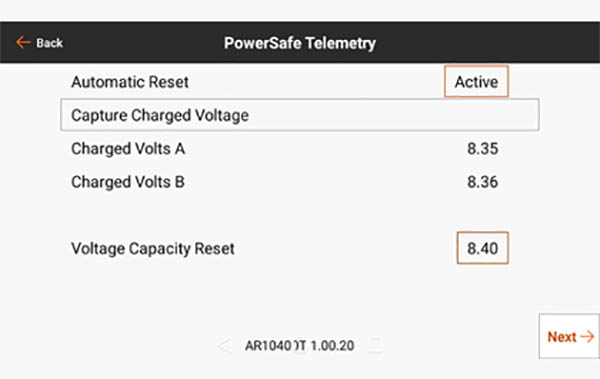

FORWARD PROGRAMMABLE

You can configure the AR14410T receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

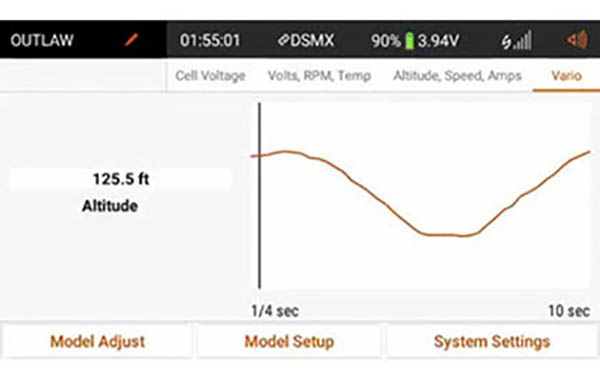

BAROMETER

INTEGRATED BAROMETER

The Spektrum AR14410T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

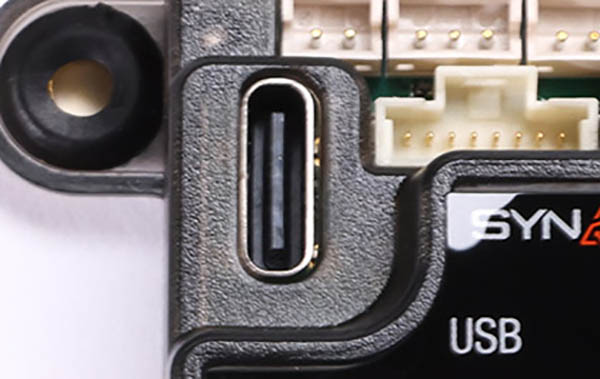

MICRO USB PORT

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

Spektrum AR14410T 14-Channel PowerSafe Telemetry Receiver Product Specs

Application	Air
Band	2.4GHz
Bind Method	Bind Button, Bind Plug
Channels	14
Data Port	Yes
Failsafe	Yes
Input Voltage	3.5-12.6V
Integrated Variometer	Yes
Modulation	DSMX/DSM2
Product Height	1.75" (44 mm)
Product Length	2.6" (66 mm)
Product Weight	2.7oz (76g)
Product Width	2.4" (61 mm)
Programmable	Yes
Range	Full
Remote Receiver Ports	4
Resolution	2048
Serial Out	SRXL2
Technology	AS3X+ (Purchased Separately)
Telemetry	Yes
XPlus Compatible	Yes
