Features

  • Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
  • Integrated Microchip Stores Unique Parameters for Each Battery
  • New IC3 and IC5 Connectors are Compatible with EC3 and EC5
  • Save Time and Hassle, while Improving Battery Life
  • Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage

Video Overview

Smart Battery IC Connection

Smart Battery Technology — One Smart Connection

When connected to a Spektrum Smart charger, a Smart G2 battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically, and no separate balance lead is needed.

Integrated Microchip

Data Rich

An integrated microchip allows each Smart G2 battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready to go out and have fun.

Smart Auto Storage

Smart Discharge

LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.

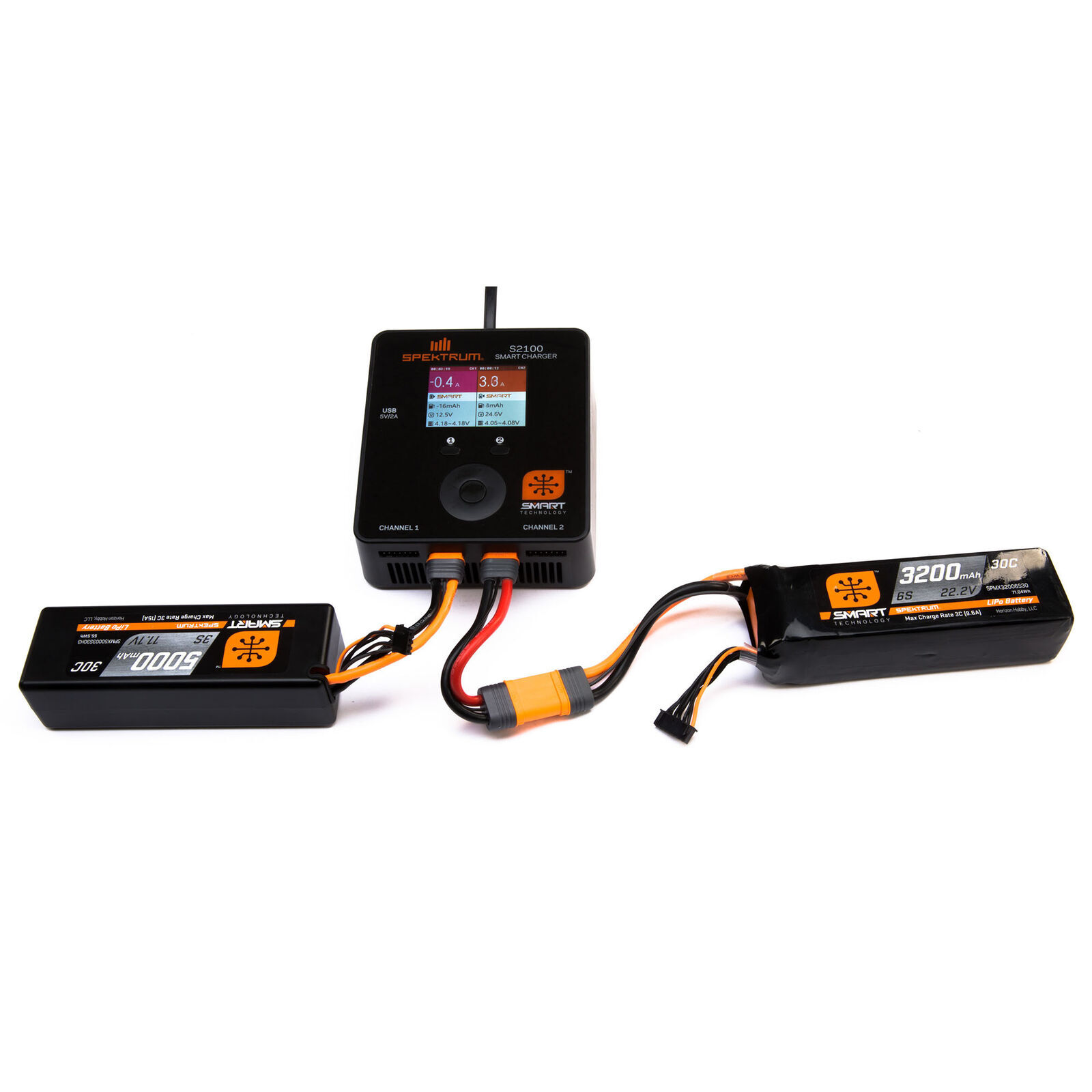

Simple Quick Charger

Simple and Quick

Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum Smart G2 battery to your Smart charger, making charging as simple as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.

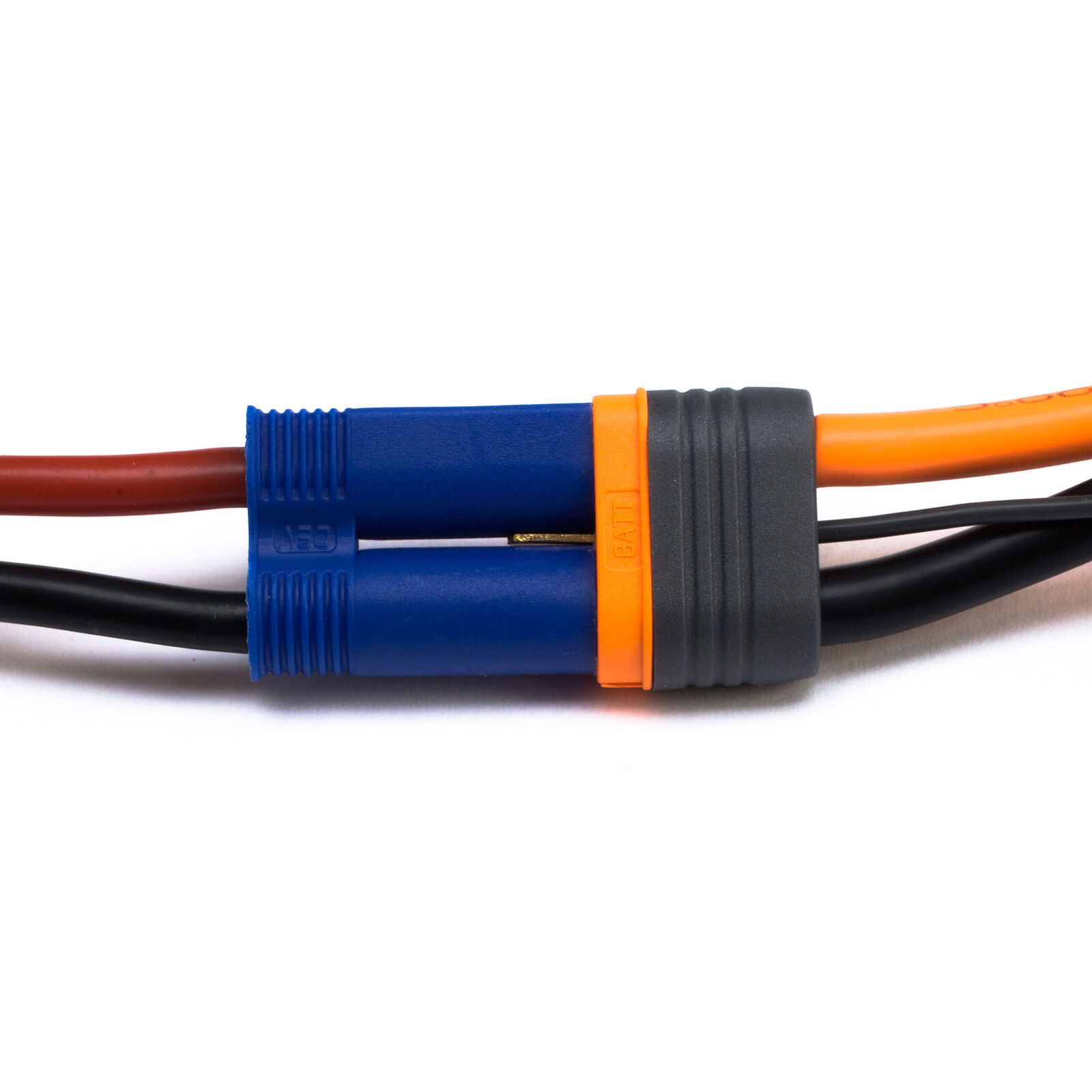

IC3 and IC5 Connectors

IC3® and IC5® Connectors

The innovative Smart connection is made possible by a microchip installed in every battery, which feeds the battery's unique information through a data cable to its IC connector. Spektrum Smart IC3® and IC5® connectors have been designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. IC connectors are also backwards compatible with EC connectors so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart chargers.

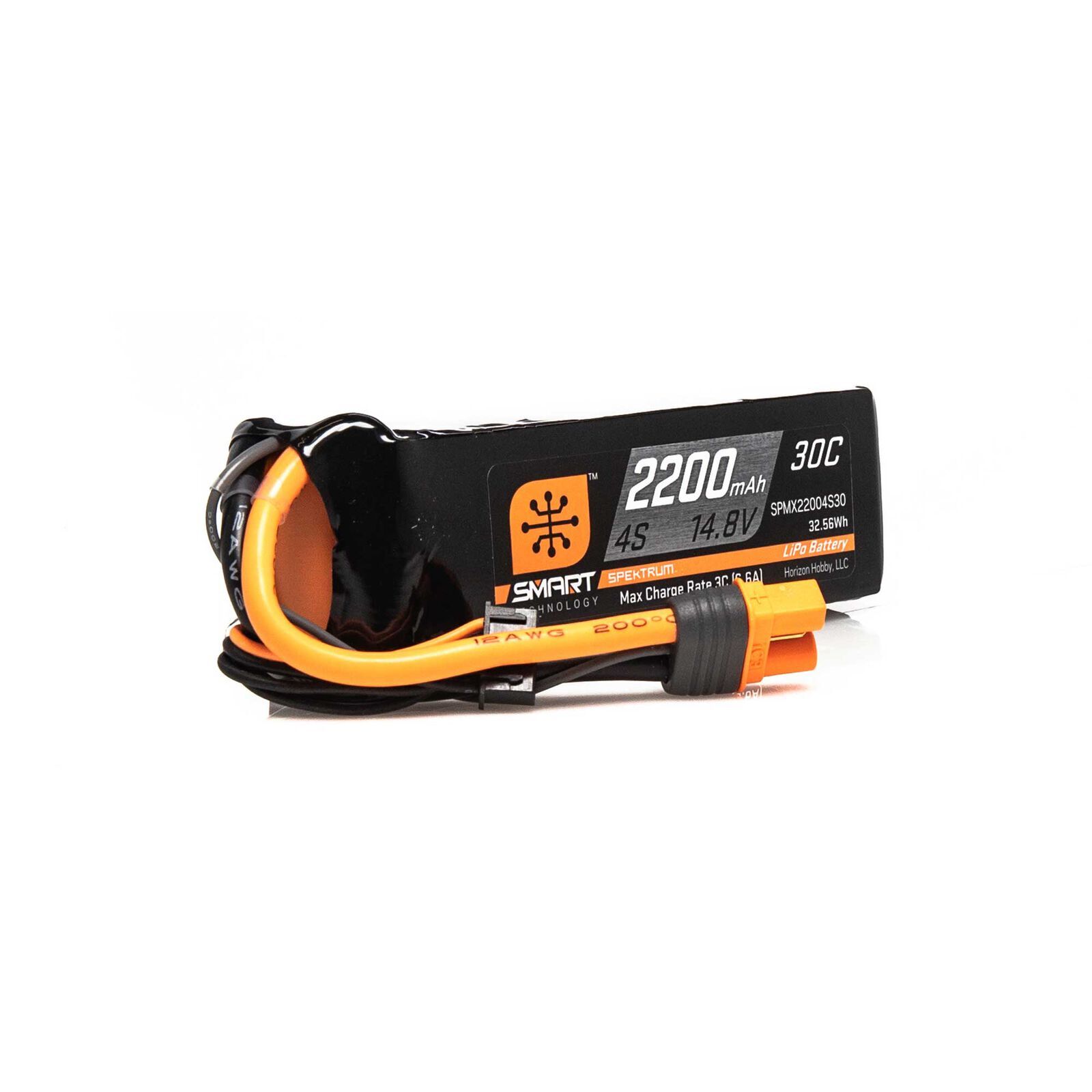

Product Specifications

Application Air
Auto Storage Yes
Battery Type LiPo (3.7V per cell)
Battery Voltage 14.8V
Capacity 2200 mAh
Connector Type IC3
Discharge 30C
Hard Case No
Material Soft Case
Maximum Charge Rate 3C
Maximum Continuous Discharge Rate 30C
Number of Cells 4
Product Application Air
Product Height 1.2 in (30mm)
Product Length 4.3 in(110mm)
Product Weight 200g to 299g
Product Width 1.3 in (34mm)
Smart Technology G1 Technology
Technology Smart
SKU SPMX22004S30
Barcode # 0605482206140
Brand Spektrum
Shipping Weight 0.5000kg
Shipping Width 0.090m
Shipping Height 0.080m
Shipping Length 0.200m
Shipping Cubic 0.001440000m3
