The Savox SW-0241MG Plus is a large-scale digital high voltage waterproof servo designed for RC applications that need serious torque, strong metal gears and reliable protection in wet or dirty conditions. Producing up to 40.0kg-cm of torque at 7.4V, it is well suited to large-scale RC cars, boats and other demanding models where a standard-size servo is not enough.

Built with a DC motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SW-0241MG Plus delivers the strength and durability required for high-load steering and control setups. Its high voltage capability allows strong performance from compatible 6.0V–7.4V receiver power systems, while the large servo format provides extra holding power for bigger RC models.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 10-bit PCB board, 15T output spline, waterproof IP67 protection and standard JR connector, the SW-0241MG Plus is a dependable choice for large-scale RC applications that need strong, consistent servo performance.

Features

• Large-scale digital high voltage servo
• Up to 40.0kg-cm torque at 7.4V
• 0.17 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 15T output spline
• 10-bit PCB board
• Sanwa SSR compatible
• Waterproof IP67 protection
• Suitable for large-scale RC cars, boats and high-load servo applications

Specifications

Model: SW-0241MG Plus
Servo Type: Large-scale digital high voltage waterproof servo
Application: Car / Boat
Motor Type: DC motor
Torque @ 6.0V: 30.0kg-cm
Torque @ 7.4V: 40.0kg-cm
Speed @ 6.0V: 0.21 sec/60°
Speed @ 7.4V: 0.17 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 15T / 7.8mm
Case Type: Hybrid aluminium/composite

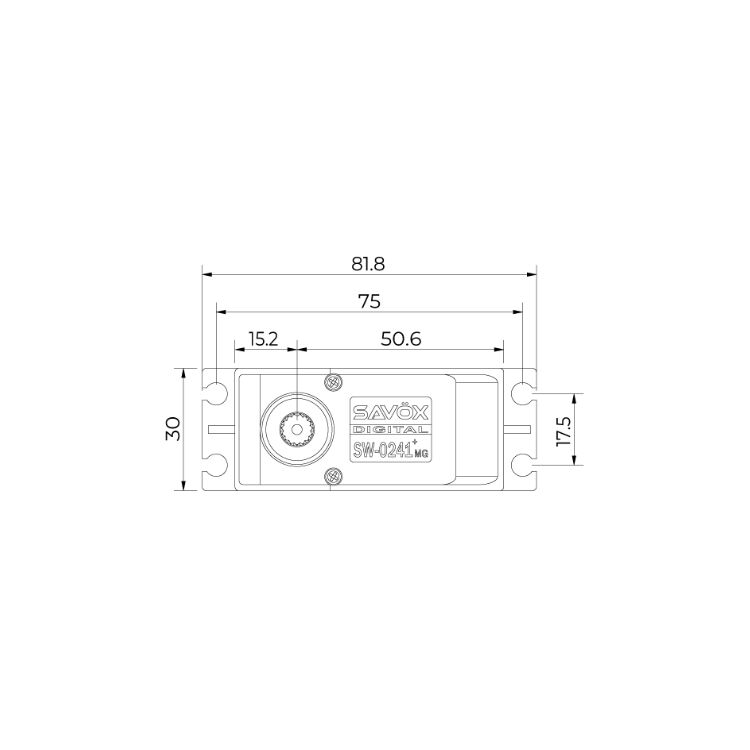

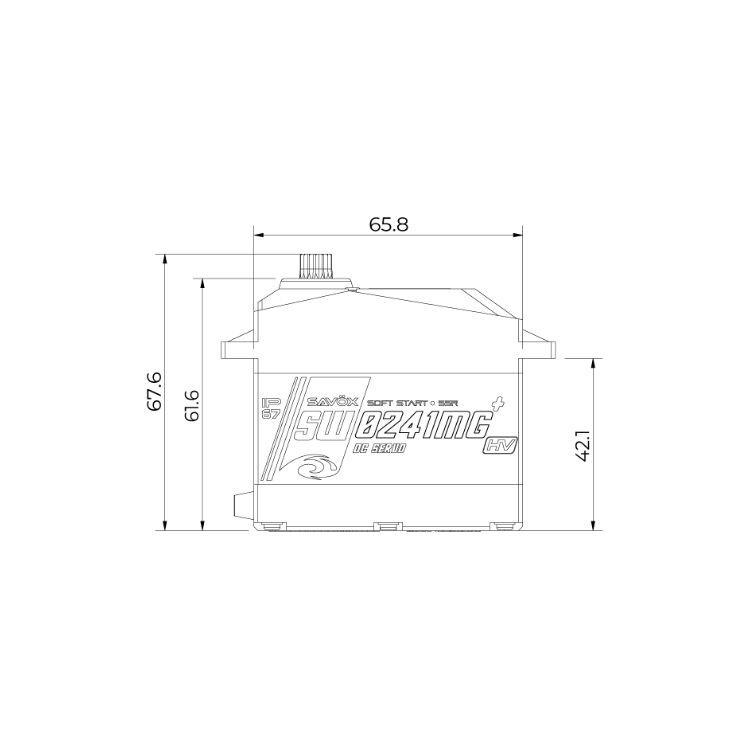

Dimensions: 65.8 x 30 x 61.6mm
Weight: 200g
Operating Voltage: 6.0V–7.4V
Protection: Waterproof IP67
Compatibility: Sanwa SSR
PCB Board: 10-bit
Connector: JR connector
Cable Length: 200 ±5mm
