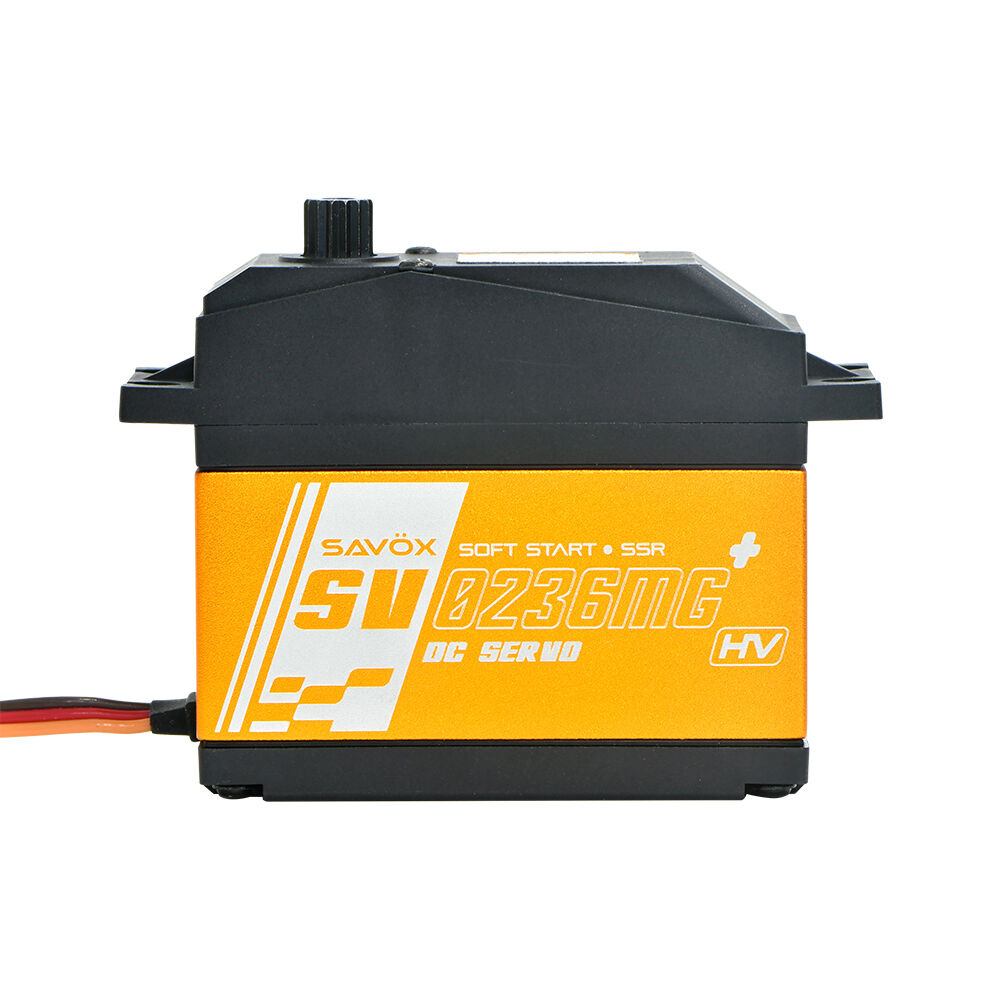

The Savox SV-0236MG Plus is a large-scale digital high voltage servo designed for RC models that need serious torque, strong metal gears and dependable control under load. Producing up to 40.0kg-cm of torque at 7.4V, it is well suited to large-scale RC cars, aircraft and other demanding applications where a standard-size servo is not enough.

Built with a DC motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SV-0236MG Plus delivers the strength and durability needed for high-load steering and control setups. Its high voltage capability allows stronger performance from suitable 6.0V–7.4V receiver power systems, while the large servo format provides extra holding power for bigger models.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 10-bit PCB board, 15T output spline, water-resistant protection and standard JR connector, the SV-0236MG Plus is a reliable choice for large-scale RC applications that need strong, consistent servo performance.

Features

• Large-scale digital high voltage servo
• Up to 40.0kg-cm torque at 7.4V
• 0.17 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 15T output spline
• 10-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for large-scale RC cars, aircraft and high-load servo applications

Specifications

Model: SV-0236MG Plus
Servo Type: Large-scale digital high voltage servo
Application: Car / Airplane
Motor Type: DC motor
Torque @ 6.0V: 30.0kg-cm
Torque @ 7.4V: 40.0kg-cm
Speed @ 6.0V: 0.21 sec/60°
Speed @ 7.4V: 0.17 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 15T / 7.8mm
Case Type: Hybrid aluminium/composite

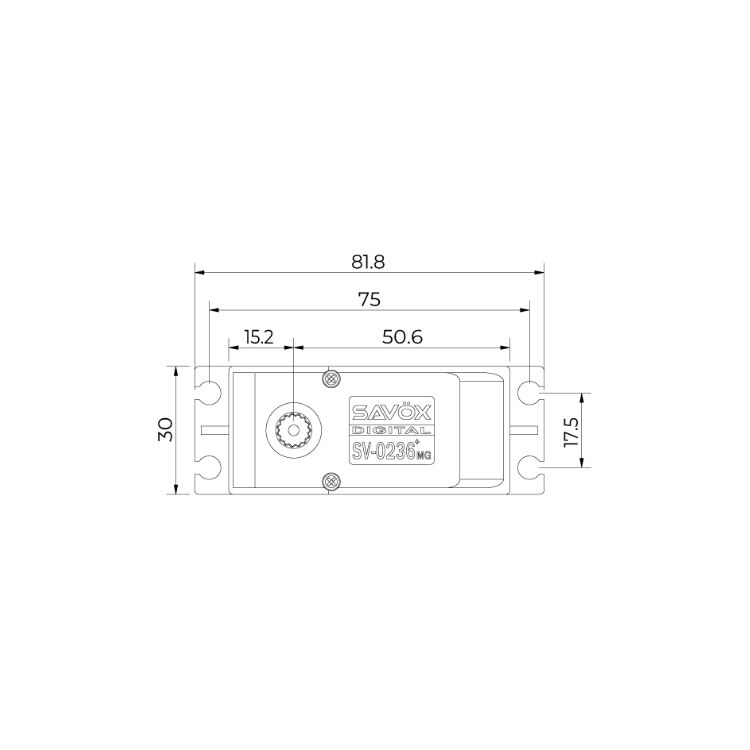

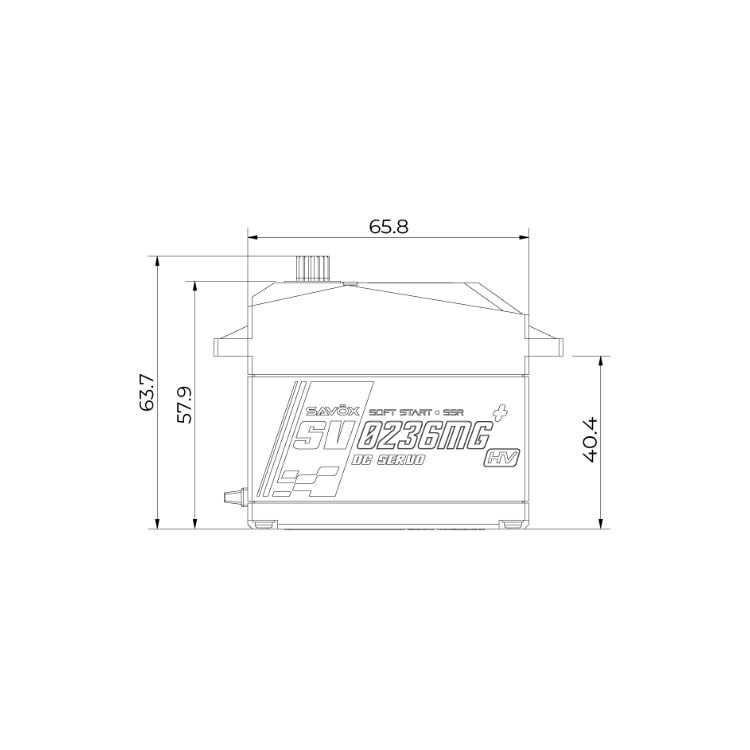

Dimensions: 65.8 x 30 x 57.9mm
Weight: 200g
Operating Voltage: 6.0V–7.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 10-bit
Connector: JR connector
Cable Length: 200 ±5mm
