The Savox SH-1350 Plus is a compact mini digital servo designed for RC models that need precise control, smooth response and a lightweight fitment. Producing up to 4.6kg-cm of torque at 6.0V with a 0.11 sec/60° transit speed, it is well suited to smaller aircraft, helicopters, cars and other RC applications where a standard-size servo may be too large.

Built with a coreless motor, high-strength composite gears, dual ball bearings and a hybrid aluminium/composite case, the SH-1350 Plus delivers smooth and efficient performance while keeping weight to just 26g. The composite gear train helps reduce weight while still providing dependable performance for suitable mini servo applications.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, dust-resistant protection and standard JR connector, the SH-1350 Plus is a practical choice for compact RC models that require accurate digital control.

Features

• Mini digital servo
• Up to 4.6kg-cm torque at 6.0V
• 0.11 sec/60° speed at 6.0V
• Soft Start function
• Coreless motor for smooth and responsive performance

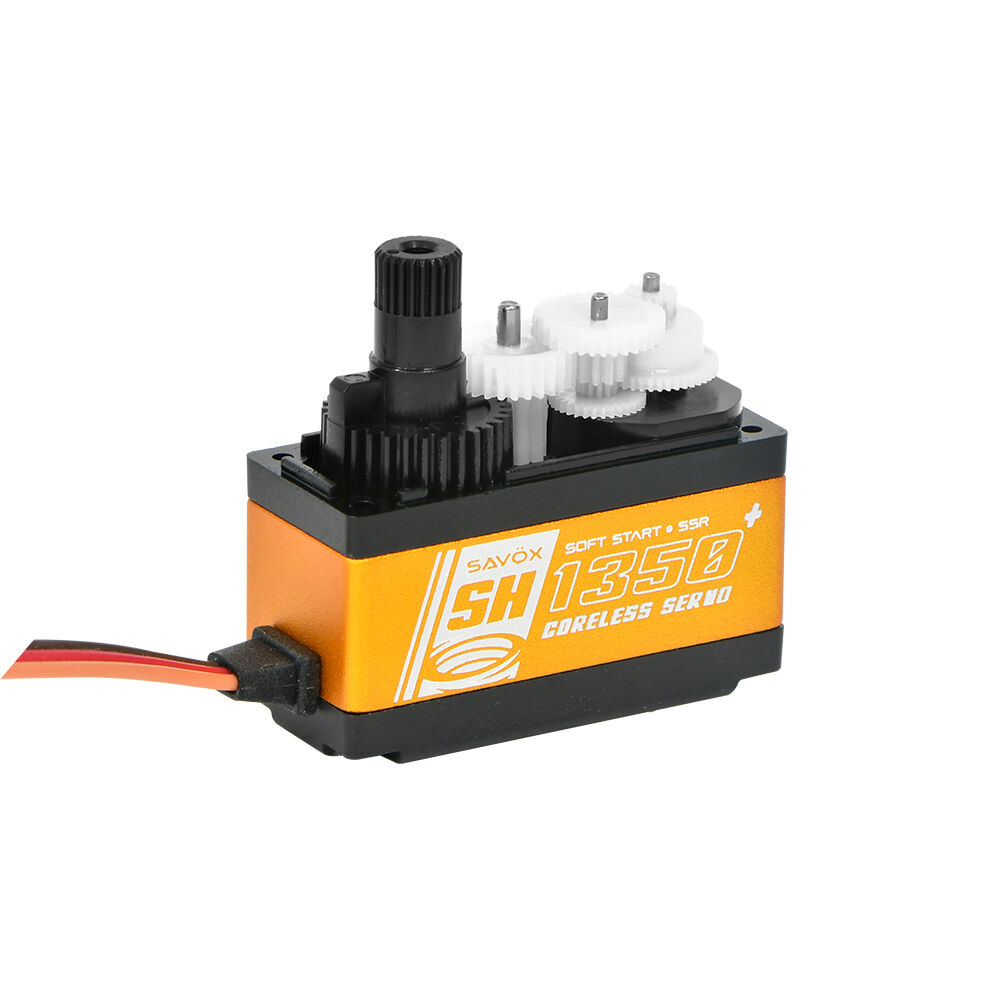

• High-strength composite gears
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Dust-resistant protection
• Suitable for small aircraft, helicopters, cars and compact RC models

Specifications

Model: SH-1350 Plus
Servo Type: Mini digital servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 4.8V: 3.7kg-cm
Torque @ 6.0V: 4.6kg-cm
Speed @ 4.8V: 0.13 sec/60°
Speed @ 6.0V: 0.11 sec/60°
Gear Type: High-strength composite gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

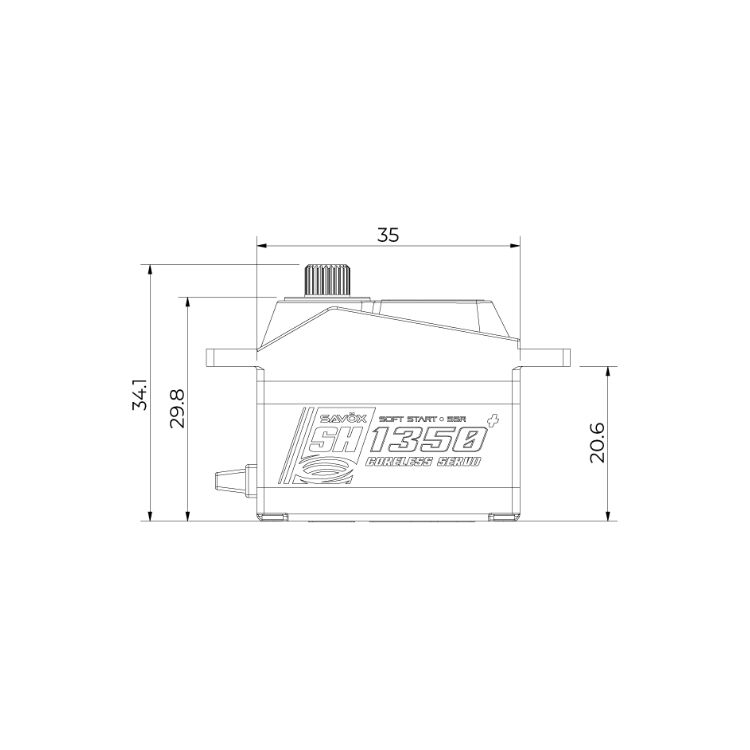

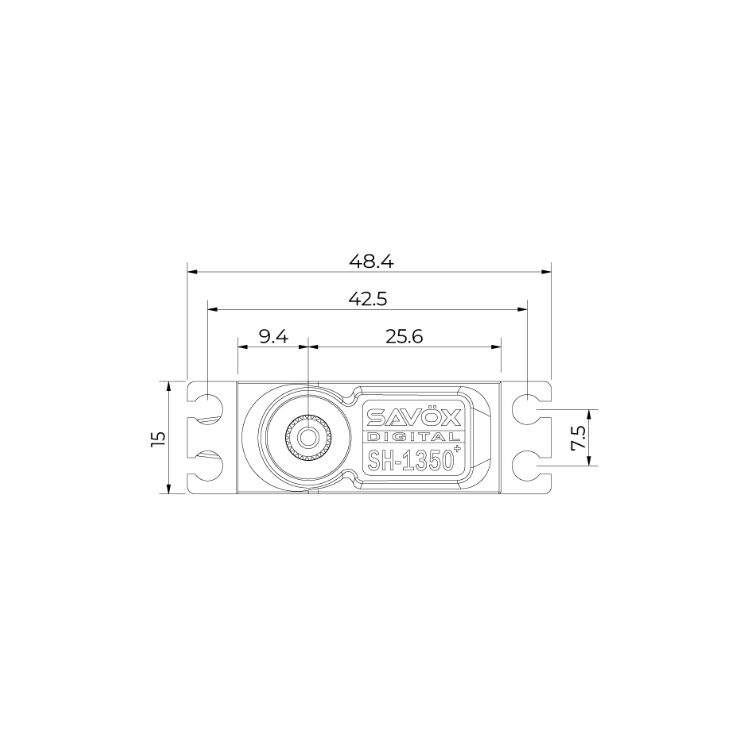

Dimensions: 35 x 15 x 29.8mm
Weight: 26g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
