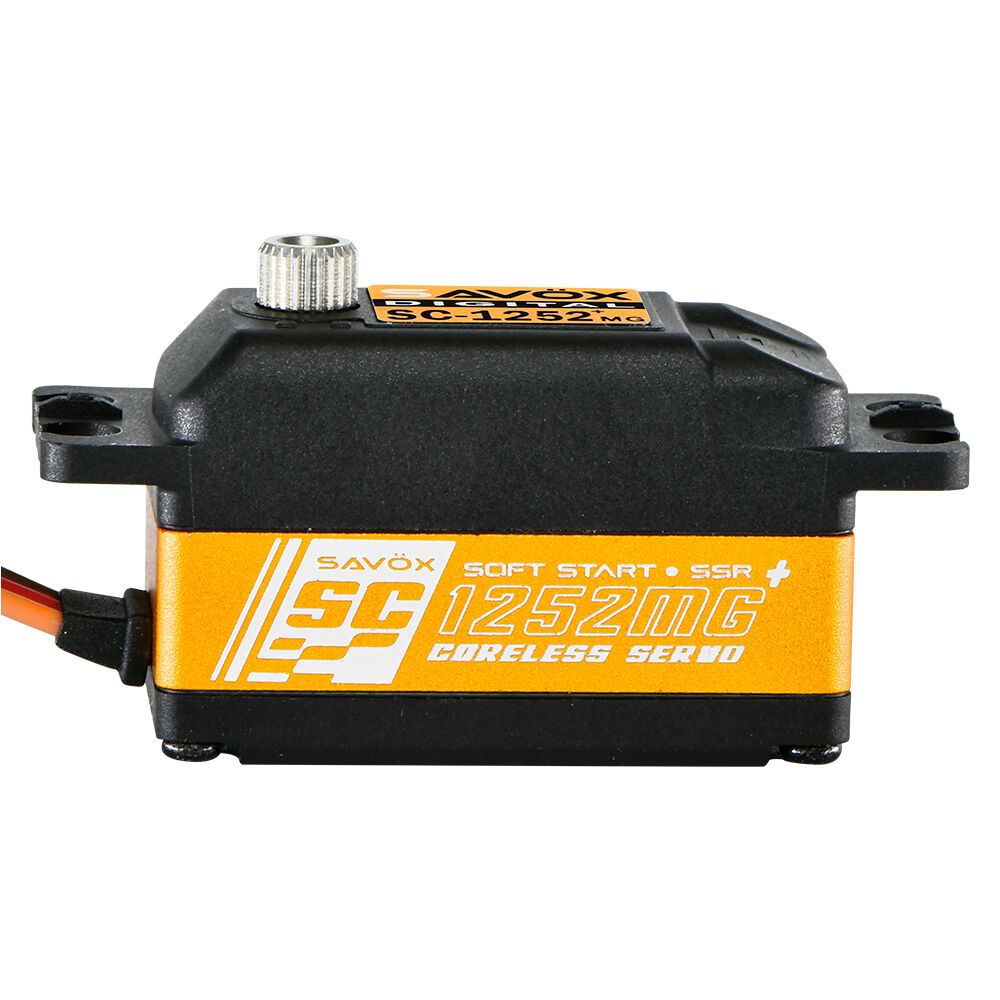

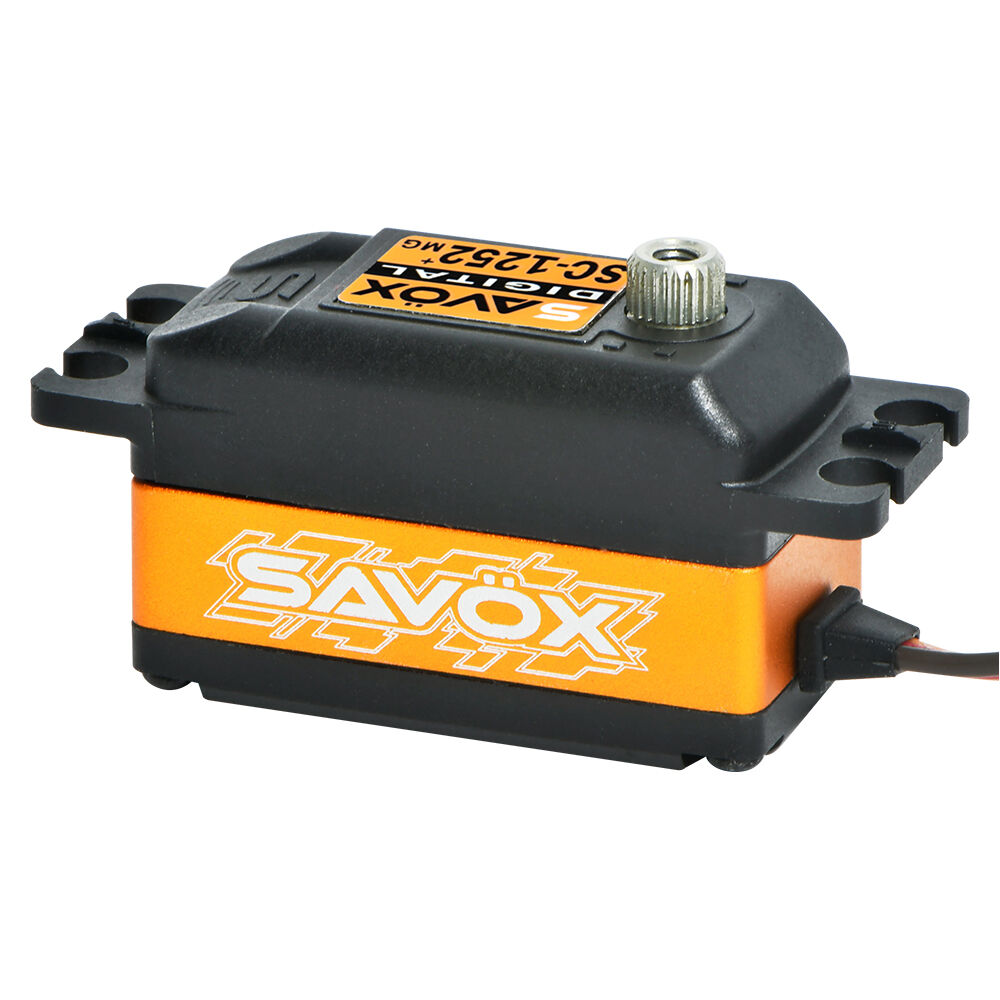

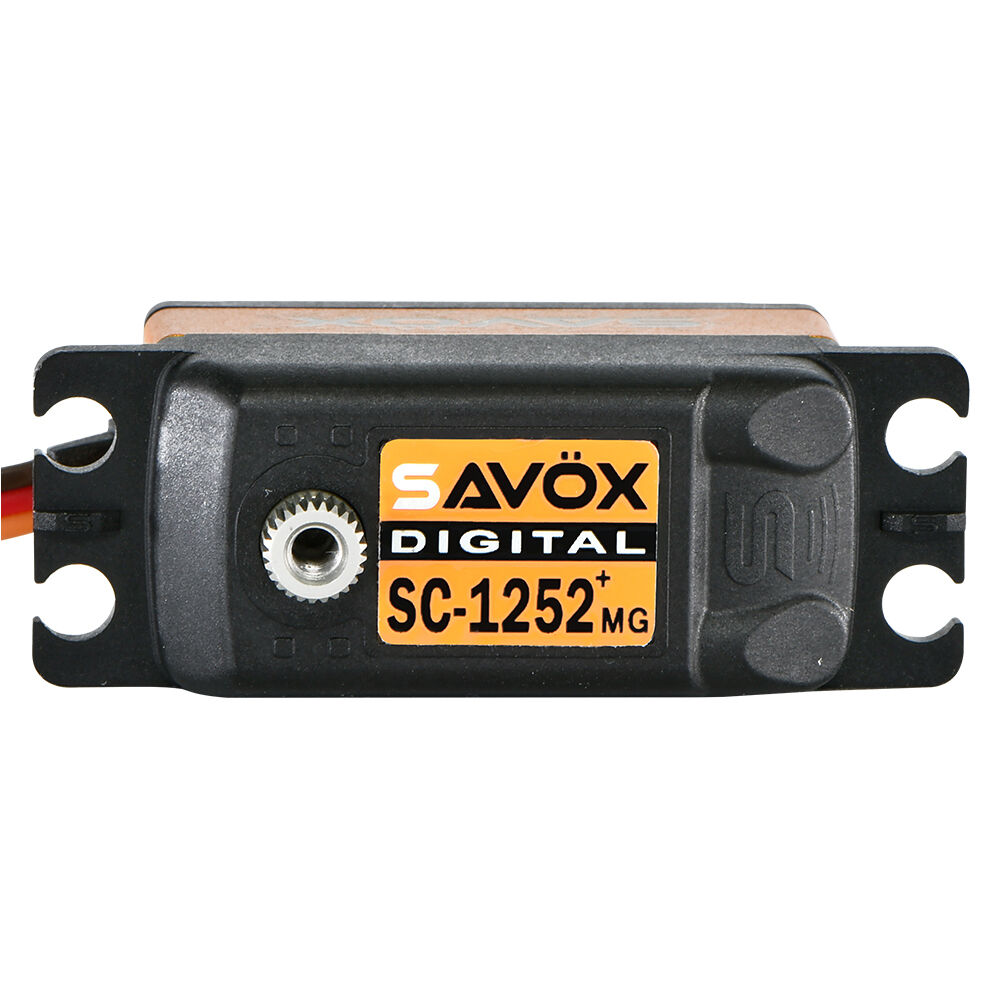

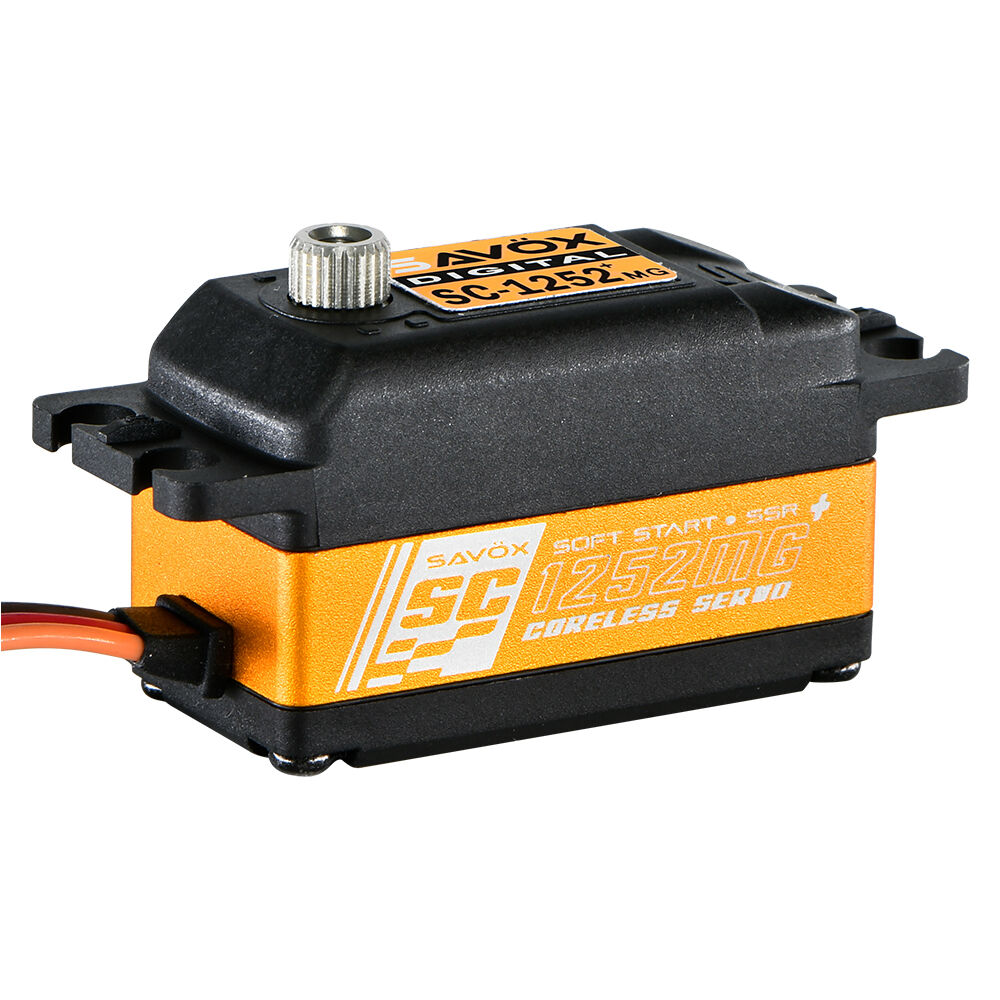

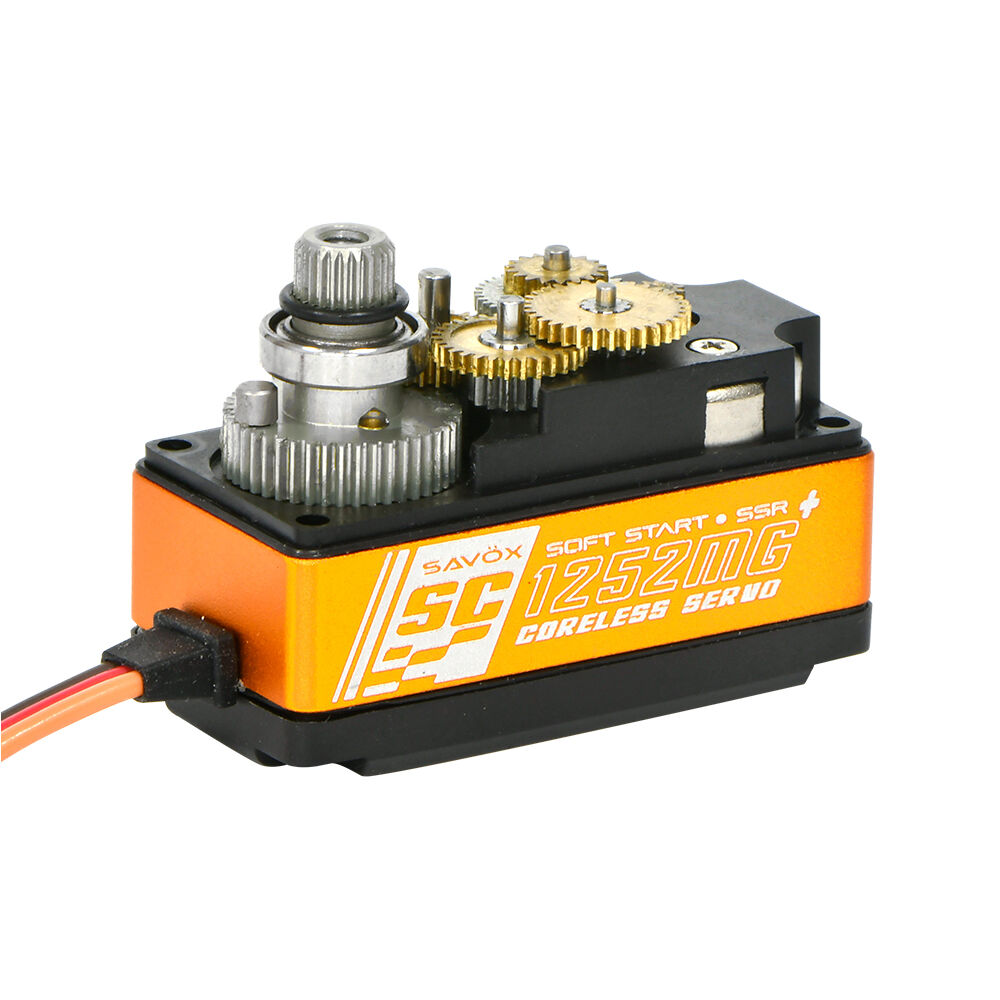

The Savox SC-1252MG Plus is a low-profile super speed digital servo designed for RC applications where fast response and compact fitment are the priority. Producing up to 7.0kg-cm of torque at 6.0V with an ultra-fast 0.07 sec/60° transit speed, it is a great choice for touring cars, drift cars, on-road cars, buggies and other low-profile chassis setups.

Built with a coreless motor, metal gears and an aluminium/composite case design, the SC-1252MG Plus delivers smooth, precise and responsive control. The low-profile case makes it ideal for vehicles with limited servo space, while the metal gear train provides improved durability over plastic gear servos.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. It is also water/dust resistant, making it a practical option for performance RC vehicles that may be used in demanding conditions.

Features

• Low-profile super speed digital servo
• Up to 7.0kg-cm torque at 6.0V
• Ultra-fast 0.07 sec/60° speed at 6.0V
• Coreless motor for smooth and responsive performance
• Metal gears for improved strength and durability
• Aluminium and composite case design
• 25T output spline
• Soft Start function
• Sanwa SSR compatible
• Water/dust resistant protection
• Suitable for touring cars, drift cars, on-road cars, buggies and compact RC chassis layouts

Specifications

Model: SC-1252MG Plus
Servo Type: Low-profile digital super speed servo
Motor Type: Coreless
Torque @ 4.8V: 4.5kg-cm / 62.5oz-in
Torque @ 6.0V: 7.0kg-cm / 97.2oz-in
Speed @ 4.8V: 0.08 sec/60°
Speed @ 6.0V: 0.07 sec/60°
Gear Type: Heavy-duty metal gears
Output Spline: 25T
Case: Aluminium / composite case

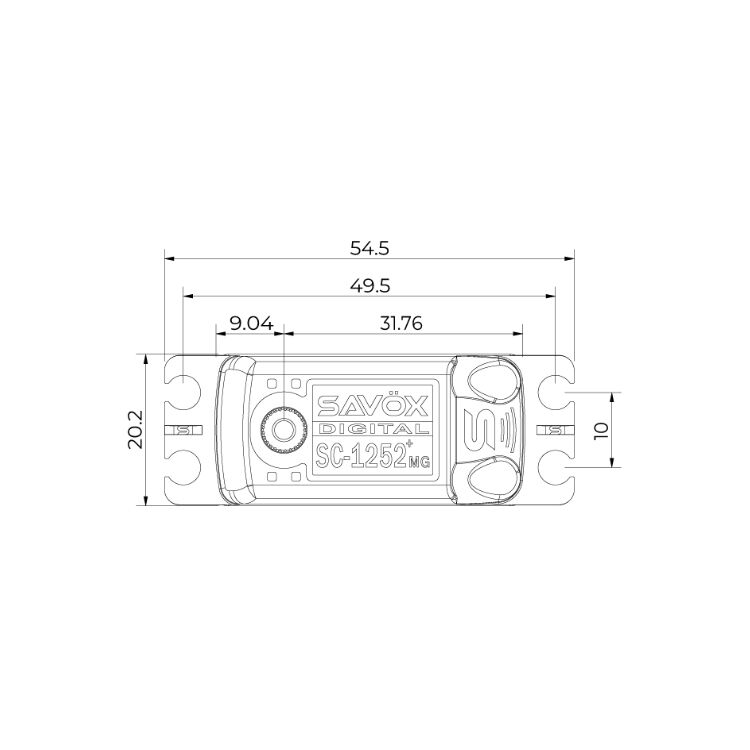

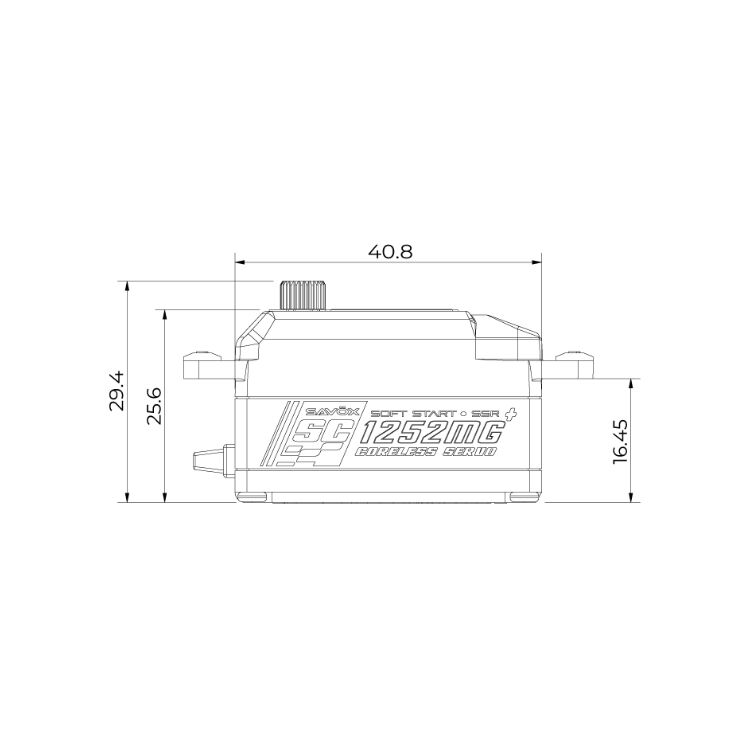

Dimensions: 40.8 x 20.2 x 25.6mm
Weight: 44.5g
Operating Voltage: 4.8V–6.0V
Protection: Water/dust resistant
Plus Features: Soft Start, Sanwa SSR compatibility
