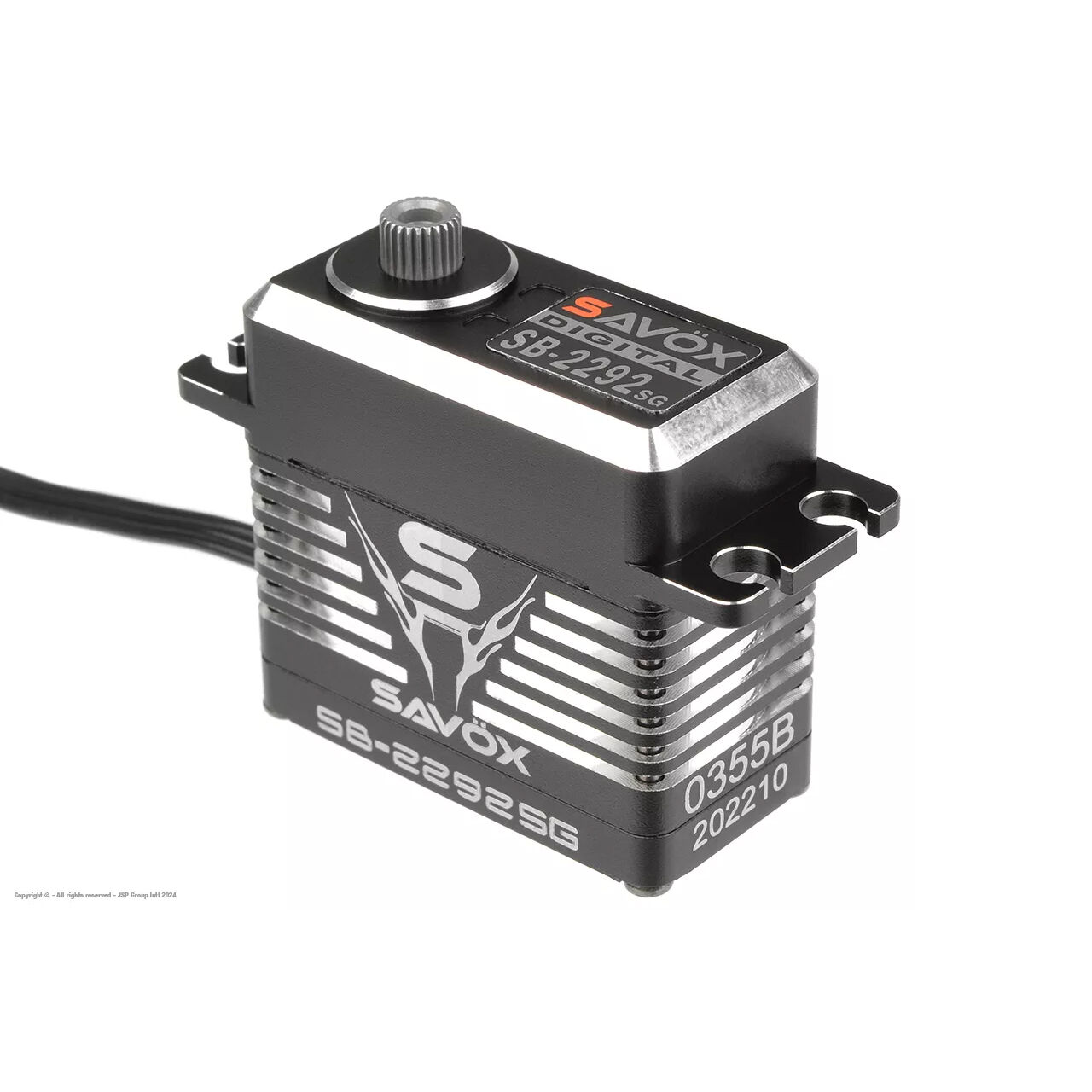

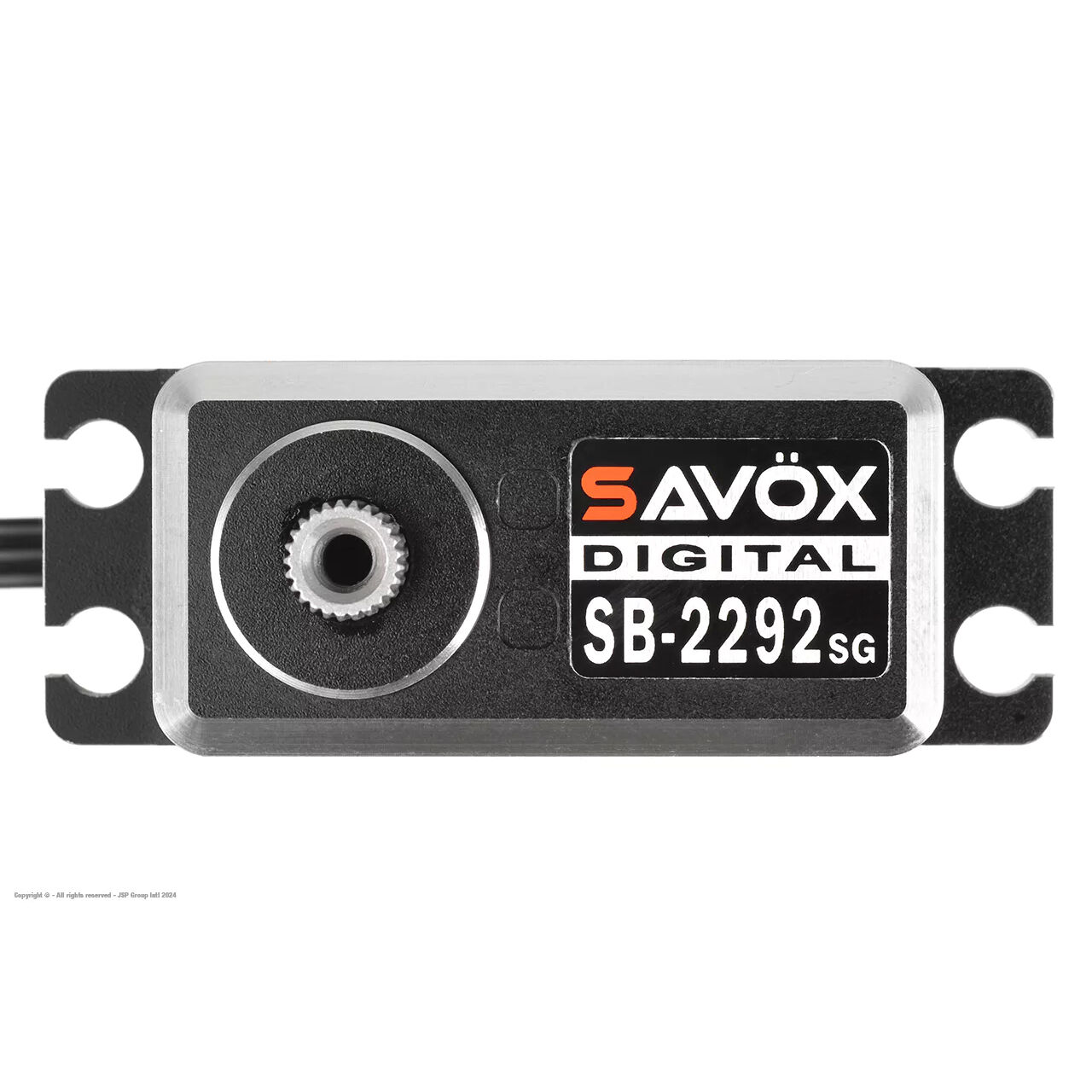

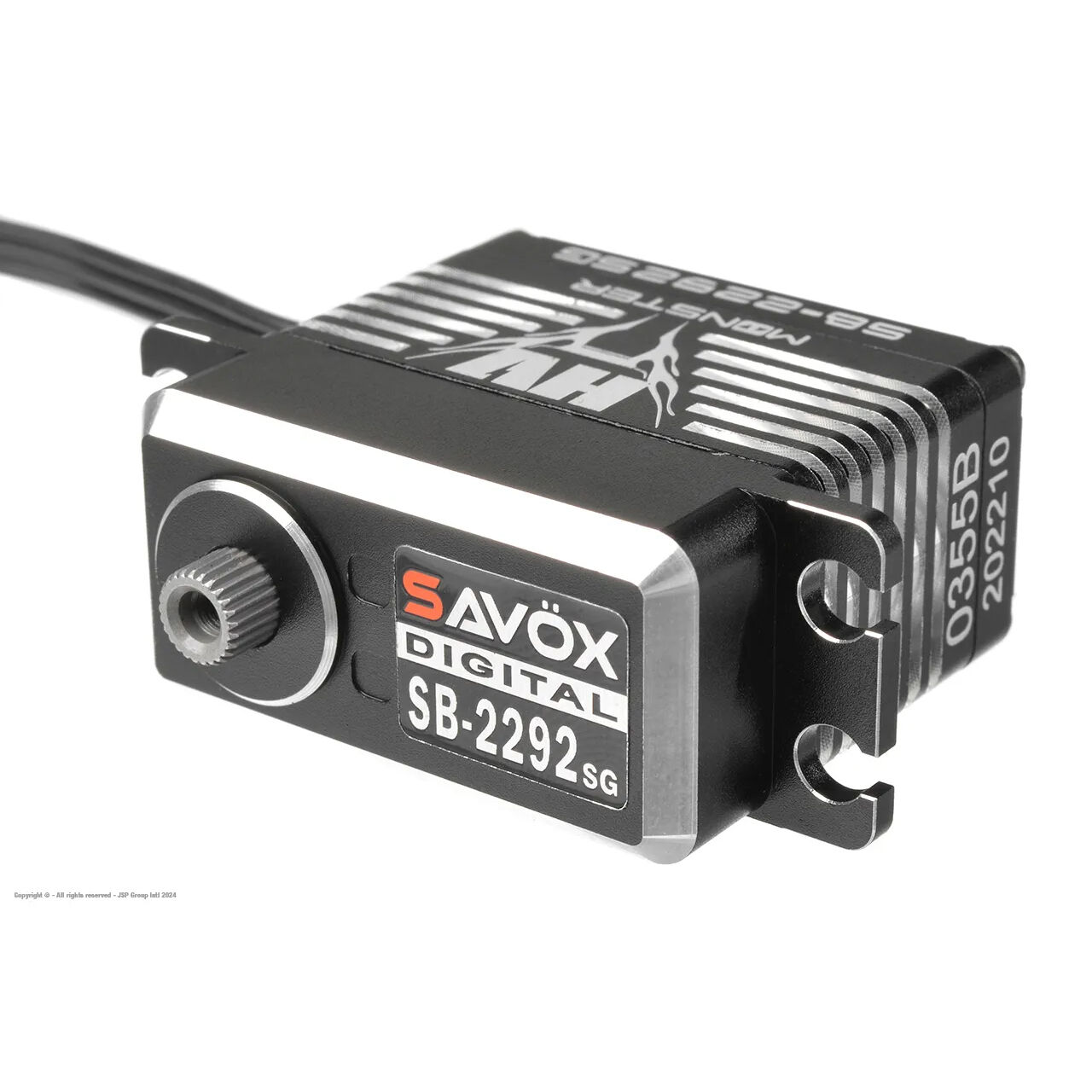

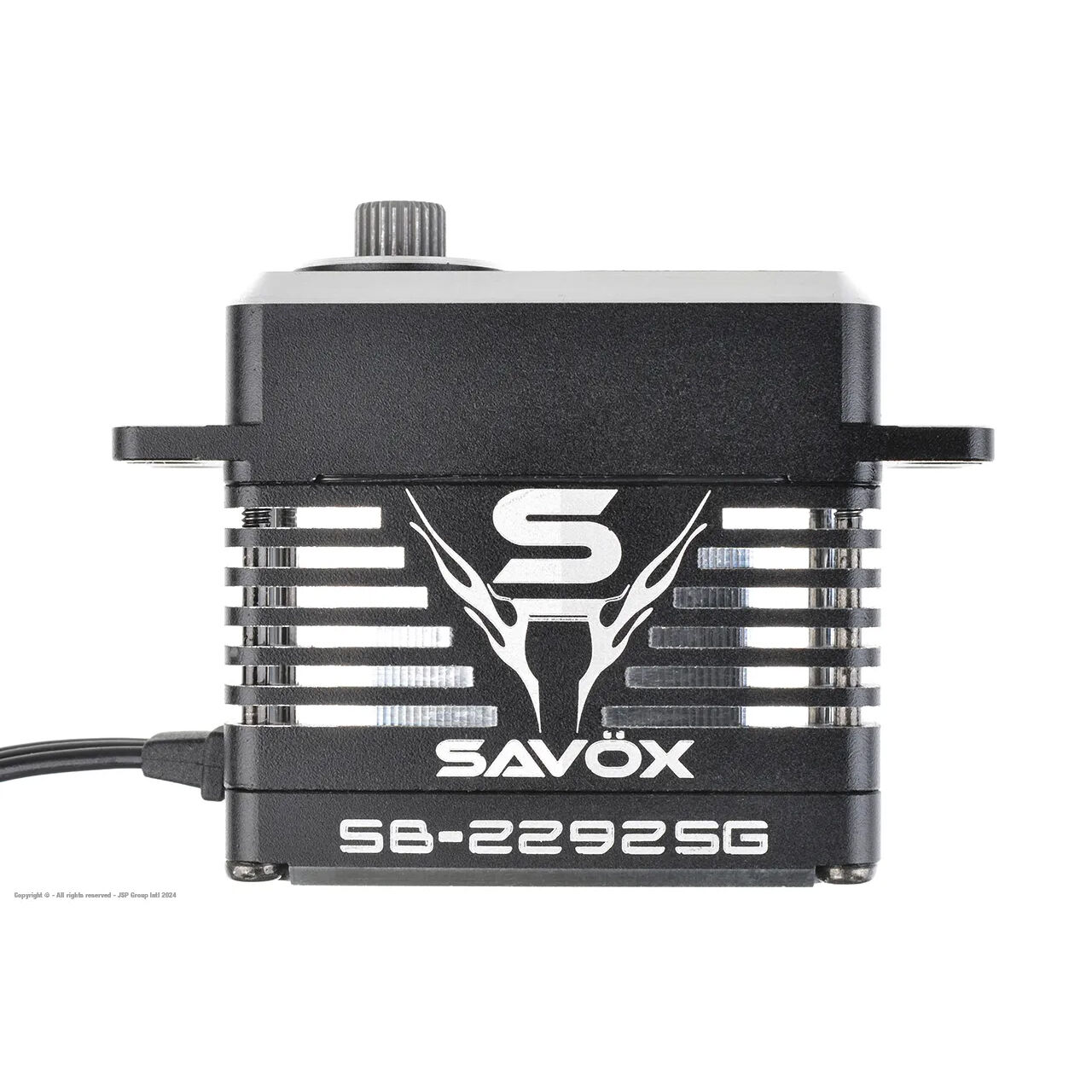

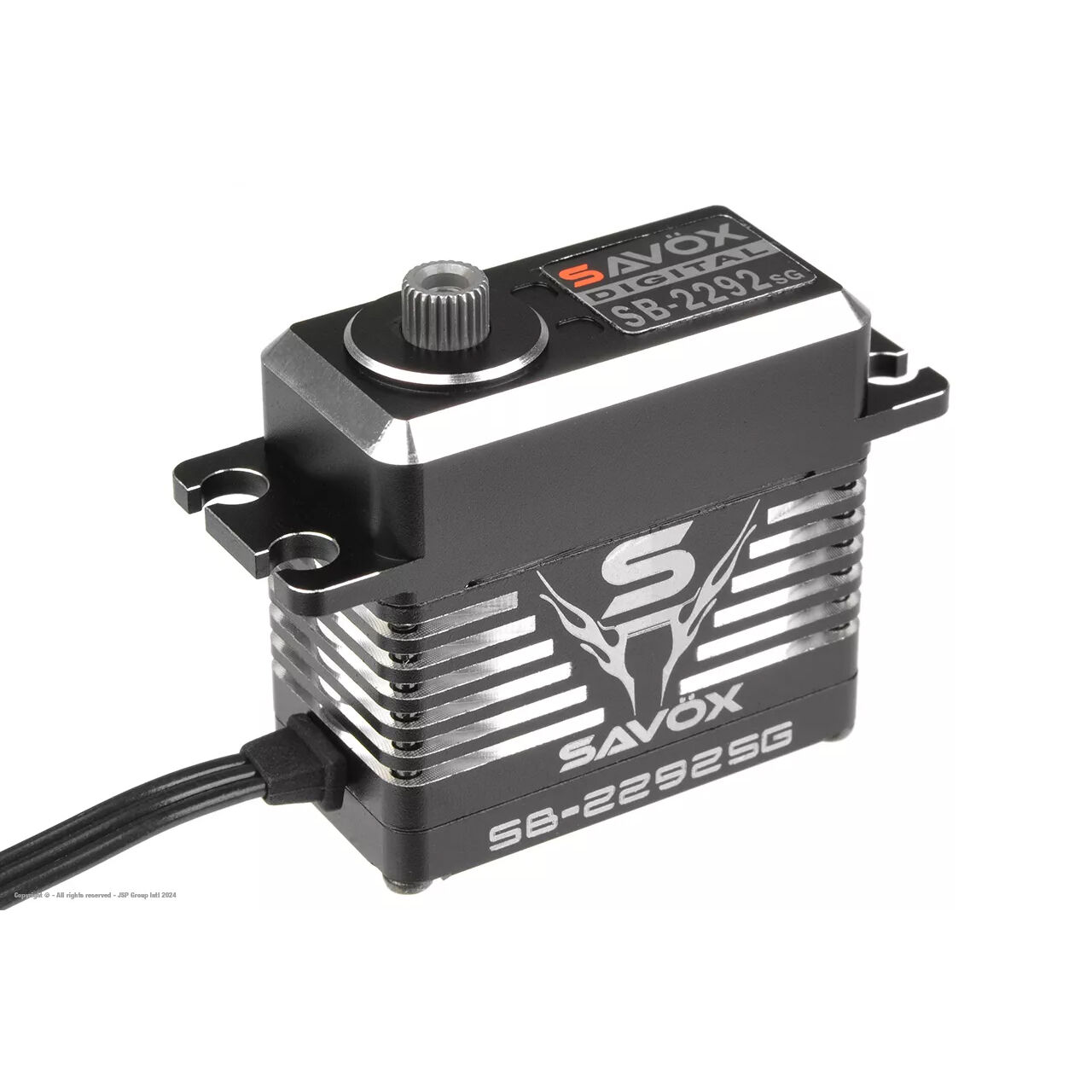

The Savox SB-2292SG is a Monster Performance standard-size digital HV servo designed for RC applications that need a strong mix of high torque, fast response and heavy-duty durability. Producing up to 50kg-cm of torque at 8.4V with a very fast 0.055 sec/60° transit speed, it is well suited to performance RC cars, trucks, crawlers, buggies and other high-load models where both power and speed are important.

Built with a brushless motor, steel gears, 3 precision ball bearings and a full aluminium case, the SB-2292SG delivers smooth, efficient and reliable performance under load. The aluminium case helps improve strength and heat dissipation, while the steel gear train provides the durability needed for demanding steering and control applications.

The SB-2292SG is a great choice for customers wanting a high-performance HV servo that is faster than many monster torque servos, while still offering serious holding power for tough RC setups.

Features

• Monster Performance standard-size digital HV servo
• Up to 50kg-cm torque at 8.4V
• Ultra-fast 0.055 sec/60° speed at 8.4V
• Brushless motor for smooth and efficient performance
• Steel gears for strength and durability
• Full aluminium case for improved strength and cooling
• 3 precision ball bearings
• 25T output spline
• Strong balance of torque, speed and reliability
• Suitable for performance RC cars, trucks, crawlers, buggies and other high-load models

Specifications

Model: SB-2292SG
Servo Type: Standard digital high voltage servo
Motor Type: Brushless
Torque @ 6.0V: 27kg-cm
Torque @ 7.4V: 36kg-cm
Torque @ 8.4V: 50kg-cm
Speed @ 6.0V: 0.085 sec/60°
Speed @ 7.4V: 0.07 sec/60°
Speed @ 8.4V: 0.055 sec/60°
Gear Type: Steel gears
Bearings: 3 precision ball bearings
Output Spline: 25T
Case: Full aluminium case

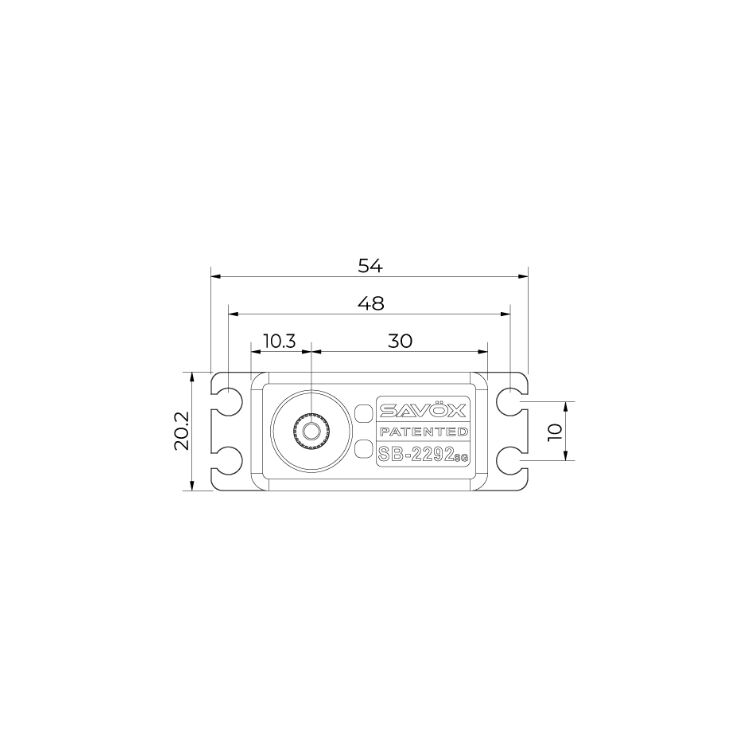

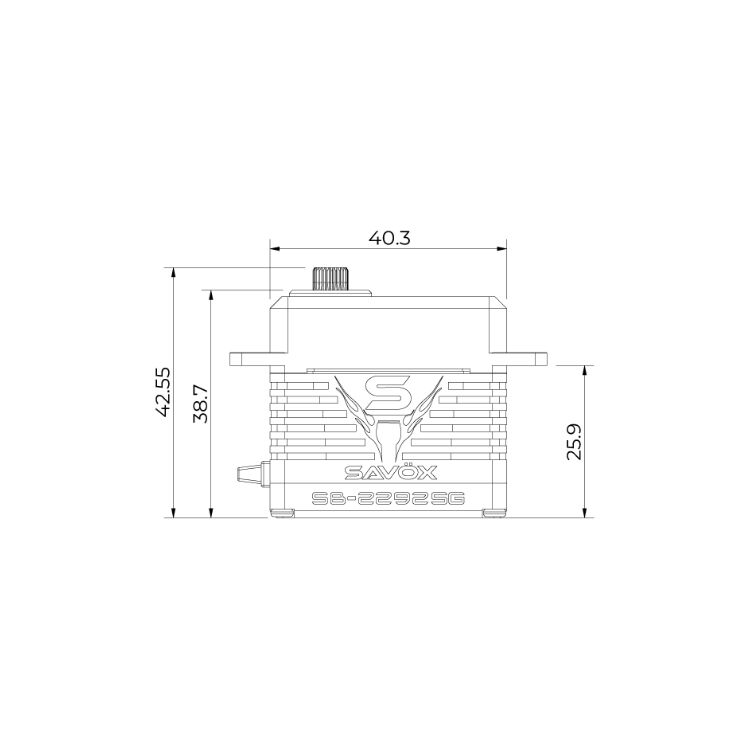

Dimensions: 40.3 x 20.2 x 38.7mm
Weight: 79g
Waterproof: Water resistant
