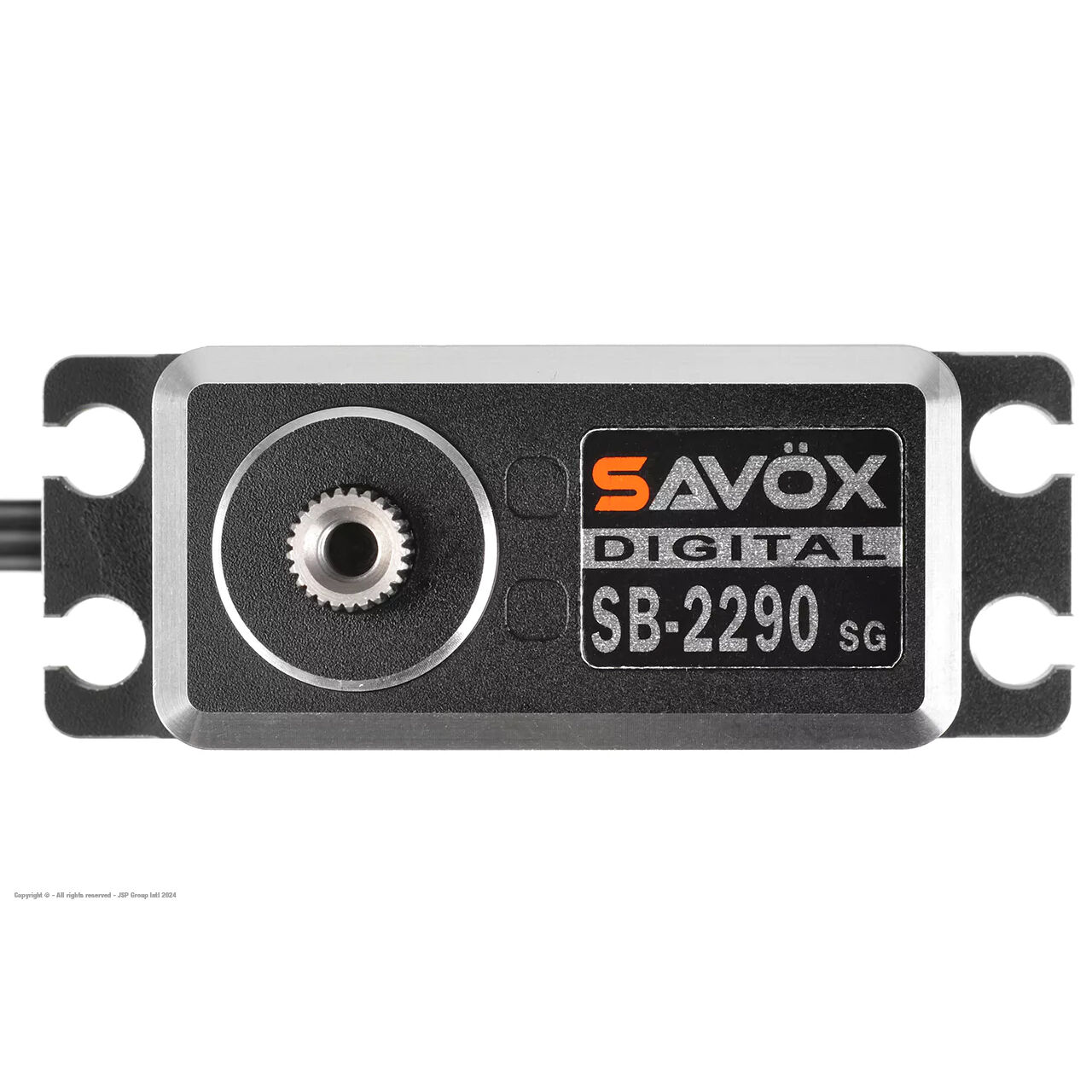

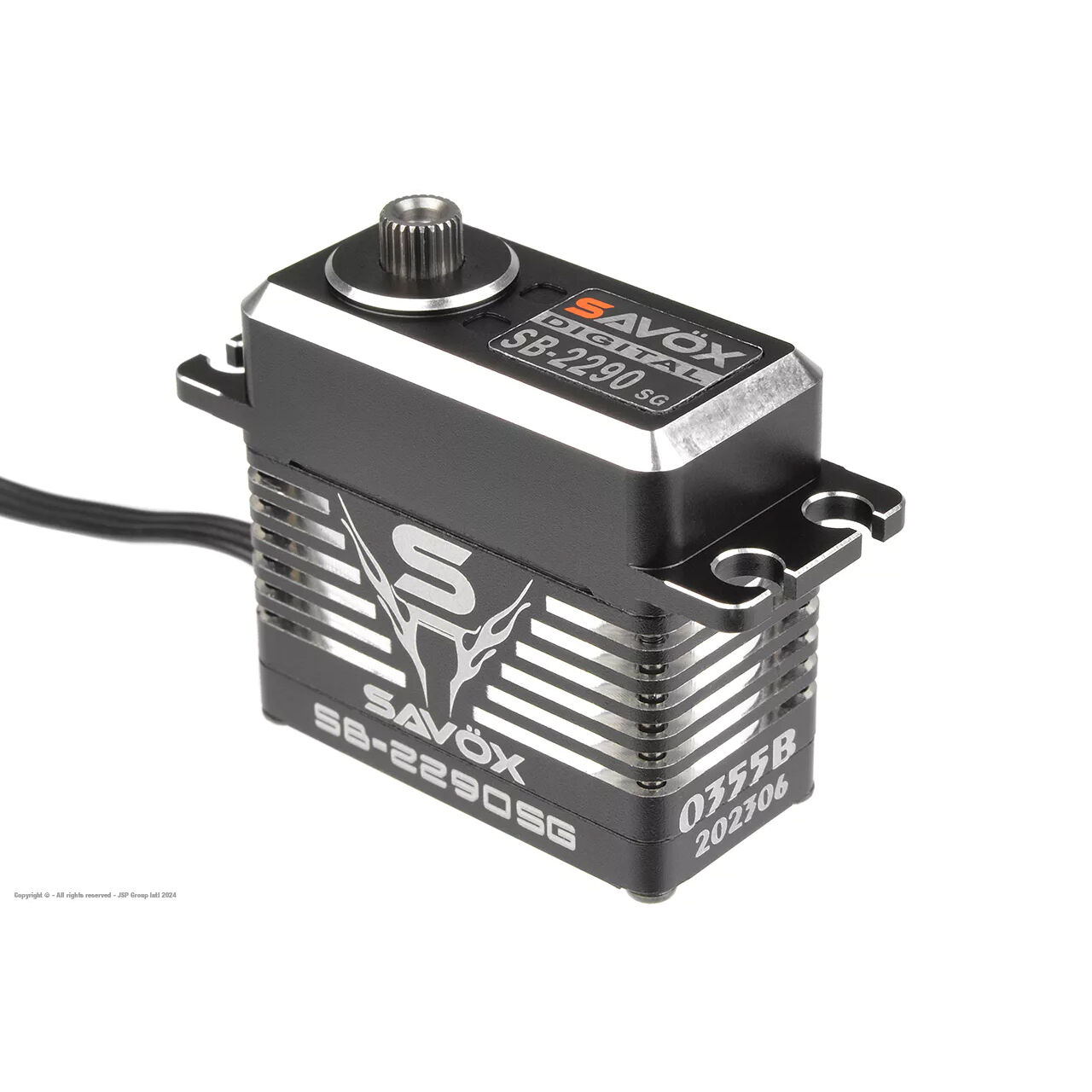

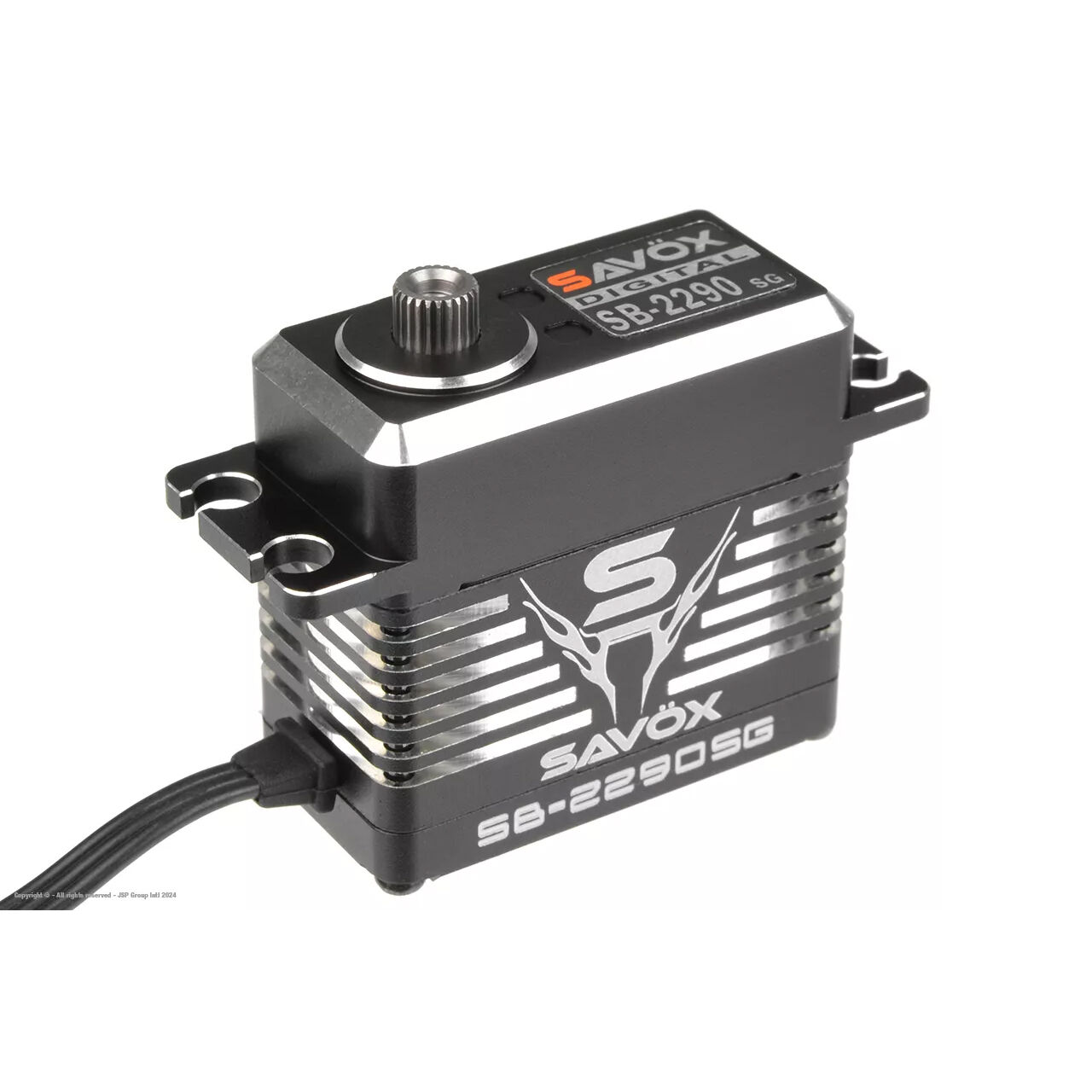

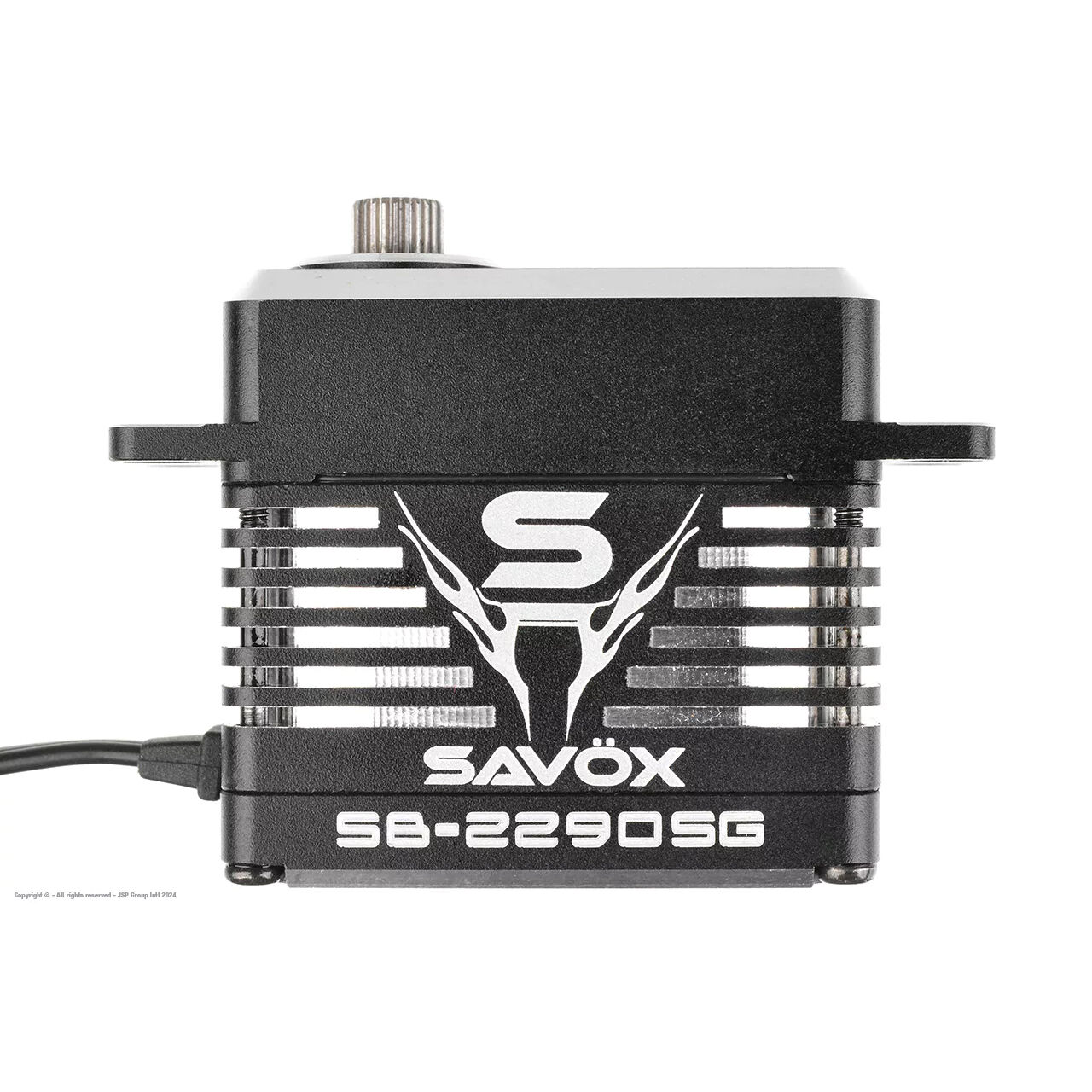

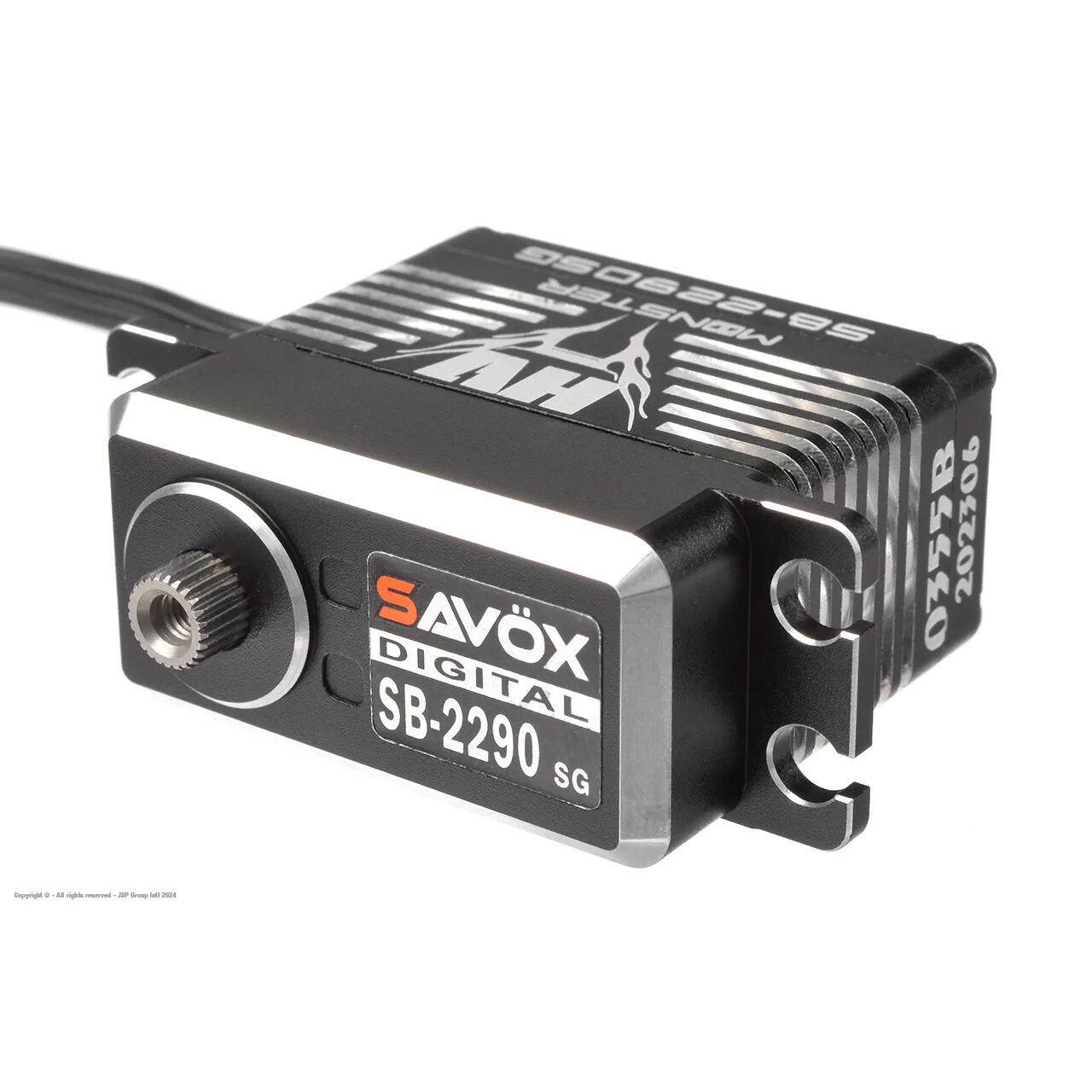

The Savox SB-2290SG is a monster torque standard-size digital HV servo built for demanding RC applications that need extreme power, strong holding force and reliable control. With up to 70kg-cm of torque at 8.4V, this servo is well suited to heavy-duty steering and control setups in large RC cars, monster trucks, crawlers, large aircraft and other high-load models.

Built with a brushless motor, steel gears, 3 precision ball bearings and a full aluminium case, the SB-2290SG delivers excellent strength, efficiency and durability under load. The aluminium case helps improve heat dissipation, while the steel gear train provides the toughness needed for high-torque applications.

The SB-2290SG operates from 6.0V to 8.4V, allowing strong performance across common HV setups. It also features a 25T output spline, JR universal connector with black lead, and water/dust resistance for added protection in demanding RC environments.

Features

• Monster torque standard-size digital HV servo
• Up to 70kg-cm torque at 8.4V
• 55kg-cm torque at 7.4V
• 45kg-cm torque at 6.0V
• Brushless motor for strong, efficient performance
• Steel gears for high-load durability
• Full aluminium case for strength and cooling
• 3 precision ball bearings

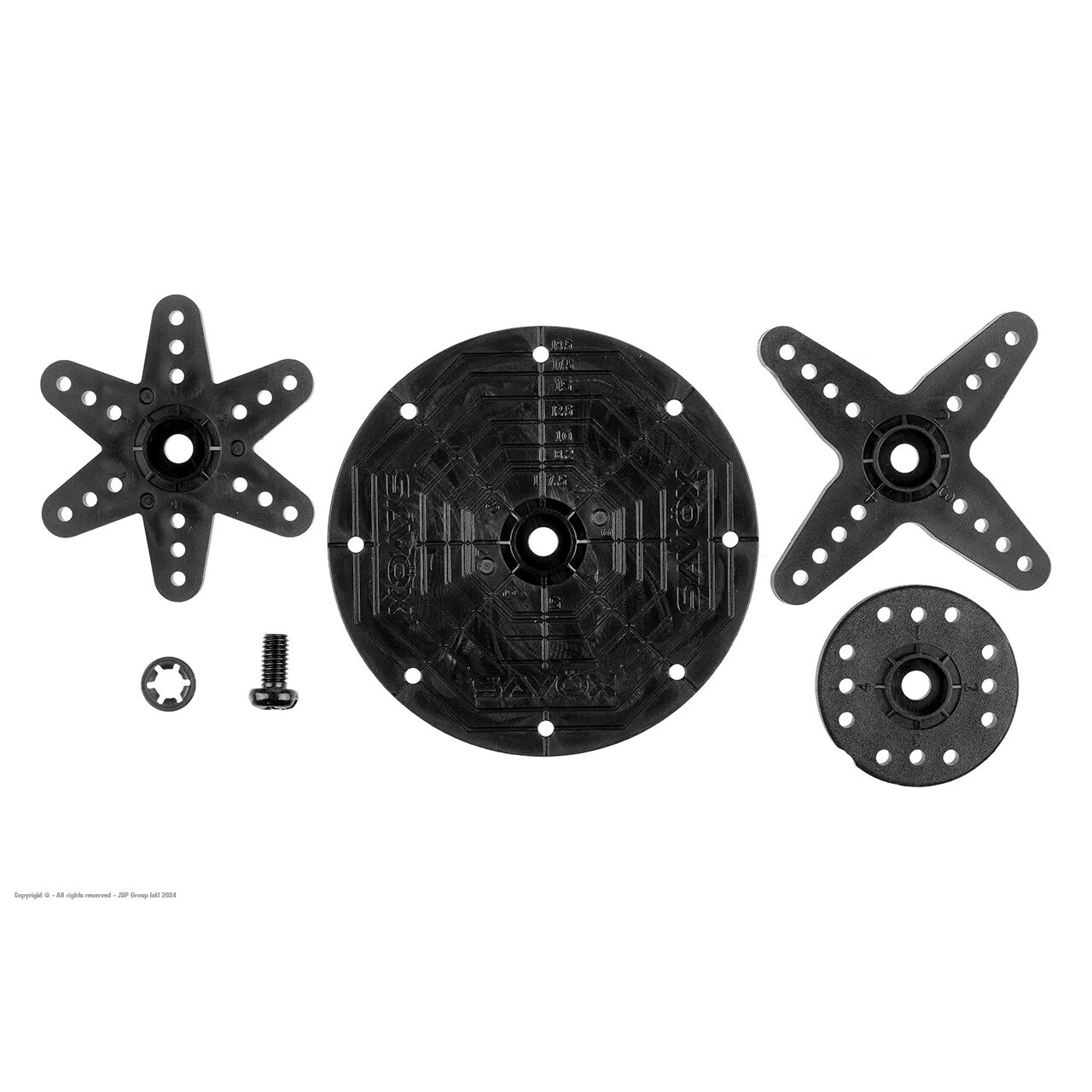

• 25T output spline
• Water/dust resistant protection
• Suitable for heavy-duty RC cars, crawlers, monster trucks, large aircraft and high-load applications

Specifications

Model: SB-2290SG
Servo Type: Standard digital high voltage servo
Motor Type: Brushless
Torque @ 6.0V: 45kg-cm
Torque @ 7.4V: 55kg-cm
Torque @ 8.4V: 70kg-cm
Speed @ 6.0V: 0.16 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Speed @ 8.4V: 0.11 sec/60°
Operating Voltage: 6.0V–8.4V
Gear Type: Steel gears
Bearings: 3 precision ball bearings
Output Spline: 25T
Case: Full aluminium case

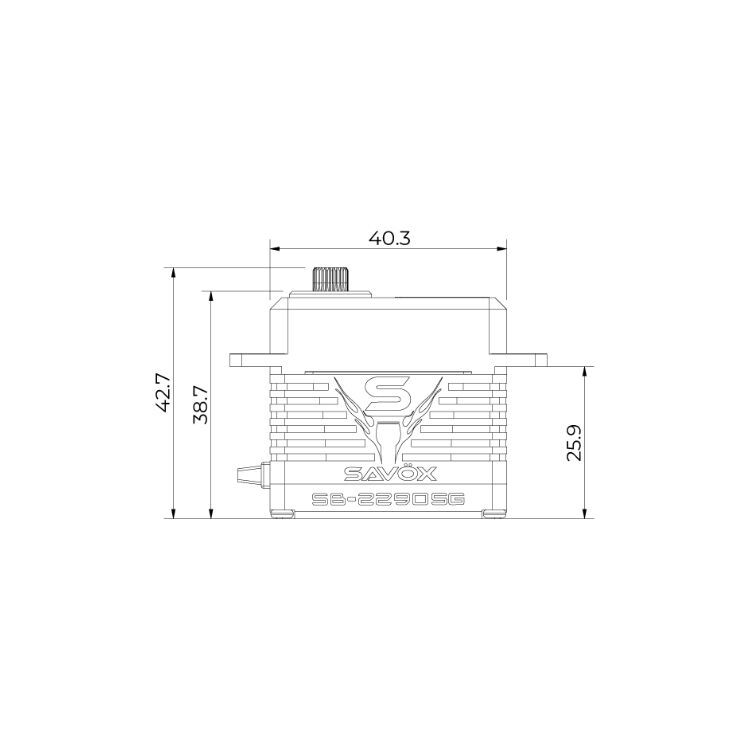

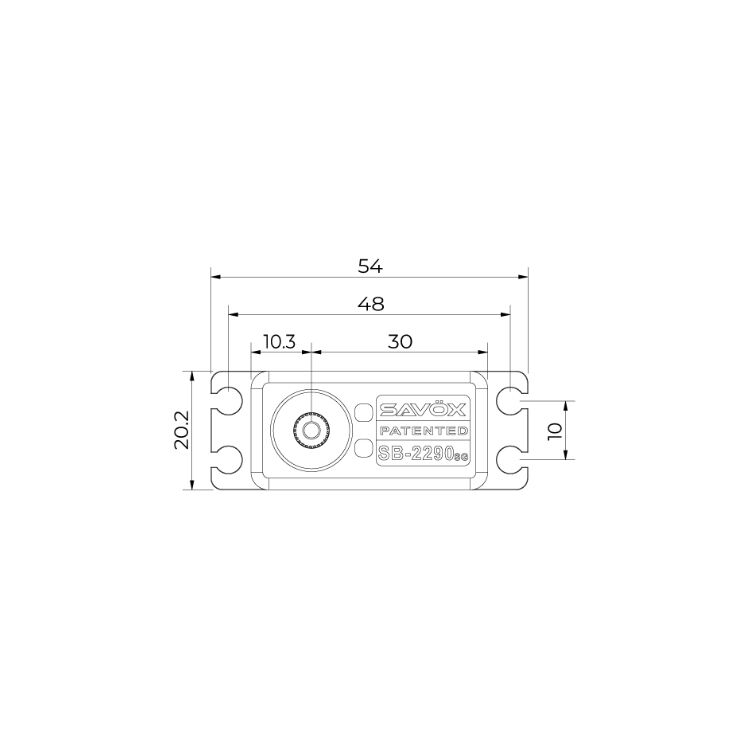

Dimensions: 40.3 x 20.2 x 38.7mm
Weight: 81g

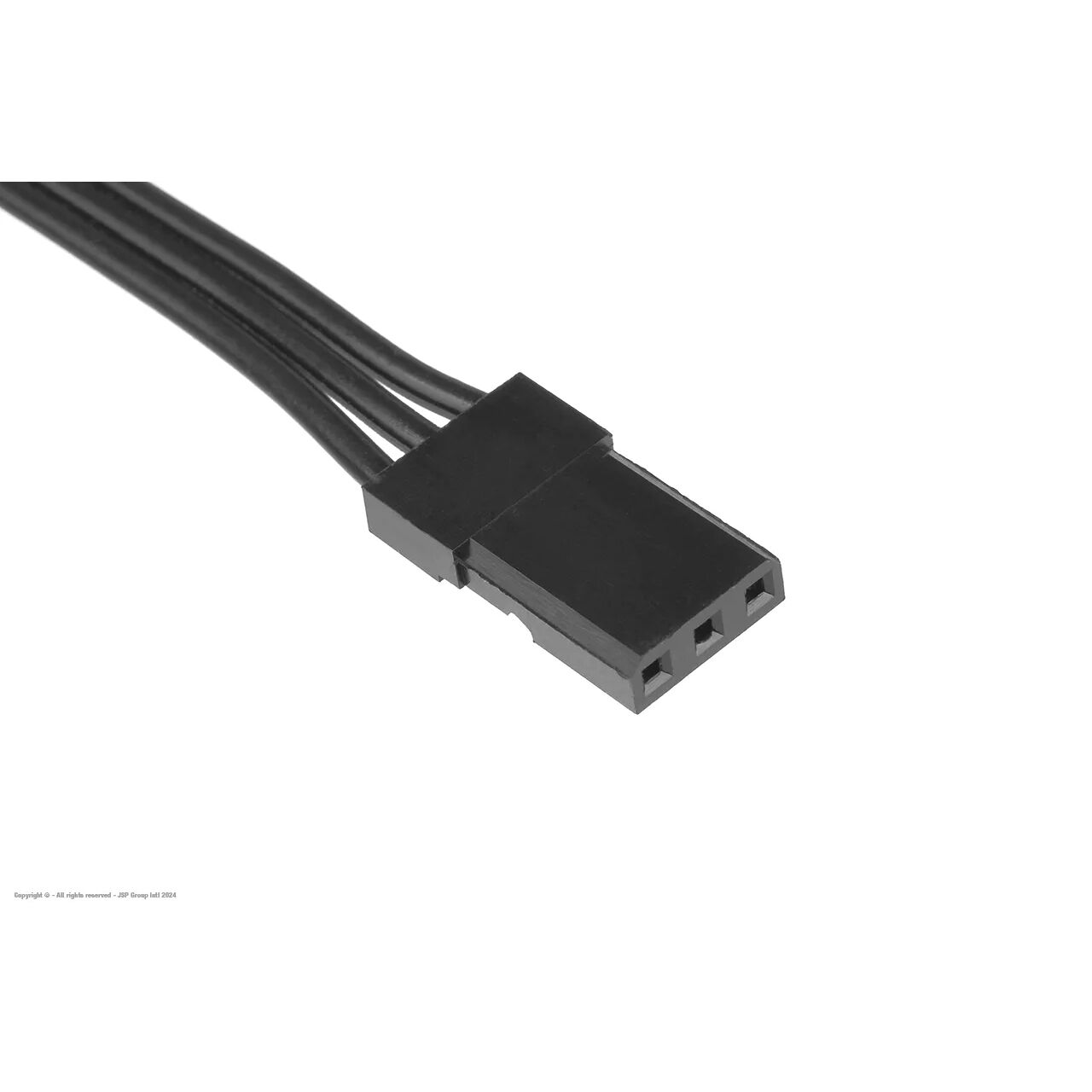

Connector: JR universal with black lead
Protection: Water resistant
