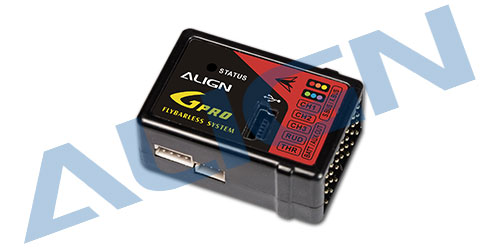

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.

●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors.
●New human oriented interface allows convenient and rapid setup and installation.
●Superior flying characteristic remain the same flying control among T-REX 250~800 helicopters.
●Full support receivers and satellites currently on the market, including S.BUS/X.BUS and DSM2/DSMX/DSMJ/DMSS.
Please use with genuine factory Double Sided Tape for best performance.

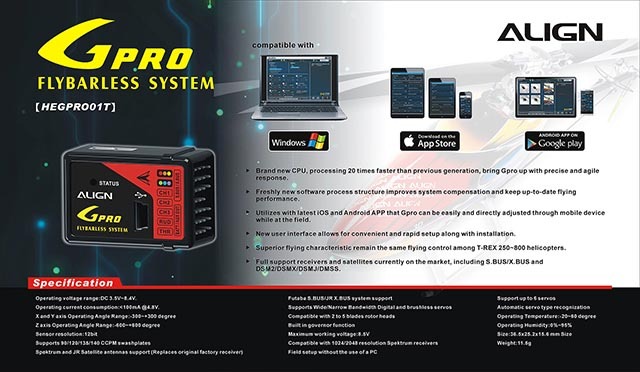

●Operating voltage range:DC 3.5V~8.4V.
●Operating current consumption:<100mA @4.8V.
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads
●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm Size/11.5g
●RoHs cerification stamp





SKU HEGPRO01
Barcode # 4713413985487
Brand Align
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
Shipping Cubic 0.003375000m3
