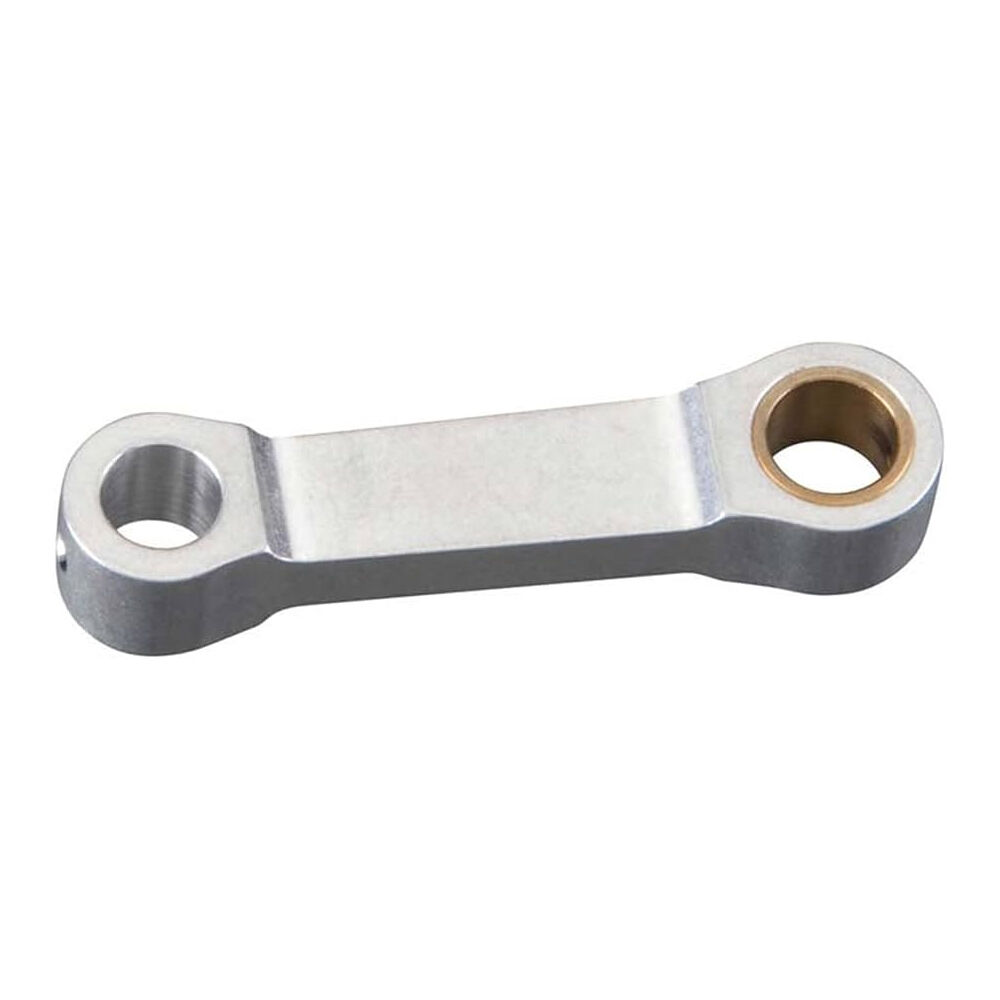

Genuine OS factory connecting rod for the FS-56α (FS-56A) four-stroke glow engine. Machined aluminium with a bronze-bushed big end and drilled oiling holes at both eyes, this is the link between crankpin and piston — and the part to replace after the events that put rods at risk.

The usual reasons a rod needs renewing: a hydraulic lock from flooding or a prime gone wrong, a hard prop strike, or simple high-hours wear showing up as play at the big end. A bent rod can look perfectly straight while binding through part of its rotation, so if the engine has locked or struck, replace rather than hope. While the rod is out, inspect the piston pin and crankpin surfaces for scoring or bluing — damage there will take a new rod with it.

Fit with the oiling holes correctly oriented per the engine's assembly manual, and run in rich for the first tanks as with any bottom-end work.

Specifications

Brand: OS Engines (Japan)
Part number: 44605000
Type: Connecting rod
Material: Aluminium, bronze-bushed big end, oiling holes both ends
Suits: OS FS-56α (FS-56A) four-stroke
