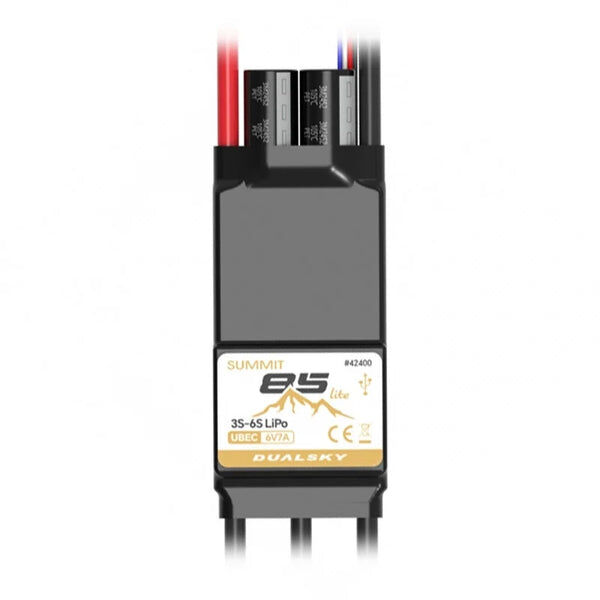

Take command of high-current power systems with the Dualsky Summit Lite 85A ESC. Built on a new-generation 32-bit ARM electric drive system with drive frequency up to 48MHz and support for up to 510k eRPM, it's designed for models that demand serious current delivery — 3D aircraft, EDF jets and models running landing gear or lighting systems.

The multilayer, low-internal-resistance PCB delivers excellent heat dissipation, while the integrated high amp UBEC powers your receiver, servos and accessories with confidence. SINE wave mode brings up to 5% better efficiency and smoother, quieter motor running, and regenerative braking, selectable rotation direction and bidirectional operation round out a seriously capable feature set.

Features

• 85A brushless ESC for 3S–6S LiPo
• New-generation 32-bit ARM drive system — 48MHz drive frequency, up to 510k eRPM
• Integrated high-current UBEC with excellent peak performance
• SINE wave mode for up to 5% efficiency improvement
• Regenerative braking support
• Selectable rotation direction and bidirectional operation mode
• Multilayer low internal resistance PCB for excellent heat dissipation
• Throttle, voltage, current, temperature and low-RPM protection
• Compatible with Dualsky GA series 28-pole motors
• Programmable via Dualsky USB Link Multi Purpose (DSB22382, sold separately)

Specifications

• Model: Dualsky Summit Lite 85A
• Continuous current: 85A
• BEC 6v Switching
• Battery: 3S–6S LiPo
• Suits: 3D aircraft, EDF jets,
