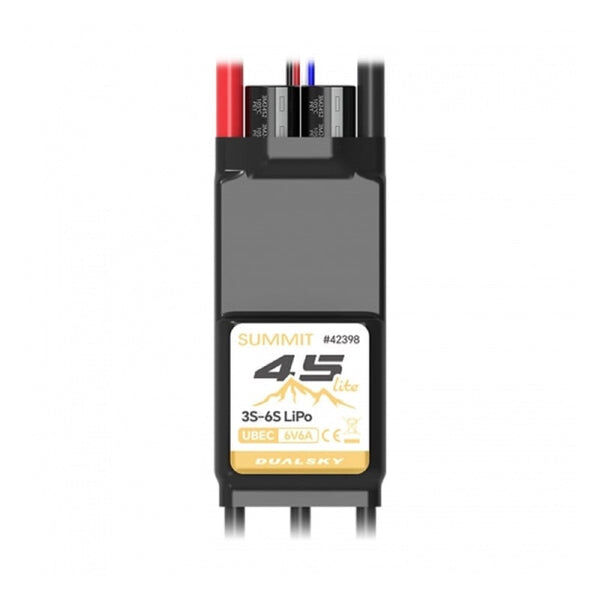

Take command of your power system with the Dualsky Summit Lite 45A ESC. Built on a new-generation 32-bit ARM electric drive system with drive frequency up to 48MHz and support for up to 510k eRPM, it's designed for models that demand reliable current delivery — sport and 3D aircraft, EDF jets and models running landing gear or lighting systems.

The multilayer, low-internal-resistance PCB delivers excellent heat dissipation, while the integrated high-current UBEC (6.0V, 6A continuous / 10A peak) powers your receiver, servos and accessories with confidence. SINE wave mode brings up to 5% better efficiency and smoother, quieter motor running, and regenerative braking, selectable rotation direction and bidirectional operation round out a seriously capable feature set.

Features

• 45A continuous / 70A burst brushless ESC for 3S–6S LiPo
• New-generation 32-bit ARM drive system — 48MHz drive frequency, up to 510k eRPM
• Integrated high-current UBEC: 6.0V, 6A continuous / 10A peak
• SINE wave mode for up to 5% efficiency improvement
• Regenerative braking support
• Selectable rotation direction and bidirectional operation mode
• Multilayer low internal resistance PCB for excellent heat dissipation
• Throttle, voltage, current, temperature and low-RPM protection
• Programmable via Dualsky USB Link Multi Purpose (DSB22382, sold separately)

Specifications

• Model: Dualsky Summit Lite 45A
• Continuous current: 45A
• Burst current: 70A
• UBEC: 6.0V, 6A / 10A peak
• Battery: 3S–6S LiPo
• Dimensions: 66 x 25 x 10.7mm
• Suits: 15E–30E class sport & 3D aircraft, EDF jets, models with landing gear or lighting
