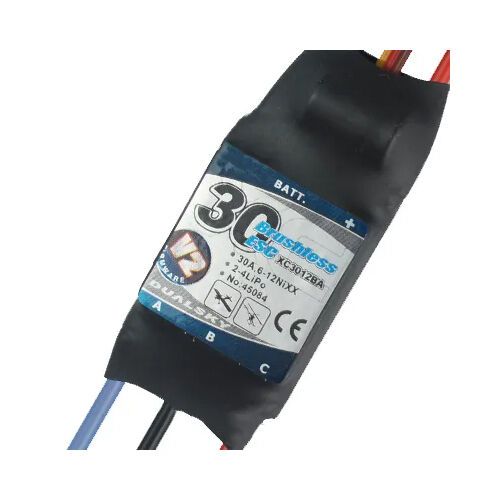

If you need a high-quality ESC, Dualsky's XC3012BA is hard to beat and is ideal for your 1 metre class aerobatic RC models.

Features

  • Comes with the latest software and hardware
  • Compatible with motor types up to 210,000rpm (2 poles motors)
  • Low resistance
  • Quality MosFETs included for high current usage
  • Compatible with Dualsky's Governor Mode (DGM)
  • Modifiable cut-off for motor stop or power reduction
  • Dualsky's Linear Brake Mode allows you to adjust the brake strength
  • Cut-off setting available for instances of low voltage
  • Overheating protection
  • Automatic cut-off in the event of a signal loss
  • Numerous start-up modes for fixed wing and helicopter setups
  • Throttle control throughout the range is smooth and reliable

Specifications

Dimensions (L x W x D): 47 x 26 x 7mm
Weight (g): 22
Number of Cells: NiXX 6-4, 7.2-14.4V/ LiPo 2-4, 7.4-14.8V
Resistance (Ri)(Ohm): 0.0059
Max Cont. Current (A): 30
Max Cont. Output (W): 420
Max Burst Current (A): 40
Max Burst Output (W): 544
BEC/ Dissipative Power: 5V/2A (2W Linear)
Programmable: Throttle + ProgCARD + USB LINK
Input Wires: 100mm, 16AWG, DC3
Output Wires: 65mm, 16AWG, DB3/DB2
Signal Wire: 180mm JR
Description: Mini, High Amp
Application: Small Models, 1m Class Aerobatic

SKU DSB45084
Brand Dualsky
Shipping Weight 0.0500kg
Shipping Width 0.050m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000260000m3
