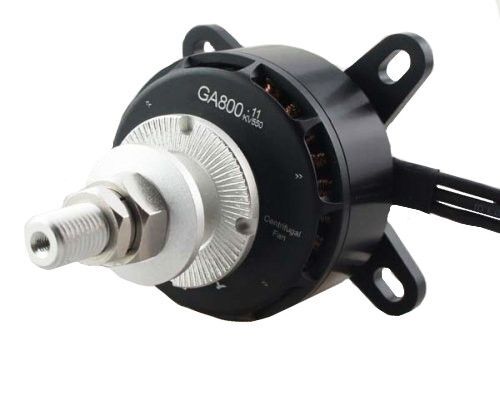

Dualsky GA800.11 500KV Brushless Motor, 1000w, 30E DSXM51747
SKU code: DSXM51747
$96.00
More infoMake 4 interest-free payments of $24.00 fortnightly and receive your order now.
3 Sold
Overview
Dualsky GA800.11 500KV Brushless Motor, 1000w, 30E
Features
- Designed for 30E - 40E class 3D airplane (Up to 55 inch wingspan)
- Great alternative for a .15-.46ci engine
- New modular light weight structure
- Dualsky 28 poles efficient structure
- Integrated motor mount
Specs
| RPM/V KV | 550 |
| Weight w/o accessories | 160g |
| Outer Diameter | 46 mm |
| Length w/ mounts | 42mm |
| Length (overall) | 74mm |
| Diameter of Shaft | 5mm (internal) 8mm (output) |
| Mounting holes pitch | 52mm to 58mm (D 4.2) |
| Slots, Poles | 24, 28 |
| Idle Current (Io) @10V | 1.3A |
| Resistance (Ri) | 42.7 mOhm |
| Nominal Voltage (V) | 22.2V, 6S LiPo |
| Peak Power [15s] | 1000W |
| Bursts Current [15s] | 42A |
| Cruising Power [8 mins] | 500W |
| Recommended ESC | XC406ULT |
| Propeller | 12 x 6 for best efficiency 13 x 6.5 for pilots performance 14 x 7 for extreme thrust |
| Weight of Sports Airplane | Up to 2.2kg |
| Weight of 3D Airplane | 1.5kg to 1.8kg |
| SKU | DSXM51747 |
| Barcode # | 6941047117471 |
| Brand | Dualsky |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.001000000m3 |
