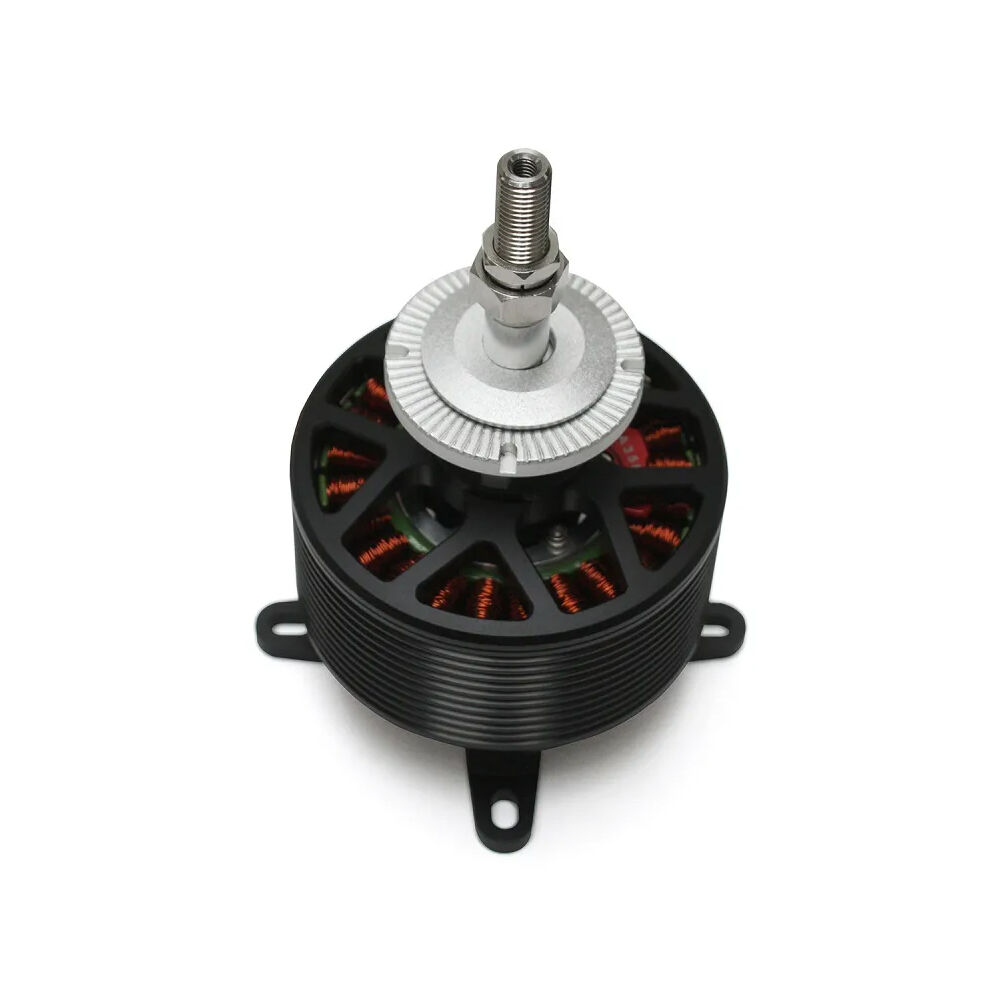

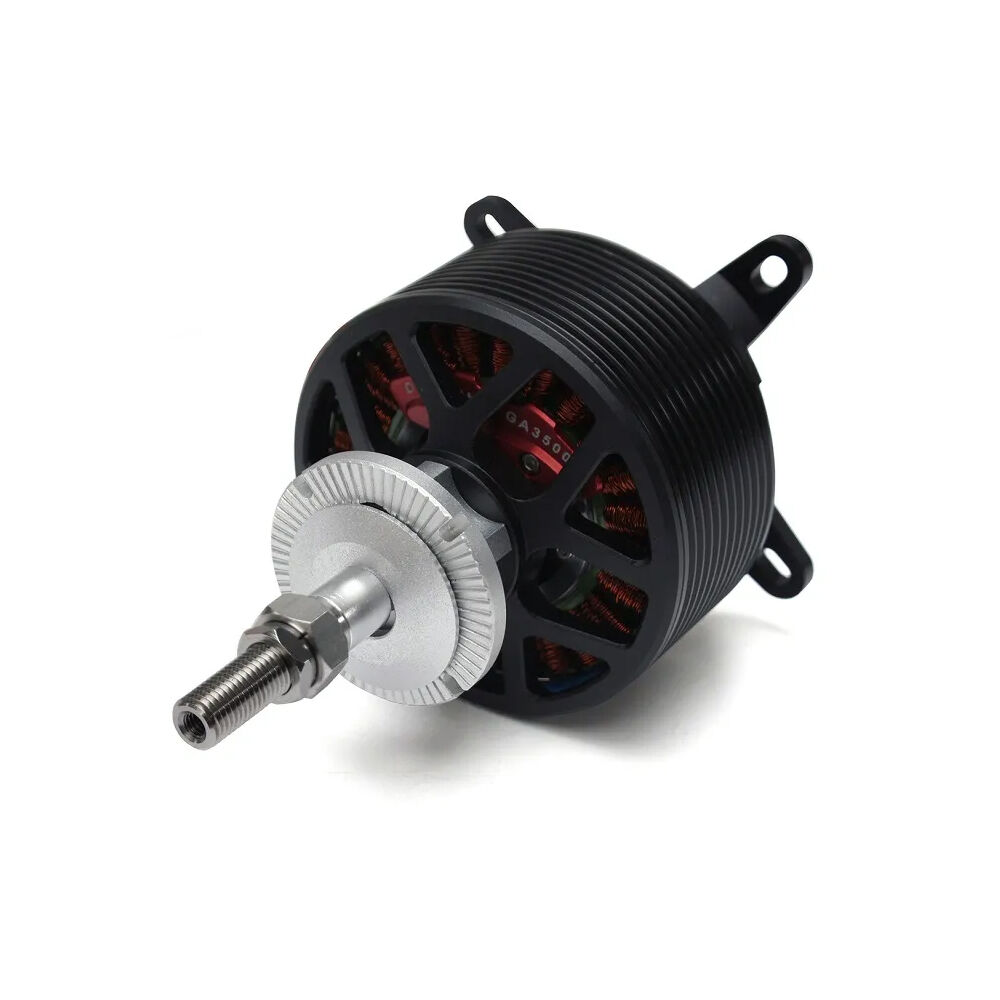

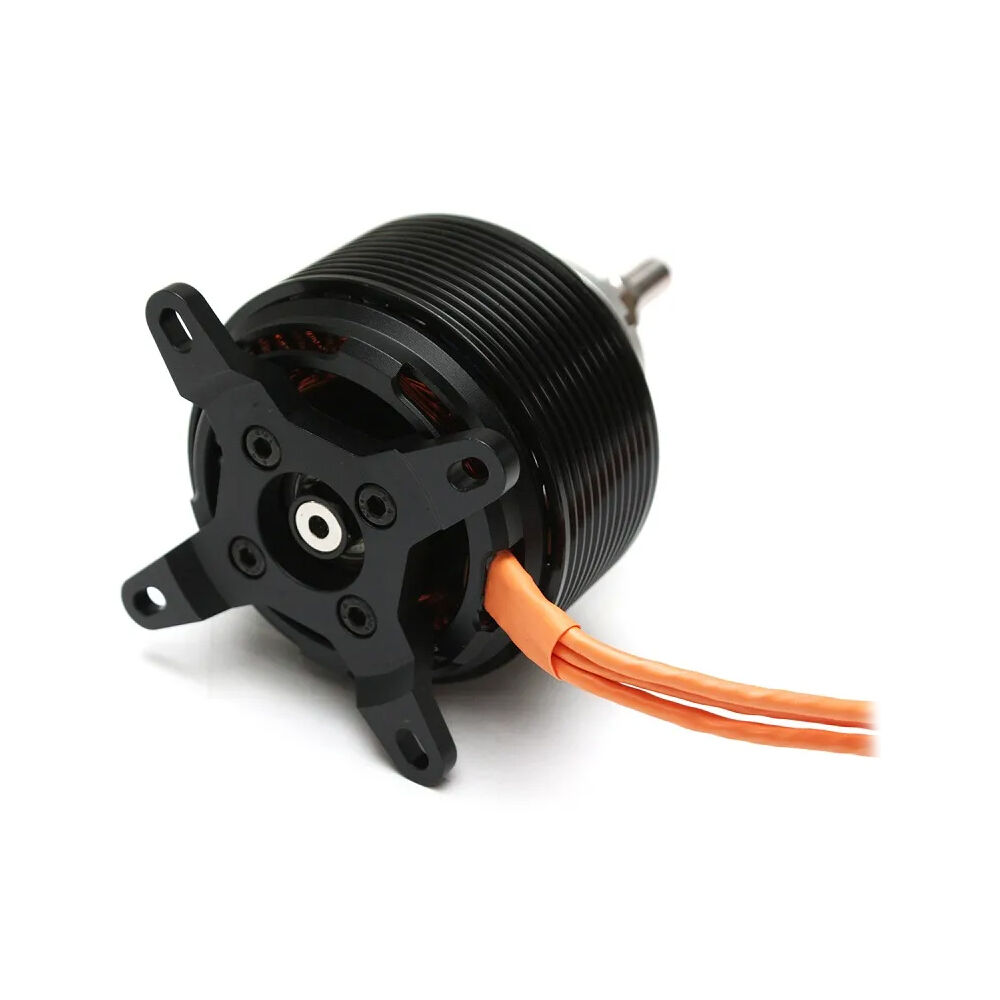

Dualsky GA3500R Brushless Motor 200Kv, 30-35cc
SKU code: DSXM52059
Make 4 interest-free payments of $101.75 fortnightly and receive your order now.
Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)
Specifications
RPM/V: 200 RPM/V
Weight w/o accessories: 538g
Outer Diameter: 71mm
Length w/ mounts: 78mm
Length(overall): 120.8mm
Diameter of Shaft: 9mm (Internal), 8mm (Output)
Mounting holes pitch: 71mm to 77mm
Slots,Poles: 24, 28
Idle Current(Io) @10V: 1.2A
Resistance(Ri): 28.4mOhm
Nominal Voltage(V): 30-51V, 10-12S Lipo
Peak power[15s]: 3550W (4.9HP)
Bursts current[15s] & MAX torque: 80A, 4.68N*M
Cruising power[8 mins]: 1800W
Recommended ESC & Settings: Dualsky Summit 120HV (32-bit computing capability, 22° or auto timing, 24KHz working frequency)
Propeller: 18x10, 19x10, 20x10: 18x10 to 20x10E for efficiency flight: Falcon 20x10CF for pilots performance (11.7kg thrust, 67A w/ 12S Lipo)
Weight of sports airplane: up to 12kg
Weight of 3D airplane: up to 5.5kg
Applications: For 35cc class (equivalent to .170E) 3D airplane (up to 74in ~ 78in wingspan)
SKU | DSXM52059 |
Barcode # | 6941047120594 |
Brand | Dualsky |
Shipping Weight | 1.0000kg |
Shipping Width | 0.170m |
Shipping Height | 0.140m |
Shipping Length | 0.210m |
Shipping Cubic | 0.004998000m3 |
