Dualsky motors are manufactured to high tolerances using high-quality materials. Whether you fly in competitions or just love free flying, the DUALSKY C-Series V2 motors will help you keep your all up weight down and your thrust to weight ratio up.

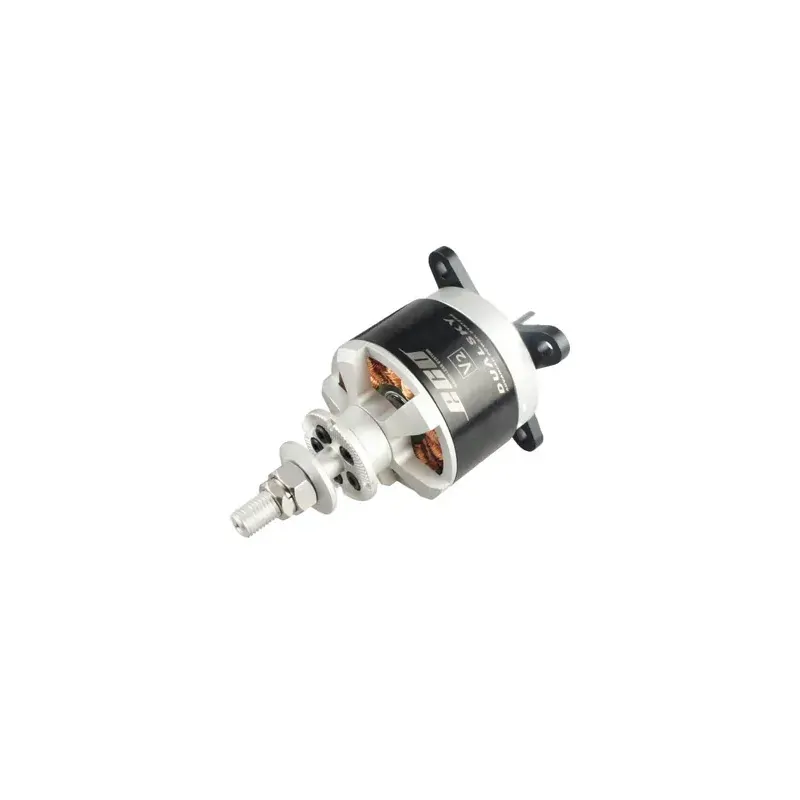

The Dualsky ECO 4120C 560kv Brushless Motor comes with motor mounting screws, an aluminium motor mount, female bullet connectors for the ESC and a bolt-on prop hub with a 6mm shaft.

Features

  • Classic Dualsky five-spokes back cover with simple lines
  • Motor structure strength increased by 25%
  • Optimised stress distribution and strength increased without increasing the weight
  • High strength main shaft
  • High temperature resistant, high toughness epoxy glue
  • High precision double sides dynamic balancing
  • Waterproof splash (ball bearing not waterproof)
  • Rust-proof main shaft
KV 560
Turns 7
Weight 280 g
Dimensions (D x L) 49.5 x 45.2 mm
Slots & Poles 12N14P
Ri (mOhm) 22
Io @ 10V 1.3 A
No. of Cells 5 - 6
Max. Efficiency Current 42 A
Max. Burst Current (15S) 70 A
Max. Power (15S) 1400 W
Max. Torque (N*M) 1.43
Shaft Diameter 6 mm
Mounting Holes Pitch 30/30
Input Connectors GC4.0
Recommended ESC XC8018BA
Propeller 5S: 16x9E, 15x8E 6S: 14x6E, 13x8E
Class .65-.70 4-Stroke
SKU DSXM51673
Barcode # 6941047116733
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.100m
Shipping Cubic 0.002250000m3
