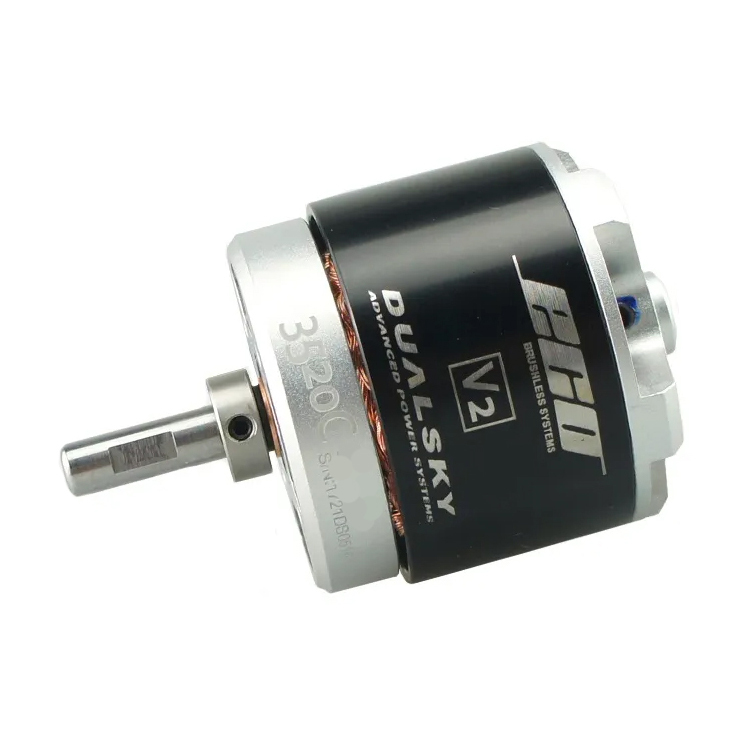

The 3520C ECO motor from Dualsky has 1020Kv of power. This motor comes with propeller adapter and motor mounts, in addition to gold plugs and screws.

Features

  • High strength, rust proof main shaft
  • Waterproof (ball bearing not waterproof)
  • High purity copper wire and temperature can reach 180oC
  • Electromagnetic design
  • Optimised stress distribution and strength increased without increasing the weight
Specifications
KV   1020
Turns   4
Weight   210g
Dimensions   43.2x42.4mm
Slots & Poles   12N14P
Ri (mOhm)   10.8
Io@10V   2.6
No. of cells   3..4
Max. Efficiency Current [A]   48
Max. Burst Current (15S) [A]   80
Max. Power (15S)[A]   960
Max. Torque [N*M]   0.9
Shaft diameter   6mm
Mounting holes pitch   25/25
Input Connectors   GC4.0
Recommended ESC   XC8018BA
Propeller   3S: 14x7E, 13x6.5E
4S: 11x535E, 10x5E
Class   .50 4-Stroke .32-.0 (40E) 2-Stroke



SKU DSXM51669
Barcode # 6941047116696
Brand Dualsky
Shipping Weight 0.3500kg
Shipping Width 0.080m
Shipping Height 0.070m
Shipping Length 0.130m
Shipping Cubic 0.000728000m3
