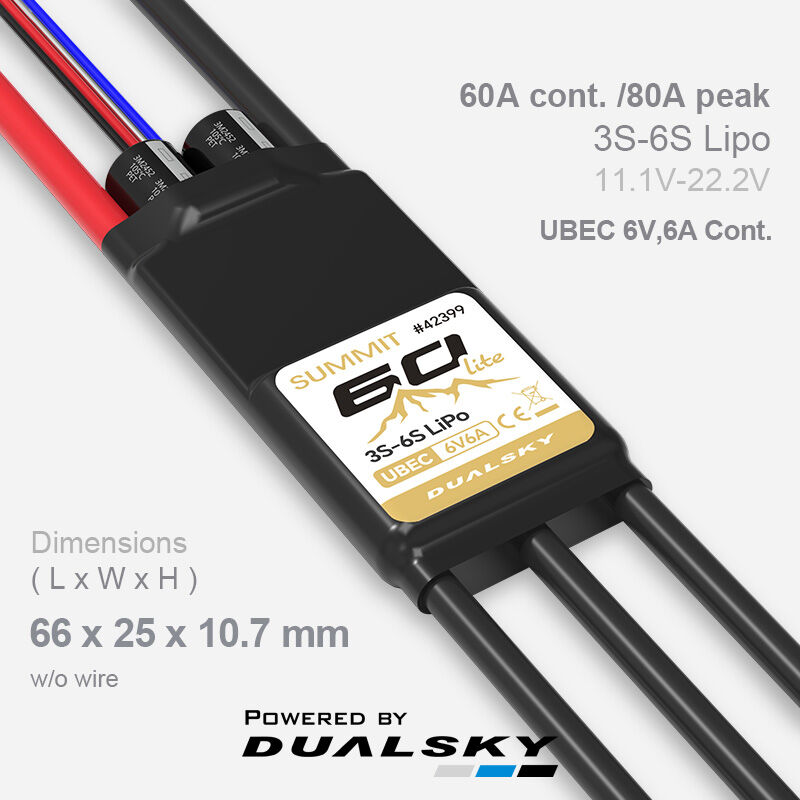

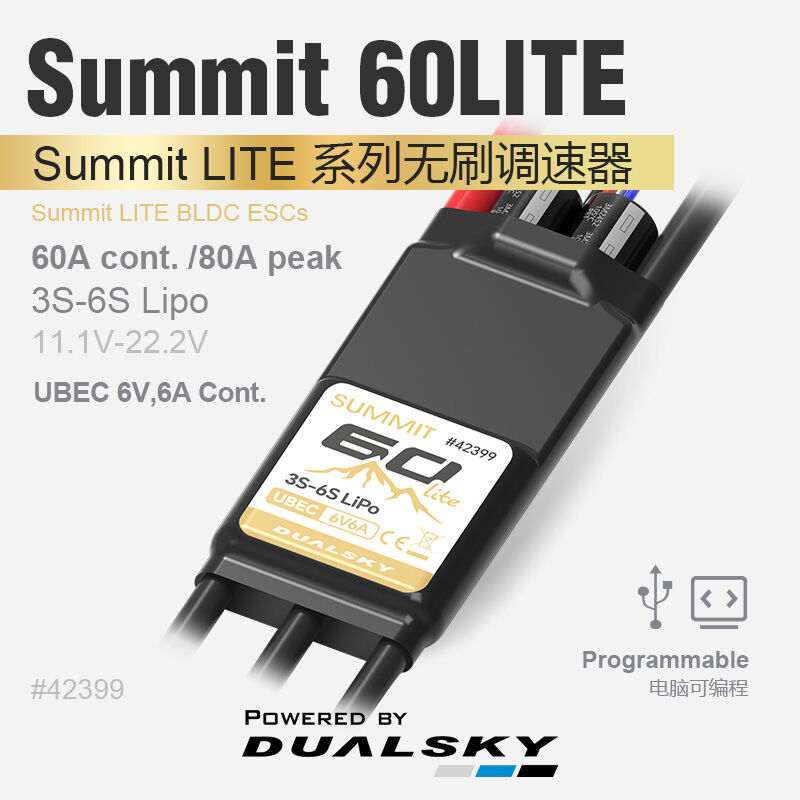

The 45's bigger-hearted twin. The Summit 60LITE shares its sibling's case, weight class and modern brains — BLHeli32-class firmware with programmable throttle response, timing and brake, energy-recovery freewheeling, and automatic telemetry down the single-pin lead — but steps the current handling up to 60A continuous, 80A burst, on 3S–6S LiPo, with roughly half the internal resistance (~1.4mΩ) and heavier 14AWG motor wiring on DB4F bullets. Same footprint, more headroom: the choice for power systems that would keep a 45A ESC working hard. The onboard 6.0V switching BEC delivers 6A continuous and 10A peak — a full house of servos, no external BEC.

The Practical Touches

IP43 splash and dust protection for real field conditions; a 20-minute beacon beep for models gone bush; low-voltage cutoff (3.0V/cell default) and 140°C overheat protection; 14AWG input leads, a long 350mm JR signal lead, and DB4F motor bullets mating Dualsky's larger motors directly. 49g with wires, 66 × 25 × 10.7mm — the same easy packaging as the 45.

Pairing and Programming

Dualsky's tested pairings cover their EG glider, EA V3, ECO V2 and GA motor lines for mid-class gliders, 3D and sports models, F3A and fixed-wing UAVs — with the 60's extra amps suiting the hungrier end of those ranges, including the larger EA and GA motors. Programming runs through Dualsky's USBLINK MP with the BLHeli32 suite (not the Summit 30/60 X-series USB link), and defaults fly well out of the box. No battery connector is fitted to the input leads — solder your fleet's standard.

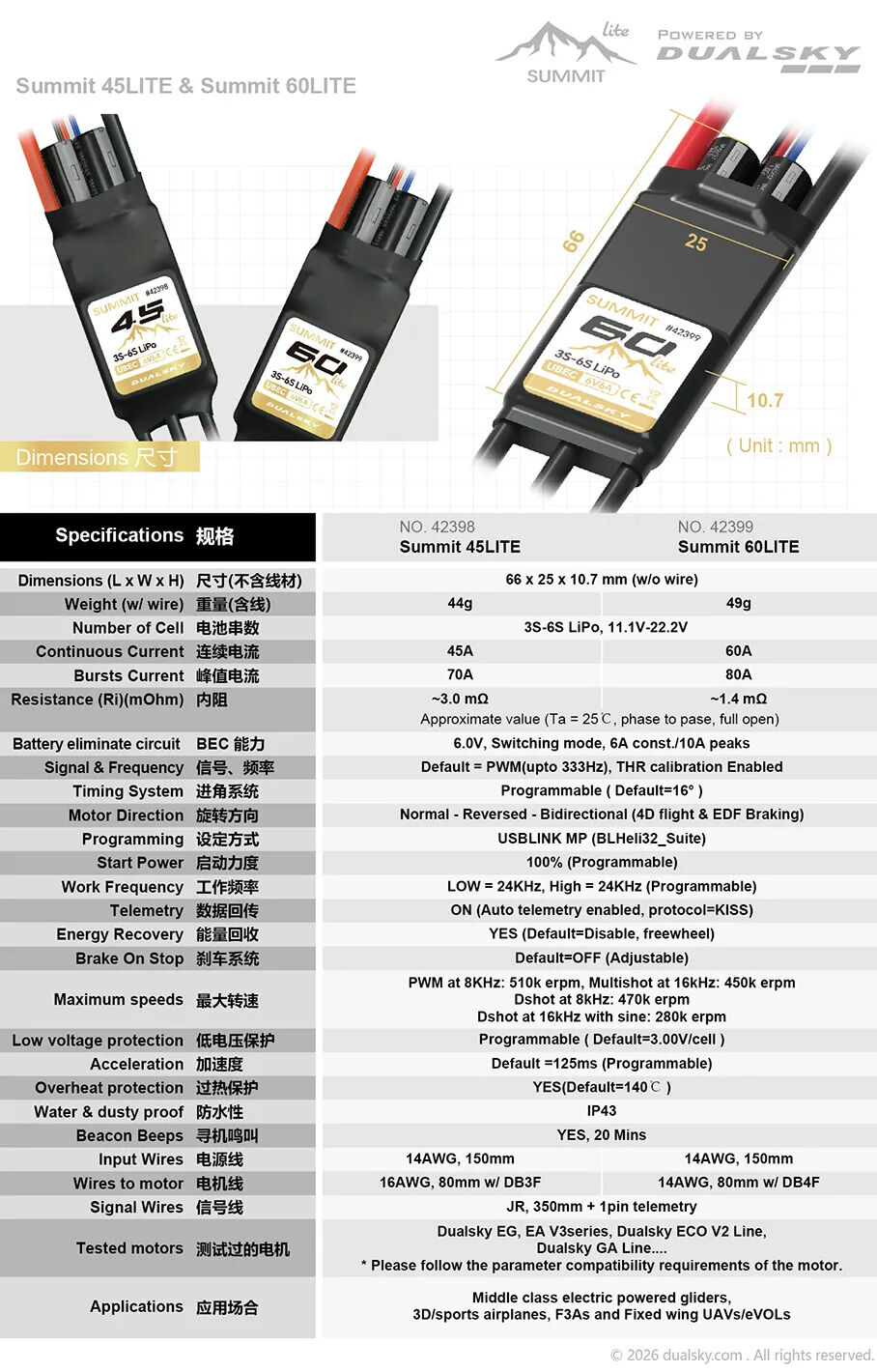

Specifications

Brand: Dualsky
SKU: DSB42399 (Dualsky No. 42399)
Product: Summit 60LITE brushless ESC
Current: 60A continuous / 80A burst
LiPo: 3S–6S (11.1–22.2V)
BEC: 6.0V switching — 6A const. / 10A peak
Firmware: BLHeli32-class; telemetry, Dshot-capable
Resistance: ~1.4mΩ
Protection: IP43, LVC 3.0V/cell, 140°C overheat
Extras: 20-min beacon beeps, energy recovery
Wiring: 14AWG input (no plug fitted), 14AWG/DB4F motor, 350mm JR signal
Size / Weight: 66 × 25 × 10.7mm · 49g w/ wires
Suits: Dualsky EG, EA V3, ECO V2, GA motors; sport/3D/glider/F3A
Sibling: DSB42398 — Summit 45LITE (same case, 45A)
