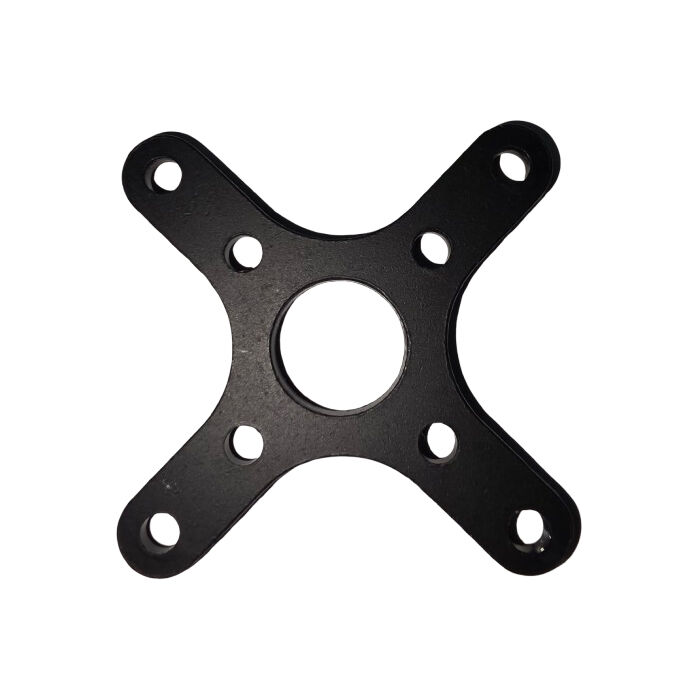

A CNC machined aluminium X mount for brushless outrunners with a 30mm diagonal bolt pattern. Black anodised, 4mm thick.

The motor bolts to the four inner holes, the arm tips bolt to your firewall or standoffs, and the open centre clears the shaft and bell. Stiffer than the plywood or plastic mounts supplied with most ARFs, and it won't crack around the screw holes after a season of vibration.

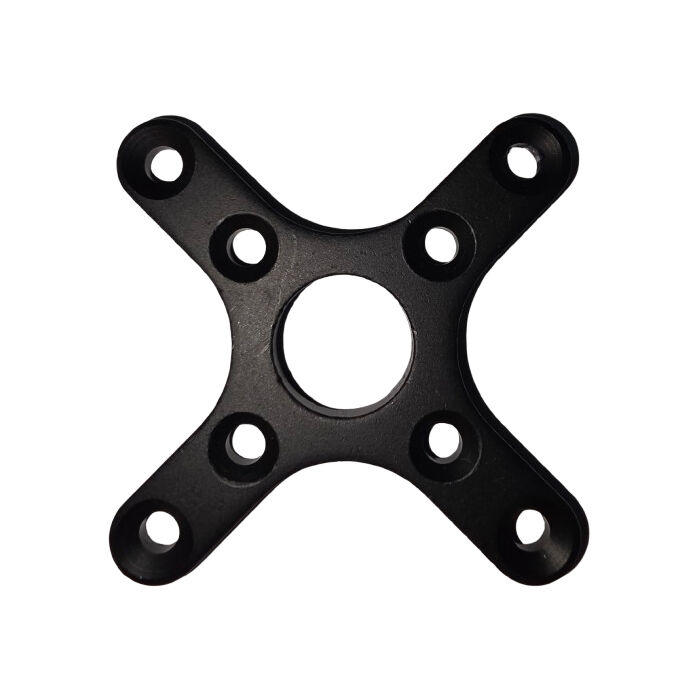

All eight holes are countersunk on one face. If you need the motor and firewall screws recessed on opposite faces so both surfaces sit flush, use the XMM30B instead.

Check your motor's bolt pattern before ordering — spacing varies between manufacturers.

Specifications

Motor Bolt Spacing: 30mm diagonal
Firewall Bolt Spacing: 56-57mm diagonal
Screw Size: M4 (both hole sets)
Centre Bore: 15mm
Thickness: 4mm
Countersinks: All on one face
Material: Black anodised aluminium
Item code: XMM30A

Needed to Complete

• M4 screws to suit your motor and firewall
