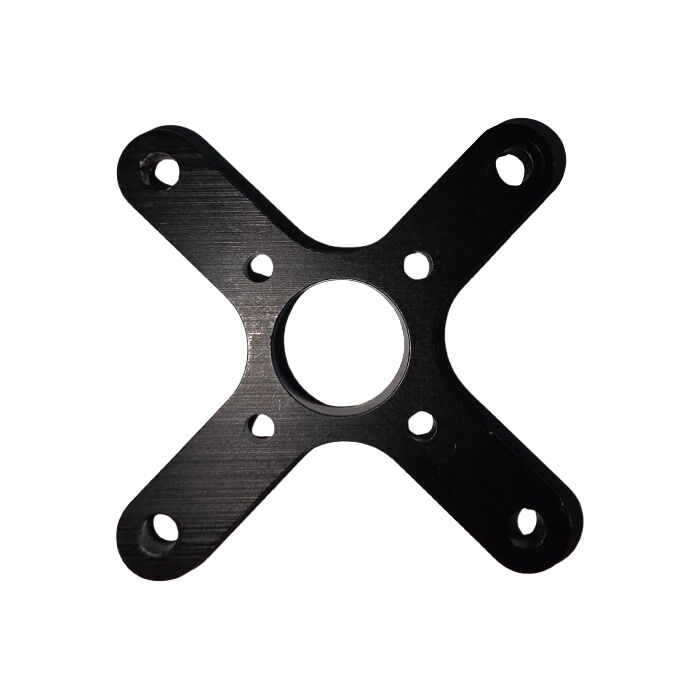

A CNC machined aluminium X mount for brushless outrunners with a 25mm diagonal bolt pattern. Black anodised, 5mm thick.

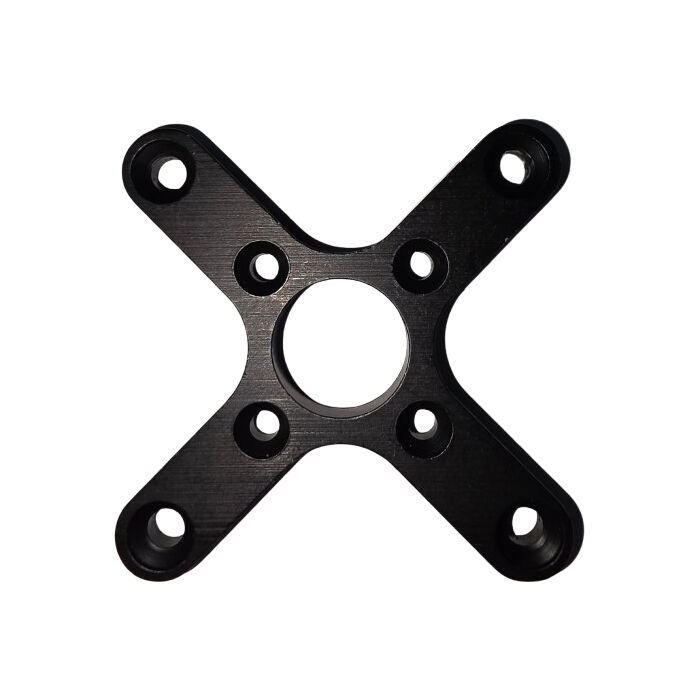

The motor bolts to the four inner holes, the arm tips bolt to your firewall or standoffs, and the open centre clears the shaft and bell. Stiffer than the plywood or plastic mounts supplied with most ARFs, and it won't crack around the screw holes after a season of vibration. Holes are counterbored on one face so cap screws sit flush.

Check your motor's bolt pattern before ordering — spacing varies between manufacturers.

Specifications

Motor Bolt Spacing: 25mm diagonal
Motor Screw Size: M3
Firewall Bolt Spacing: 55mm diagonal
Firewall Screw Size: M4
Centre Bore: 15mm
Thickness: 5mm
Material: Black anodised aluminium
Item code: XMM25

Needed to Complete

• M3 screws for the motor, M4 screws for the firewall
