The clipless body system on the Vorteks 223S is what lets you pop the shell off without fighting body clips — until a button snaps or a base cracks and the body starts lifting at speed. ARA-2141 is Arrma's genuine replacement set, covering both front and rear mounts complete with buttons, pins and all mounting hardware.

Replacing the whole assembly rather than one broken piece is usually the better call — a worn base will chew through a new button fairly quickly.

Key Features

• Genuine Arrma replacement body release set
• Restores the clipless body mounting system, front and rear
• Includes both release buttons and release pins
• Complete mounting hardware supplied
• Tough composite construction
• Direct replacement — no modification required

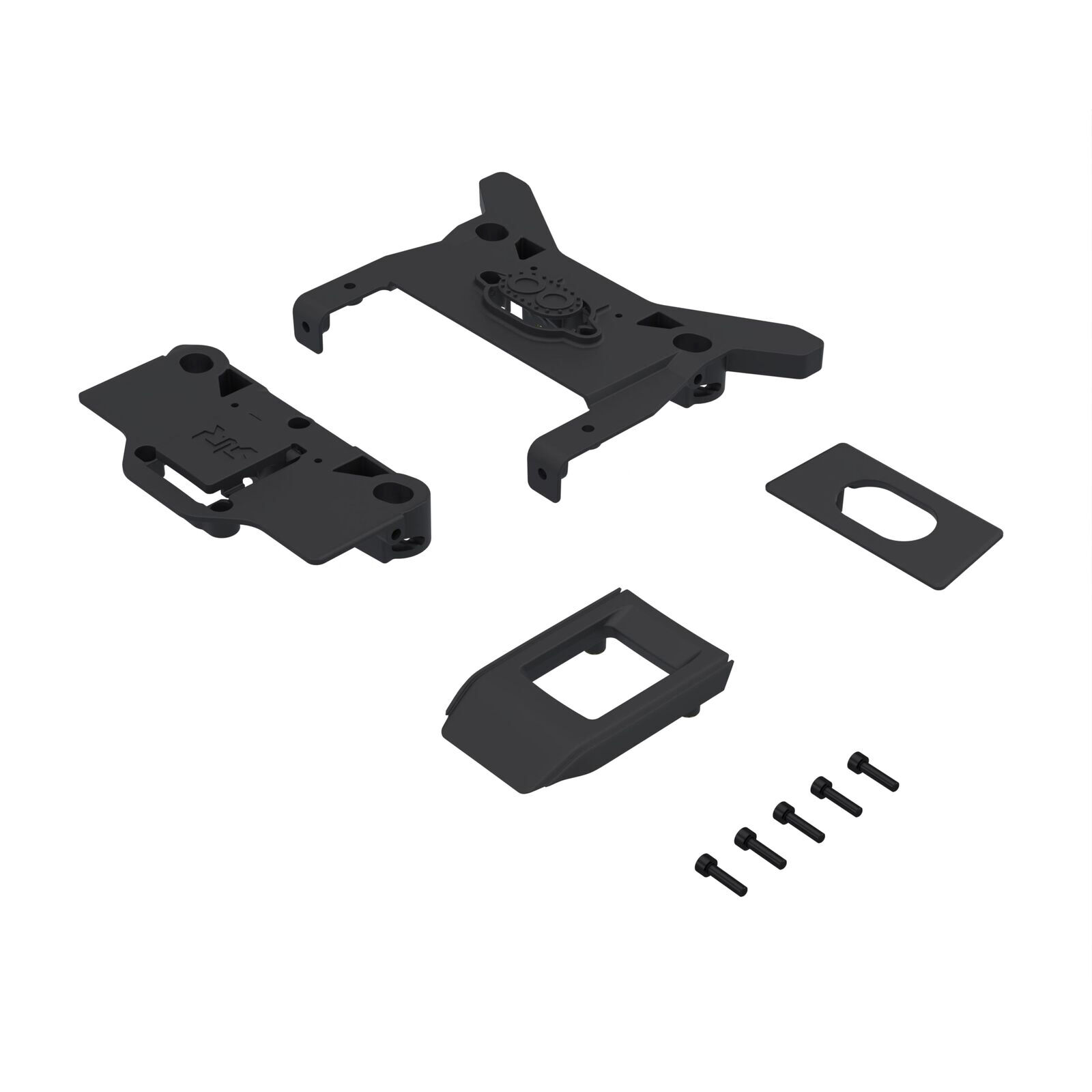

What's in the Box

1 × Front Body Release Base
1 × Front Body Release Cowling
1 × Front Body Release Button
1 × Rear Body Release Base
1 × Rear Body Release Cover
1 × Rear Body Release Button
2 × Bodyshell Button Release Pin
2 × M2.5 × 6mm Cap Head Screw
5 × M2.5 × 10mm Cap Head Screw
4 × Bodypost Lock Wire Mounting Screw

Needed to Complete

Only basic hand tools. Body shell and body posts are not included — see ARA-2142 Body Post Set if your posts are also damaged. Bodypost lock wires themselves are not supplied, only their mounting screws.

Fits (per Arrma)

• Arrma 1/10 Vorteks 223S 4X4 Brushless Stadium Truck — ARA4305V4

Specifications

Brand: Arrma
Part Number: ARA-2141
Part Type: Body release set (clipless body mount)
Vehicle: Vorteks 223S 4X4 (ARA4305V4)
Material: Composite
Colour: Black
Moulded parts: 6
Fasteners: 11 screws, 2 pins
Scale: 1/10

Related Vorteks 223S spares: ARA-2142 Body Post Set, ARA-2140 Side Guard Set, ARA-2143 Clipless Painted Decaled Body (Red).
