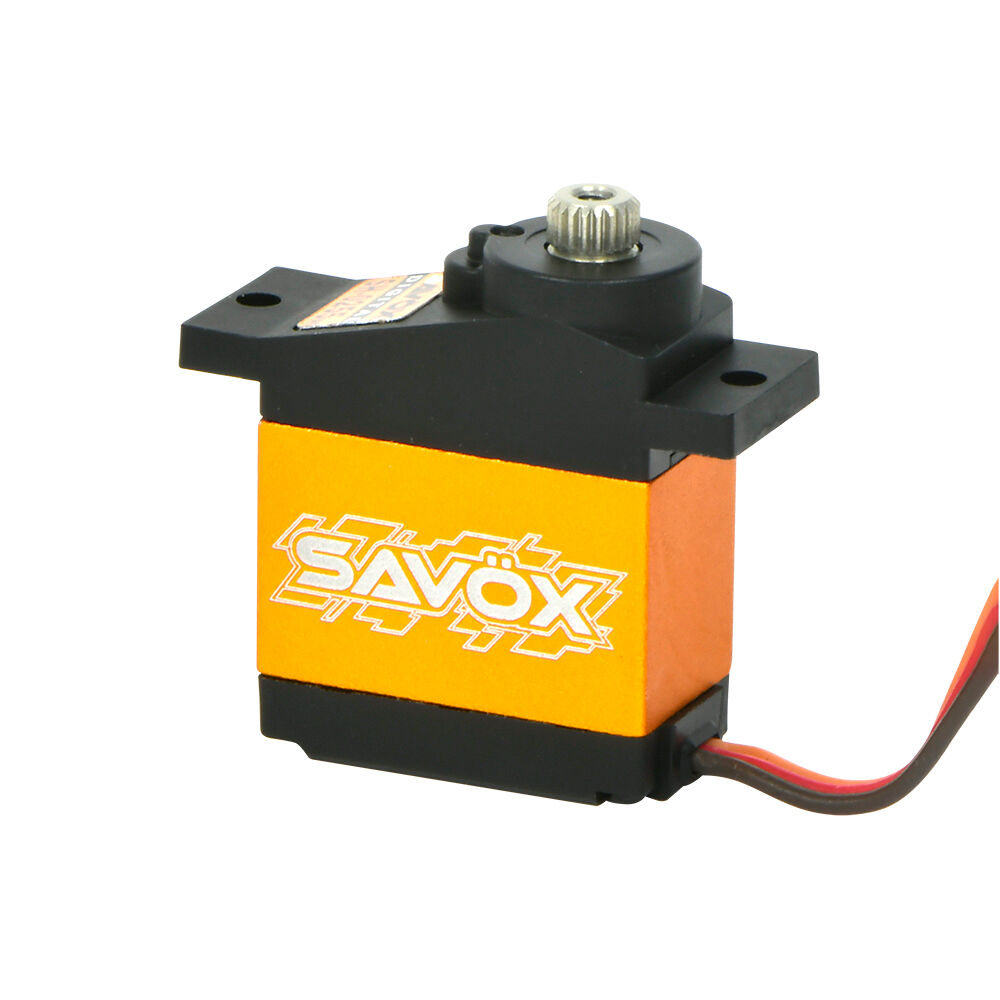

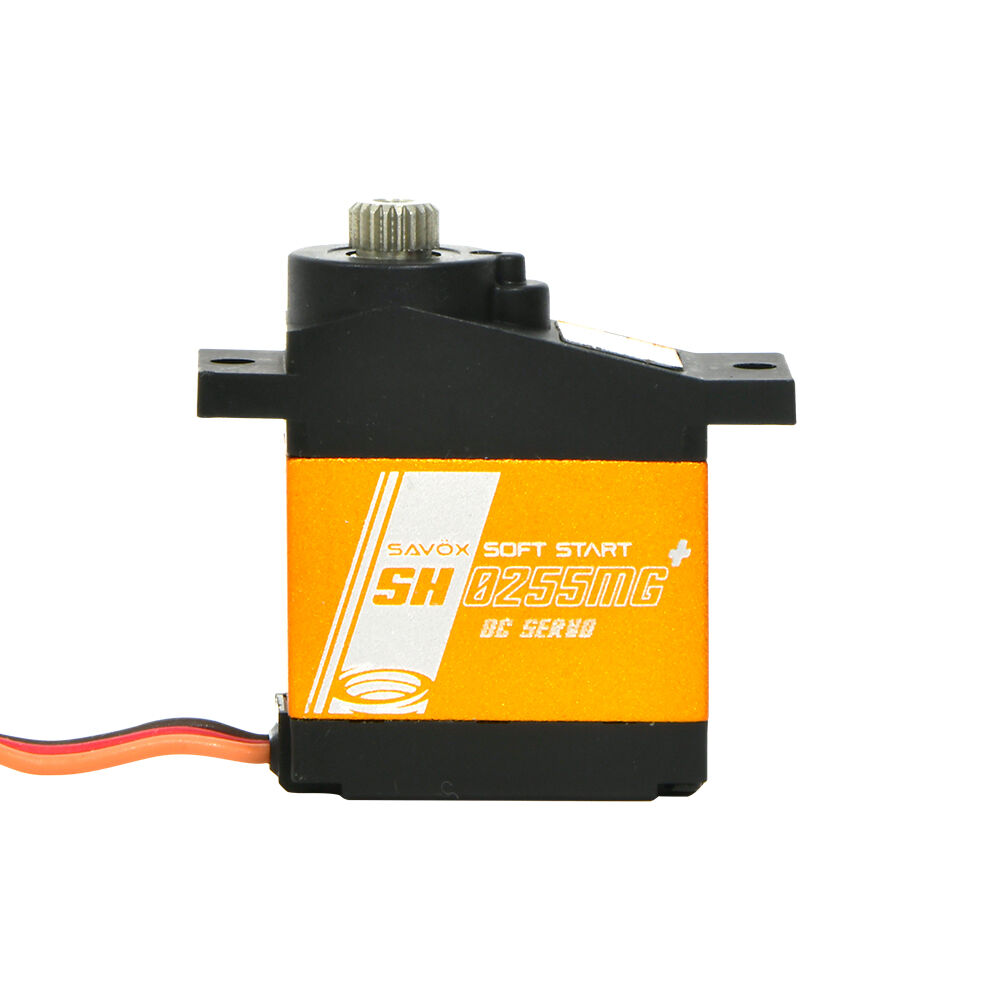

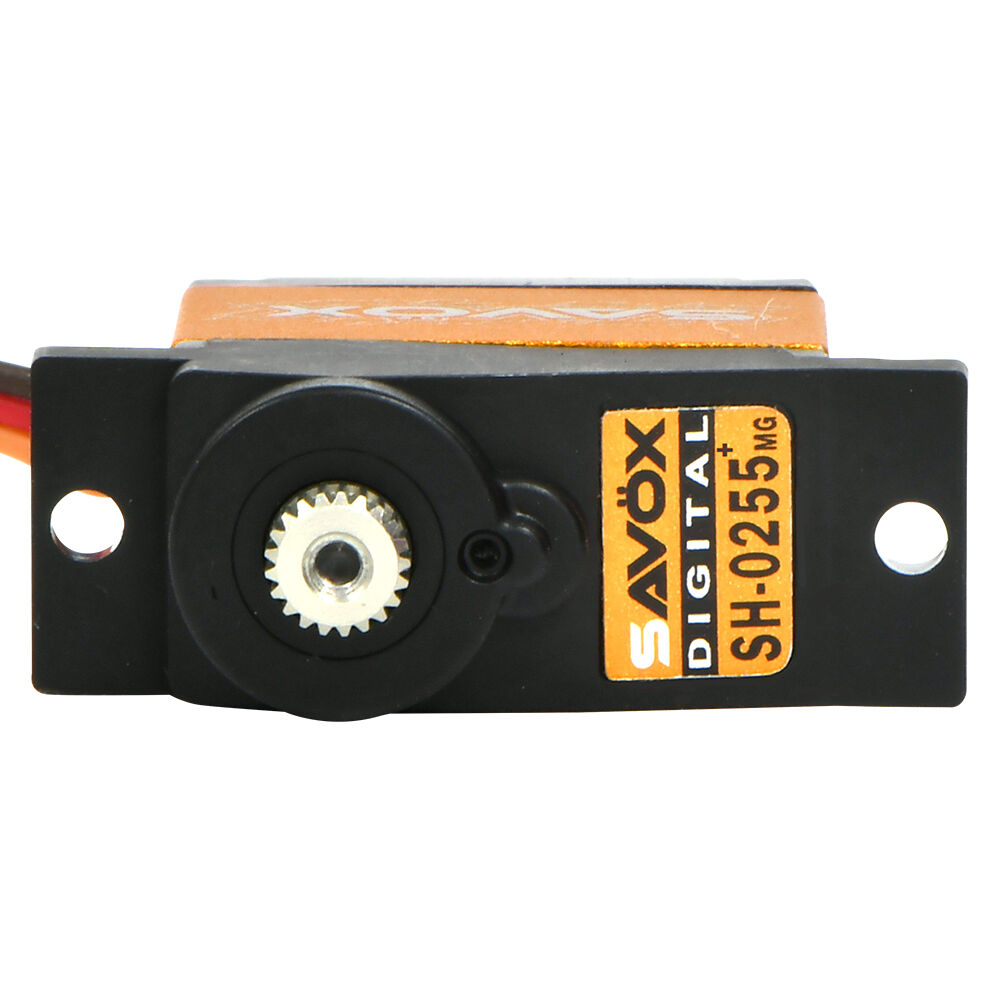

The Savox SH-0255MG Plus is a compact micro digital servo designed for RC models that need reliable control, strong gears and a lightweight fitment. Producing up to 3.9kg-cm of torque at 6.0V with a 0.13 sec/60° transit speed, it is a great choice for small aircraft, helicopters, cars and other compact RC applications where space and weight are limited.

Built with a DC motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SH-0255MG Plus provides improved strength and durability compared with plastic or composite gear micro servos. Its compact size makes it ideal for tighter installations, while the metal gear train helps handle higher loads and everyday RC use with confidence.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With a 21T output spline, 10-bit PCB board, dust-resistant protection and standard JR connector, the SH-0255MG Plus is a dependable upgrade for smaller RC models that need a strong micro servo.

Features

• Micro digital servo
• Up to 3.9kg-cm torque at 6.0V
• 0.13 sec/60° speed at 6.0V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for improved strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 21T output spline
• 10-bit PCB board
• Dust-resistant protection
• Suitable for small RC cars, aircraft, helicopters and compact RC models

Specifications

Model: SH-0255MG Plus
Servo Type: Micro digital servo
Application: Car / Heli / Airplane
Motor Type: DC motor
Torque @ 4.8V: 3.1kg-cm
Torque @ 6.0V: 3.9kg-cm
Speed @ 4.8V: 0.16 sec/60°
Speed @ 6.0V: 0.13 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 21T / 4.8mm
Case Type: Hybrid aluminium/composite

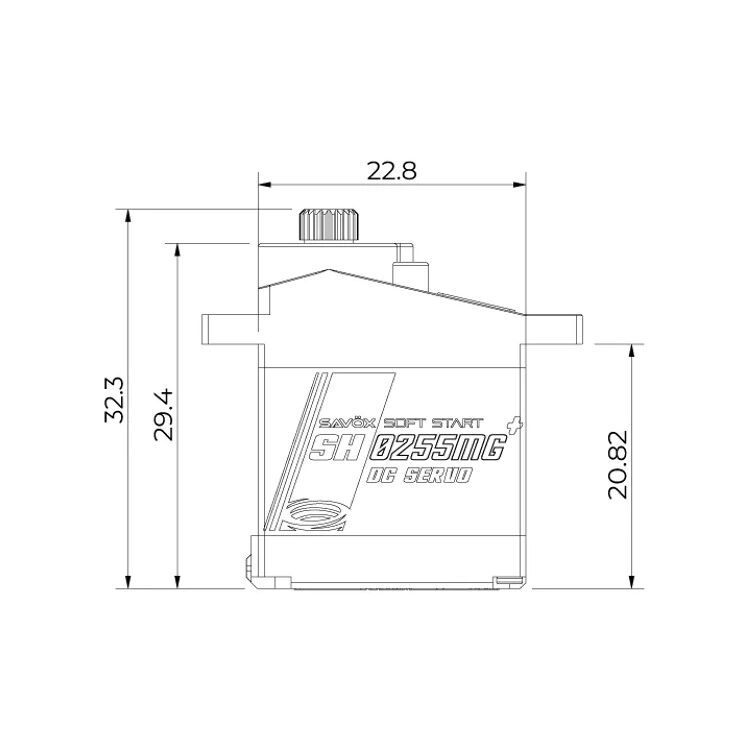

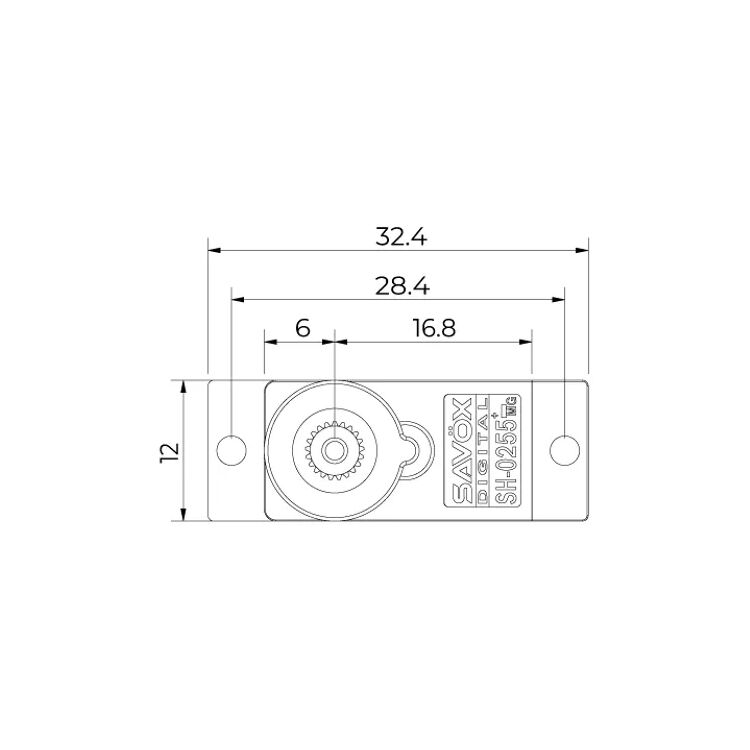

Dimensions: 22.8 x 12.0 x 29.4mm
Weight: 15.8g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
PCB Board: 10-bit
Connector: JR connector
Cable Length: 250 ±5mm
