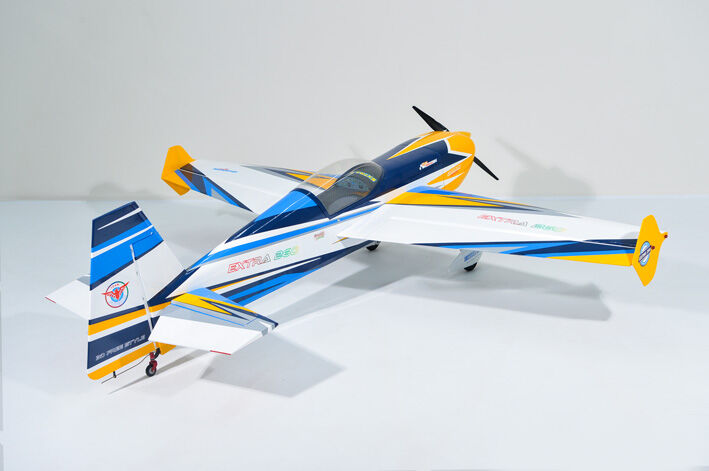

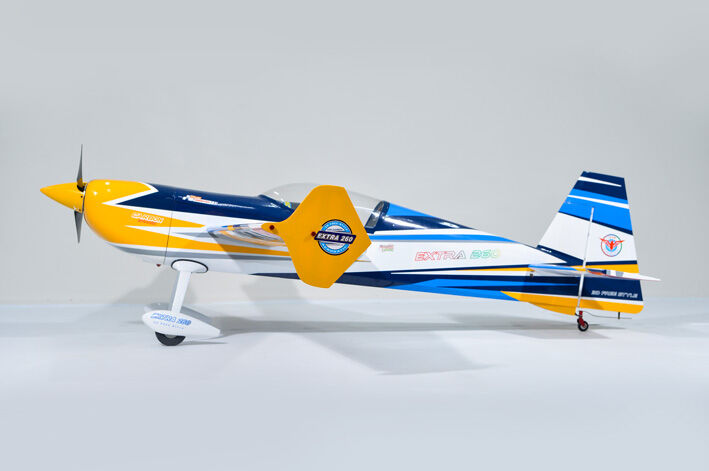

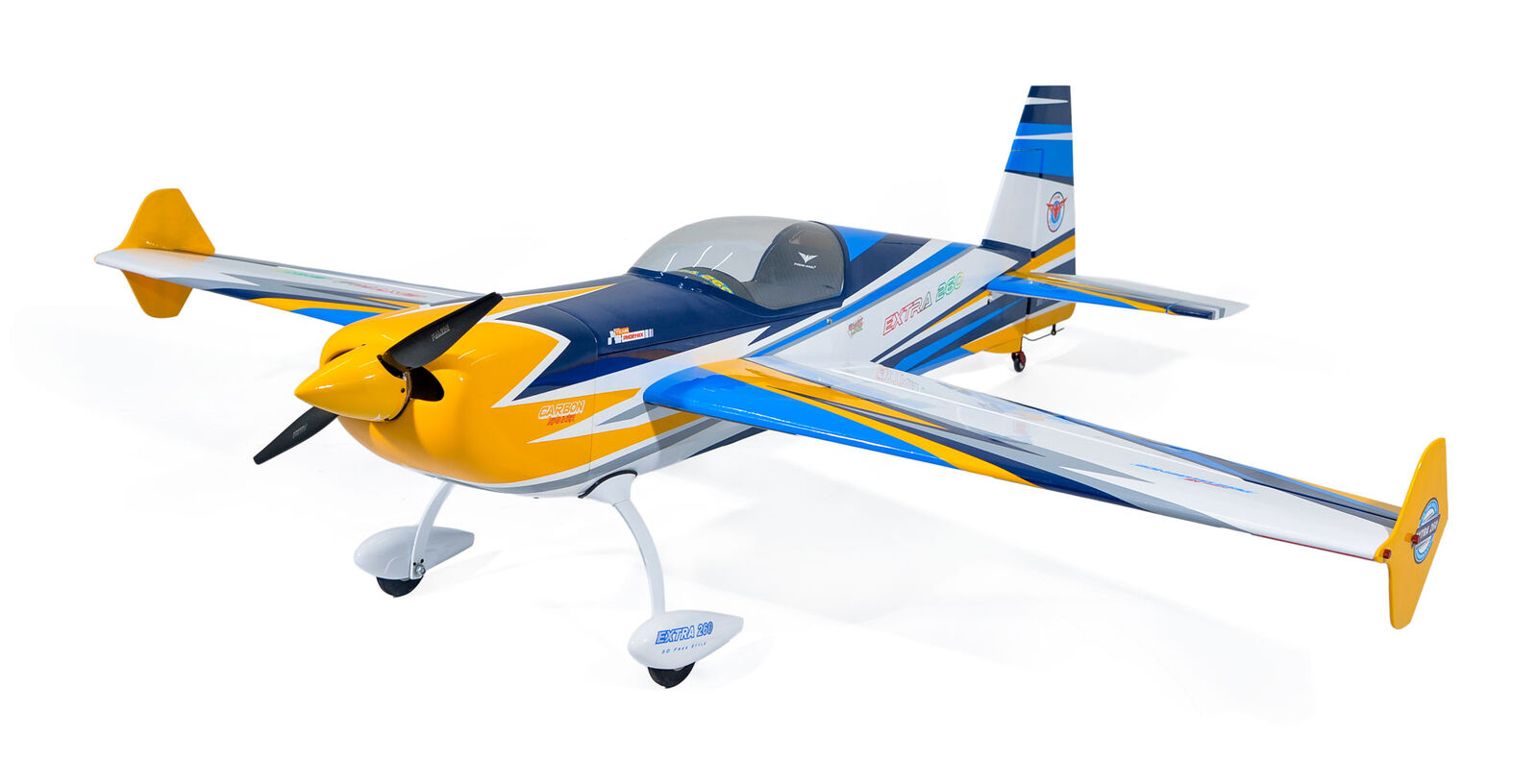

The Phoenix Model Extra 260 V2 35cc ARF is great for those looking for a model that is capable of both precise and extreme 3D aerobatics. The wings plug-in with the Smart Lock system, to make assembly and transport fast and easy.

Feature

• Capable of both precise and extreme 3D aerobatics
• Designed for compatibility with both GP-EP flight

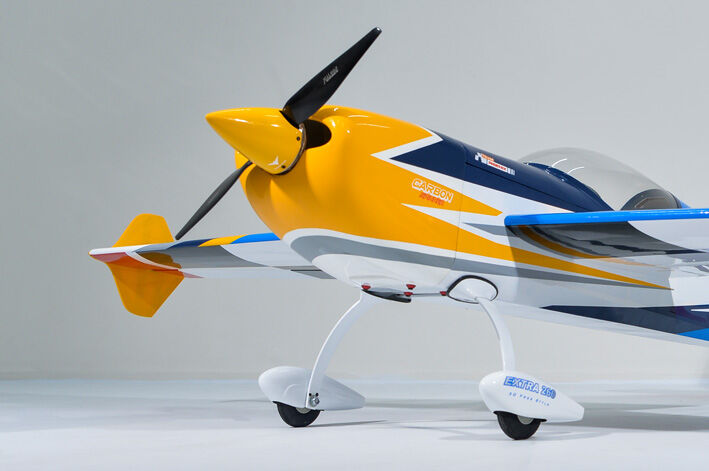

• Factory-painted Carbon fiber Spinner (included)
• Factory-painted Carbon fiber Main langding gear and tail gear (included)
• Factory-painted fiberglass cowling and wheel pants (included)
• Factory-painted fiberglass control horn (included)
• All ball linkages and hexagon metal rod are included (included)

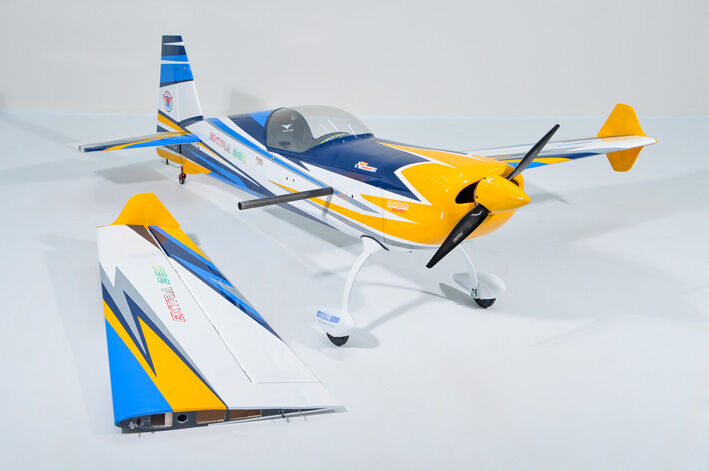

• Plug-in wings with Smart Lock system for fast assembly and easy transport (included)
• Wing Force included for precise and stability (included)

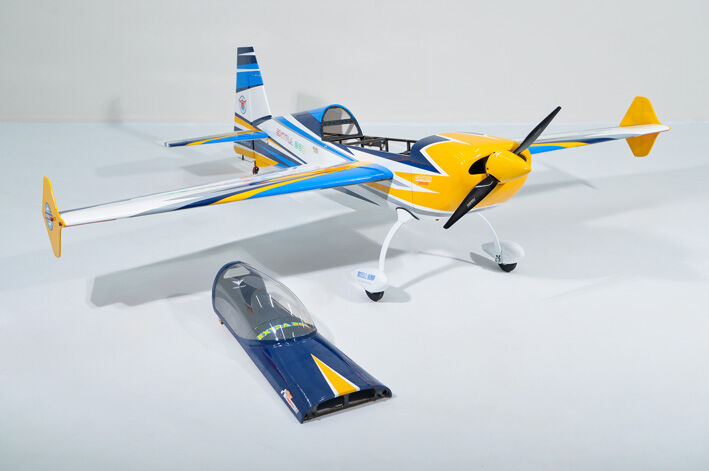

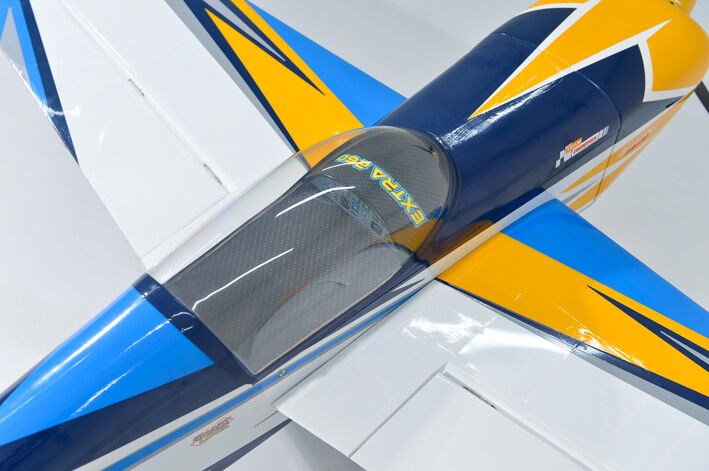

• Removable canopy for easy change lipo battery and set up radio
• Removable horizontal stabilizer

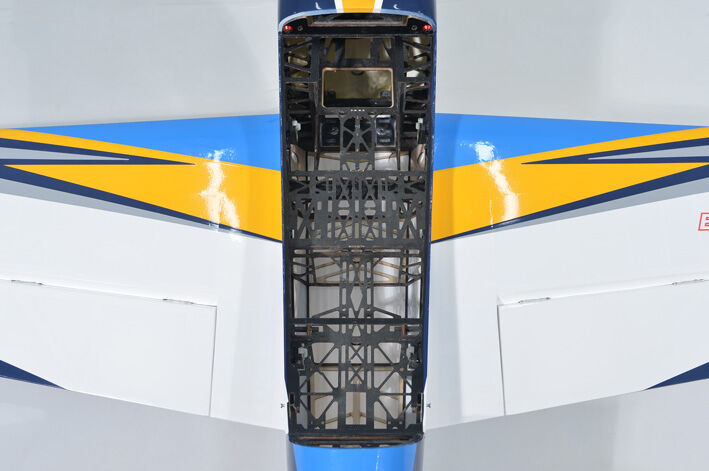

• Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
• Genuine polyester covering film ensures excellent color durability

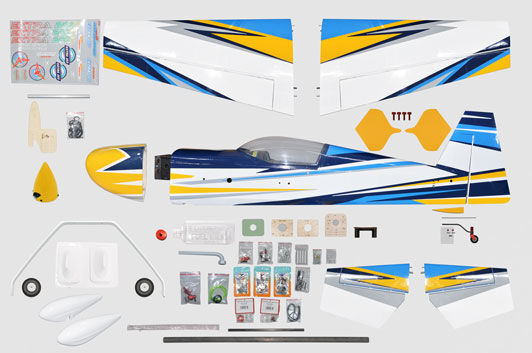

• All high-quality hardware included


Technical data

• Wingspan: 2000mm (78 in)
• Length: 1848mm (72.7 in)
• Flying weight: 5700-5900gr
• Gear type: Carbon fiber for main gear (included)
• Spinner size: Carbon Spinner 86mm (included)
• Gravity CG: 145mm (5.7 in) Back from the leading edge of the wing, at the fuselage

CONTROL SETTINGS:

Elevator:

•   Low Rate 8-10 deg. 10-25% expo
•   3D Rate 45-50 deg. 55-65% expo

 Aileron:

•   Low Rate 15-20 deg. 40-45% expo
•   3D Rate 38-40 deg. 60-75% expo

Rudder:

•   Low Rate 20 deg 40-50% expo
•   3D Rate 45-50 deg. 60-80% expo
•

POWER SYSTEM:

Gas

• Engine 35cc Propeller: Carbon gas 20 x 8
• Engine 40cc Propeller: Carbon gas 20 x 9

Electric

•  Motor: GA3500R DUALSKY
•  ESC: 120HV
•  Battery: Two 6S 3300-3700 mAh
•  Prop: 19x10, 20x8 wood or carbon electric

SERVO: Metal gear hi-torque servos

• 2 Aileron: hi-torque 30-40 kg ( Standard size: 20x40mm )
• 2 Elevator: hi-torque 16-22 kg ( Medium size: 18x36mm )
• 1 Rudder: hi-torque 16-22 kg ( Medium size: 18x36mm )
• 1 Throttle: hi-torque 12 kg ( Medium size: 18x36mm ) (Gas Power)

Colour chart

• White                # 21010
• Cub Yellow        # 21030
• Corsair Blue      # 21019
• Sky Blue            # 21053
• Ferrari Red        # 21023
• Grey                   # 21011
• Black                  # 21071
