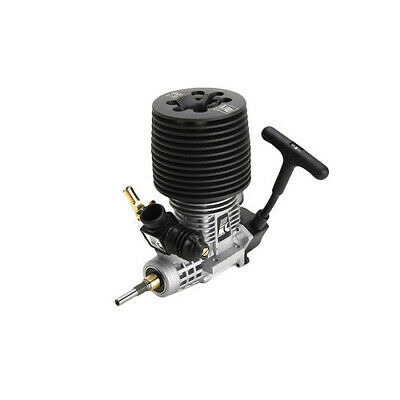

FORCE 32 Car/Truck/Buggy Engine #FE-3201

Features
Unique pull start pin design allows conversion to non-pull start by purchasing different rear engine covers- ABC cylinder & piston set-Aluminum piston,Brass cylinder liner
with Chrome plating on the cylinder
Improved porting for higher torque and RPM power
Competition slide valve carburetor
Oversized cylinder head for efficient cooling.

Includes
Ofna Force .32 cu in (5.2cc) Pull Start Nitro Engine with instruction sheet, rubber exhaust gasket, collet and 3x6mm socket head screw to hold clutch assembly to crankshaft

Requires
Fuel: Car fuel with 20% nitro content,Glow Plug: Long, without idle bar.

Specifications
Displacement: .32 cu in (5.2cc)
Exhaust: Rear
Bore: 19.5mm
Stroke: 17.5mm
Liner : ABC
Number of Ports: 6
Crankshaft: 14.0mm SG (pilot) shaft
Piston: Fully CNC-machined aluminum alloy
Connecting Rod: 7075 aluminum double bushing
Claimed Output: 3 @ 33,000RPM
Max RPM: 36,000
Needle Settings: Main: 3-3-1/2 turns from closed. Low Speed: Flush with ball end
Barrel Stop Screws: 1/16" gap to start new engine
Distance Between Mounting Holes Same Side: 0.83" (21mm)
Distance Between Mounting Holes Opposite Side: 1.5" (38mm)
Height Bottom of Mounting Tabs to Top of Cylinder Head:4" (102mm)
Width at Mounting Tabs: 1.8" (45.8mm)
Width of Crankcase Below Mounting Tabs: 1.2" (30mm)
Distance from Pull Start to Front Bearing: 3.3" (84.3mm)
Distance from Center of Engine to Front Bearing: 1.8" (45mm)
Distance from Center of Engine to Pull Start: 1.5" (39mm)
