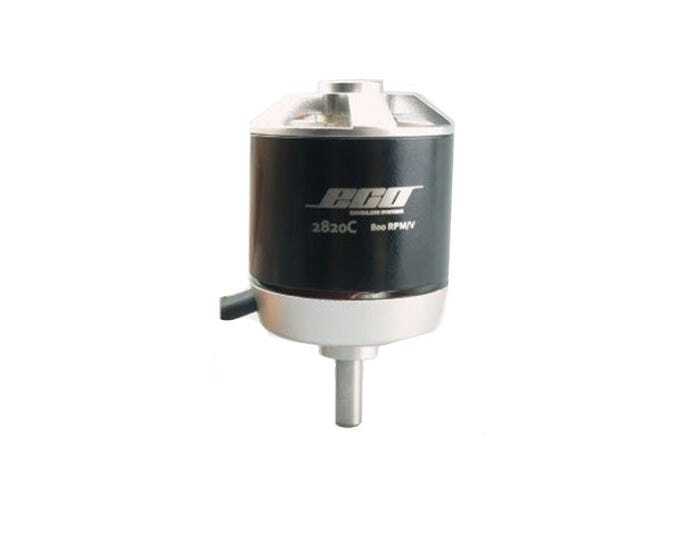

Features

  • Based on the system of CA2, highlighting the price performance
  • Designed for airplane model
  • Provide rich KV choices and part of the KV is also suitable for multi rotors
  • Power ranging from the indoor model to the 50E model planes
  • Choose high quality silicon steel sheet material and ball bearing, working stability
  • Easy to install in two ways: installation after the fire prevention (the glider) and before fire prevention (aerobatic plane)
  • The whole aluminum alloy CNC machining and anodized
  • The marks are laser marked, not affect the dynamic balance
  • Standard wire length and presoldered plugs
  • The accessories include propeller mount, gold plugs, mount and screws

Specs

RPM/V KV: 940
Turns: 5.5
Weight: 138g
Dimensions: 35.2 x 40.2
Slots & Poles: 12N 14P
Ri (mOhm): 34.5
Io @ 10V (A): 1.2
No. of Cells (LiPo): 3 - 4
Max Efficiency Current (A): 26
Max. Burst Current (15S) [A]: 40
Max. Power (15S) [W]: 480
Max. Torque [N*M]: 0.49
Shaft Diameter (mm): 5
Mounting Holes Pitch: 19/19
Input Connectors: GC3.5
Recommended ESC: XC-45-LITE or XC4018BA
Propeller: 3S: 12x6E, 13x6.5E | 4S: 10x5E, 9x5E
Class: .21-.30 Class
SKU DSXM51664
Barcode # 6941047116641
Brand Dualsky
Shipping Weight 0.4000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
