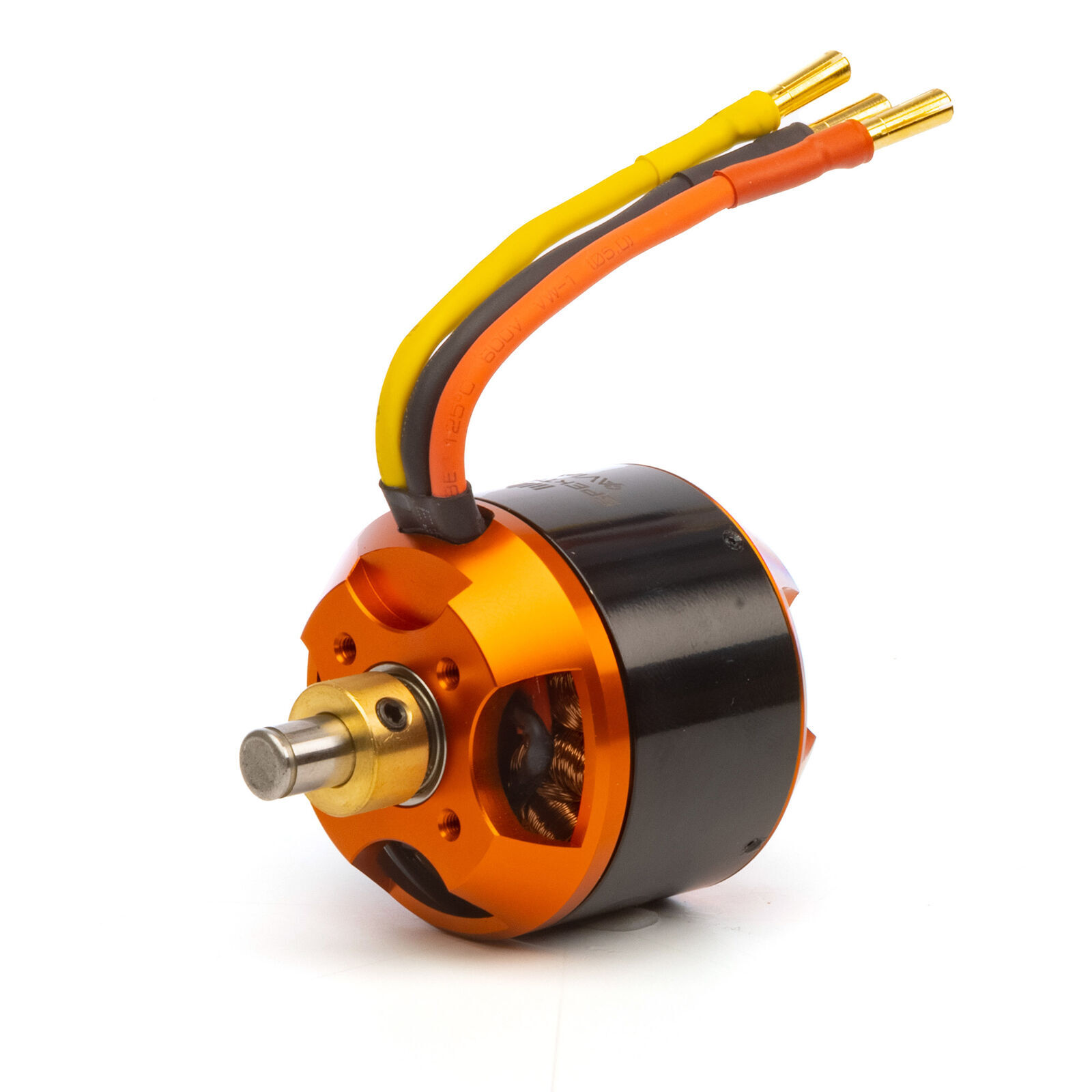

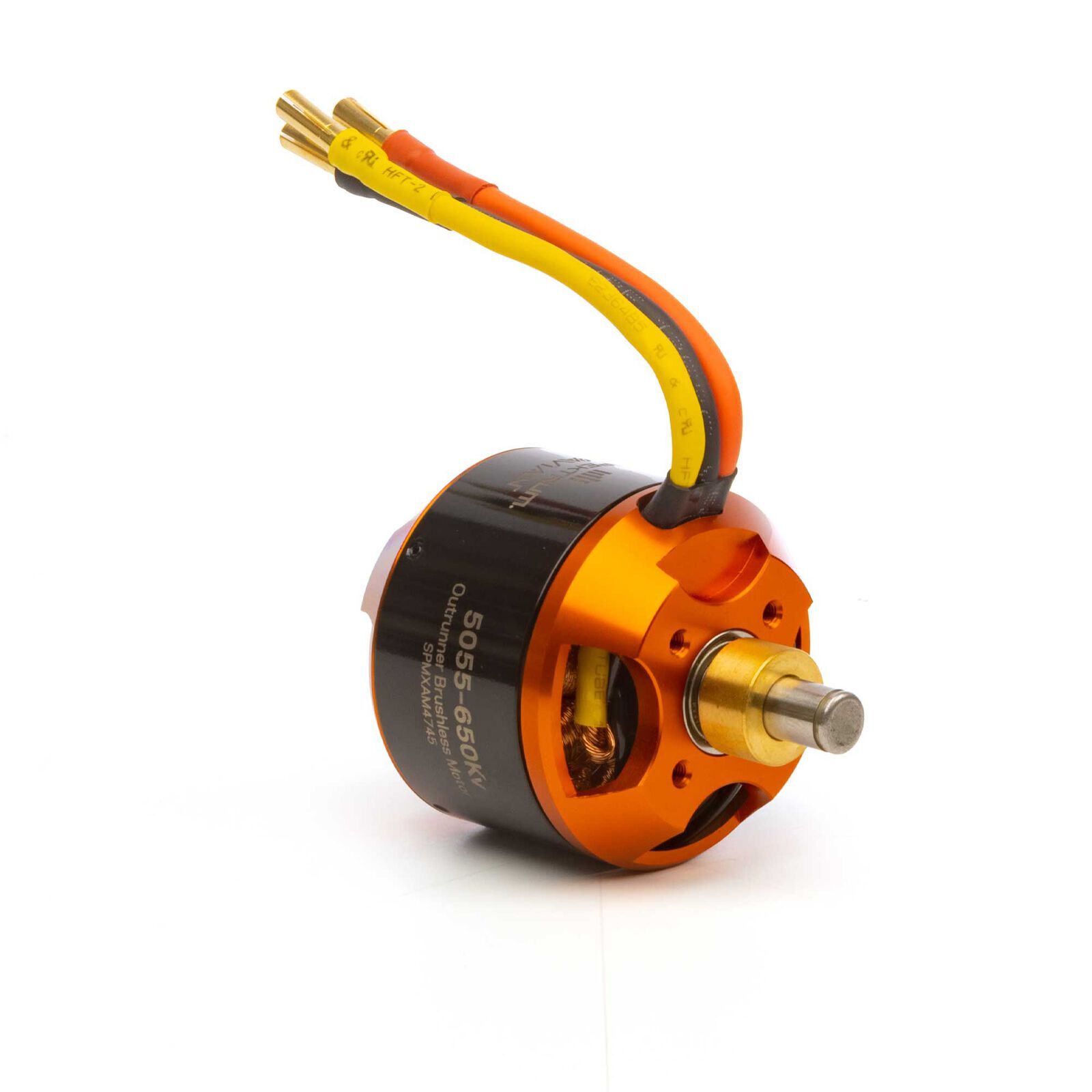

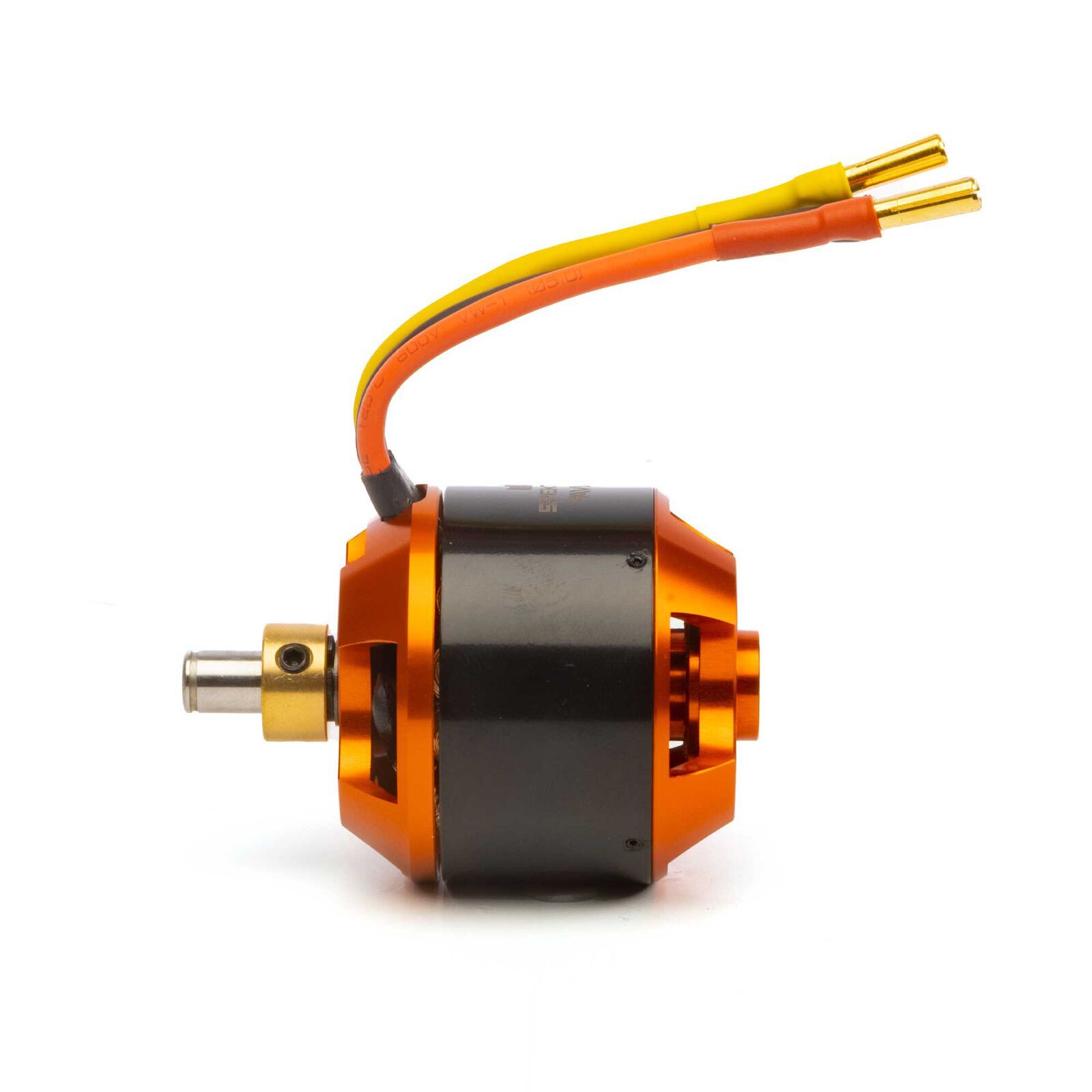

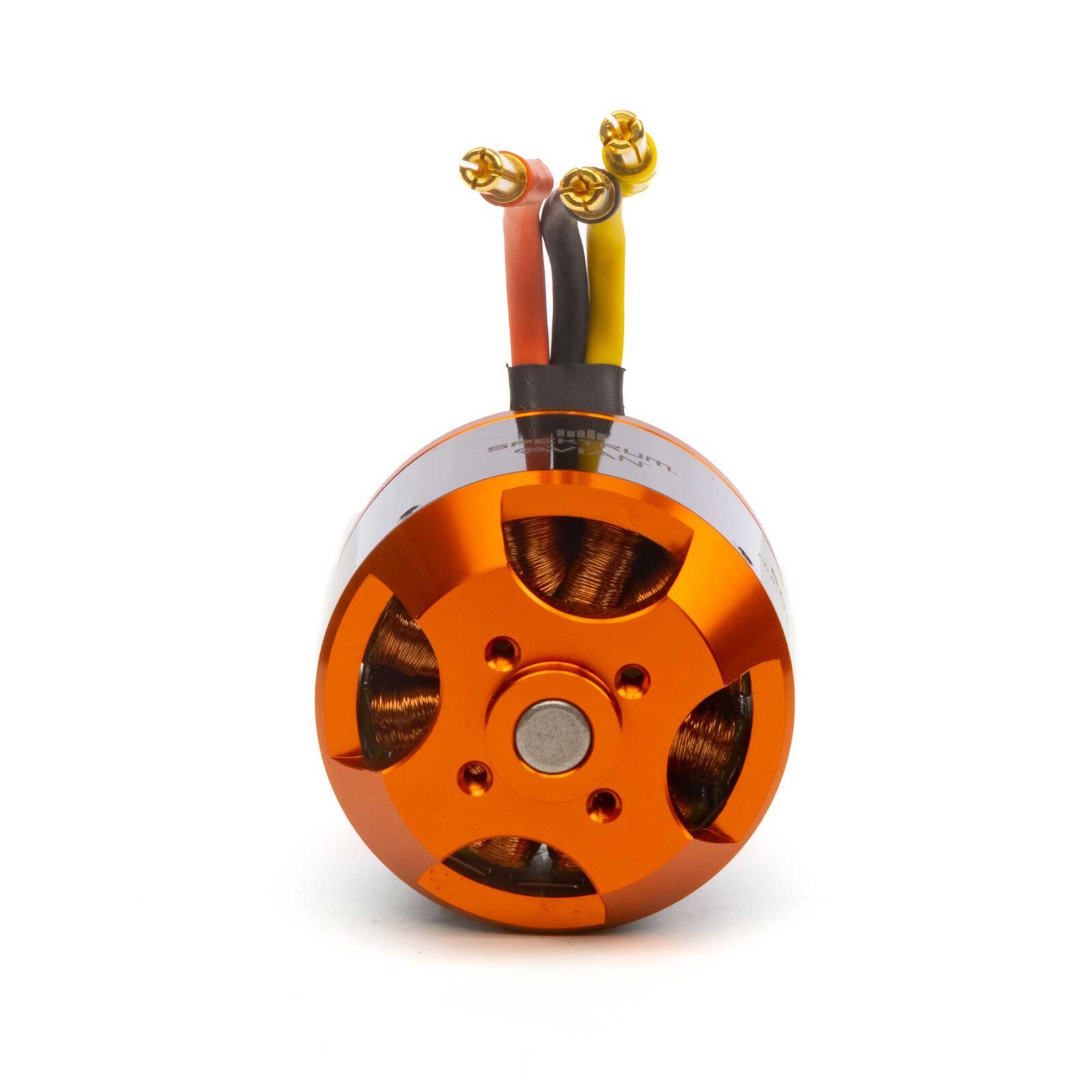

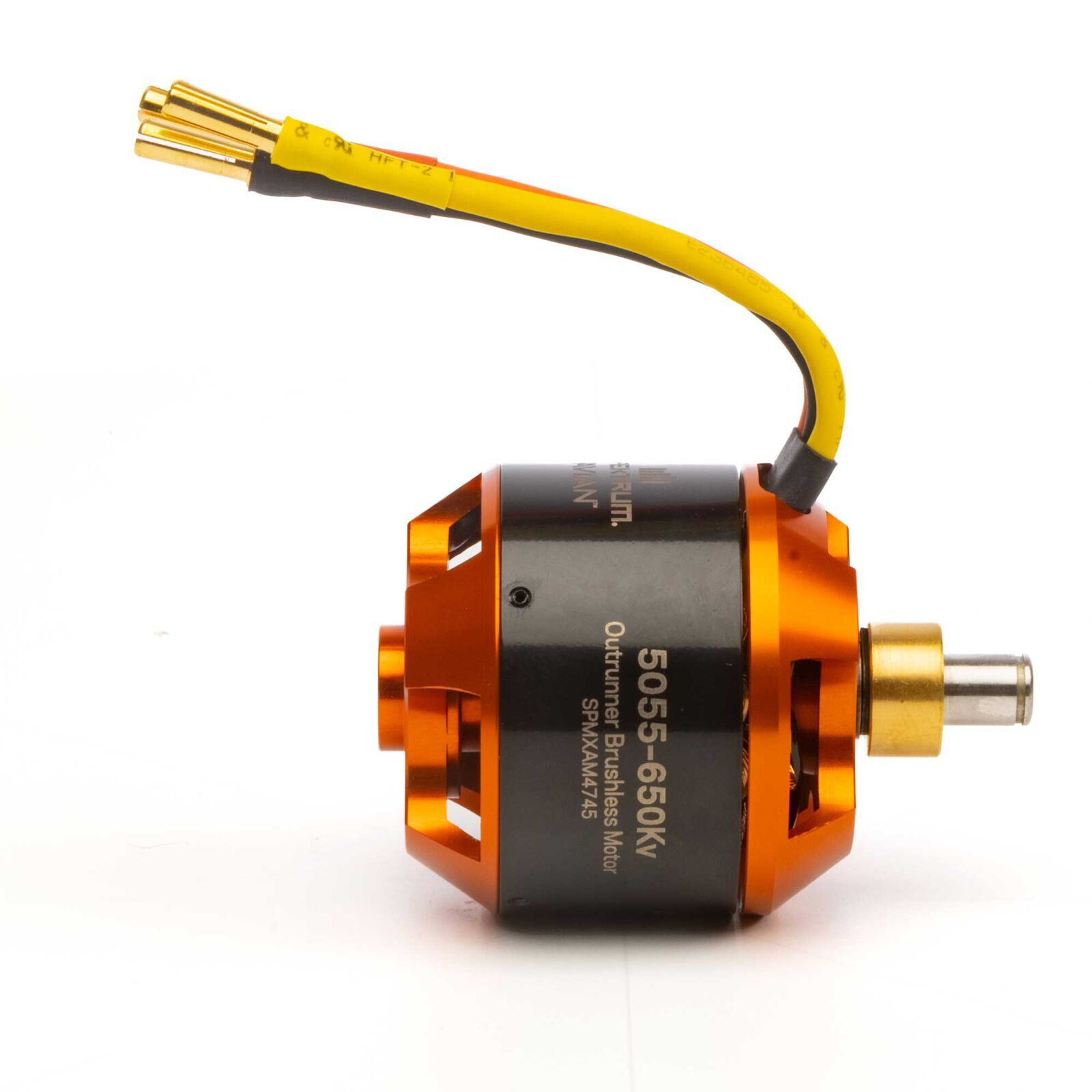

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

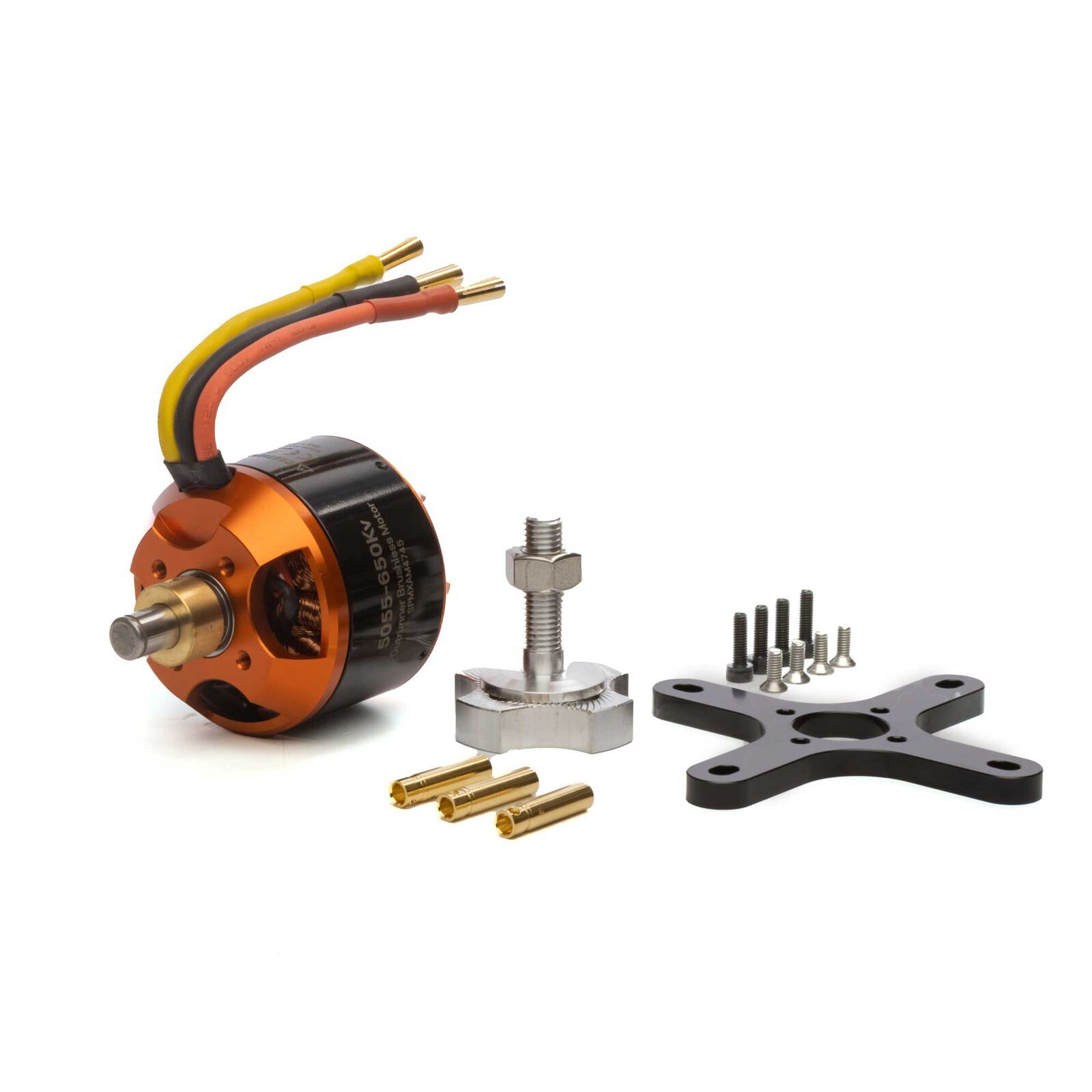

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 60 amp ESC
  • Perfect electric conversion upgrade for 60 size glow combustion power systems

Important Specs

  • Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
  • Recommended Propeller Range – 12x6 to 13x4 Electric Propeller
  • Recommended Model Flying weight – 3D 2950g (6.5 lbs) - Sport 4705g (10.5 lbs)
  • Max Wattage – 900w
  • Max Current – Max Burst Amps (85A) Max Continuous Amps (60A)

Product Specifications

Motor Design Outrunner
Product Weight 10.5
Recommended Prop Range 12x6 - 13x4E
Constant Wattage 750-999W
Maximum Burst Current 2200 Watts
Maximum Continuous Current    65A
Motor Type Brushless
Shaft Diameter 0.32" (8 mm)
Input Voltage 18.5-22.2V (5-6S LiPo)
Kv Rating 500-749Kv
Motor Output Lead 4
RPM/Volt (Kv) 650
Sensor Type Sensordless
Shaft Length 0.79" (20 mm)
Adjustable Timing No
Integrated ESC No
Connector Type 4mm Bullet
Motor Class Large
Product Length 2.17" (55 mm)
SKU SPMXAM4745
Barcode # 0605482102084
Brand Spektrum
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.150m
Shipping Cubic 0.001200000m3
