This is a Standard Servo with a Ball Bearing on the output shaft.
This has a "J" connector and uses a nylon gears.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES: Single Top Ball Bearing Same mounting as S148 and S9201 (individual rectangular grommets) 3-pole motor Nylon gears



FUTS3001
Volts Torque Speed
4.8V 33 oz-in (2.4 kg-cm) 0.28 sec/60°
6.0V 42 oz-in (3.0 kg-cm) 0.22 sec/60°

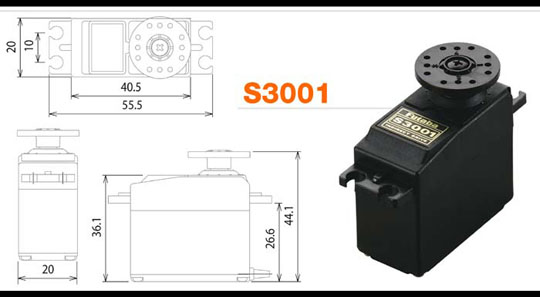

Dimensions Weight
1-9/16 x 13/16 x 1-7/16 in
(40 x 20 x 36 mm)
1.6 oz (45 g)

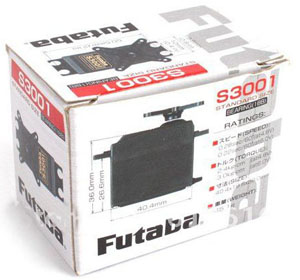

INCLUDES: One S3001 Standard Servo One accessory package




SKU FUTS3001
Barcode # 4513886003011
Brand Futaba
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
