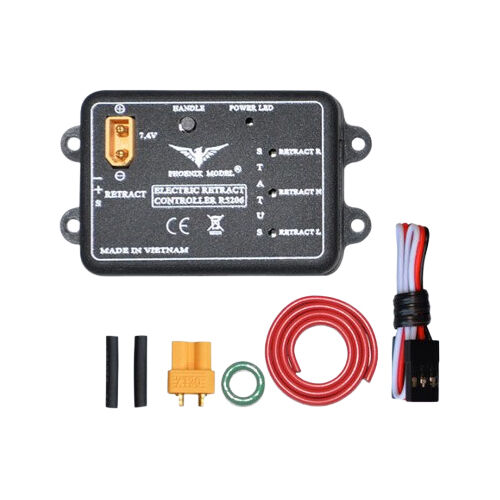

Phoenix Models R5206 Electric Retract Controller Box is a compact and reliable control unit designed to operate electric landing gear systems in RC aircraft. It provides smooth, synchronised control of retracts and supports both 7.4V power input and standard receiver connections. Easy to install and lightweight, this controller helps ensure consistent retract operation and tidy wiring in your model aircraft setup.

Specifications

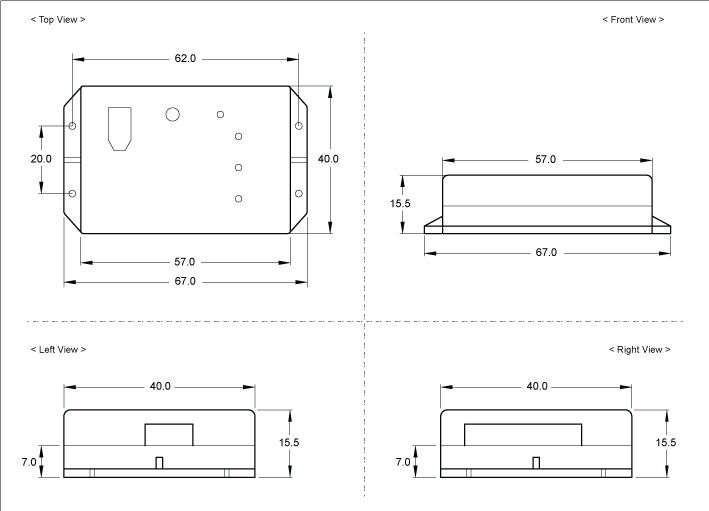

Weight: 23gram
Length: 68mm
Width: 45mm
Height: 16mm
Operating Voltage: 7.4v (direct from 2s LiPo battery)
Note: This product is suitable for aircraft weighing from 4000 gr - 12000 gr.

SKU PHN-R5206
Barcode # 8936044926858
Brand Phoenix Models
Shipping Weight 0.0700kg
Shipping Width 0.090m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000648000m3
