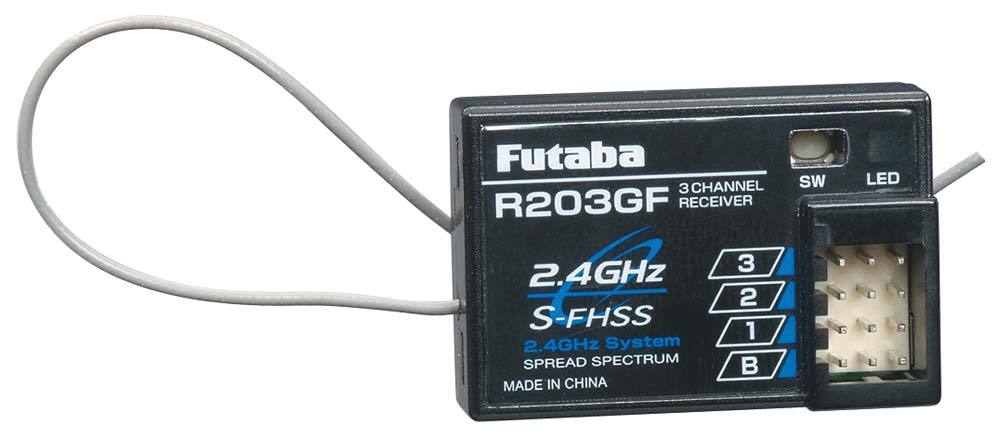

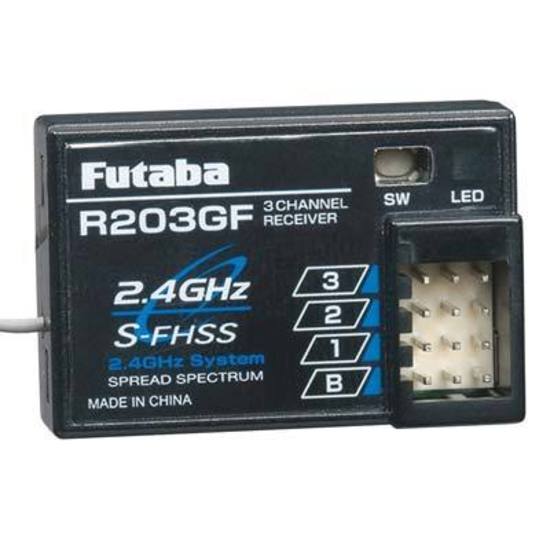

This is the Futaba R203GF 2.4GHz S-FHSS 3-Channel
High Voltage Surface Receiver.
FEATURES

S-FHSS/FHSS auto detection
Normal and High-Speed Modes:
Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any
type of servos or peripherals.
High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts
digital servos including the BLS series and most peripheral
equipment such as brushless ESCs


INCLUDES

Futaba R203GF 2.4GHz S-FHSS 3-ch Receiver with Instructions

REQUIREMENTS

Installing in model and linking to transmitter

SPECIFICATIONS

Dimensions: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
Weight: 0.28oz (8g)
Operating Voltage: 4.8 - 7.4V (shared with servo)
Battery Fail Safe Voltage: 3.8V*
Current Drain: 30mA at no signal
*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery.
Battery F/S does not work properly when other type of battery is used
Antenna Length: 7-1/2"

COMMENTS

Not compatible with Futaba FASST systems.

SKU FUTR203GF
Brand Futaba
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3

Good value receiver

20 June 2018
Recently upgraded to 2.4ghz radio gear from old FM gear. Can be tricky to bind with 3PV if already setup to a higher grade rx could use some clearer instructions on setup. Other than that a good quality entry level unit.
